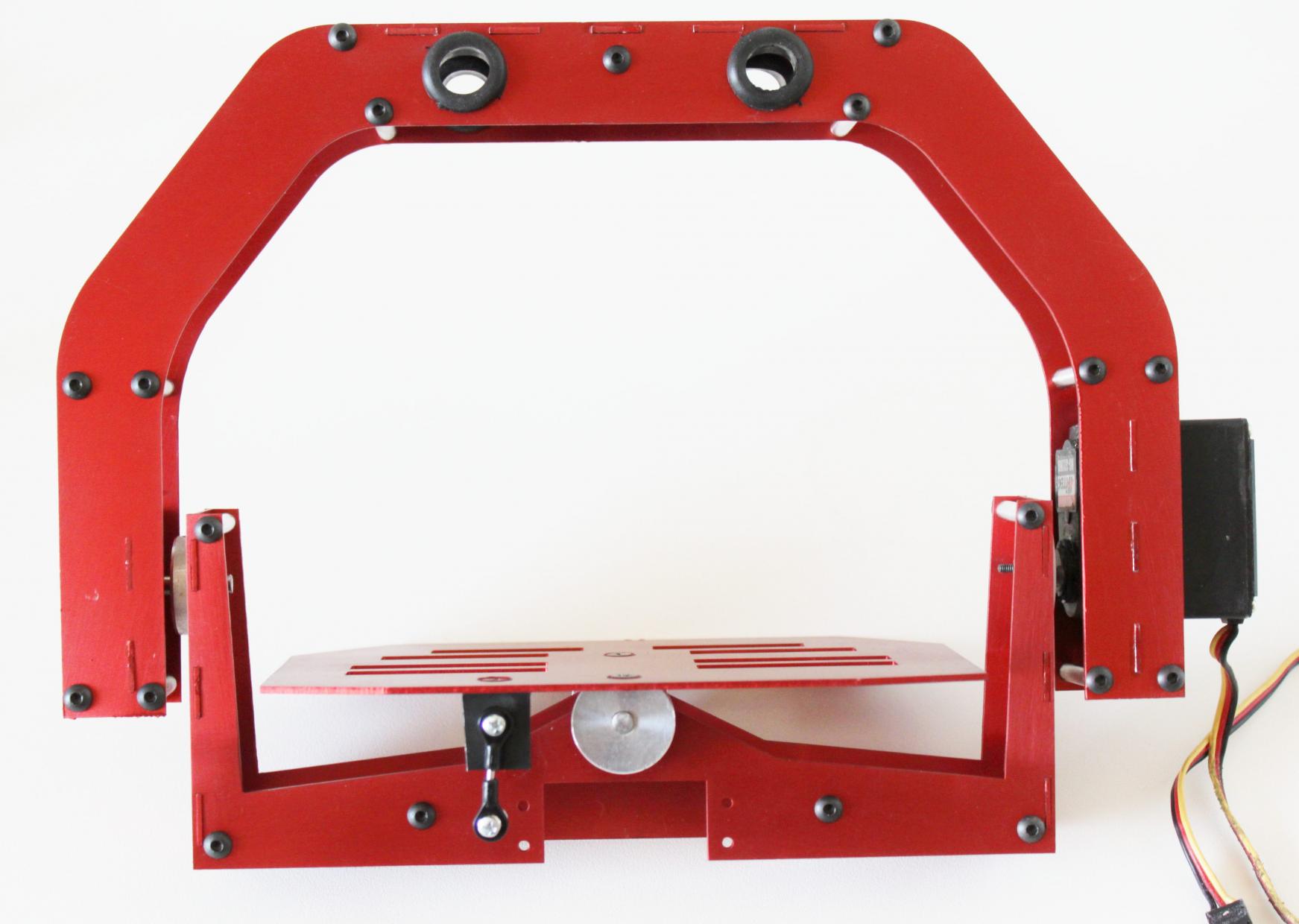

Just got mine ready to add my new kit tomorrow wahoo View attachment 7327



[scottevil]

Hi everyone, first post here.. i'm very active on the openpilot forums but i thought i'd branch out this weekend

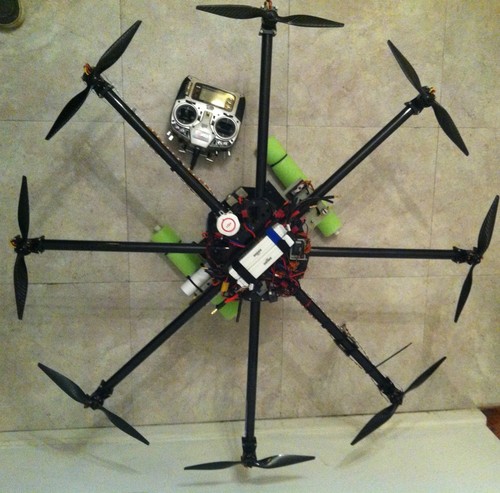

here is my FPV rig

View attachment 7355



[kloner]

nice, how you like the sony? working decent?



[scottevil]

nice, how you like the sony? working decent?

works great, i like it better than my hero2 for sure, but the hero3 looks like it might be added to my collection as well

you can see some footage i've taken with it on my yt page, http://www.youtube.com/user/scottoertel



[VINHEX]

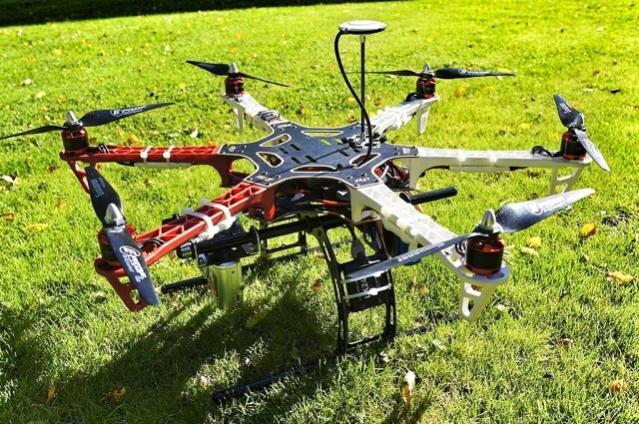

Now added the kitView attachment 7356

Must say image is crystal clear... Will see how she flys when weather permits



Vin
DJI F550
DJI WKM
DJI DataLink 2.4Ghz
3s 3300
3s 5000
Aeroxcraft Landing Gear
Graupner 10x5 e-Props
Spektrum DX8
AR8000 Receiver
TM1000
Fatshark Attitude SD
Sony Exview Had II CCD 650 Line Sony Effio-E
Fatshark Spironet Antenna's



[Tasajara]

FPV Quad

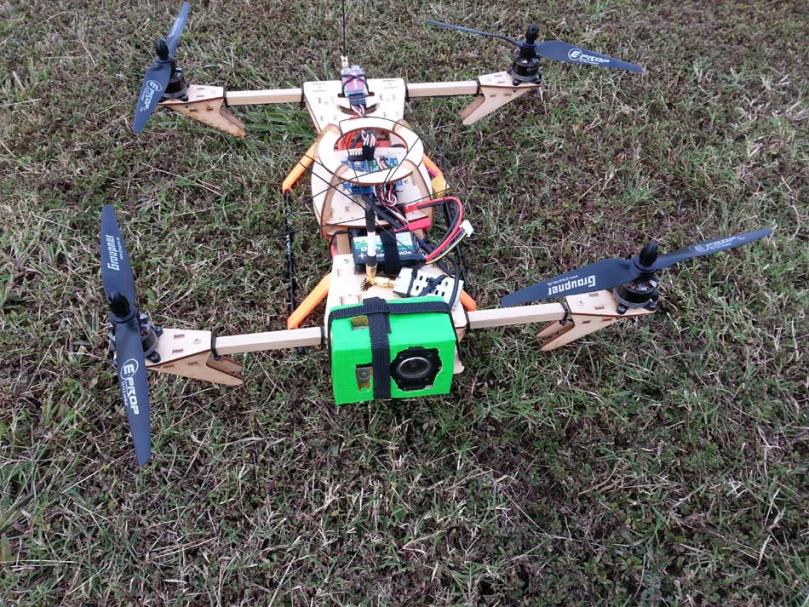

This is my FPV Quad
BlueSkyRC xRotor IFrame
1100kv T-Motors
Flashed ESC's
EZUHF RX
1.3gHz VTX
MultiWII controller



[cpmboy]

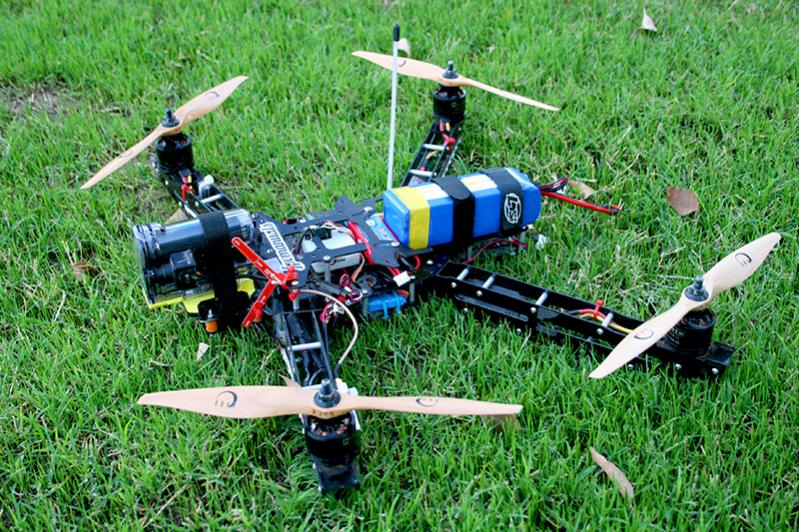

my simple FPV rig....hvnt fully tested it yet....its been raining quad,hex,octo for the past 3 months...



[Jackella]

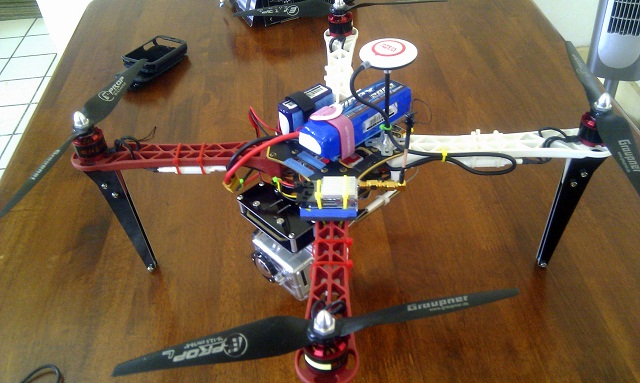

heres mine,cut down DJI hexa frame and 10mm ali arms.470 size,weighs in at 805g with FPV gear and Gopro without lipo.



[Ecibob]

I'm getting back into FPV and was wondering how you interfaced the gopro to transmit FPV video? or do you have a separate TVL camera? thx!

my simple FPV rig....hvnt fully tested it yet....its been raining quad,hex,octo for the past 3 months...



[kloner]



[SamaraMedia]

kloner, is that a PhotoHigher AV130 gimbal under the first quad? If so, how are you mounting that to the quad. I have an AV130 that I'm trying to figure out the best way to mount on my F550.

Thanks,

John



[Stupest]

You can buy a video out cable that connects to a video transmitter. Search gopro video out should give you quite a few options



[kloner]

it is the AV 100 tilt only. Bolted it up using the Aerial Media Pros mount kit. theres a few solutions for yours there



[Efliernz]

I fly a heap but I don't do much with fpv at all... although I have had a set of goggles for 5 years!

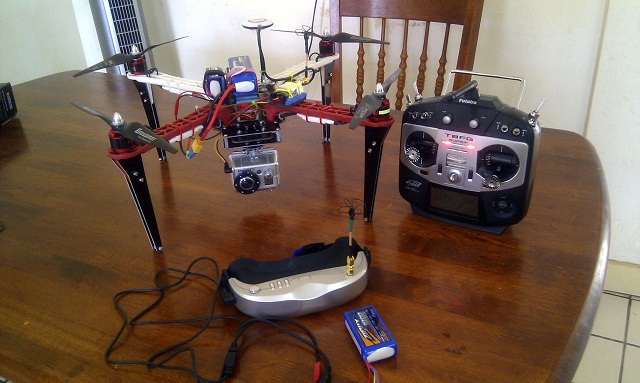

I threw together last night. Nothing fancy. RCT 2836/11 motors, KK2 controller, 3S and 4S capable.

Pete



[matwelli]

Looks good Pete. What lens on the gopro? I need to swap to 1.3 ghz haven't been happy with 5.8

Sent from my GT-I9300T using Tapatalk 2



[Efliernz]

Standard Gopro2. I still have lots of vibes to sort. The fpv is from the separate cam to the side of the Gopro.

I am using 1.3g - 400mW on this. I will be range-testing it tomorrow with Stacky coming down for a play at the field.

The KK2 isn't behaving yet. A few instability wobbles that I cant tame. I was flying without the Gopro so the balance may not have been on the spot. I have a 4 1/2" screen on a stalk on my Tx that I'm using to test it. I was comfortably flying around "my park" using just the screen - with the ability to look up if required. A good start.

Pete



[FerdinandK]

Here my FPV-birds:

Quad, 14x7 props, tiger motors, Hobbywing 4in1, Naza, EZTiny Gopro 3 and 5,8Ghz Video-Downlink:

https://vimeo.com/57181796

Y6, 11x5 props, tiger motors, Hobbywing 18A, Naza, EZOSD, HorizonHD cam (with tilt) and 5,8Ghz Video-Downlink:

X12, 11x5 props, sunnysky motors, Hobbywing 25A, Naza, EZOSD, GoPro2 on Gimbal and 5,8Ghz Video-Downlink

This is my "special operations" copter, whenever I fly it, it becomes an adventure:
Lost two props in flight:
https://vimeo.com/47266306
propeller icing:
https://vimeo.com/56590314



[Efliernz]

Stacky and I did a run out to the Hamilton field this morning. I knocked off 7 batteries - 5 in the new FPV machine. That only stopped because I fell off the top of the fields dunny while landing fpv on the roof! I flew 360M away and to the 400' limit (with an observer). We had a blast. I also flew the DW VM-6 fpv for the first time. Nothing too adventurous but it was so damn easy in manual-mode with Hoverfly. So smooth. I am using Photohigher Skyline to control the gimbal. Really good results all round.
I can now see the attraction to flying 50kph "just" above the corn field What a blast.
Now I have 60 minutes of video to sort... when I get back from a 3-day trip.

Pete



[Efliernz]

60 minutes of flight time cut to 6.
The copter is a bit wobbly (good ol KK2) and the Gopro has some jello but some of this is good I think. Not bad since I've flown only 2-3 times fpv in the last year.

Pete



[Efliernz]

I'm open to suggestions over the KK2 V1.2 programming! I need to tune it as the gains are too high...
