Overlapping Propeller Designs

Discussion in 'Recreational sUAS Flyers Discussions' started by R_Lefebvre, Sep 12, 2012.

  1. flytofly

    flytofly Member

    50
    0
    0
    Jan 18, 2012
    Posted by flytofly, Sep 19, 2012 #41


    Great feedback. i need to search for that episode.

    Jes, are you flying an MK coax 8? If so, where can I find mixer info? I believe most people are using larger diameter props with a steeper pitch on the bottom motor which is set to spin faster?

    Thanks

    Last edited by a moderator: Sep 19, 2012
  2. flytofly

    flytofly Member

    50
    0
    0
    Jan 18, 2012
    Posted by flytofly, Sep 19, 2012 #42


    Nice! Looking forward to seeing your results. What would be awesome is thrust comparison between single, coax and overlapping props.

    Last edited by a moderator: Sep 19, 2012
  3. matwelli

    matwelli Member

    745
    41
    11
    Jan 11, 2011
    Hawera, New Zealand
    Posted by matwelli, Sep 20, 2012 #43
    no idea on the eficiency, need to test it, but she was hovering at 38% throttle

    Maiden flight, as usuall windy (need to be up around 5:30 am at the moment for a still day, but the forcast tomorrow looks good)

    was worried with the increased blade area (over a coaxial) it would get "lifted" during gusts, but over all seemed to sit nicely

    not an exciting vid, but i like to document my flights/new builds

    http://youtu.be/I_NOEVHe72M

  4. flytofly

    flytofly Member

    50
    0
    0
    Jan 18, 2012
    Posted by flytofly, Sep 25, 2012 #44
    Mat, thanks for sharing. Are you using the same props for all motors? I wonder if using a steeper pitch on the bottom would make any difference? Maybe spinning slightly fast than the upper prop.

  5. R_Lefebvre

    R_Lefebvre Arducopter Developer

    1,190
    23
    21
    Jun 29, 2012
    Ontario, Canada
    Posted by R_Lefebvre, Oct 23, 2012 #45

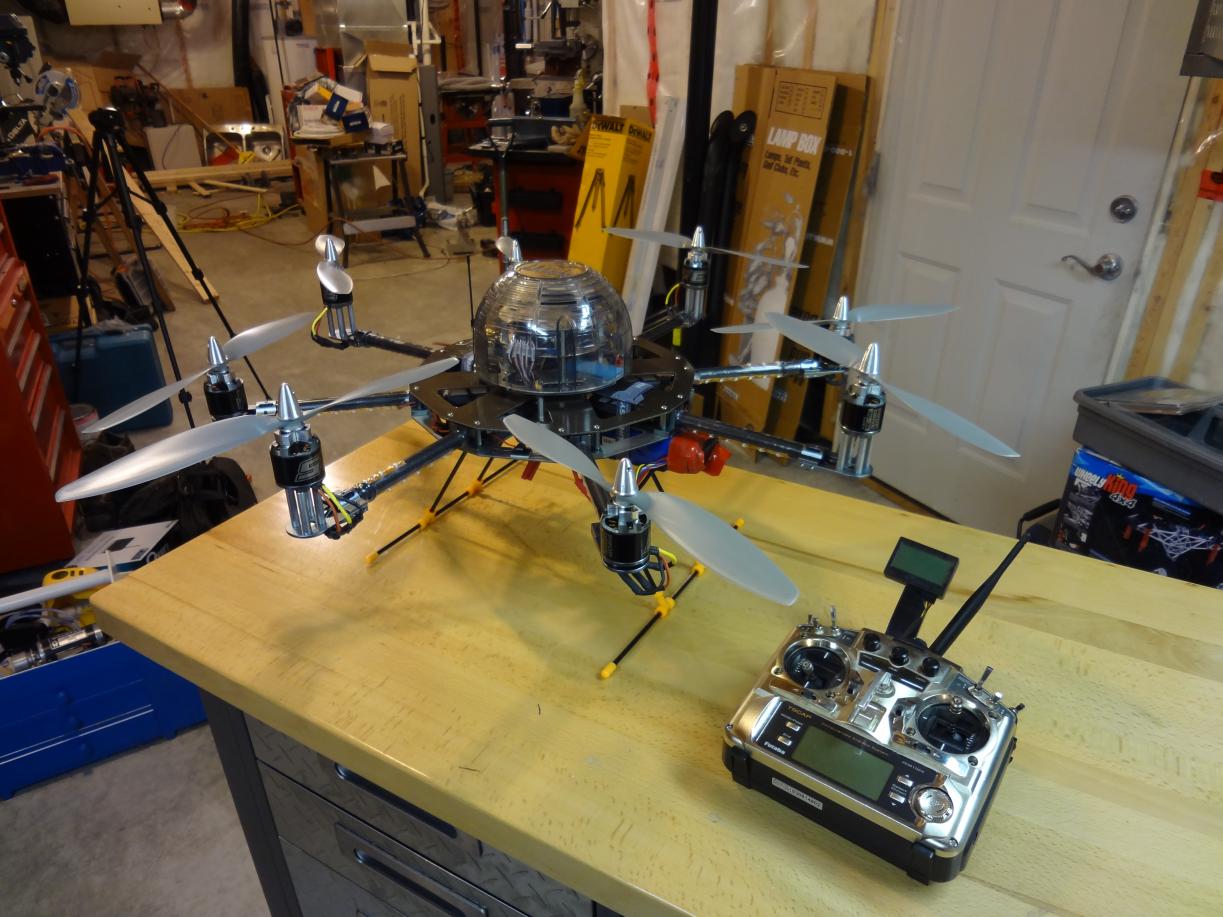

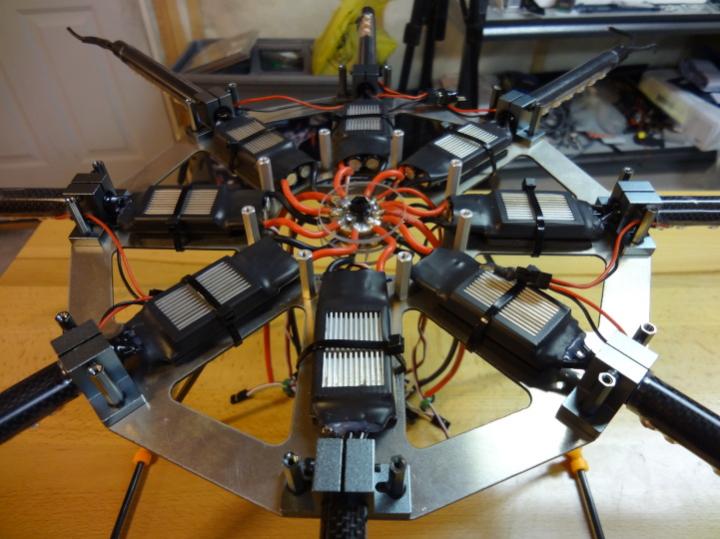

    DwarfStar flew for the first time last night. It flew perfectly right off the bat. I loaded in some suggested gains, and the results were perfect. I just tuned them up a bit and it's all set. No weird noises or visible vibrations. Smooth as butter, and just a typical APC SF hum from the props suggest nothing strange is going on. Rock solid stable. And ridiculously overpowered.

    630mm Octo capable of lifting 5kg.

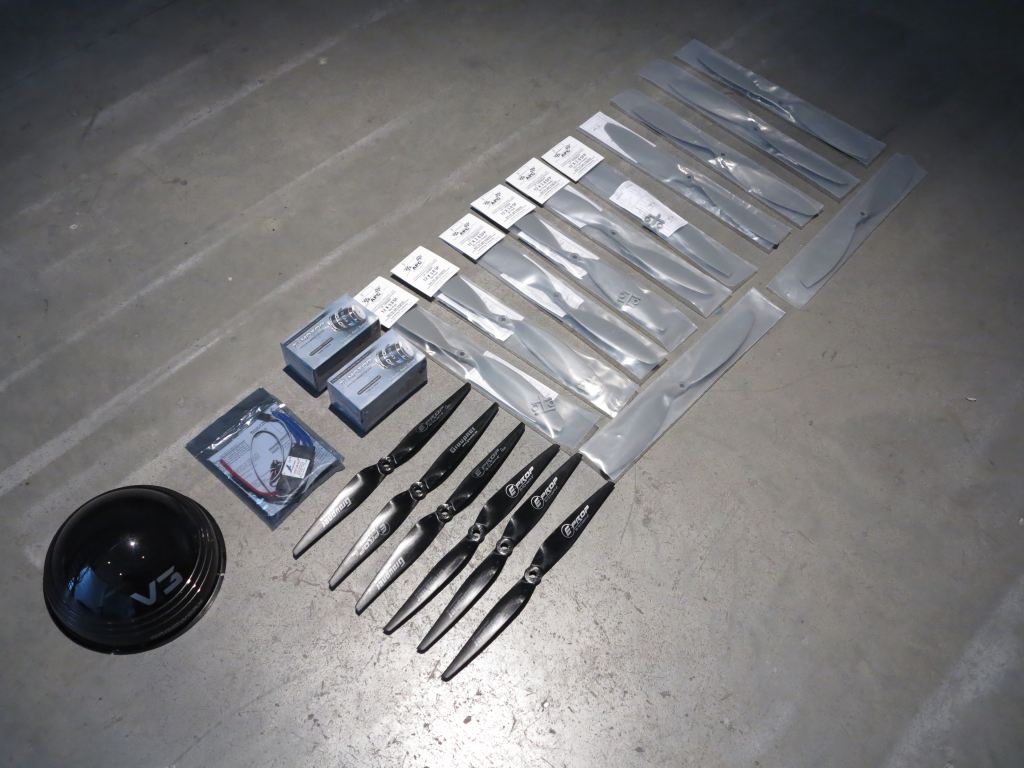

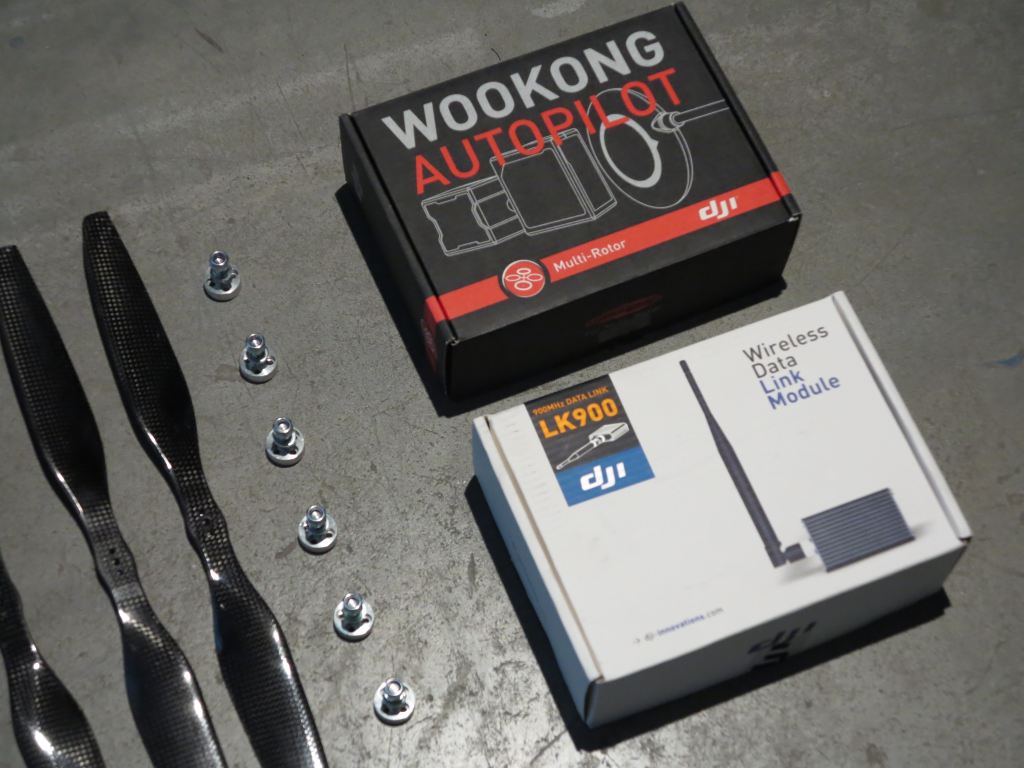

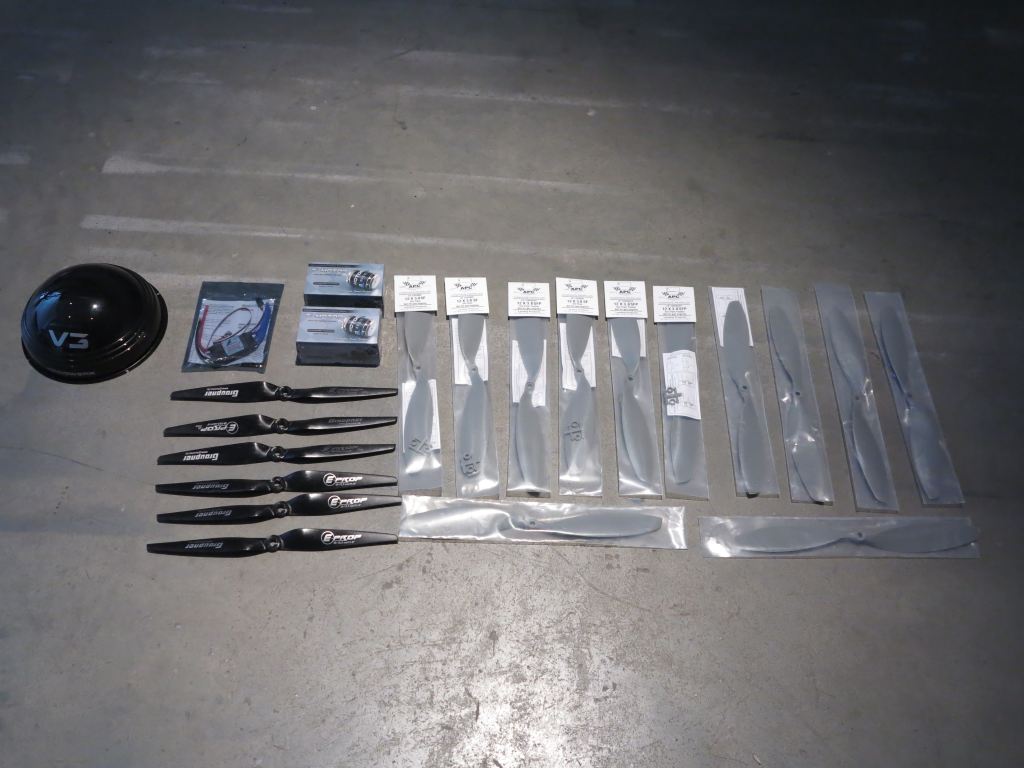

    View attachment 7236 View attachment 7237 View attachment 7238

    So far so good. I'll provide more info as I get it.


    Attached Files:

  6. flytofly

    flytofly Member

    50
    0
    0
    Jan 18, 2012
    Posted by flytofly, Oct 23, 2012 #46
    That is one beautifully built machine! Very clean. How much overlap do you have? could you upload an overhead picture showing 2 props overlap amount? Thanks!

  7. R_Lefebvre

    R_Lefebvre Arducopter Developer

    1,190
    23
    21
    Jun 29, 2012
    Ontario, Canada
    Posted by R_Lefebvre, Oct 23, 2012 #47
    Thanks.

    No good overheads sorry, the overlap is ~60mm.

  8. flytofly

    flytofly Member

    50
    0
    0
    Jan 18, 2012
    Posted by flytofly, Oct 24, 2012 #48
    Thanks!

  9. kloner

    kloner Aerial DP

    8,642
    15
    0
    Jan 5, 2012
    San Diego
    Posted by kloner, Oct 24, 2012 #49
    very nice rob

  10. R_Lefebvre

    R_Lefebvre Arducopter Developer

    1,190
    23
    21
    Jun 29, 2012
    Ontario, Canada
    Posted by R_Lefebvre, Oct 24, 2012 #50
    I flew it last night, and I wasn't as happy, but maybe it's not a problem. So the conditions were, maybe a 10-15 km/h breeze, whereas the night before it was dead calm. I took off and noticed a twitching. I started working the PID's, and it took a while before I realized I had accidentally set them back to defaults, so they weren't where I was the night before. Anyway, I was totally in "PID Tuning Mode" and not thinking straight. I couldn't get the PID's tuned, it was just twitchy. I was worried maybe in turbulent conditions there is some bad wake interactions.

    This morning I got my head on straight and realized that I was trying to tune PIDs, flying very low, mostly in ground effect, downwind of a pine tree in a breeze. Just about worst case scenario.

    I'm going to test more tonight.

  11. R_Lefebvre

    R_Lefebvre Arducopter Developer

    1,190
    23
    21
    Jun 29, 2012
    Ontario, Canada
    Posted by R_Lefebvre, Oct 25, 2012 #51
    Two more flights last night. Conditions were dead calm again, and it flew perfectly. I tuned the PID's, and I think I was way out of range before, was the problem. I'll just wait for some wind to see now.

    But otherwise it flies brilliantly. It's way way way overpowered. It can climb faster than my 600 heli. I think I got almost 15 minutes from 2 4S5000 packs, which beats the eCalc calculation a little bit. I think that typically I will want 4 4S5000 packs, because the maximum current draw of this thing is much too high for 2 20C packs. I'd need like 40C packs at least. The average draw is much lower than 20C, but when I punch it, it's way too much.

  12. flytofly

    flytofly Member

    50
    0
    0
    Jan 18, 2012
    Posted by flytofly, Oct 27, 2012 #52
    Are you testing with any payload? What AUW are you aiming for once your test are confirmed?

  13. R_Lefebvre

    R_Lefebvre Arducopter Developer

    1,190
    23
    21
    Jun 29, 2012
    Ontario, Canada
    Posted by R_Lefebvre, Oct 27, 2012 #53
    No payload yet. I don't really have a solid plan for AUW. I have planned for at least 1kg however, representing small P&S and a solid gimbal that doesn't vibrate and buzz like most do.

    I flew it last night in some light but turbulent winds and it went OK. I had to dial back the PID's more, but it's stable. Well, probably as stable as a MR can be. It's hard for me to draw a good conclusion since it's been a while since I flew my quad, and my SRH is rock solid.

    Last edited by a moderator: Oct 27, 2012
  14. Posted by Benjamin Rowland, Oct 20, 2013 #54
    I know I'm digging up an old thread here, but I was curious if you've continued to test overlapping props. Thanks!

  15. dcame002

    dcame002 Member

    15
    0
    0
    Feb 14, 2013
    Posted by dcame002, Dec 20, 2013 #55
    I hate to keep an old thread alive, but I've been messing around with overlapping props as well. Is 23+/- 1 amps at 11 volts amps in hover (wattmeter) ok for a 1.3 kg hex? I have props overlapping and dihedral on both sides.

    http://www.youtube.com/watch?v=r3JV1TASj5w

  16. Fat Corgi

    Fat Corgi Member

    127
    0
    1
    Mar 29, 2014
    Sydney, Australia
    Posted by Fat Corgi, Sep 24, 2014 #56
    Hey [MENTION=3314]R_Lefebvre[/MENTION], did you ever do anymore testing with your overlapping octo rig? What happened in the end?

  17. R_Lefebvre

    R_Lefebvre Arducopter Developer

    1,190
    23
    21
    Jun 29, 2012
    Ontario, Canada
    Posted by R_Lefebvre, Sep 24, 2014 #57
    Well, yes, I ended up using it a little bit and got pretty good results. It was very very stable. Not saying it's more stable than anything else, but certainly not less stable, which some people thought it would be. The only real disadvantage was it does make quite a bit of noise and vibration. Due to wake interactions. It wasn't a problem though because the way that I built it, the vibes on the camera were very low. And the flight time was short at 9 minutes when I had the camera on, which is a bit lowish. But that was due to 12" props not the design.

    So, it worked out pretty well I'd say. But I had a crash and never got around to rebuilding it.

  18. Rockli

    Rockli Member

    11
    0
    1
    Apr 20, 2018
    china
    Posted by Rockli, May 3, 2018 #58
    Good question. I think as long as you don't have all the motors on the bottom going all one direciton, and the top motors in the opposite direction

    added a new question:
    could you upload an overhead picture showing 2 props overlap amount?

    Last edited: May 7, 2018
  19. Rockli

    Rockli Member

    11
    0
    1
    Apr 20, 2018
    china
    Posted by Rockli, May 7, 2018 #59
    Good Job!
    I think you to shrink an octo to a more manageable size.

    Last edited: May 7, 2018
