looks really nice. What prompted the switch from X8 to quad? Just sheer endurance?
anaka HL build
- Thread starter anaka
- Start date
SamaraMedia
Active Member
I'll be interested in your performance and review of the props. I have the same motors on a hex using 15" KDE triples or T-Motor 15". How do you think the motors will handle props that size? KDE specs don't show running temps with different props like some other manufacturers.
anaka
Member
Hi crayfellow, i also changed the motors, on the X4 config i use the E4215XF-465 this way i can use also my old set of 4S batteries
so at the end of the game i have a lighter setup with the same performances and i gain aroud 3 minutes of flight time
the next step is to try the 18" foldable triple props on the X8 configuration, i just have to change arms and try them
will post my impressions asap
Hi jwoike before these props i used the 18" T-Motor V2 propellers, same quality in materials and machinery, very good product but expensive
the new folding props from KDE are at the same lever...maybee a bit higher than T-Motor ones but they are forlable!
it's the only one that gives 18" props foldable that are perfectly balanced from factory so if you want to have a more compact setup, with a really well done and balanced set of motors and props from same developer, KDE is the answer...it costs a bit but it deserves
so at the end of the game i have a lighter setup with the same performances and i gain aroud 3 minutes of flight time
the next step is to try the 18" foldable triple props on the X8 configuration, i just have to change arms and try them
will post my impressions asap
Hi jwoike before these props i used the 18" T-Motor V2 propellers, same quality in materials and machinery, very good product but expensive
the new folding props from KDE are at the same lever...maybee a bit higher than T-Motor ones but they are forlable!
it's the only one that gives 18" props foldable that are perfectly balanced from factory so if you want to have a more compact setup, with a really well done and balanced set of motors and props from same developer, KDE is the answer...it costs a bit but it deserves
SamaraMedia
Active Member
Are you still using the same gimbal?
anaka
Member
yes jwoike
just motors and props are diferent, all the rest is unchanged
have to tell you one more thing about the motors and props, both the T-Motor and the KDE 18" work well, the ESCs are fresh all the time but the motors go hot...
in these days particularly warm the motors go from 45 to 55 degrees....it's a bit over a good temperature so keep in mind that this setup warms up the motors
just motors and props are diferent, all the rest is unchanged
have to tell you one more thing about the motors and props, both the T-Motor and the KDE 18" work well, the ESCs are fresh all the time but the motors go hot...
in these days particularly warm the motors go from 45 to 55 degrees....it's a bit over a good temperature so keep in mind that this setup warms up the motors
Last edited by a moderator:
anaka
Member

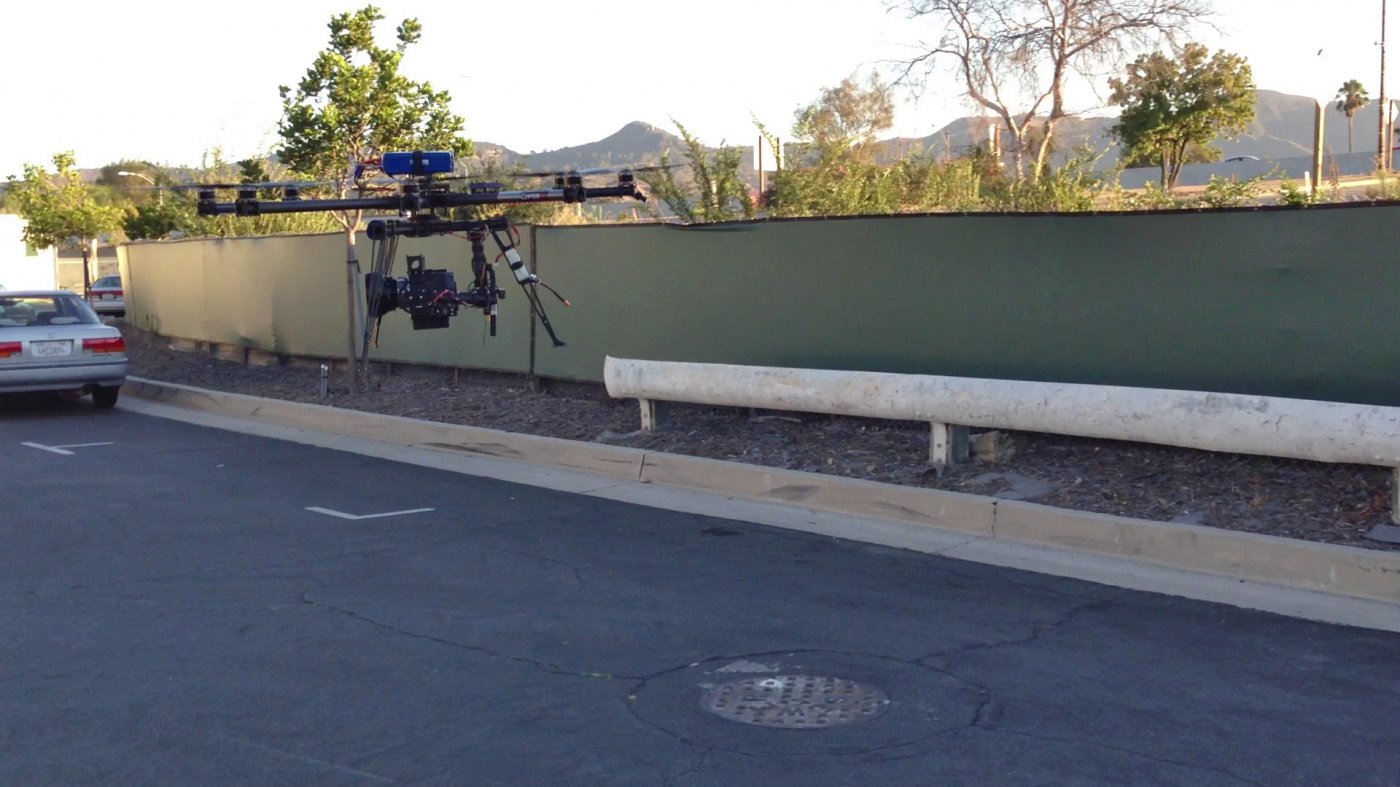

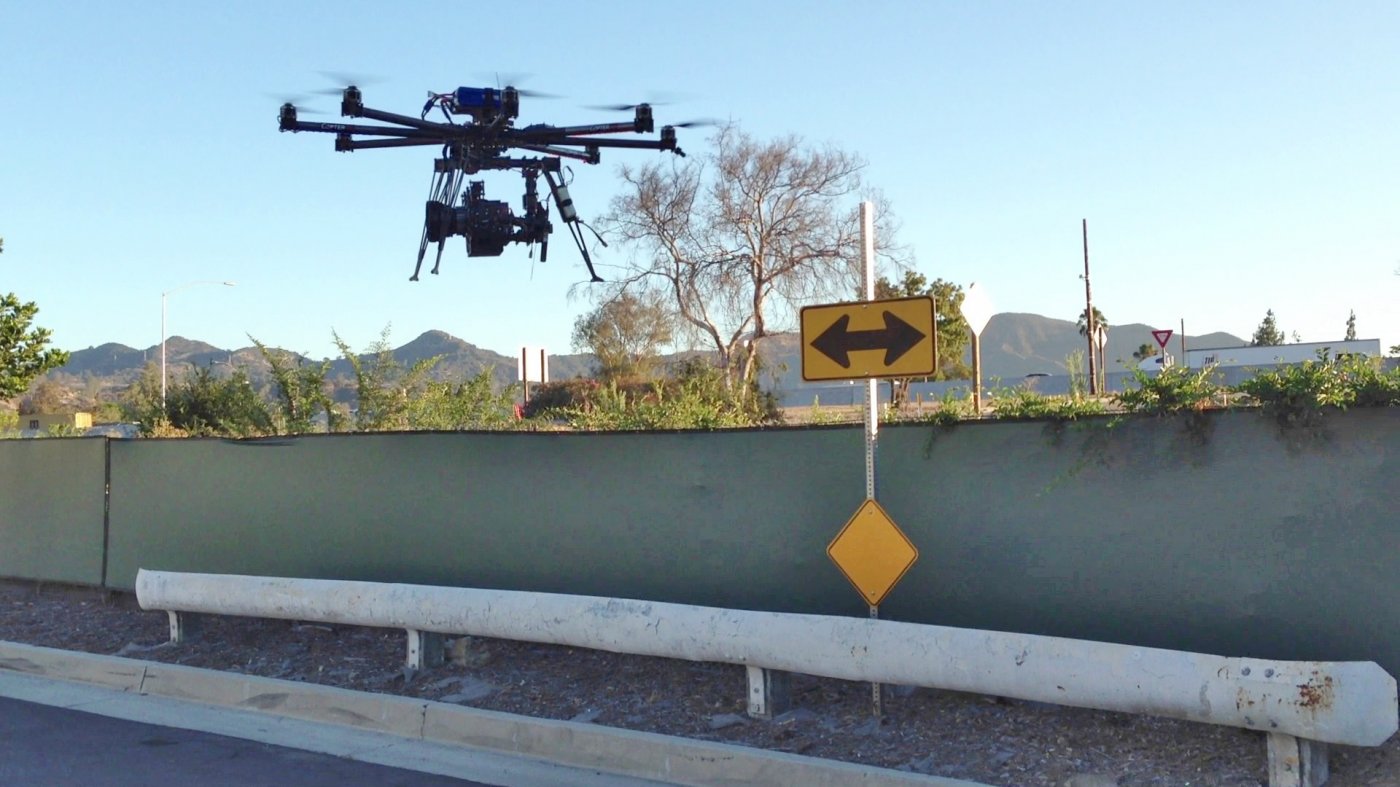

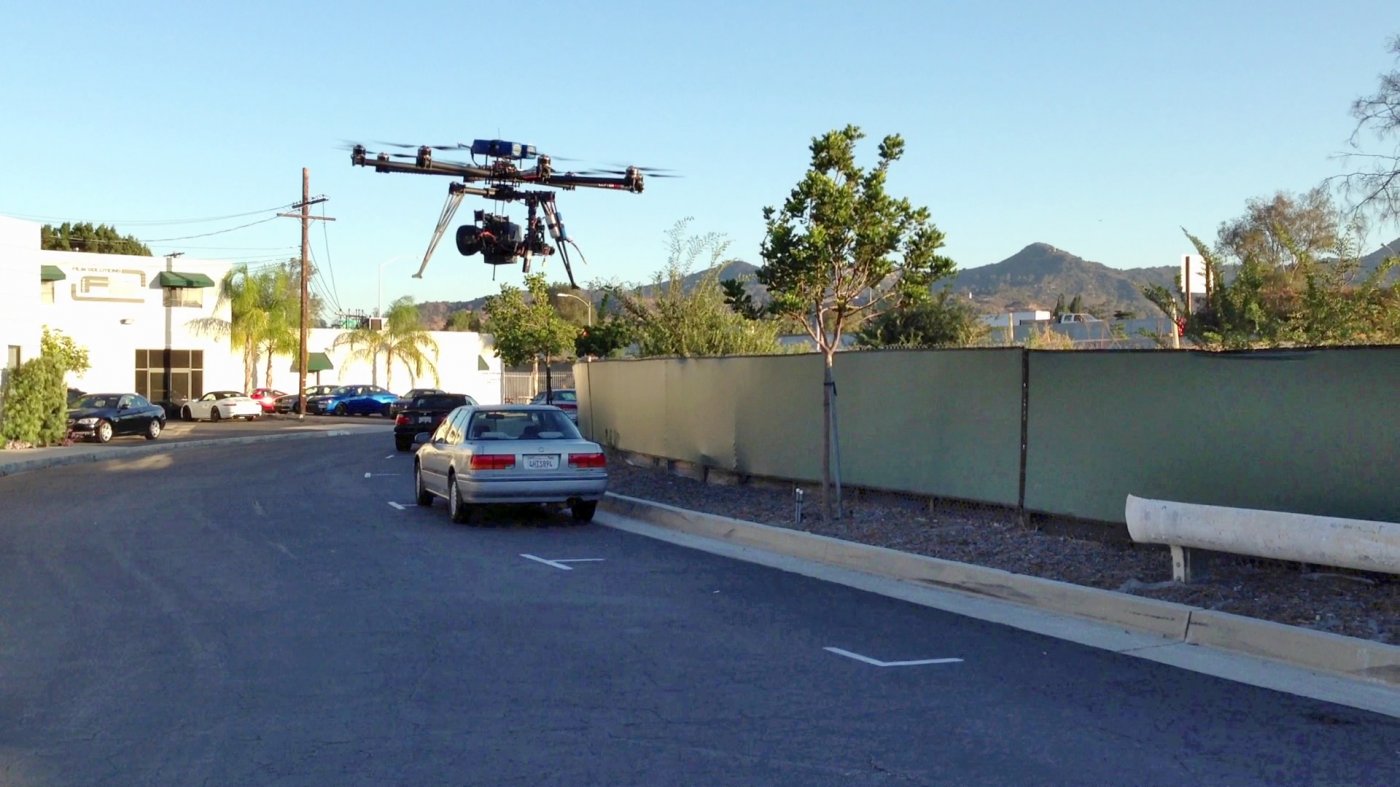

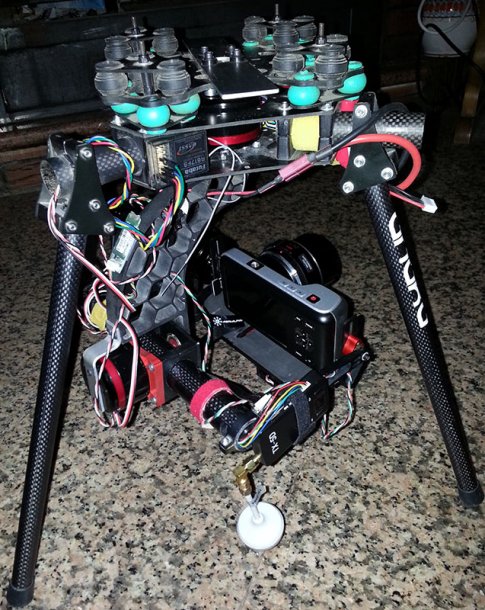

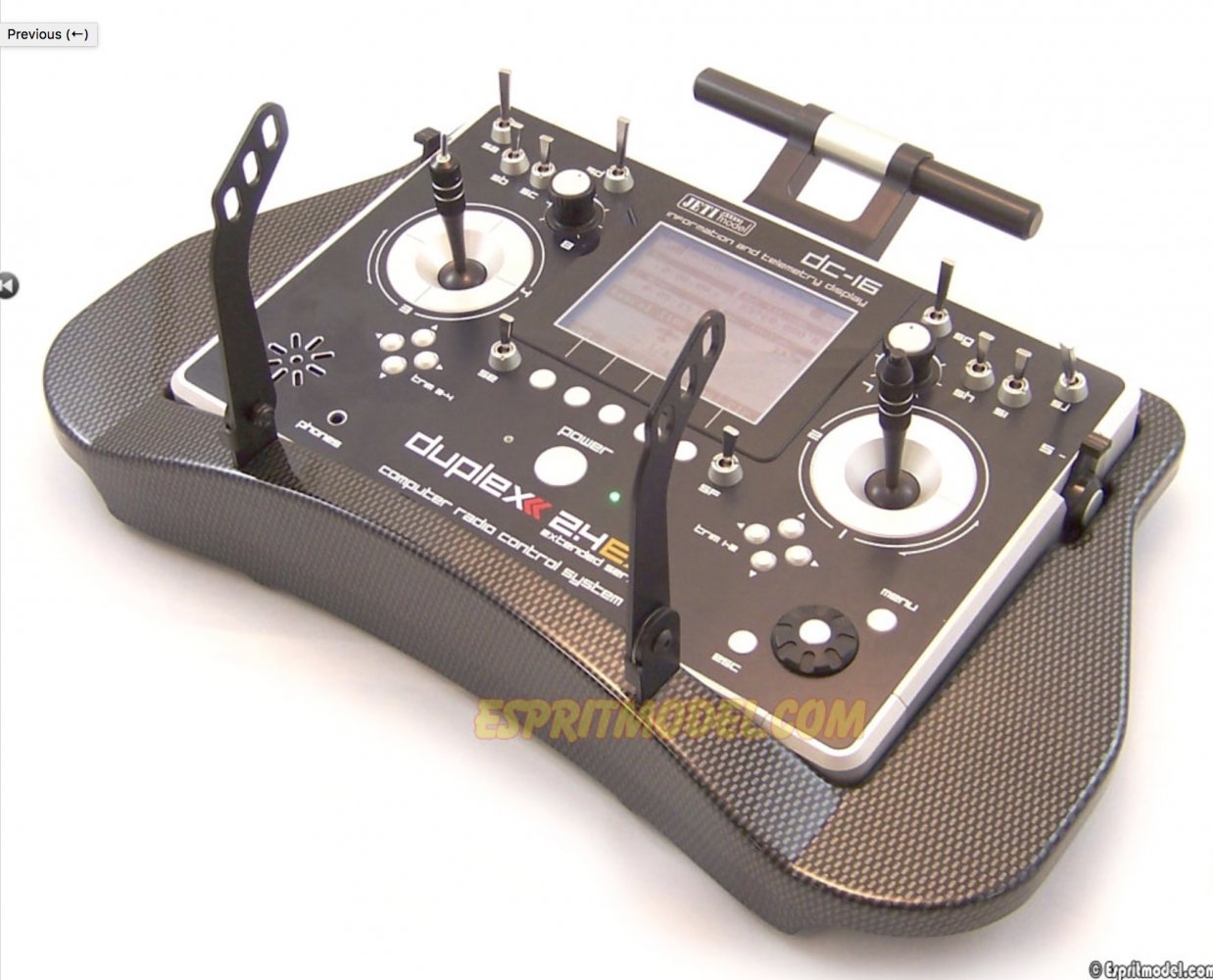

View attachment 26716 View attachment 26717 View attachment 26718 View attachment 26719 View attachment 26720 View attachment 26716 View attachment 26717 View attachment 26718 View attachment 26719 View attachment 26720 View attachment 26715 View attachment 26716 View attachment 26717 View attachment 26718 View attachment 26719 View attachment 26720 latest upgrade of my gimbal
now with encoder motors and new Alexmos TinyPro board
even lighter and stable, soon will post some tests
total weight 2Kg
now with encoder motors and new Alexmos TinyPro board
even lighter and stable, soon will post some tests
total weight 2Kg
Attachments
Last edited by a moderator:
SamaraMedia
Active Member
Great! I have the same gimbal but with CP control, look forward to your test results.
anaka
Member
at the moment i'm using the beta firmware for encoder Alexmos
the owerall feeling is very positive, the biggest improvement is in the stability (yaw especially is really stable now)
and the battery consumption is drastically reduced
i had to do some hard modificatoins to the quadframe gimbal to mount these new motors but it was just some
hours of work
the owerall feeling is very positive, the biggest improvement is in the stability (yaw especially is really stable now)
and the battery consumption is drastically reduced
i had to do some hard modificatoins to the quadframe gimbal to mount these new motors but it was just some
hours of work
SamaraMedia
Active Member
So these are special motors? What model and cost? Where did you buy them?
Thanks
Thanks
Motopreserve
Drone Enthusiast
If they are the encoder motors - there was a link to them over at aerial pixel pros. You definitely need a different firmware thank the standard alexmos (which I think you pay for - or at least you did).
SamaraMedia
Active Member
Thanks Moto, found that link and yes it looks like you pay $40 for license
anaka
Member
Yes motopreserve you have to pay $40 more at alexmos website to activate the encoder motor license then you are able to download and install the new firmware
this is fundamental to use encoder motors
http://www.etecpower.com/html_products/EC45EN-81.html
here you can find the motors then if you want you can keep using your actual alexmos board and follow instructions on how to connect encoders or you can buy a new board with encoders connectors already installed
this is fundamental to use encoder motors
http://www.etecpower.com/html_products/EC45EN-81.html
here you can find the motors then if you want you can keep using your actual alexmos board and follow instructions on how to connect encoders or you can buy a new board with encoders connectors already installed
SamaraMedia
Active Member
Are you using the same motor on all three axis or a larger one on the yaw?
SamaraMedia
Active Member
Good to know that these motors will handle the BMPCC, should work just fine for my purposes, thanks.
SamaraMedia
Active Member
Great! Thanks, look forward to some test flights.
anaka
Member

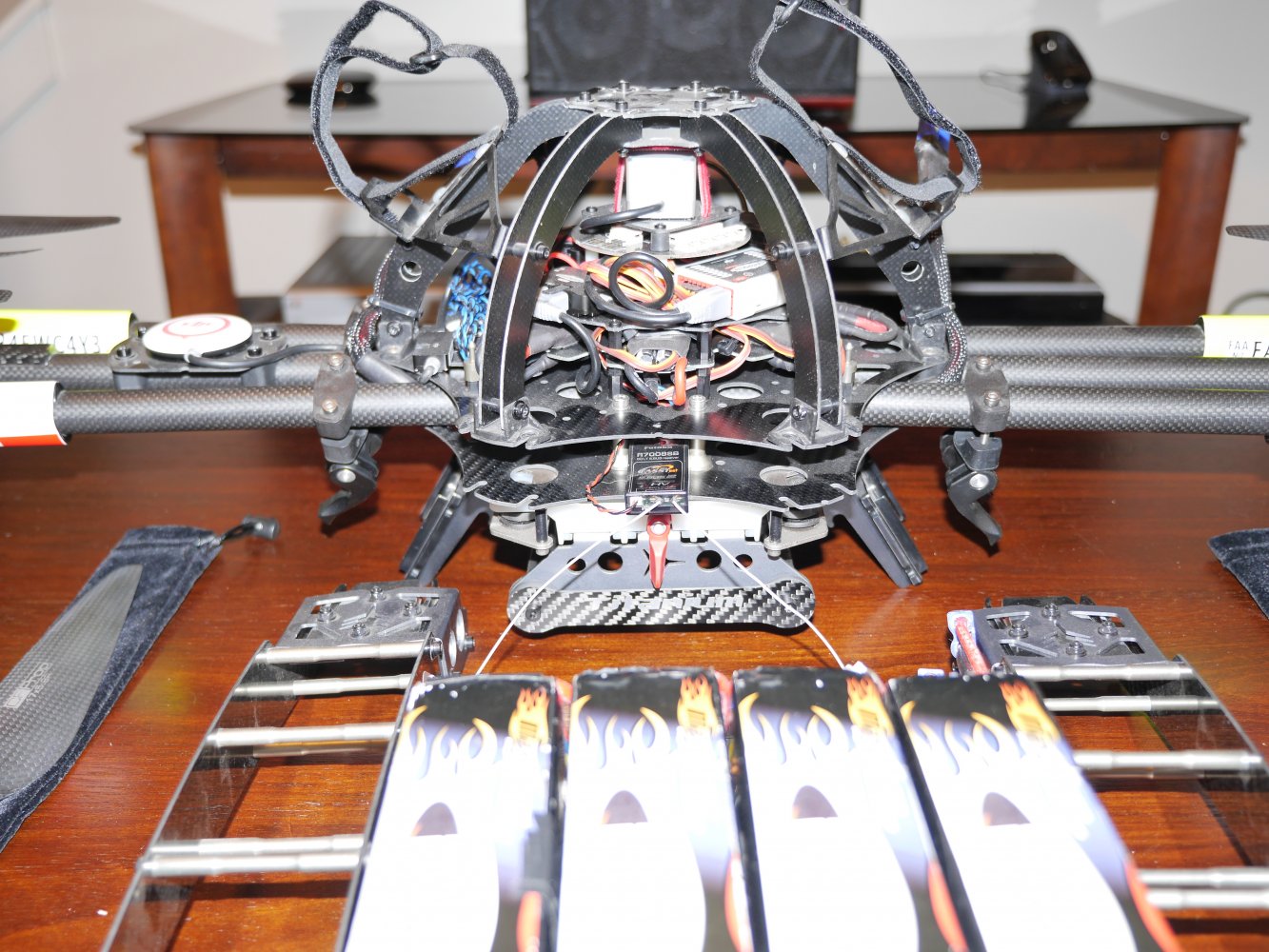

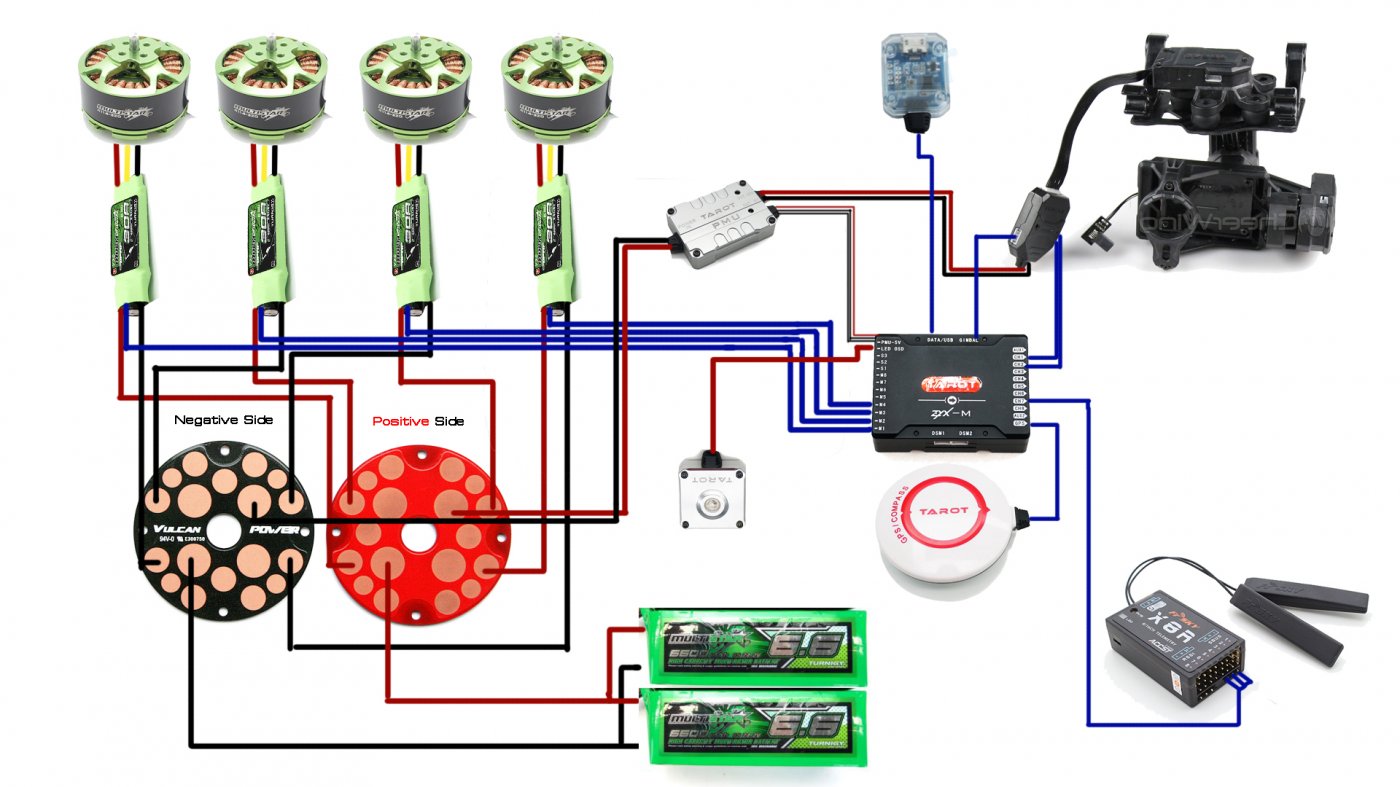

View attachment 26902 View attachment 26903 gimbal upgrade
now with a fast change from drone to maunal operations in just one minute!!
now with a fast change from drone to maunal operations in just one minute!!
Attachments
SamaraMedia
Active Member
Nice work on the quick release and hand held setup.
It looks like you've had to do some modifications to the original gimbal to mount these motors. I can see that the tilt motor is mounted between the camera tray and the mounting arm, is that because the encoder motors are hollow core vs having a shaft? In order to do that did you purchase a new back boom that is longer to compensate for the motor being moved inside the mounting arm?
The roll motor looks to have a right angle bracket mounted off the back of the gimbal, same reason as the tilt, hollow core?
Also, I can see the Aerial Pixels flat HDMI cable coming out of the camera and going to something (probably a converter) mounted behind the vtx on the arm. Which converter (if that is the case) are you using?
Thanks
It looks like you've had to do some modifications to the original gimbal to mount these motors. I can see that the tilt motor is mounted between the camera tray and the mounting arm, is that because the encoder motors are hollow core vs having a shaft? In order to do that did you purchase a new back boom that is longer to compensate for the motor being moved inside the mounting arm?
The roll motor looks to have a right angle bracket mounted off the back of the gimbal, same reason as the tilt, hollow core?
Also, I can see the Aerial Pixels flat HDMI cable coming out of the camera and going to something (probably a converter) mounted behind the vtx on the arm. Which converter (if that is the case) are you using?
Thanks
anaka
Member
Hi jwoike yes i had to do some important changes on the original ginbal
mainly the new motors are bigger and has no outer shaft so i had to find the cleanest way to mount them
fot hte pitch i just reversed the arm and i had to cut a longer carbon fiber tube to fit this wider setup
on the roll motor i had to cut part of the frame and build a "L" arm to lock the motor and i had to do some holes in the RED plate that connects the motor to the roll arm
nothing special fot the yaw....
one more thing i did is to make reversible changes, i can switch back when i want...
for the HDMI to VGA converter i use the kopterworx one..very stable and robust but there are several on the market now...you cahn choose what you want
next step will be to protect the cables and make the aspect more professional
will post some nice tests soon, the results are good!!
mainly the new motors are bigger and has no outer shaft so i had to find the cleanest way to mount them
fot hte pitch i just reversed the arm and i had to cut a longer carbon fiber tube to fit this wider setup
on the roll motor i had to cut part of the frame and build a "L" arm to lock the motor and i had to do some holes in the RED plate that connects the motor to the roll arm
nothing special fot the yaw....
one more thing i did is to make reversible changes, i can switch back when i want...
for the HDMI to VGA converter i use the kopterworx one..very stable and robust but there are several on the market now...you cahn choose what you want
next step will be to protect the cables and make the aspect more professional
will post some nice tests soon, the results are good!!
