Small X8 build - 3d Printing Parts

[BorisS]

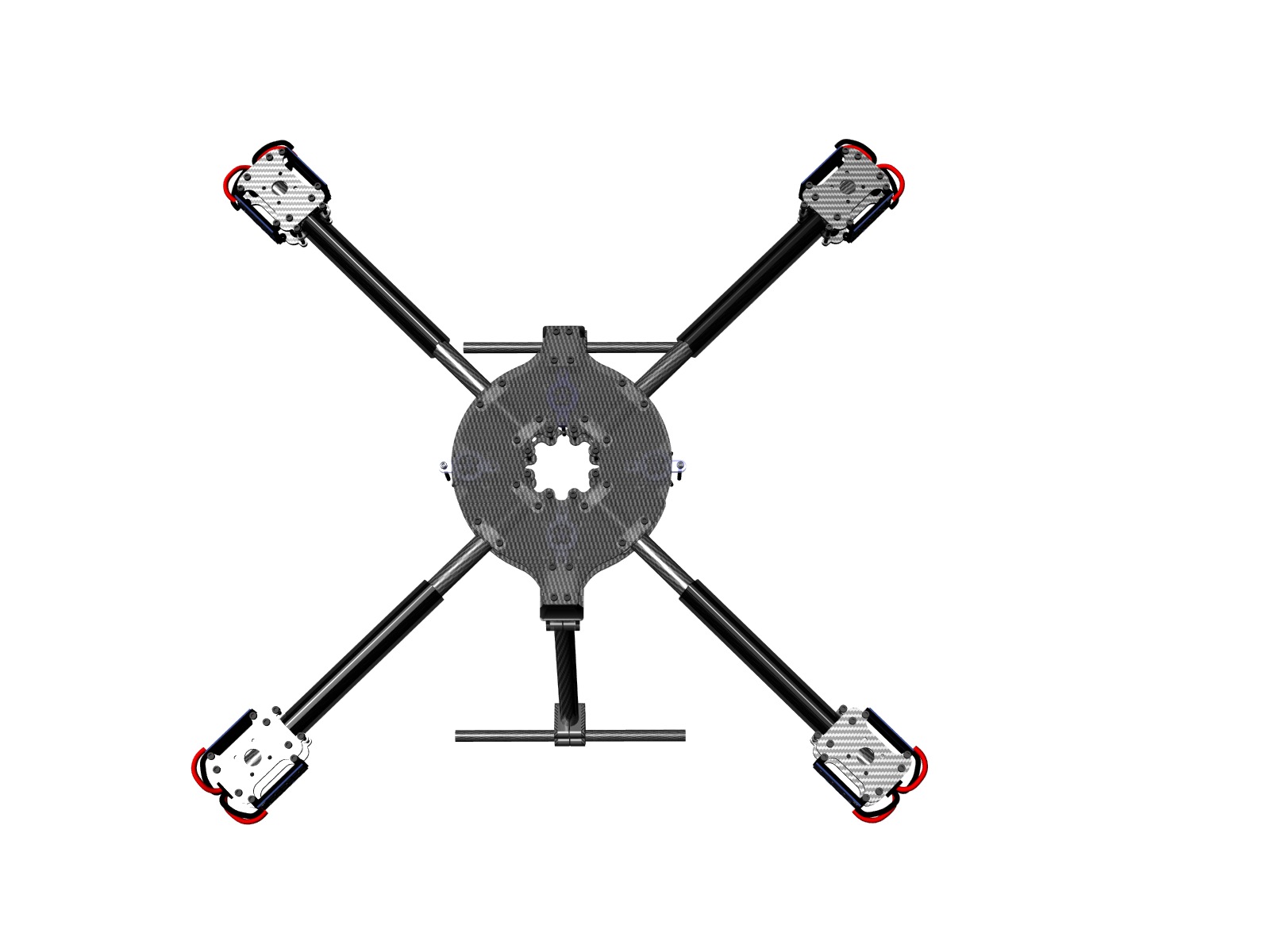

progress or i hope it is ! getting close to getting the carbon parts made.

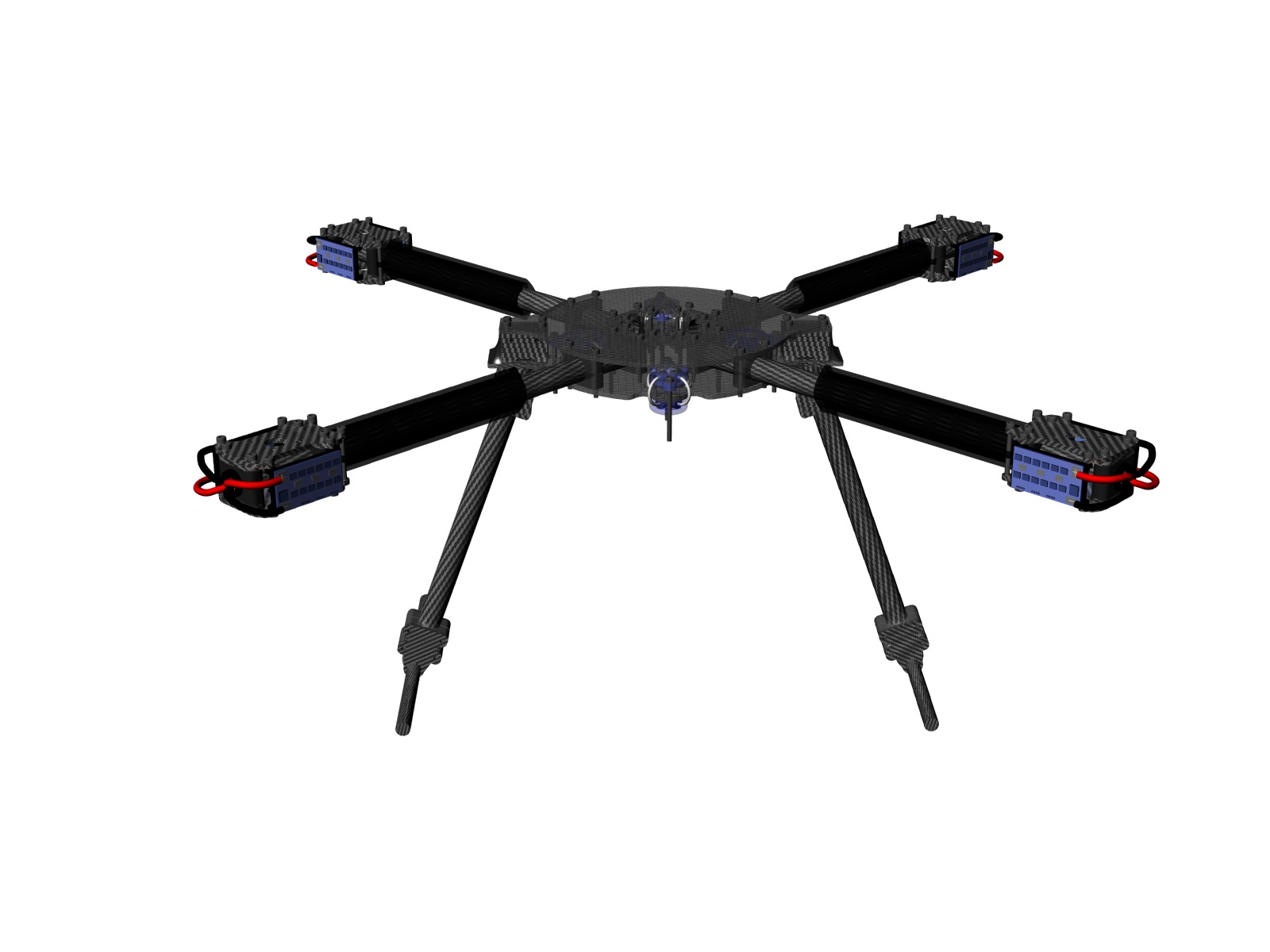

Settle on the design. Not sure yet if i should make a doom or not. Since I am pretty sure again to be going for a AQ Fc for this build i might just go with a 3d printed case for the AQ and GPS module let see.

View attachment 10169View attachment 10168View attachment 10167

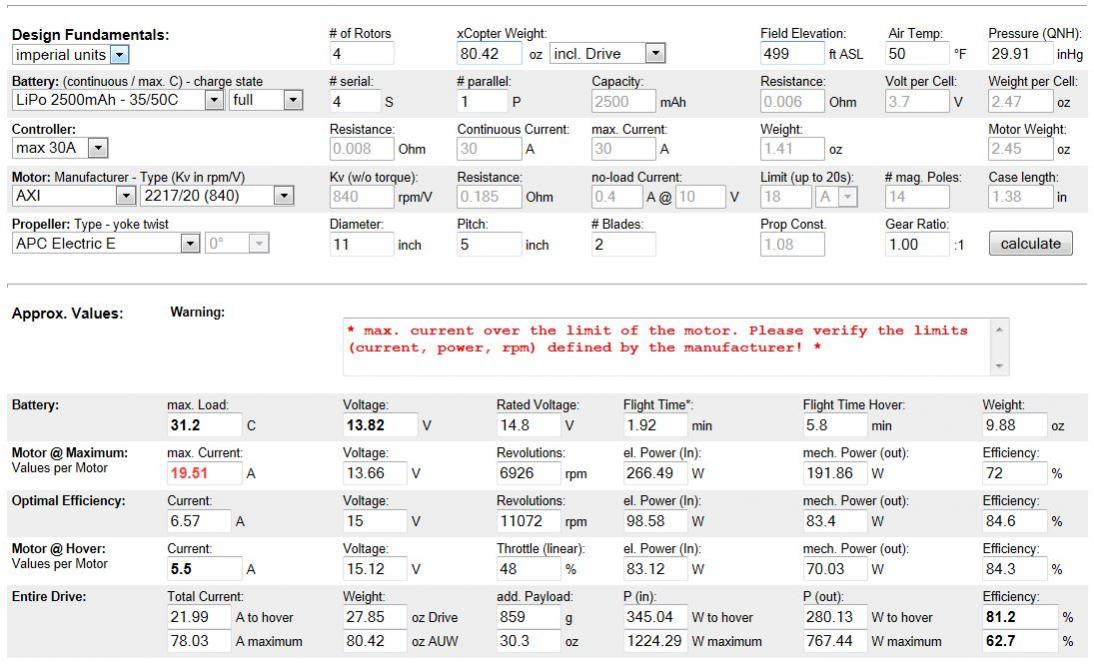

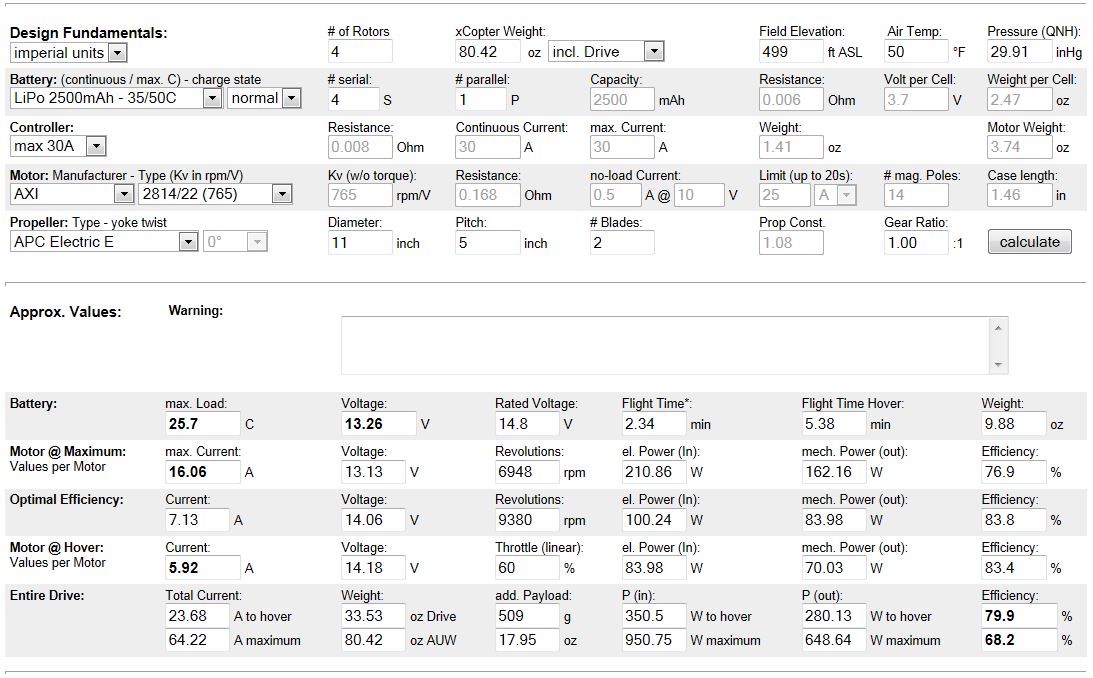

View attachment 10162View attachment 10163

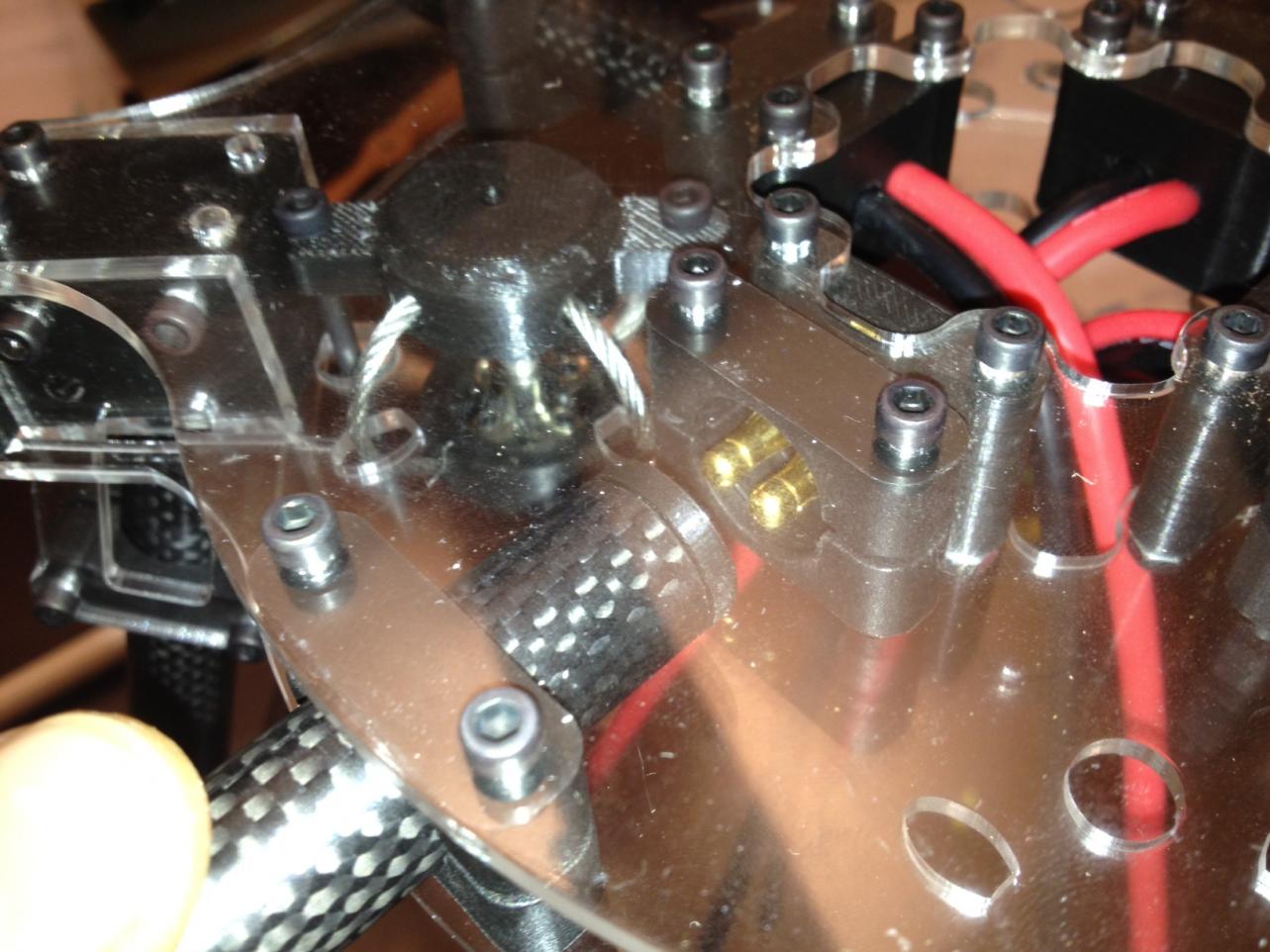

connectors working for now on the desk no probs lets see what happens once productive

View attachment 10164

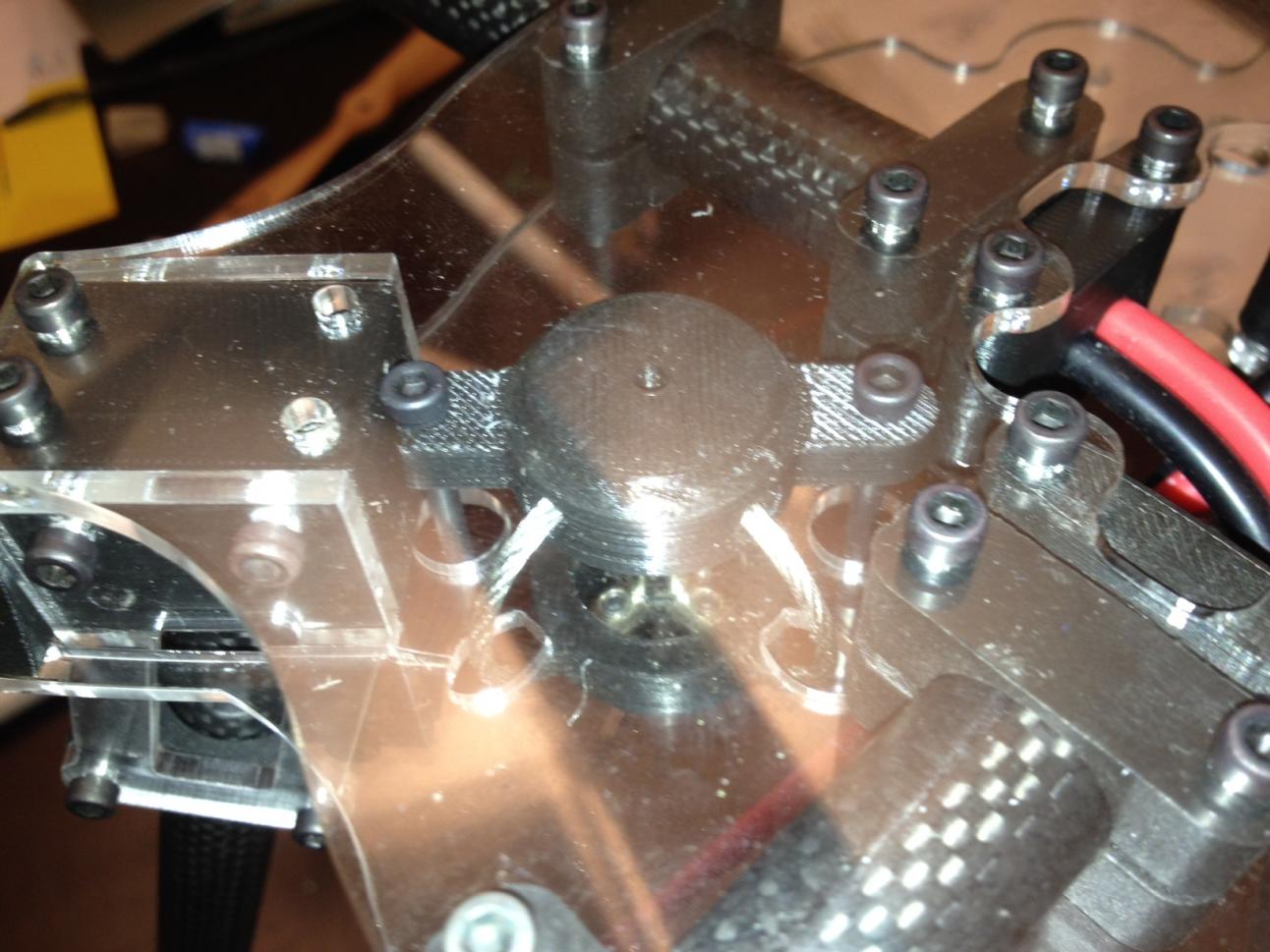

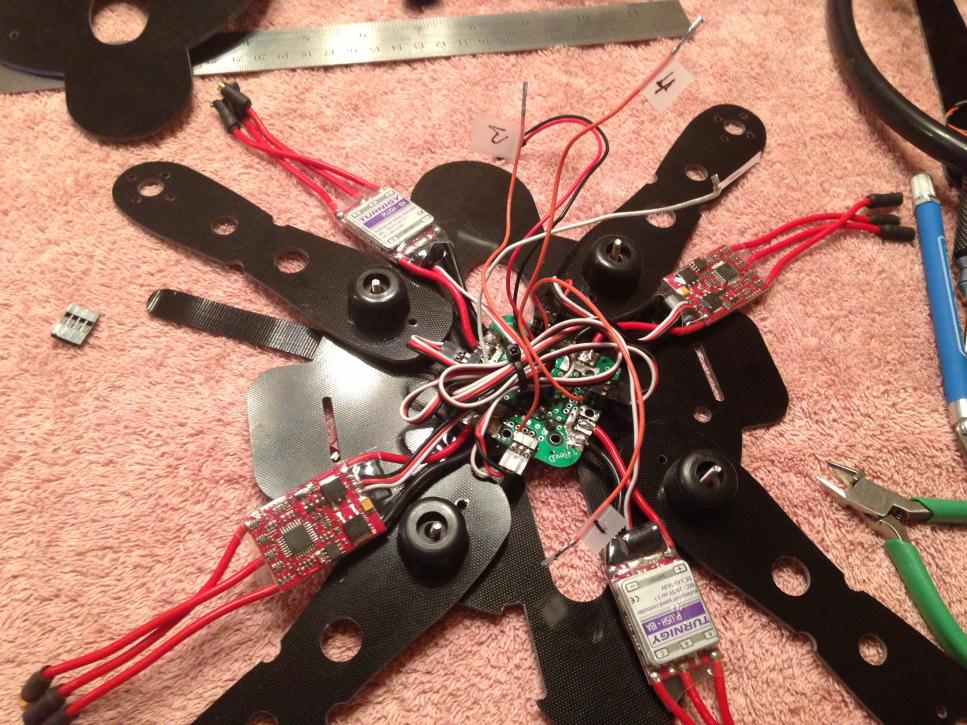

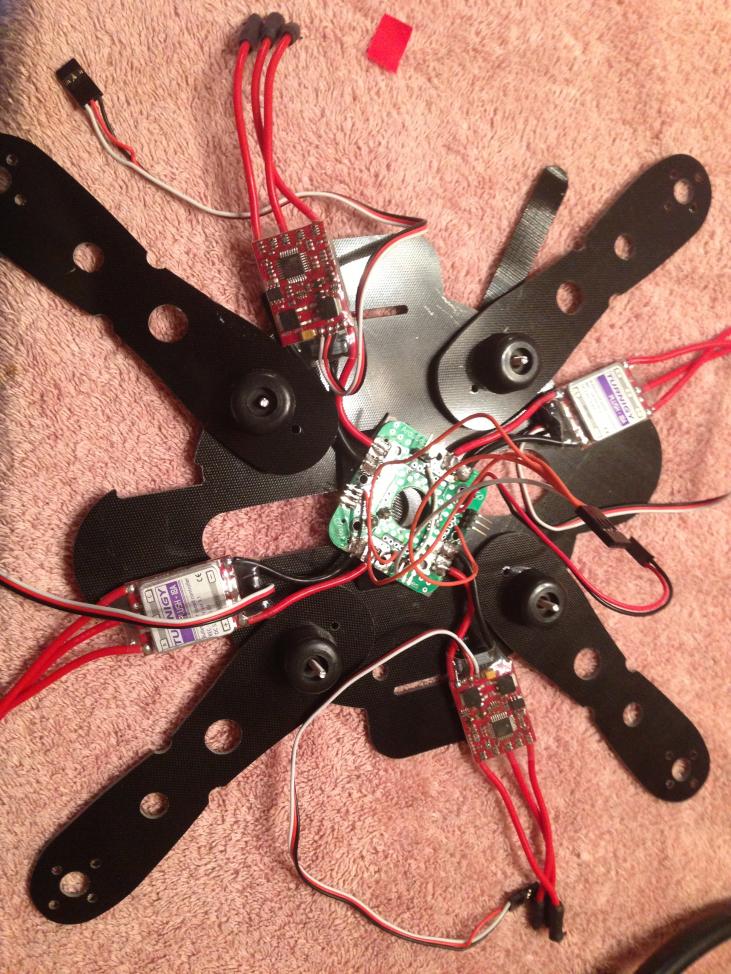

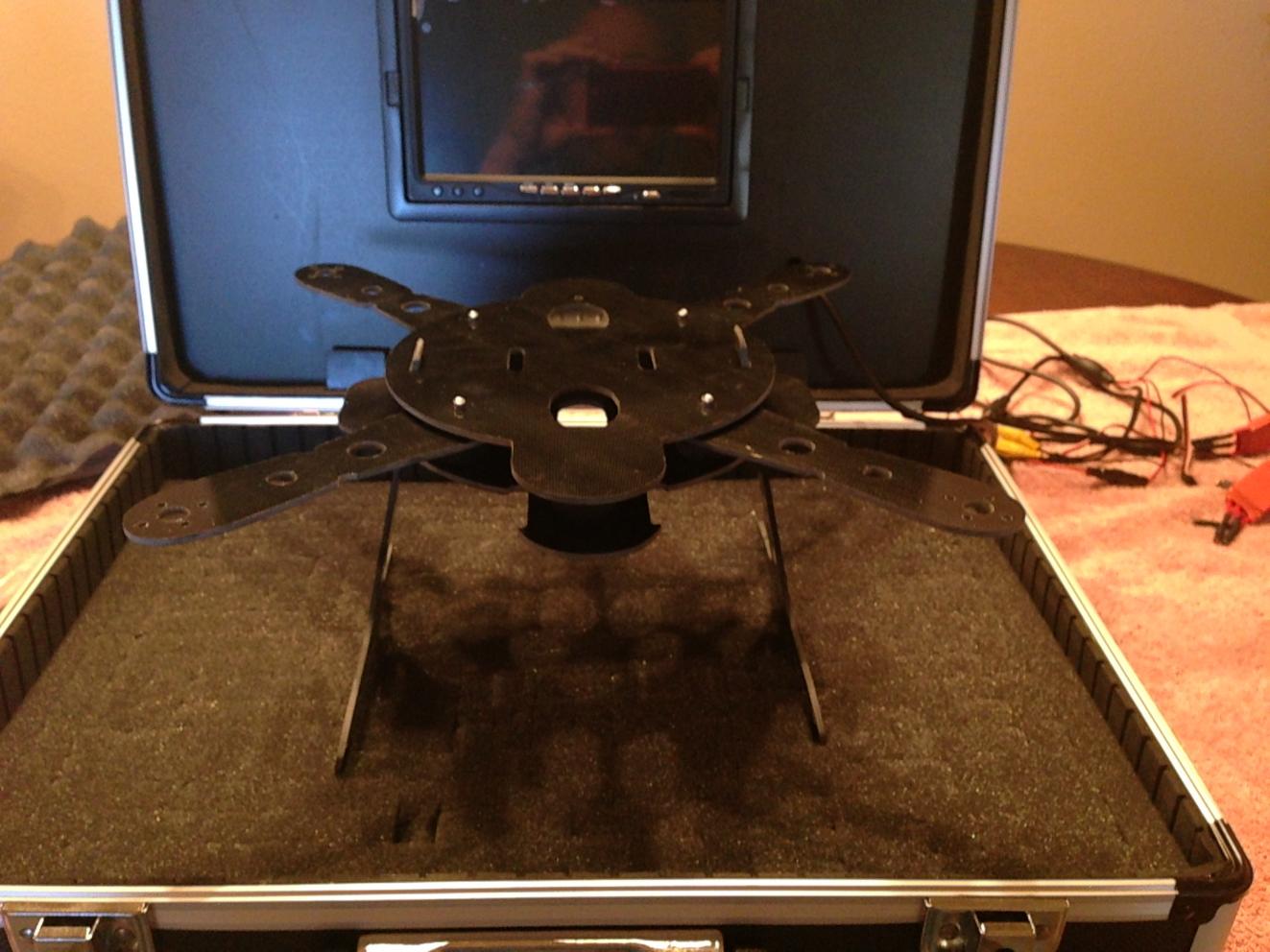

Vibration mounts in the frame and need a little more modding for more space, its b...tch to get them in there though.

View attachment 10165View attachment 10166

Boris



[BorisS]

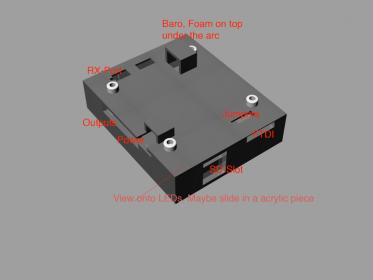

working on a case for the AQ.

I would be happy about suggestions. Gonna stick the thing on shapeways afterwards if it works nicely without any design fee BS

Think i should think of something for the plug of power, RX servo ESC, to additional secure them to the Case. Wanna have it in that way that you can screw down the top lid and not have the GPS on top or the option of adding the GPS module with the shield.

Lid is not on yet in all these pictures. Printing it as we speak

View attachment 10457View attachment 10458

Not the final look still gonna get round edges add some stylish stuff no one needs but still fun etc.

View attachment 10459

Boris



[Lupoella]

What 3d printer did you buy.



[Lupoella]

Woooow looks real good



[BorisS]

Lupoella its a ultimaker :

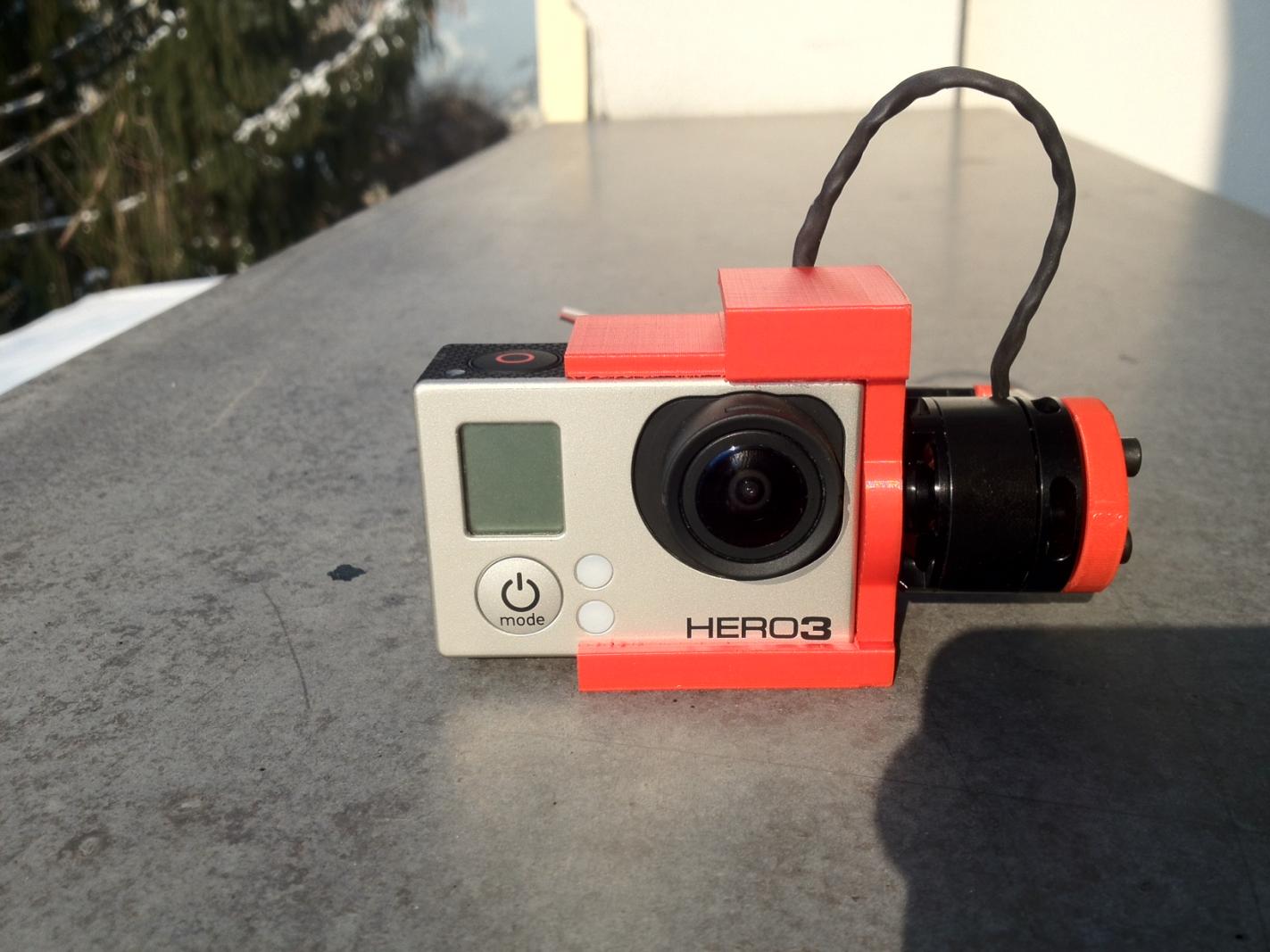

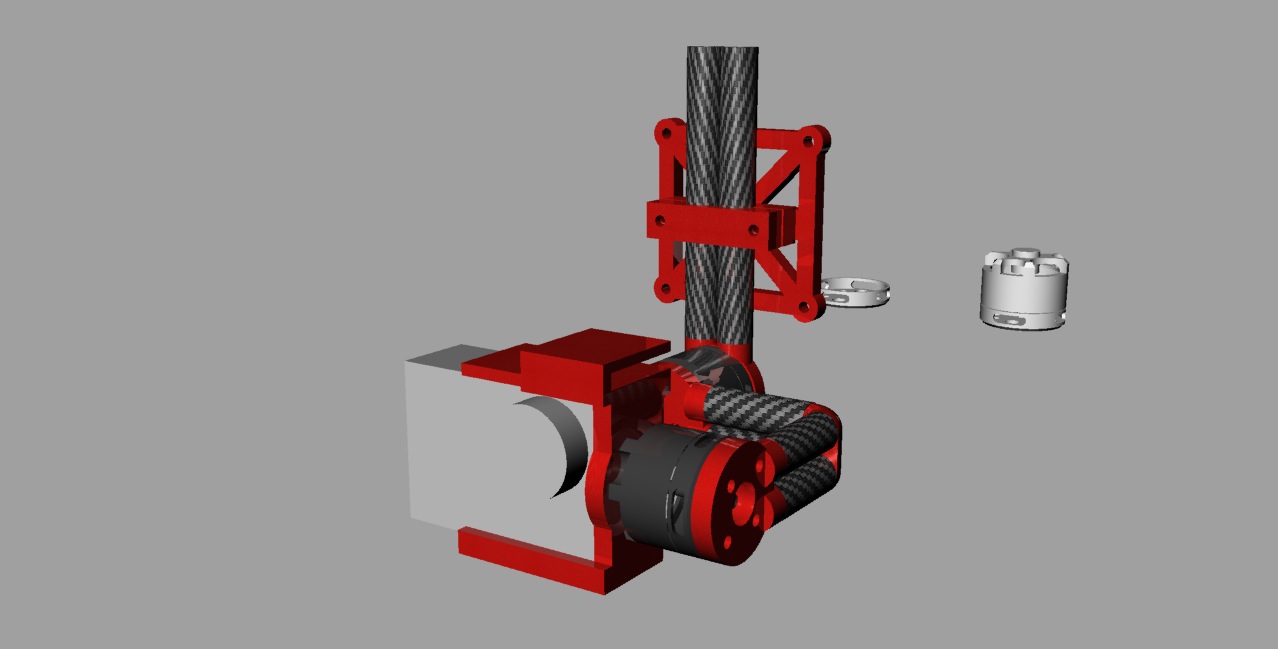

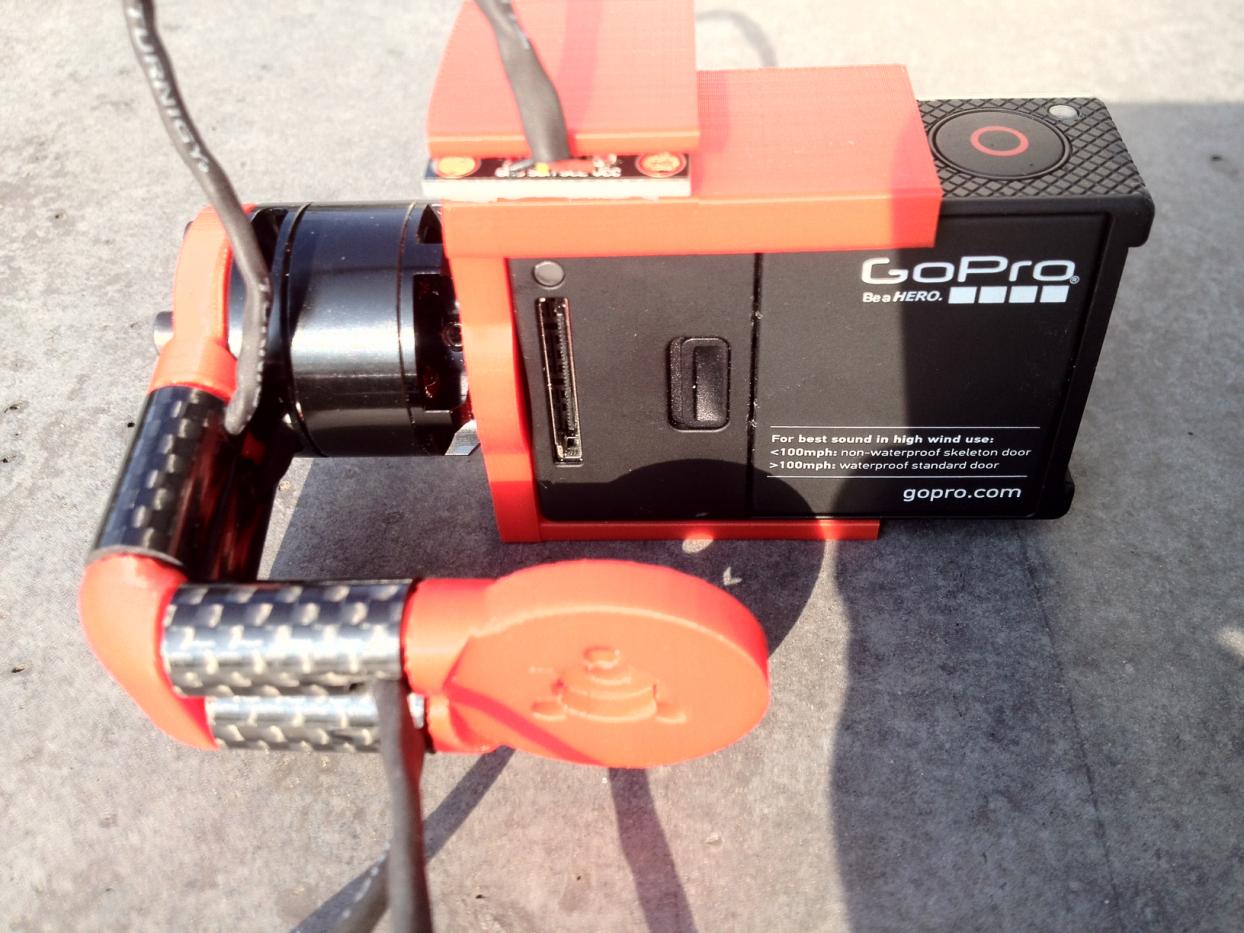

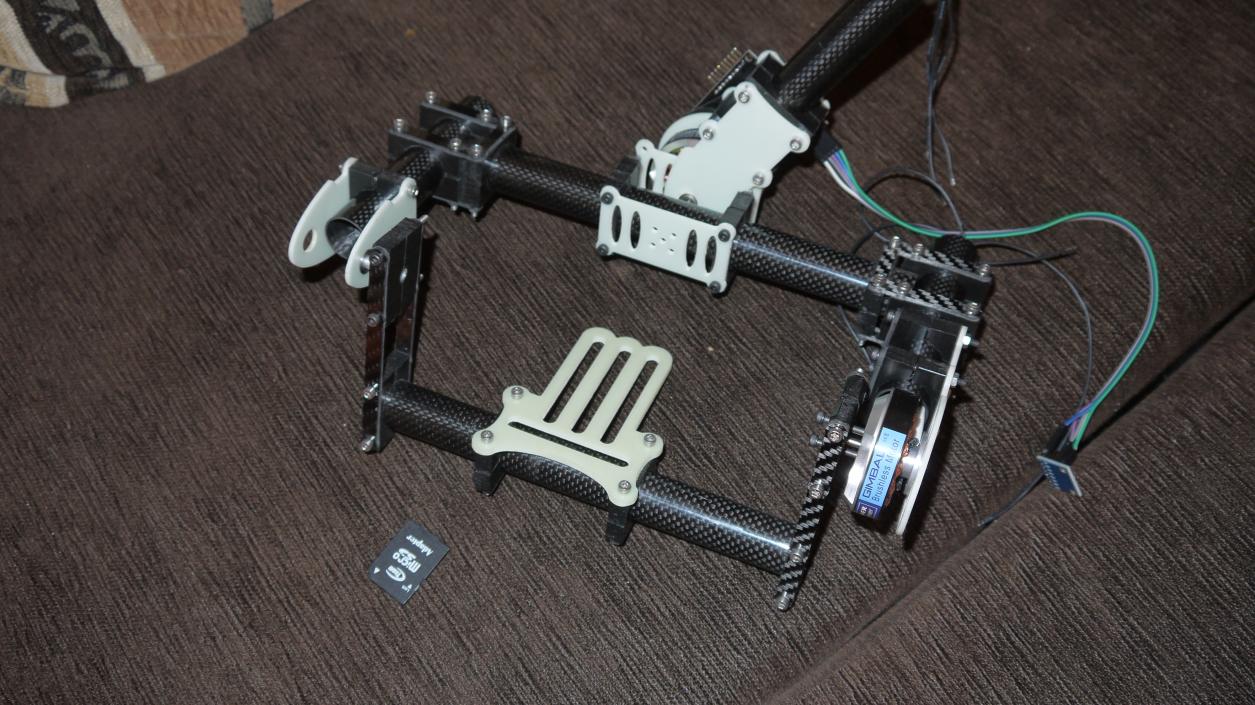

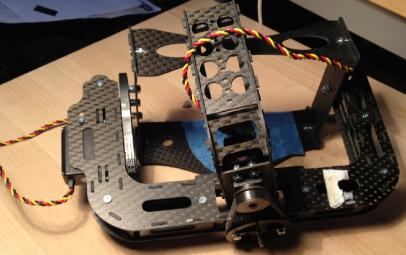

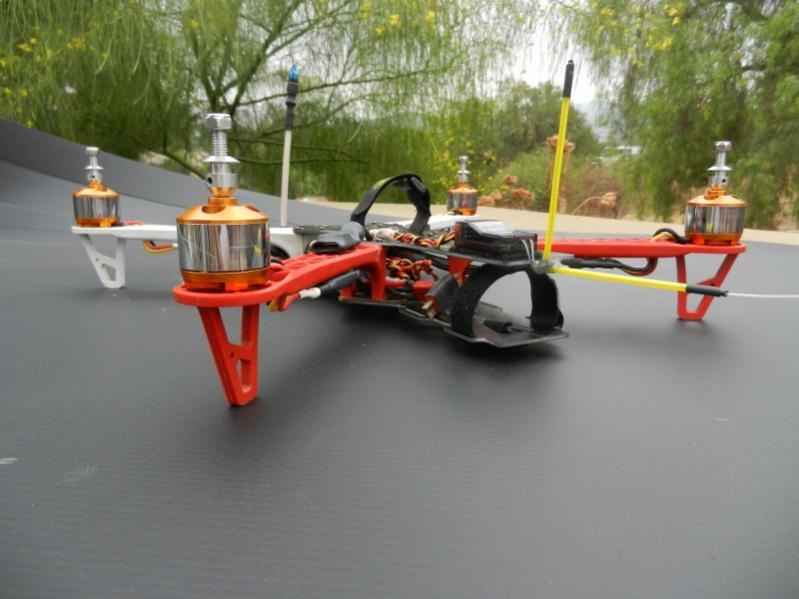

In the meantime i came up with a little brushless gimbal for a gopro 3, 3d printed or most of it.

View attachment 10614View attachment 10615

Boris



[ChrisViperM]

This looks so sick....great....especially the red in combo with the Carbon. How long did it take you to get usable results from your printer....?

Congrats...


Chris



[BorisS]

Hi Chris,

didnt take long ! you just have to consider your print and what it can do during drawing the object and thats it.

Boris



[Breezemont]

Hey Boris, have you seen this stuff?
http://www.taulman3d.com/

Taulman's "618" High Strength Nylon Co-Polymer specifically engineered for 3D Printing.
Specifications:
Size = 3mm Round
Color = Natural - Prints as a bright natural to white with a translucent surface. Add color with most common clothing dyes.
Co-Polymer = 4-Station-Drawn and Extruded "3D Printing Specific" Nylon based co-polymer. Specifically designed for 3D Printing applications where excellent surface bonding, reduced water absorption, tear resistance and dye absorption are combined in an easy-to-print 3mm/1.75mm line.
With a visual and tactile surface quality 2nd to none. Parts 3D Printed with taulman 618 Nylon co-polymer will be instantly recognizable as high quality polymer.
Chemically resistant to = Alcohols, Resins+MEK, Oils, Acetone, Most all Alkaline, most 2 part Casting Compounds.

I just got some in, I'll let you know how it works.



[Uklealey]

Nice job on the Gimbal! looks really good.
How much do 3-D printers run?



[BorisS]

Hey Boris, have you seen this stuff?
http://www.taulman3d.com/





I just got some in, I'll let you know how it works.

I have heard of some printing mylon but I never considered it or thought of the advantages. Yes please keep me posted on that, it looks good. With this stuff it seems like boom
clamps for heavy lifts wouldnt be a problem.

@ UKlealey - from 500 to 3000 for the extrusion printer is reasonable. 500 kits that you have to assemble yourself to 3000 ready to print to your doors.


Boris



[SMP]

The build is really coming along and the gimbal is so small and just wicked sick! Well done!! Quick question Boris, I thought you had mentioned a site and/or forum for 3DPrinting Mechanical Engineering etc. I've got a small but involved custom case I need to have made and was going to try guru or freelancer etc but perhaps that community you mentioned might be a better choice?



[redridinghood]

Maybe this is what you are looking for SMP?

http://www.shapeways.com/

Great job on the gimbal Boris.



[BorisS]

Thanks Red,

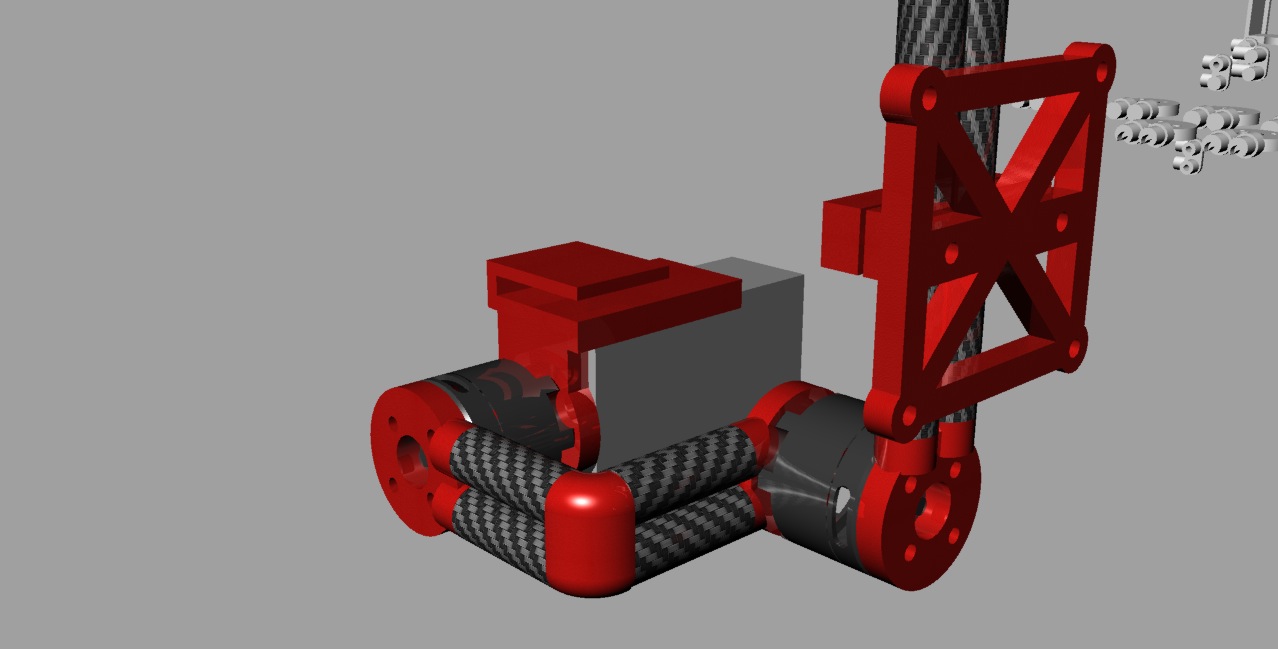

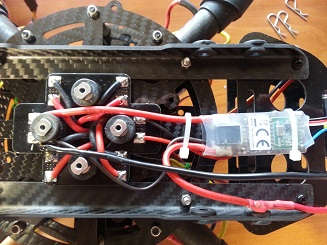

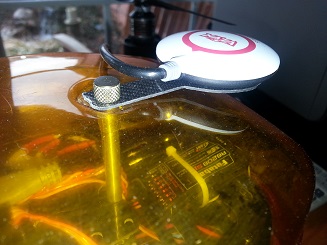

carried on with the design a little to hide the cable mount the driver board and protect the IMU.

View attachment 10638View attachment 10639View attachment 10640View attachment 10641View attachment 10642

@SMP i am not sure, if i mentioned something i don't remember. I just hanging from time to time in the forum ultimaker. But a dedicated 3d printing forum i dont know of, but i am pretty sure they are around.

Boris

(edit) think i have to put a little love in the driver board holder



[BorisS]

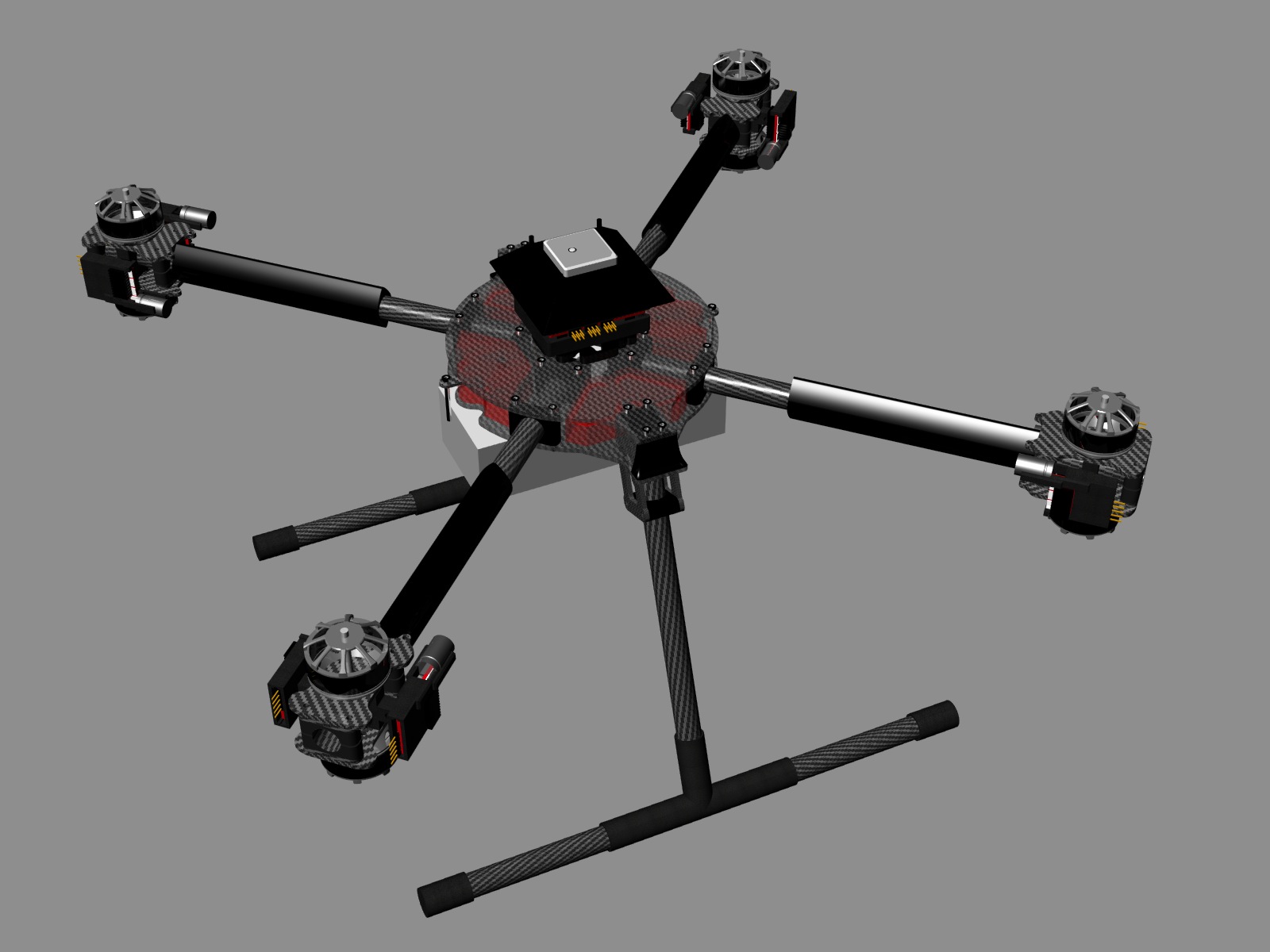

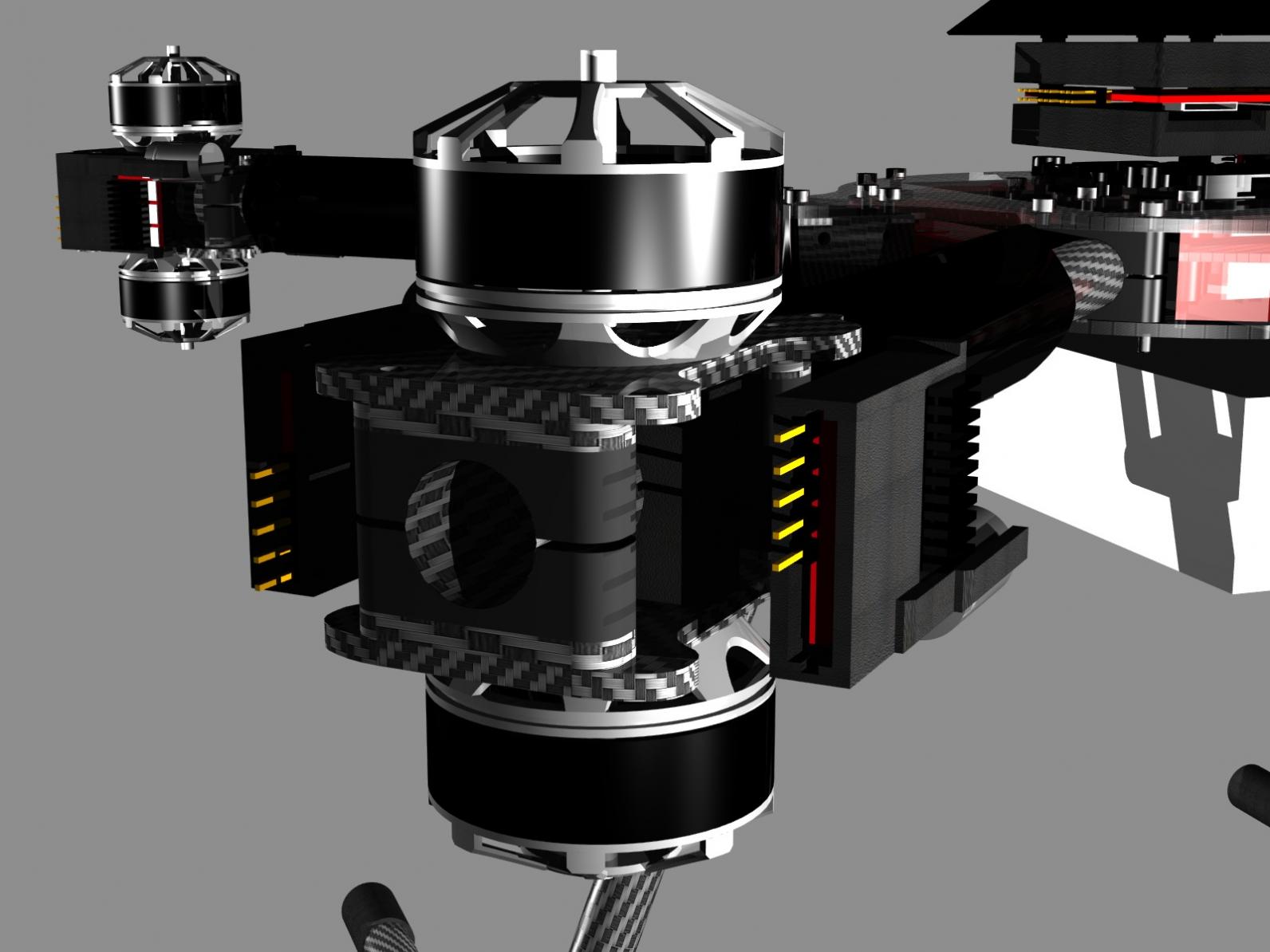

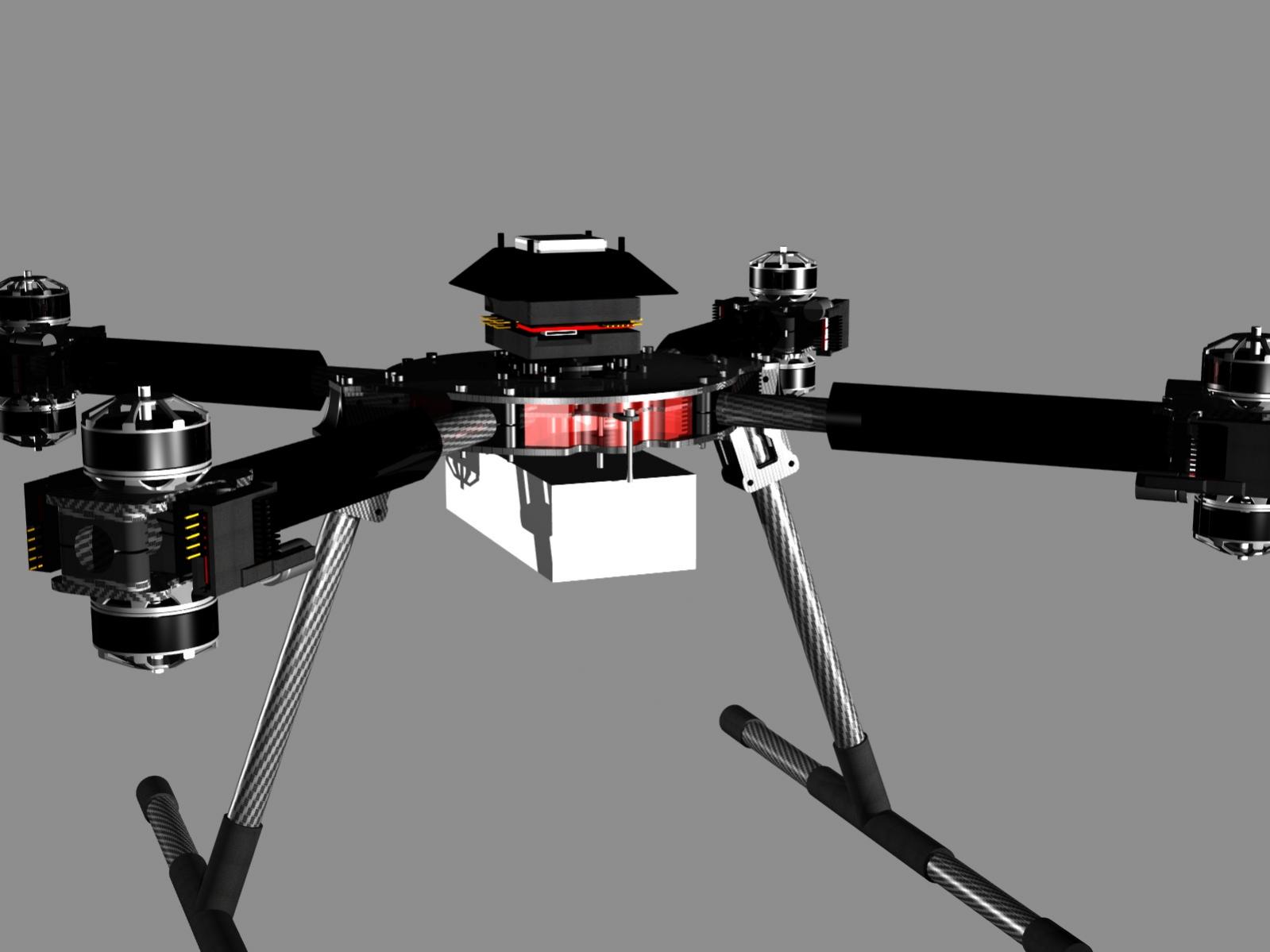

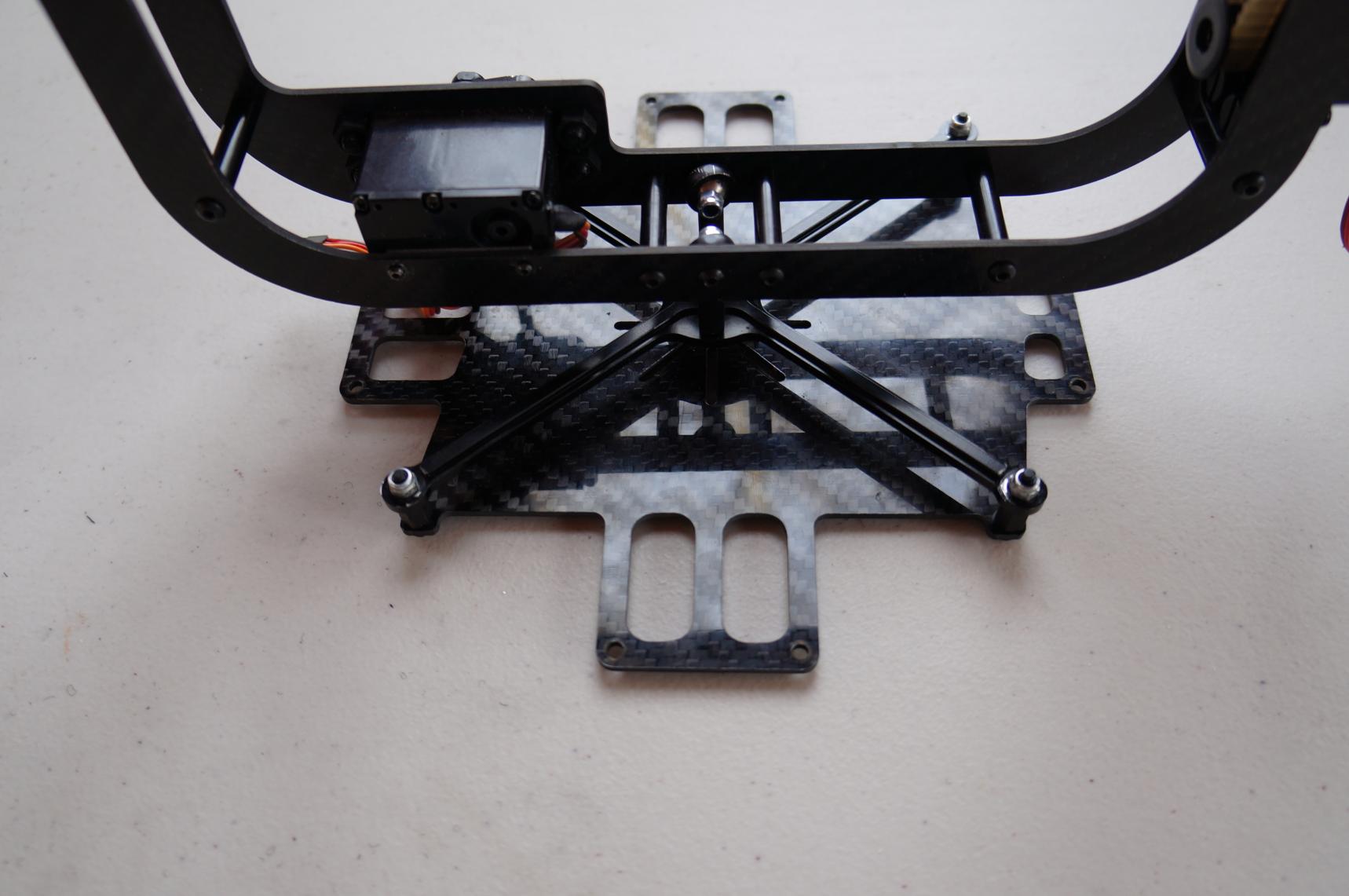

parts ordered and changed some if the design. Want to try custom formed gel pads in between the contemplates which sandwich in carbon plates to first hold the LIPO than gimbal:

View attachment 11867View attachment 11868View attachment 11869View attachment 11870

Boris



[BorisS]

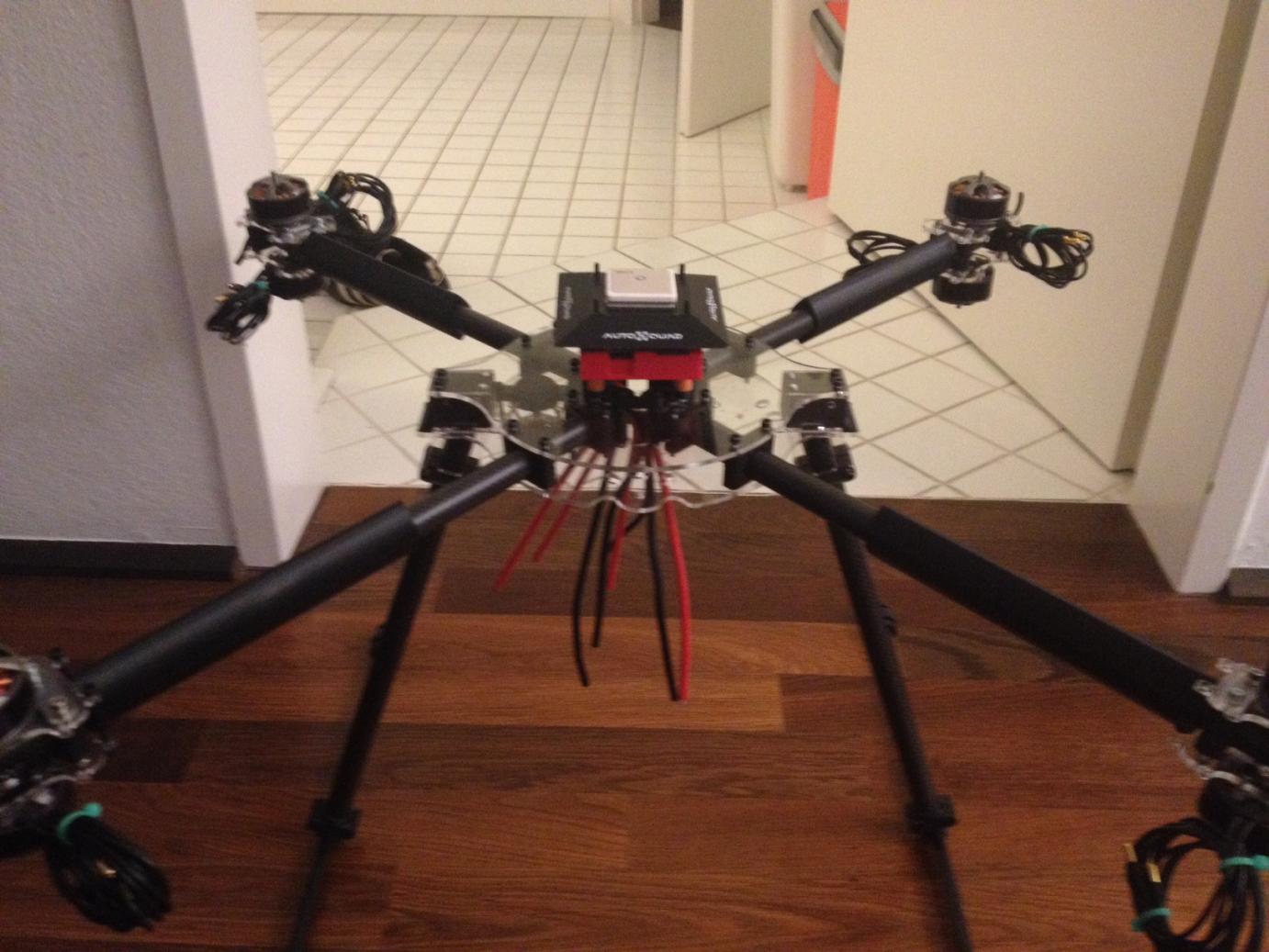

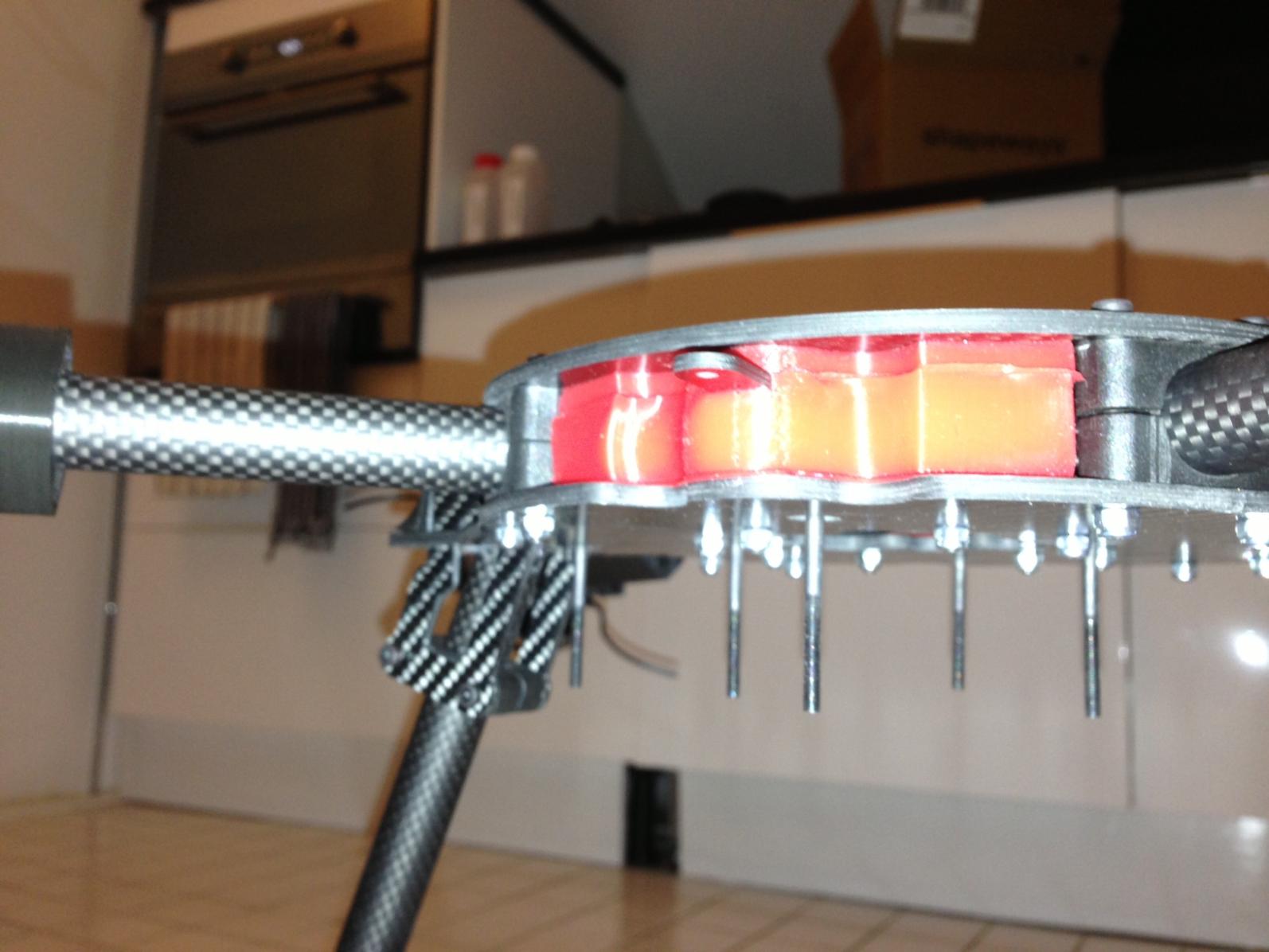

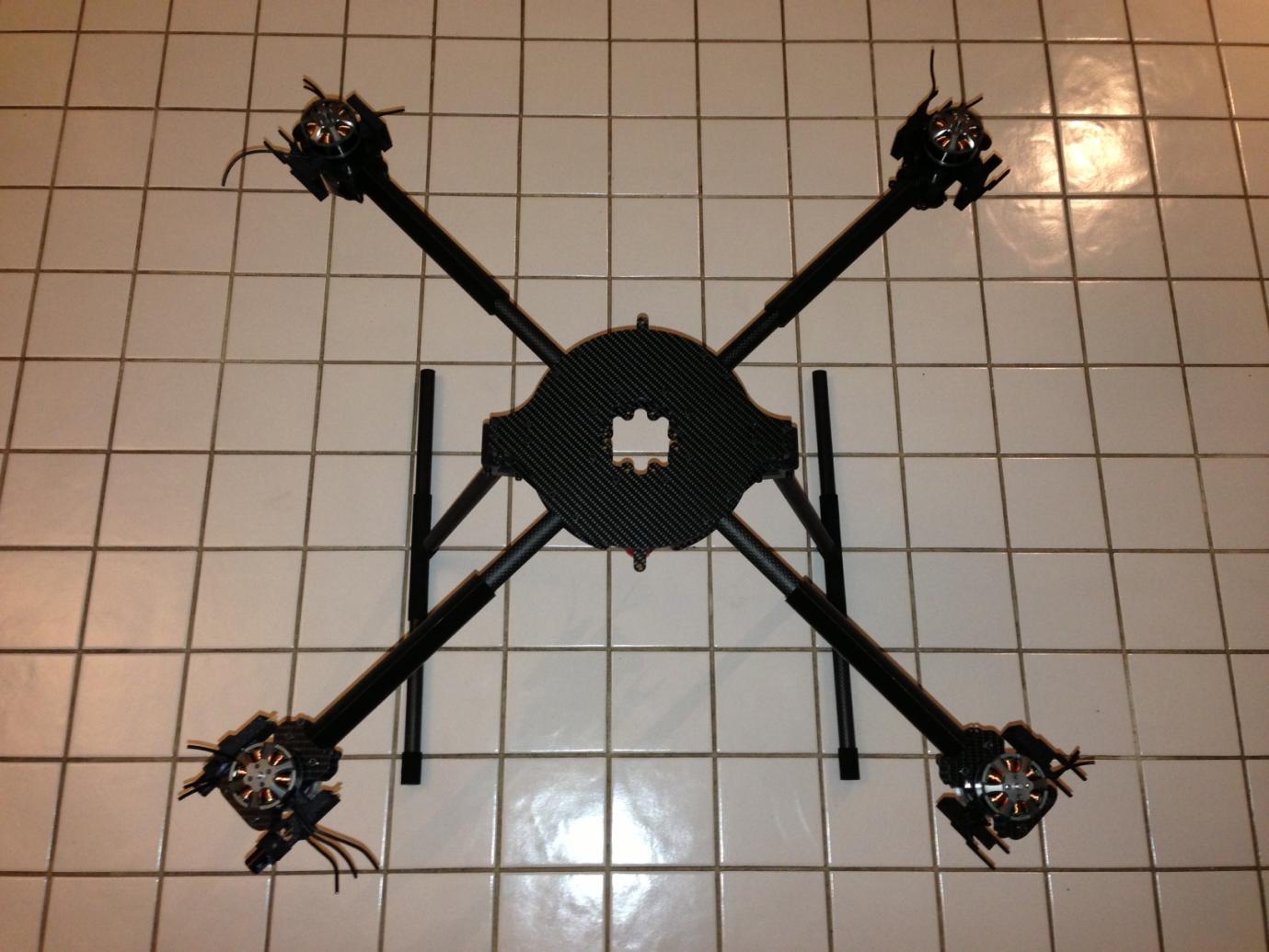

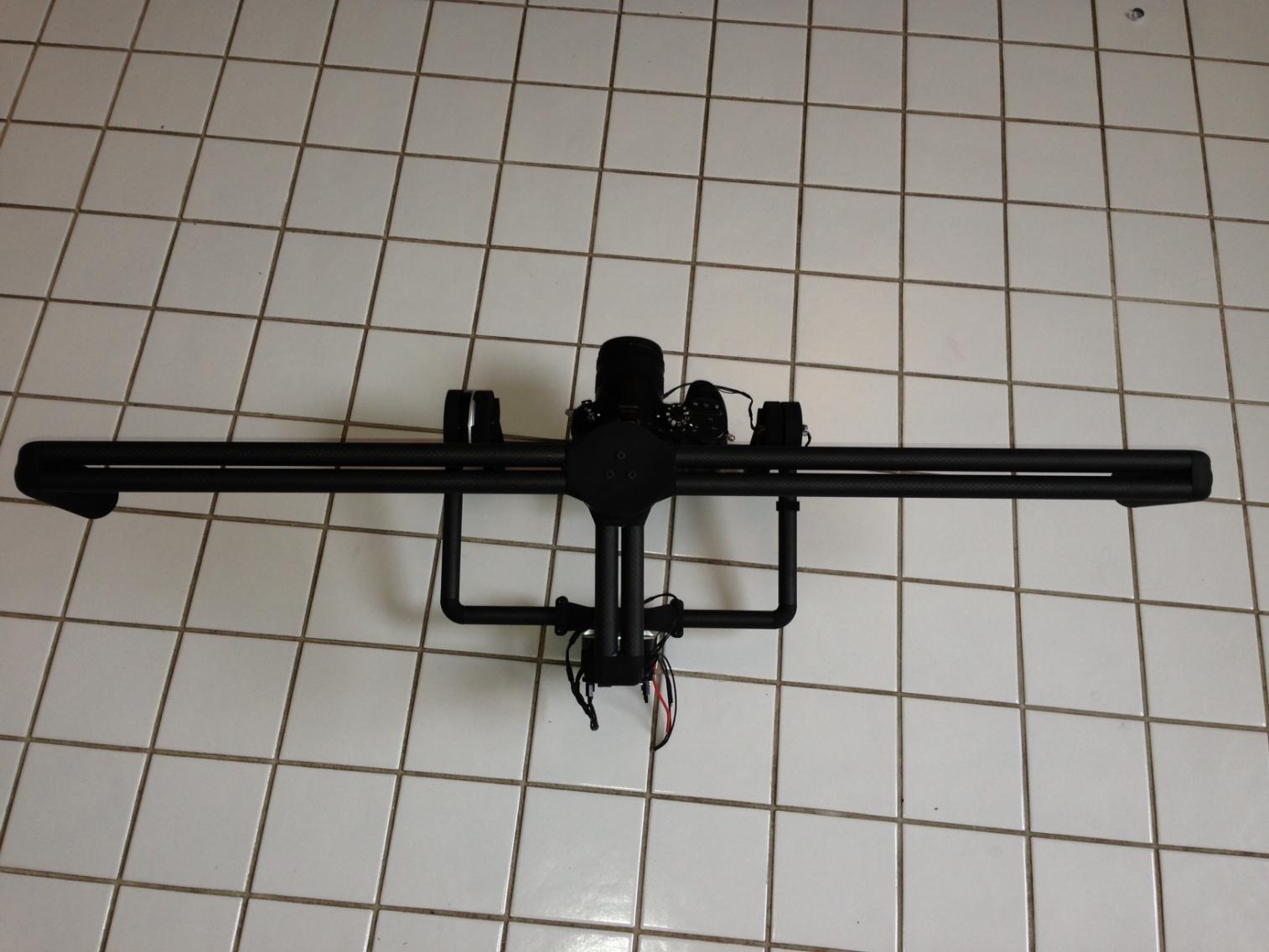

finally have the parts and already know what could have been done better

View attachment 12100View attachment 12099View attachment 12098View attachment 12097



[mbsteed]

This is great work here.

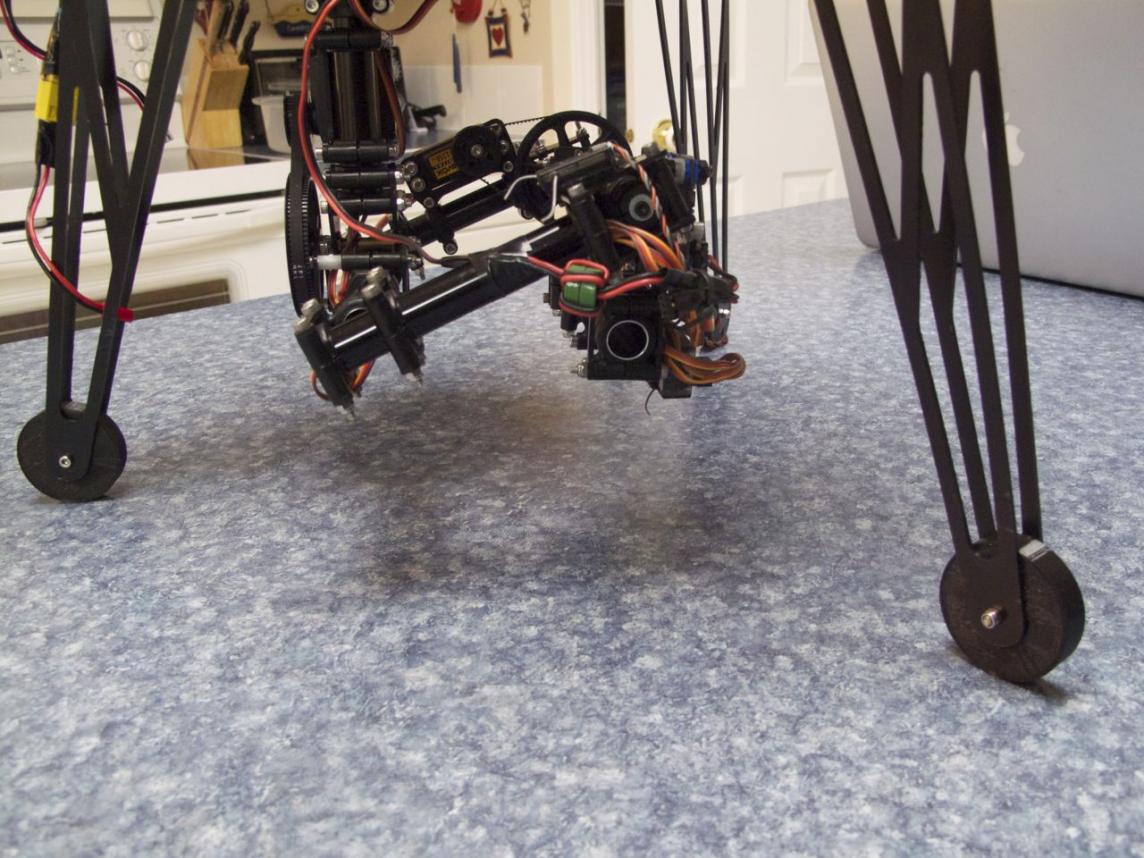

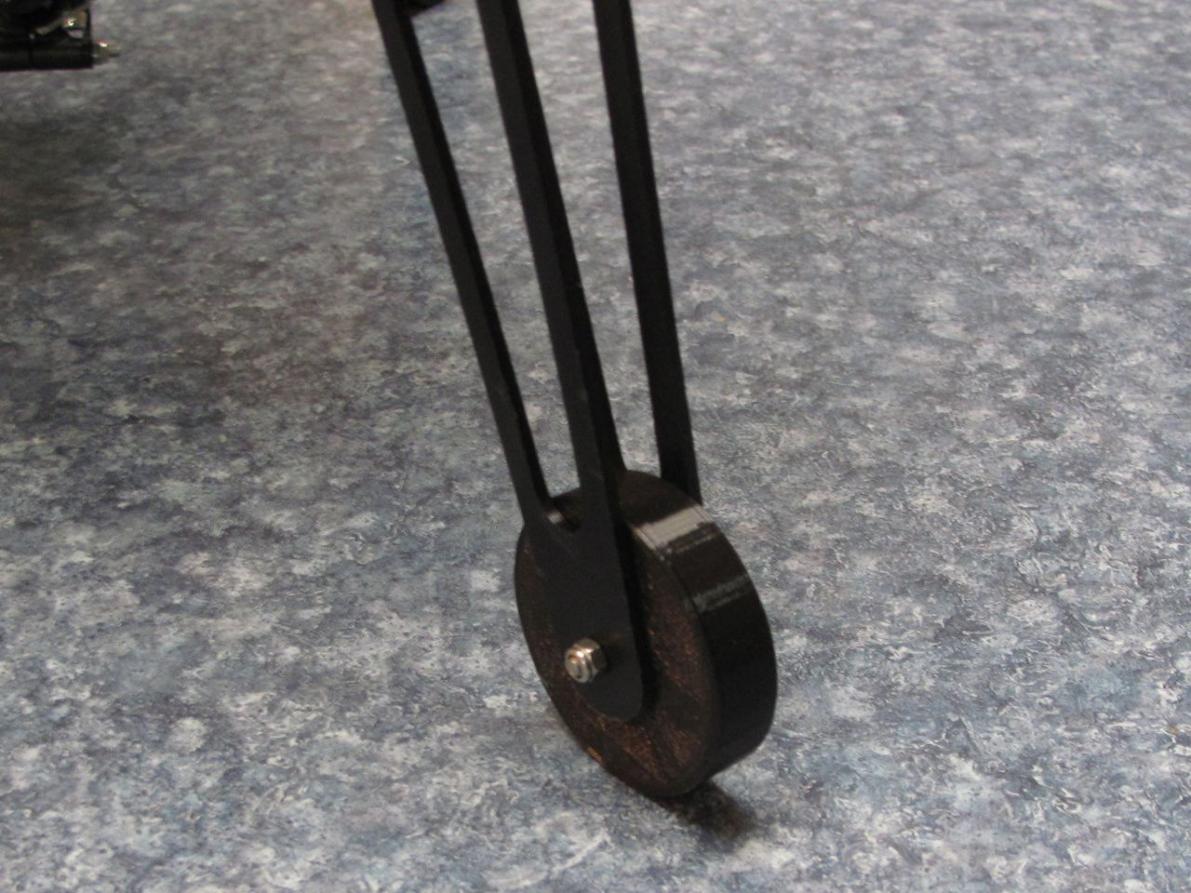

I am using the Replicator 2 (Makerbot) - designed for printing PLA. I used it to design some wheels for the bottom of my threeDee gimbal. 3D printers are great for one-off design projects like this.

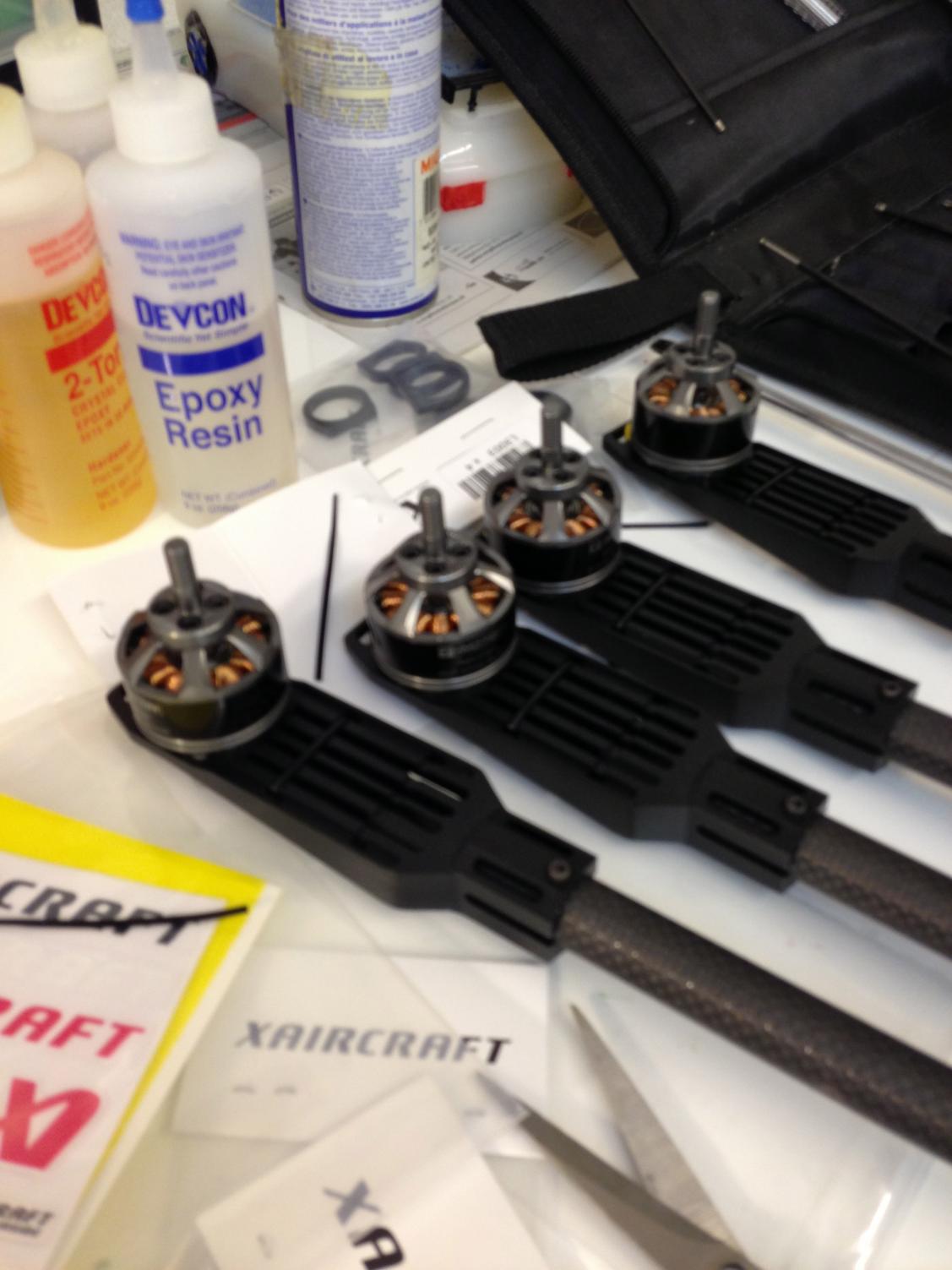

\View attachment 12108View attachment 12109

Consider posting your design to Thingiverse. Here are some other designs posted there:

http://www.thingiverse.com/search?q=multicopter&sa=
http://www.thingiverse.com/search?q=quadcopter



[951UAV]

Really nice stuff there Boris, Looks like a very nice first try. The ability to make things so easy is neat to watch considering how much time and money this would have been just a short time ago.

Thanks for sharing



[jdennings]

Awesome ...

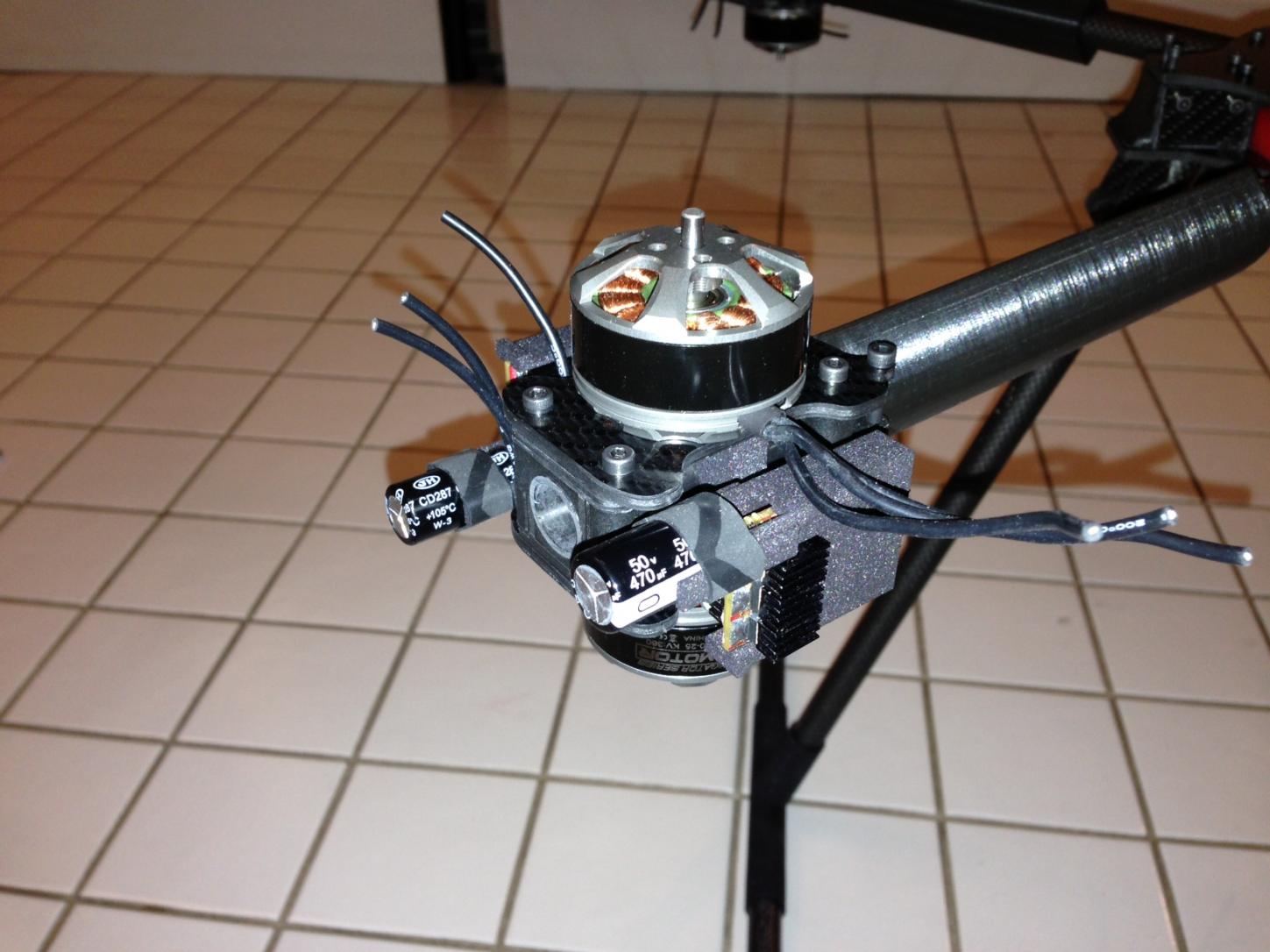

Original, mounting the esc's next to the motors ...
For the removable arm connections, are you using EC3 or similar connectors that are pressed in?

-jds



[BorisS]

@ mbsteed. Once everything is finished and working i will post it all frame gimbals etc. ! PLA ABS is great but most parts eventually i get done with shape ways the material is just a better and the prints more percise !

@ jdennings. I am not happy with my first design of the removable connectors ! they work but its to much of a hassle to fit the booms and connectors back into the center plate. I am just redesigning that part. I am using 4mm gold connectors. Which should be fine
for two motors running 5s max A 15 thus 30A but only bursts. The 16mm tubing has 1.5 mm thick walls so not much space.

Boris

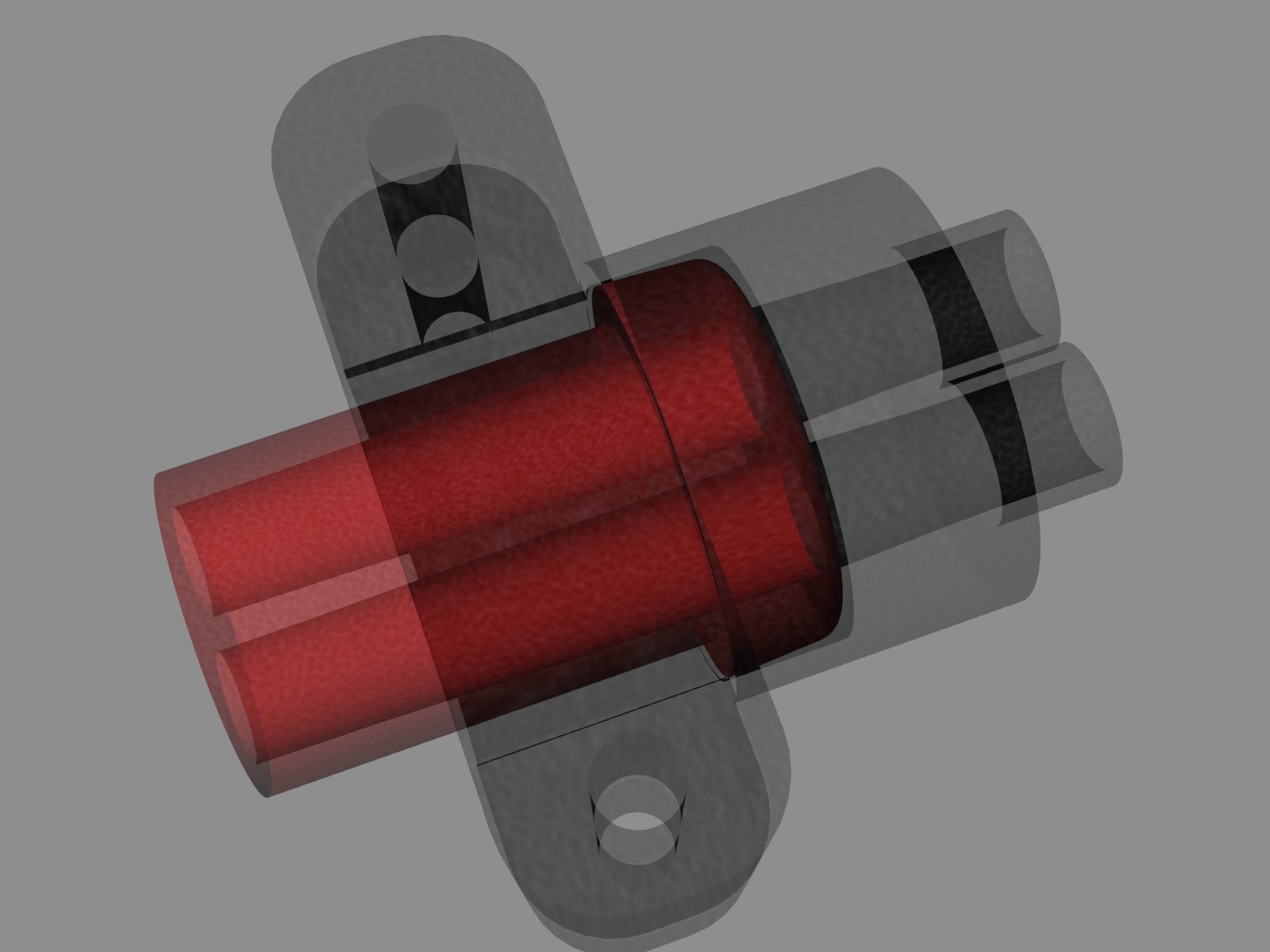

To lazy to draw the gold connectors hope the render makes sense !

View attachment 12119



[BorisS]

by the way mounting the ESCs next to the motors it not my thing. Several did it before especially bartman ! I personally wouldnt do it in combo with all FCS. But since I will be using a AQ FC it makes sense !

Boris
