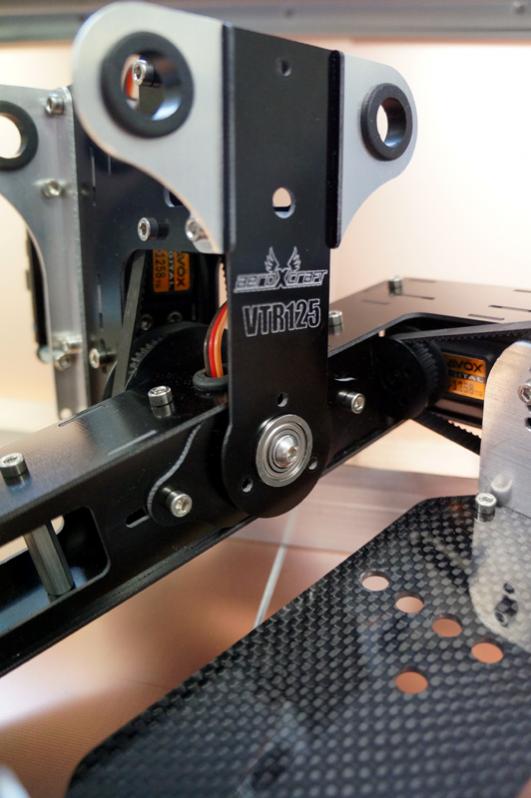

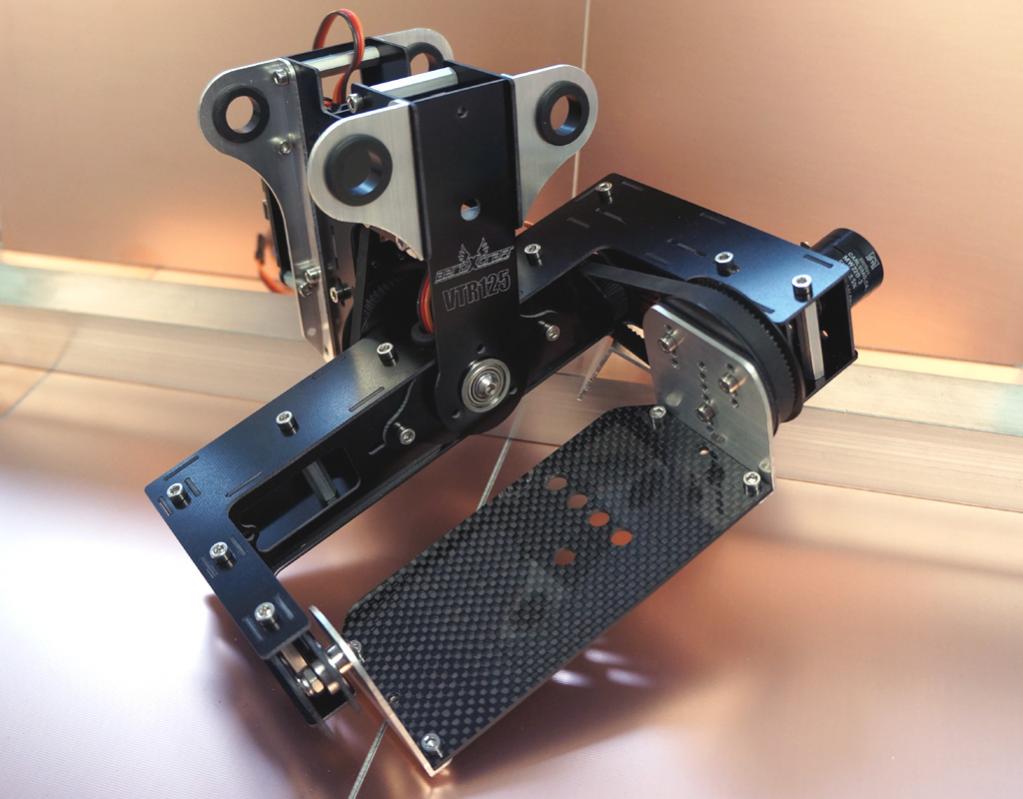

Aeroxcraft VTR125 Gimbal - For Sony Nex5N


View attachment 6051View attachment 6052View attachment 6053



Introductory price £399.99 (Fully Assembled and tested)


Includes modified Savox 1258TG servos


Will fit other cameras. Canon G9 is a good fit. Camera tray is 125mm wide.


Features:
* Optimised for Sony Nex5N
* Roll axis concentric with Sony Nex5N Lens position
* All belt driven
* External potentiometers.

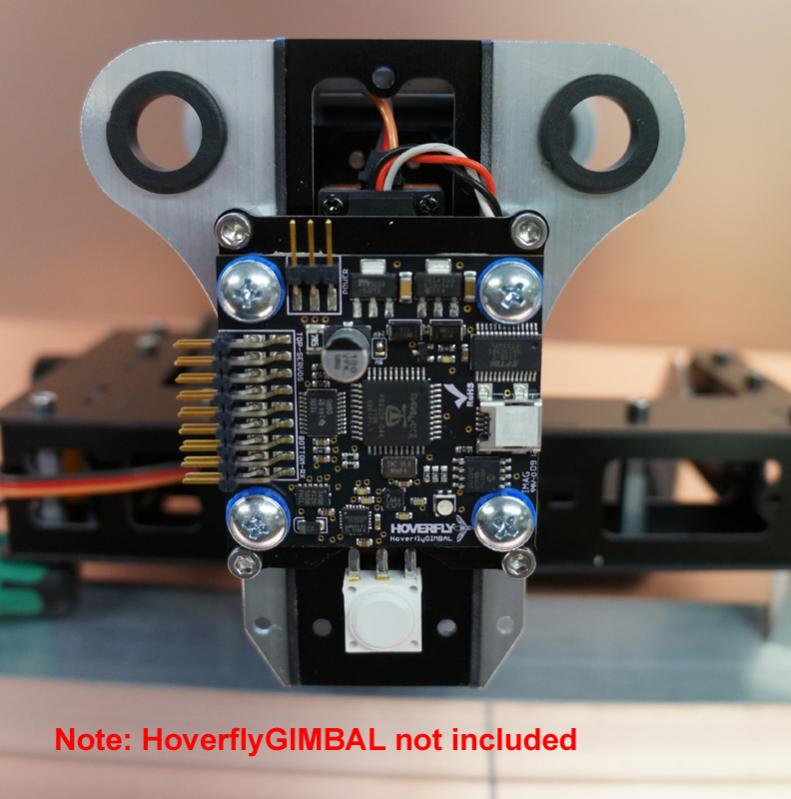

* Includes mounting subframe for HoverflyGIMBAL
* Lateral adjustable roll point
* Adjustable height on the camera tilt
* Belt tension adjustment
* Rail mounts included for Aeroxcraft 12mm rails (F550 Landing gear and Quad-670).
* Optional rail mounts for Droidworx and X650 rail sizes and spacings.
* Carbon Fibre, G10 and aluminium construction.
* Weight: 565g including servos


Options:
* 360 deg tilt potentiometer (recommended for hoverflyGIMBAL)
* 170 deg tilt potentiometer (recommended for DJI Wookong)


Please specify which tilt option you want at checkout.


Options to come:
* Servo mount for shutter control
* Lens Zoom ring control servo
* Ultra Slim HDMI Connector







http://www.aeroxcraft.com/index.php?main_page=product_info&cPath=4&products_id=26


Attachments

  • sony_gimbal3.jpg
    73.2 KB · Views: 453
  • sony_gimbal3_01.jpg
    51.1 KB · Views: 396
  • sony_gimbal3_02.jpg
    65.1 KB · Views: 395
Last edited by a moderator:

Aeroxcraft

Aeroxcraft

Member
Aeroxcraft VTR125 Gimbal - For Sony Nex5N


Demonstrating 360 degree tilt, with Sony 16mm lens on the Sony Nex5N.



Last edited by a moderator:



Kilby

Kilby

Active Member
Any idea when those will be available? Also, do you have any more video shot on board? I finally picked up an NEX5N and this would work well with my existing landing gear from you.

thanks!

-Terry


Aeroxcraft

Aeroxcraft

Member
Kilby said:
Any idea when those will be available? Also, do you have any more video shot on board? I finally picked up an NEX5N and this would work well with my existing landing gear from you.

thanks!

-Terry
Click to expand...
Hi Terry.
The gimbal is now in production and available for purchase on our website.

Thanks
Rob


Last edited by a moderator:





Kilby

Kilby

Active Member
Can you tell us a little more about your setup, thundead? It looks like you are using a GoPro on the NEX gimbal? What are you using for stabilization of the camera itself? Also, what craft and landing gear are you using? Is this gimbal replacing an old one, and if so, how do you think it stacks up?

Thansk!

-Terry


Kilby

Kilby

Active Member
soylentrg said:
Hi Terry.
The gimbal is now in production and available for purchase on our website.

Thanks
Rob

Click to expand...

Hey Rob,

Any chance you have any footage that involves a little less rapid yaw movement? TBH, I start to get a little queezy in my stomach when I watch this. I don't do well on roller coasters either though, if that means anything to you. ;-)

Something that is a little more real world would be great... lofty floaty video that can showcase how stable this thing gets.

-Terry

Last edited by a moderator:

T

thundead

Member
Didn't have to much time to tinker with it so was connected straight to my wookong M. I'm getting the bec on 6v installed with a separate controller and will see how it looks. Camera is indeed a gopro 2.

I had the first gimbal as well and I can say there's no comparison. Really well made gimbal. Landing gear and rail mount is off an xaircraft x650. Think the gimbal did extremely well considering the extremely gusty and windy conditions.

Kilby said:
Can you tell us a little more about your setup, thundead? It looks like you are using a GoPro on the NEX gimbal? What are you using for stabilization of the camera itself? Also, what craft and landing gear are you using? Is this gimbal replacing an old one, and if so, how do you think it stacks up?

Thansk!

-Terry
Click to expand...


D

DaveM

Member
I have only had a chance to try mine for stills at the moment, but I am more than
happy with the quality. :)

What gimbal controller were you using for the video, Hoverfly, WKM ?

I might be totally wrong, but looking at the footage, was this from a mounted
GoPro on the gimbal and not a Nex5n ? the horizon looked very curved.

Looking forward to using mine for video very soon




Dave


Edit: I took so long typing and talking to someone, others have asked my questions already :highly_amused:

Last edited by a moderator:

T

thundead

Member
yup, mounted gopro +wkm atm :)

DaveM said:
I have only had a chance to try mine for stills at the moment, but I am more than
happy with the quality. :)

What gimbal controller were you using for the video, Hoverfly, WKM ?

I might be totally wrong, but looking at the footage, was this from a mounted
GoPro on the gimbal and not a Nex5n ? the horizon looked very curved.

Looking forward to using mine for video very soon




Dave
Click to expand...


D

DaveM

Member
thundead said:
yup, mounted gopro +wkm atm :)
Click to expand...


Did you mount the GoPro in its waterproof case, or some other method ?


I have attached a tiny 1 gram FPV camera for framing for stills until the
slim HDMI cable is available from Rob.

Were you using the Gopro with a Vtx downlink, you seemed to be keeping up with
the action very well. :)



Dave




Kilby

Kilby

Active Member
Just checking in to see how things are going with this gimbal. Anyone else picked one up and have video that they can share?


kloner

kloner

Aerial DP
i'm surprised that one video is under a f450 aint it? stock motors and all. what kinda flight times did that get?

Them quads get just that little bit of wobble in the flight controller that's hard for the gimble to cover up don't it.....
