DJI Formally Releases S800 Vibration Absorber Kits & S800 EVO Frame Arm

[DJI Innovations]

All S800 old users can enjoy certain discount to buy the vibration absorber kit and S800 Evo Frame Arm, if you have any questions, please feel free to contact with your dealer!


S800 EVO Frame Arm

It has a new and additional strengthened structure design with greatly enhanced rigidity. Multistrand SR Wires of power and signal lines embedded which has improved the system reliability comprehensively. The S800 ESC and motors can be installed directly onto the arm.

Specification:
1. Total weight: 139.5 g;
2. Working temperature: – 20-70°C;
3. Signal wire standard: 22 AWG SR Wires;
4. Power cord standard: 16 AWG SR Wires;

Features:
1. Compatible with S800;
2. Greatly enhanced rigidity;
3. Multistrand SR Wires of power and signal lines.


S800 Vibration Absorber Kit

The kit contains six dampers and an IMU mounting plate. You can install them easily on your S800 without making any changes to your S800 and flight performance can be improved greatly. All you have to do is just installing the six dampers between the S800 frame arms and the landing gear, and the air-core damping ball within the dampers will absorb the high frequency vibration. It effectively reduces the high frequency vibration influence to the IMU and gimbal, and makes the S800 flying more stable.

Specifications
1. IMU mounting plate: 21g;
2. Damper: 15g (each);
3. Total weight: 111g;
4. Damping ball hardness: Shore A 50;
5. Working temperature: – 20-70°C;

Features
1. Effective isolation and absorption of the high frequency vibration;
2. Aluminum alloy CNC technology;
3. Easy installation;

The difference between with and without the vibration absorber
Before we mount the vibration absorber on the S800, we stick the GoPro camera on the landing gear directly and the shooting footage are full of water ripples; after we mount the vibration absorber on the S800, you can see clearly the working state of the vibration absorber, and there are no water ripples in the shooting footage, in addition, the vibration absorber will greatly reduce the vibration of the IMU and the gimbal.

Demonstration Video of S800 Vibration Absorber Kit

Installation Video of S800 Vibration Absorber Kit



[Tahoe Ed]

Looks like a worthwhile improvement to the existing arms. I like that you are now using the silicon wire. Less prone to the chaffing than the solid copper with the coating on it. I have the intermediate arms with the larger CF tab in the arm. I wonder how much stiffer the EVO arms are over mine? I have the vibration isolation mounts that I am going to try out this weekend. I am looking forward to the introduction of the A2M version of the WKM.



[DJI Innovations]

All S800 old users can enjoy certain discount to buy the vibration absorber kit and S800 Evo Frame Arm, if you have any questions, please feel free to contact with your dealer!


S800 EVO Frame Arm

It has a new and additional strengthened structure design with greatly enhanced rigidity. Multistrand SR Wires of power and signal lines embedded which has improved the system reliability comprehensively. The S800 ESC and motors can be installed directly onto the arm.

Specification:
1. Total weight: 139.5 g;
2. Working temperature: – 20-70°C;
3. Signal wire standard: 22 AWG SR Wires;
4. Power cord standard: 16 AWG SR Wires;
5. 2.3 mm displacement of the motor axis @ 10N lifting force;



Features:
1. Compatible with S800;
2. Greatly enhanced rigidity;
3. Multistrand SR Wires of power and signal lines.
4. Under the same tension, S800 EVO frame-arm deformation is only about half of the S800 arms;

S800 Vibration Absorber Kit

The kit contains six dampers and an IMU mounting plate. You can install them easily on your S800 without making any changes to your S800 and flight performance can be improved greatly. All you have to do is just installing the six dampers between the S800 frame arms and the landing gear, and the air-core damping ball within the dampers will absorb the high frequency vibration. It effectively reduces the high frequency vibration influence to the IMU and gimbal, and makes the S800 flying more stable.

Specifications
1. IMU mounting plate: 21g;
2. Damper: 15g (each);
3. Total weight: 111g;
4. Damping ball hardness: Shore A 50;
5. Working temperature: – 20-70°C;

Features
1. Effective isolation and absorption of the high frequency vibration;
2. Aluminum alloy CNC technology;
3. Easy installation;

The difference between with and without the vibration absorber
Before we mount the vibration absorber on the S800, we stick the GoPro camera on the landing gear directly and the shooting footage are full of water ripples; after we mount the vibration absorber on the S800, you can see clearly the working state of the vibration absorber, and there are no water ripples in the shooting footage, in addition, the vibration absorber will greatly reduce the vibration of the IMU and the gimbal.

Demonstration Video of S800 Vibration Absorber Kit

Installation Video of S800 Vibration Absorber Kit

[/QUOTE]



[plingboot]

Is there any indication of price for us existing 'fully loaded' (s800, zen gh2, big lipo pack) owners?

I've had my set-up for a few months but the well documented issues many of us have experienced have kept me from flying it.



[Serval]

No one must pay for something does not working.
Manufacturer must resolve for free, problems and safety problems.



[HEX junky]

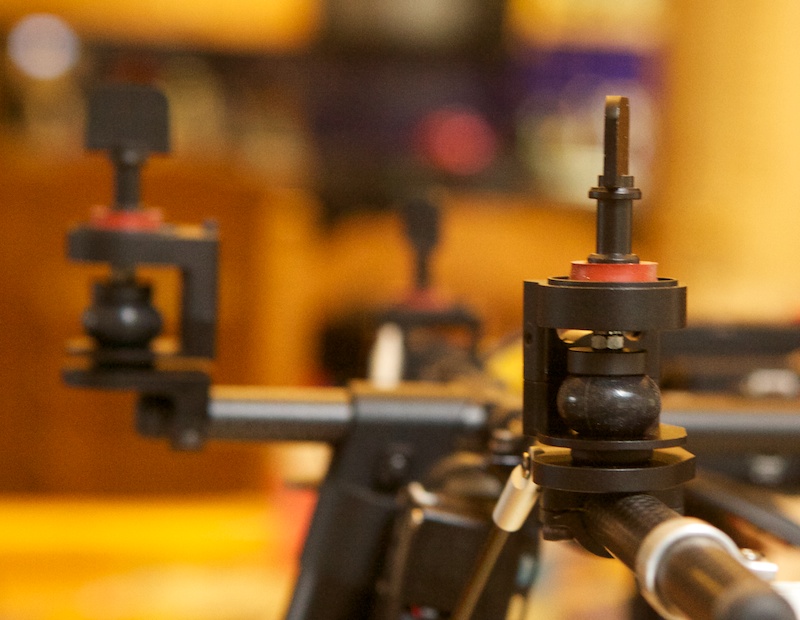

View attachment 11370



[Serval]

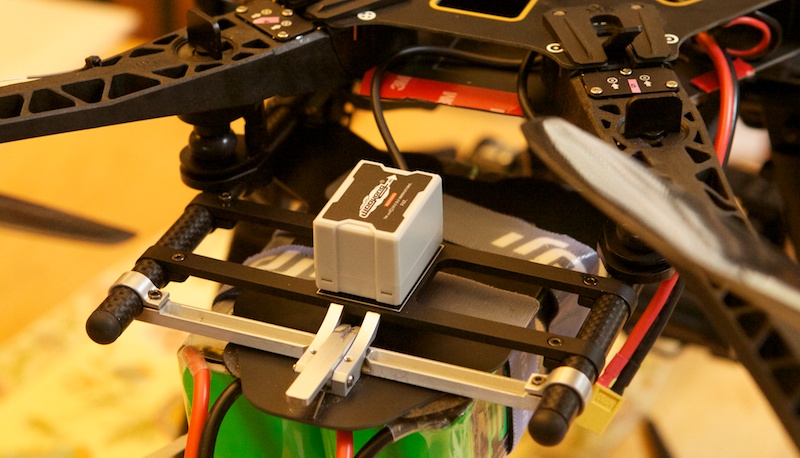

View attachment 11371



[hjls3]

So I contacted my very good and helpful dealer in the USA and he did not know when they would ship or what they would cost. So DJI spill it! When will dealers get them and how much??? I am currently suffering from vibes getting to the IMU and I would really like my very expensive Zen s800 combo to fly like the professional rig you claim it to be.



[fritz99]

Intersting that we should pay for an upgrade for an expensive system that is not working how it should !



[Tahoe Ed]

Fritz, it works for some not others. It depends on your set up. I have not had any problems other than those that I caused.



[Serval]

In this case, it must working.
Easy to watch torsionnal bending and shear on MotorMount/Arms.
Wind about 10km/h (6 miles/hour).



[saidquad]

I did order S800 because it was clearly stated on the DJI web site and in the instruction manual that this bird falls under professional category of DJI products and it is designed for aerial photography and can handle up to 7kg weight. Z15 was designed for it which could carry NEX7. And guess what. Soon after receiving S800 I had to return ESC’s and get new ones. Then I had to exchange GPS. Then I realized that it cannot do the work which is lifting Z15 and the camera. Why? Because it is almost 7kg and shakes like an unprofessional hobby quad copter. Now I have emailed DJI for IMU replacement request and got no respond. Later I have to buy the vibration absorber kit. Then EVO frame arm. May be then (hopefully) it could do the job it supposed to do from the beginning. I appreciate the braveness of DJI because they admit the weaknesses of their product by introducing new so called upgrades. But I think they should be more customer oriented and should not charge their customer for upgrades that are actually not upgrades but are replacement of defect parts. Retractable landing gear is an upgrade. But EVO arms and IMU V2 are not upgrades. Arms and IMUs which we received in the first place were supposed to be good enough to be used for a smooth aerial photography for up to 7kg bird out of the box as claimed by manufacturer. Anything other than this is called defect parts. Sorry for my poor English.



[baja-king]

I did order S800 because it was clearly stated on the DJI web site and in the instruction manual that this bird falls under professional category of DJI products and it is designed for aerial photography and can handle up to 7kg weight. Z15 was designed for it which could carry NEX7. And guess what. Soon after receiving S800 I had to return ESC’s and get new ones. Then I had to exchange GPS. Then I realized that it cannot do the work which is lifting Z15 and the camera. Why? Because it is almost 7kg and shakes like an unprofessional hobby quad copter. Now I have emailed DJI for IMU replacement request and got no respond. Later I have to buy the vibration absorber kit. Then EVO frame arm. May be then (hopefully) it could do the job it supposed to do from the beginning. I appreciate the braveness of DJI because they admit the weaknesses of their product by introducing new so called upgrades. But I think they should be more customer oriented and should not charge their customer for upgrades that are actually not upgrades but are replacement of defect parts. Retractable landing gear is an upgrade. But EVO arms and IMU V2 are not upgrades. Arms and IMUs which we received in the first place were supposed to be good enough to be used for a smooth aerial photography for up to 7kg bird out of the box as claimed by manufacturer. Anything other than this is called defect parts. Sorry for my poor English.

Well said - this post is on the money for me (excuse the pun)



[Droider]

DJI seem great at posting about upgraded and new products that even their dealers no nothing about. Then they do not come back and answer questions.. Just really glad I did not jump into the S800/Z15 ring.

DJI really could do with a bit of western CS injection.. But I doubt that will ever happen. Its all about box shifting and its lookin more and more like thats all the growing DJI care about.

I have to say its disappointing but I guess thats the tech we are into where we are all beta testers!

Dave



[MombasaFlash]

I did order S800 because it was clearly stated on the DJI web site and .......

Oh this just gets funnier and funnier.

Hot on the heels of the IMU.v2 uproar, where the sentiments pretty much echo what you have stated, is this announcement of replacement booms - eerily foretold by Yours Truly in the Wookong IMU V2 thread.

With this 'upgrade' DJI will have finally replaced the virtually entire machine. Not only that, they have wangled it so that their customers (read 'stupid idiots' in DJI-speek) will have paid twice for their S800 rigs. Once for all the original poorly designed faulty components and once for the V2 replacement parts.



[redridinghood]

I am sure the V2 replacement parts will be equally inferior to the upcoming V3 parts.



[Stevenhartman]

I am Actually disgusted with this.

I bought 8 s800 with wkm's for various film rigs and have nothing but issues and problems. The fact that DJI cant even say lets help our current clients get their units perfect is beyond me the vibration absorbers are 75$ for s800 owners but i cant see myself paying even that. I would rather burn all 8 units and go viral on the internet explaining what a **** company this is. I am tired of DJI. I will do everything in my power to discredit this bunch of money hungry idiots. Maybe i should go to one of their trade shows on do it there in front of everybody.



[Serval]

I am Actually disgusted with this.

I bought 8 s800 with wkm's for various film rigs and have nothing but issues and problems. The fact that DJI cant even say lets help our current clients get their units perfect is beyond me the vibration absorbers are 75$ for s800 owners but i cant see myself paying even that. I would rather burn all 8 units and go viral on the internet explaining what a **** company this is. I am tired of DJI. I will do everything in my power to discredit this bunch of money hungry idiots. Maybe i should go to one of their trade shows on do it there in front of everybody.

Just do it.
- for you,
- for people Bought same mistake product as you S800
- for other people would like to buy this mistake product
- for UAV industry (be credibility, no more crash cases from plastic arms)
- for Pilots (because of if too much crash, it will be very bad thing for all around the world)


Please do not hesitate to share your Videos.



[baja-king]

I think the legal term in the UK is 'fit for purpose' and I feel DJI have proved themselves that what they were selling originally as the S800 for professional use was indeed 'not fit for purpose'...



[ChrisViperM]

I think the legal term in the UK is 'fit for purpose' and I feel DJI have proved themselves that what they were selling originally as the S800 for professional use was indeed 'not fit for purpose'...

It was fit for purpose: Making DJI a lot of money.....but screwing themselves at the same time and chasing customers away.....

....purpose met 100 % :tennis:


Chris
