T-Motor U13 based HEAVY Quad

Discussion in 'Drone Builds and Kits' started by Skewp, Aug 22, 2016.

  1. Skewp

    Skewp Member

    47
    12
    1
    Mar 31, 2013
    Estonia
    Posted by Skewp, Aug 22, 2016 #1
    Since I got my hands on some T-Motor U13's I decided to try them out and build a quadcopter.

    List of parts:
    *T-Motor U13 (100kV) - 4pcs
    *T-Motor Flame 80A 6-12S ESC - 4pcs
    *T-Motor 29x9.5 3-bladed prop - 4pcs
    *T-Motor prop Quick-release for U13 - 4pcs
    *Custom 4mm thick carbon centerplates
    *Custom 3mm thick aluminium motor mounts - 4pcs
    *Custom navigation strobo LED setup
    *Custom vibration damper
    *30/28mm Carbon tubes - 4pcs
    *3D printed parts
    *Vulcan UAV 400A PDB
    *Pixhawk FC
    *Castle Creations CC BEC (One for Pixhawk, one for retracts) - 2pcs
    *Gens Ace 16 000 mAh 6S (2S2P) - 4pcs
    *Futaba T14SG + R7008SB (+telemetry)
    *ARRIS L1000 V3 retracts


    What's the prurpose of the build?

    Trying out the biggest and meanest T-Motor U13 motor. Let's see how they perform in different weather, can they be used on an AP rig and how much flight time will they offer.

    I have previously tested a single U13 + Flame 80A + 29x9.5 prop set. You can find additional info about the weight, thrust and other important data in the following link:
    http://www.dronevibes.com/forums/th...29x9-5-3-blade-prop-review-thrust-test.31750/

    STEP 1. Make the drawings

    Well, this was easy. Since I've been flying U7 (490kV) based X8 for a while I had already drawings of the centerplates, vibration damper, dome and 3D printer parts that will also fit the U13.

    [​IMG]

    STEP 2. Acquire parts

    Very easy yet costly step.

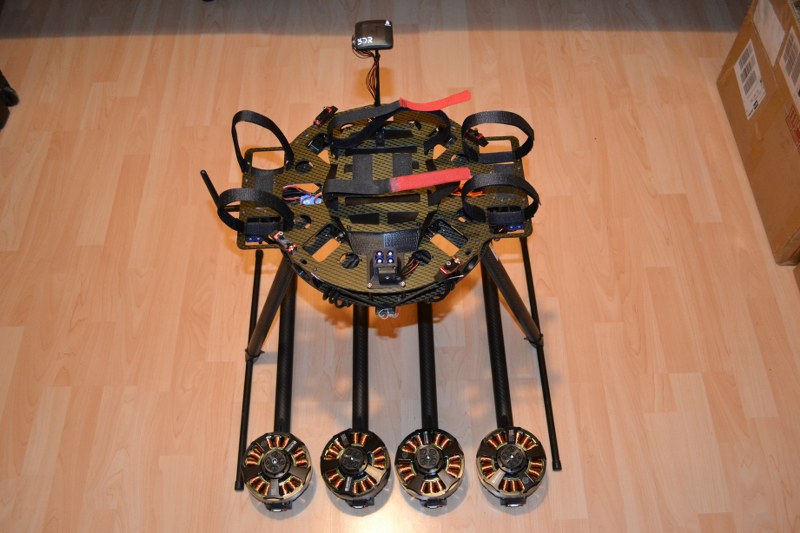

    STEP 3. Start building!

    1. Cut centerplates, vibration damper and battery plate (CNC)
    2. Cut aluminium motor mounts (Laser cutter)
    3. Anodize motor mounts
    4. Start the 3D printing factory!
    5. Assemble.

    START

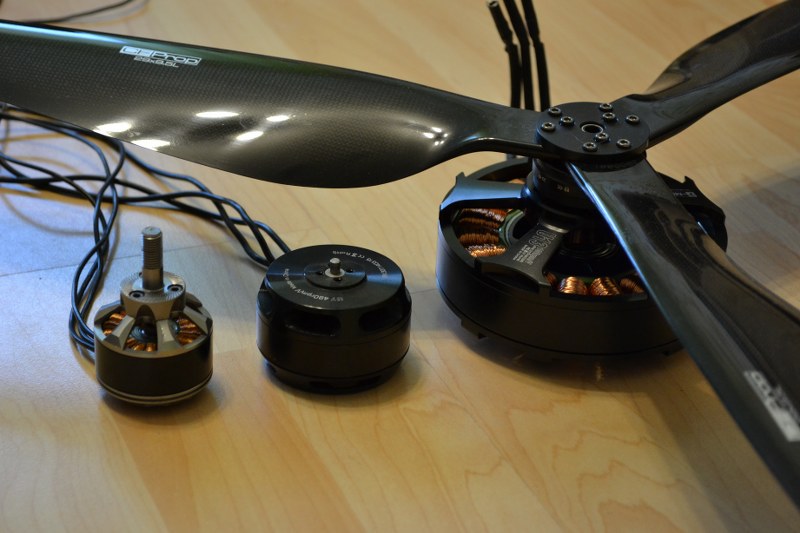

    Let's start with a size comparisson to show how big and mean an U13 motor is. From the left: MN4014, U7 and U13.

    [​IMG]

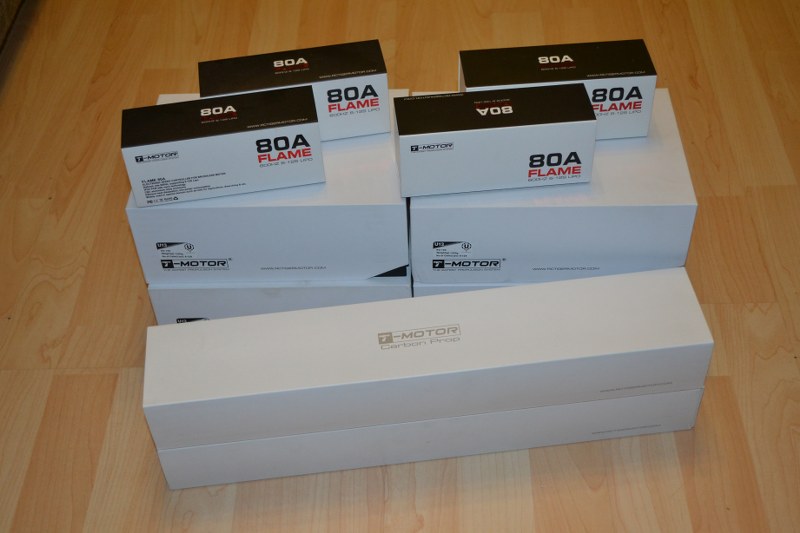

    T-Motor goodies:

    [​IMG]

    Power System

    This thing is going to run on 12S. I am most likely using Gens Ace 16 000 mAh 6S batteries (4pcs). I will wire 2 in series and 2 in parallel to get 32 000 mAh 12S. The copter has four frame mounted EC5 connectors. Since Castle CC BEC does not run on 12S one EC5 connector has to be the "main" that gives 6S power to both of the BEC's and LED system. In this case:

    1. The first "main" 6S battery will power up the Pixhawk, retracts and LED system.
    2. The second 6S battery will complete the 12S system and power up the ESC's.
    3. Third and fourth 6S battery will add another 16 000 mAh 12S to the power system.

    Double EC5 mount.
    [​IMG]

    Single EC5 mounts on both sides.
    [​IMG]


    In addition. To be sure that the motor-ESC-prop combo is up to the task...one must run the motor at full throttle for long period of time...just to be extra sure :p

    T-Motor U13 + Flame 80 ESC + 29x9.5 prop @ Full thottle for 12 minutes:



    Calculated weight of the copter without payload and with 4x 16 000 mAh 6S is 17,2kg (~37,92 lbs)


    Antenna holder

    Since there are props spinning near the centerplates one would not want receiver antennas to flap around. Solution - a 3D printed 90 degree mount.

    [​IMG]

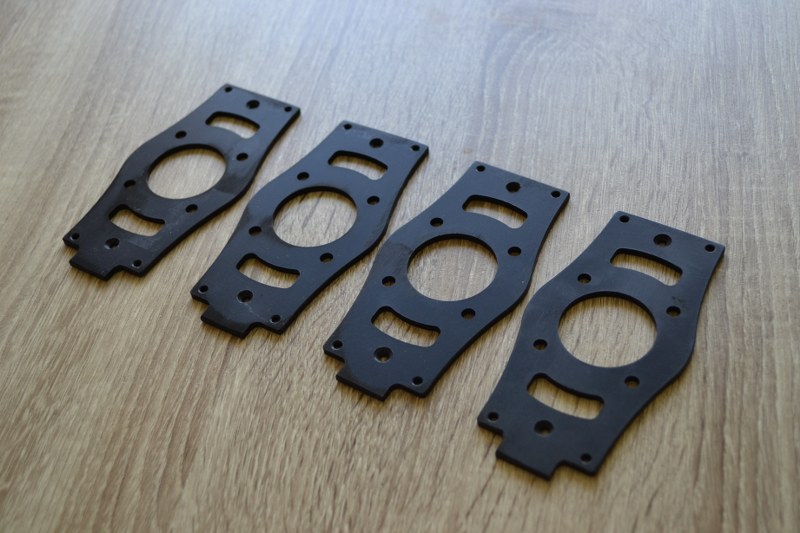

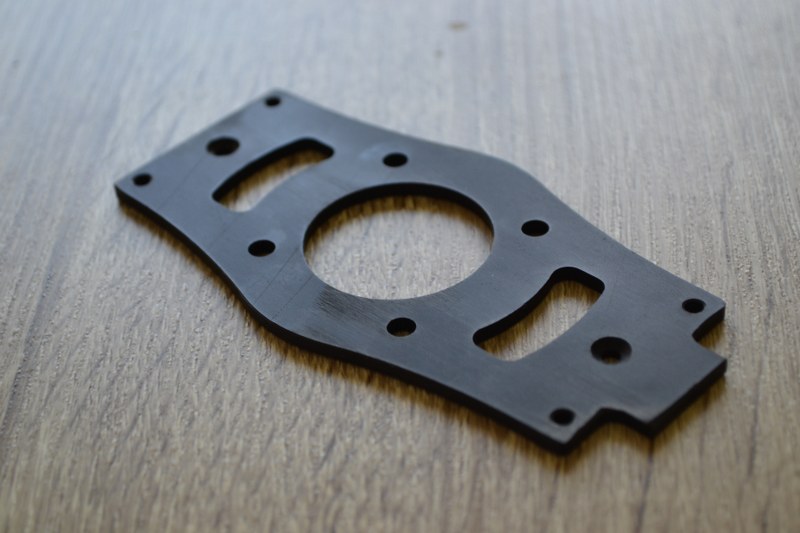

    Motor mounts

    Since my carbon sheet order took too long to arrive I chose to power up the 4kW laser cutter and cut out some nice 3mm thick motor mounts. I also anodized them (black) so they would match with all the other components.

    [​IMG]

    [​IMG]

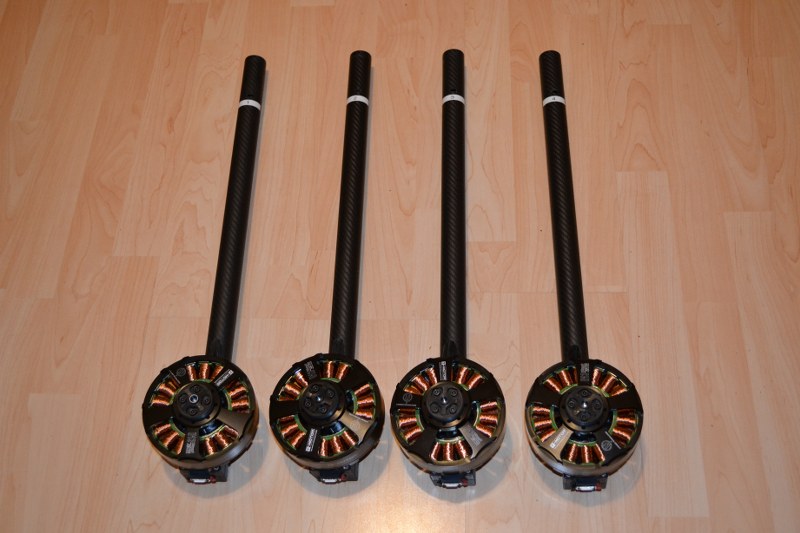

    Removable arms

    Transporting this beast would be a nightmare without the removable arms. There are 4mm female bullets in the arm tubes and 4mm males ones between the centeplates. Just slide the arm in and lock it with the quick-release with safety pin. Quick an easy :)

    [​IMG]

    [​IMG]


    Next step - flight video :)

  2. moonpie57108

    moonpie57108 Member

    136
    14
    1
    May 21, 2016
    South Dakota
    Posted by moonpie57108, Aug 22, 2016 #2
    Those motors are beasts. AUW with batteries?


    Found AUW, 17.2 KG.

  3. Skewp

    Skewp Member

    47
    12
    1
    Mar 31, 2013
    Estonia
    Posted by Skewp, Aug 22, 2016 #3
    They sure are. T-Motor released a teaser picture of a 60" prop + motor combo too, that should be released soon. AUW without payload is 17,2kg (w/ 32 000 mAh 12S).

    First flight(s) are done. Around 40 minutes flight time in this kind of setup. I am very pleased with the handling considering the weight and low kV motors. Without payload it flies like a racing quad, managed to max out at 26,5m/s (95,4km/h).


    [​IMG]

    John Doecliff and ary like this.
  4. violetwolf

    violetwolf Member

    614
    153
    26
    Apr 9, 2013
    Posted by violetwolf, Aug 22, 2016 #4
    That's insane, in a good way lol! Can't wait to hear what she'll lift.

  5. Skewp

    Skewp Member

    47
    12
    1
    Mar 31, 2013
    Estonia
    Posted by Skewp, Aug 27, 2016 #5
    It sure is! I plan to lift ~23kg payload so the total weight of the quad will be 40kg total :)


    Had some free time in hand and made a short clip of the U13 quad. Check it out, it has a quick overview of the assembly process and some Air-To-Air in-flight shots ;)


    sabeer and violetwolf like this.
  6. Skewp

    Skewp Member

    47
    12
    1
    Mar 31, 2013
    Estonia
    Posted by Skewp, Aug 28, 2016 #6
    This thread would be incomplete without flight time tests. Did two tests, check them out. Flight time without payload (17,2kg AUW) is nearly 40 minutes.



    sabeer and violetwolf like this.
  7. baldwinc

    baldwinc Member

    21
    0
    1
    Sep 10, 2011
    Posted by baldwinc, Oct 9, 2016 #7
    Wouldn't mind having this!

  8. Skewp

    Skewp Member

    47
    12
    1
    Mar 31, 2013
    Estonia
    Posted by Skewp, Oct 9, 2016 #8
    Let's have a chat and make it happen!

  9. Valery Hristov

    Valery Hristov New Member

    1
    0
    1
    Dec 4, 2016
    Bulgaria Sofia
    Posted by Valery Hristov, Dec 4, 2016 #9
    I have interest to buy,pls to contact by e mail

  10. Skewp

    Skewp Member

    47
    12
    1
    Mar 31, 2013
    Estonia
    Posted by Skewp, Dec 5, 2016 #10
    Please contact me: info (at) rajucam.com

  11. RickyT

    RickyT Member

    13
    0
    1
    Oct 23, 2015
    North Carolina
    Posted by RickyT, Feb 3, 2017 #11
    Are the G-Codes (dxf file) for the frame members available?

  12. Skewp

    Skewp Member

    47
    12
    1
    Mar 31, 2013
    Estonia
    Posted by Skewp, Feb 4, 2017 #12
    Hey. No.

  13. sabeer

    sabeer New Member

    4
    0
    1
    Feb 4, 2017
    india
    Posted by sabeer, Feb 5, 2017 #13
    what is your flight time with 20kg payload bro?

  14. Skewp

    Skewp Member

    47
    12
    1
    Mar 31, 2013
    Estonia
    Posted by Skewp, Feb 5, 2017 #14
    I have not tried with 20kg payload. Estimated flight time would be 13,5 min.
