Questions Regarding Zenmuse Z15 5D Gimbal

gsri

New Member

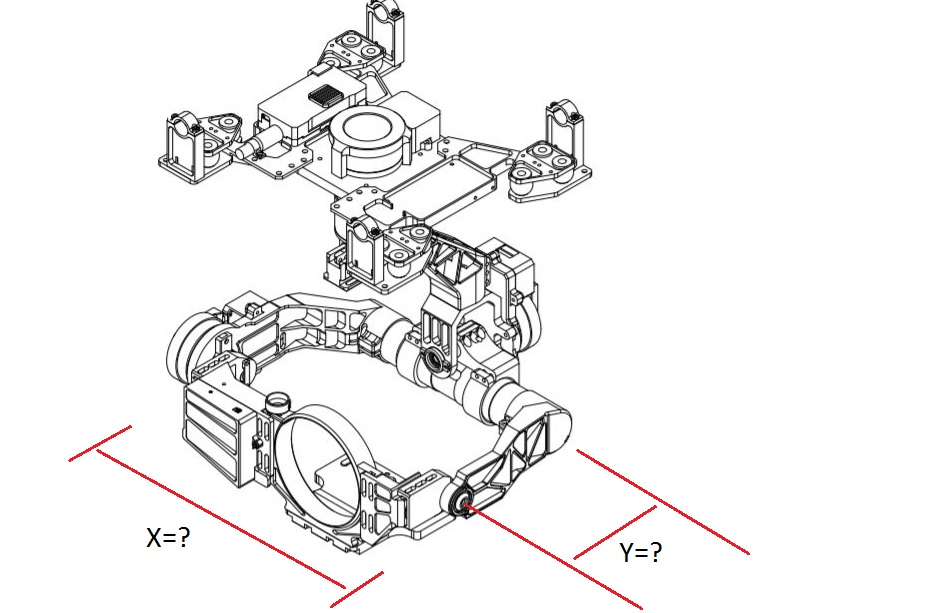

I’m working on a DIY research project where the gimbal failed on my Bergen rc twin observer heli. I’m currently using a visual range and thermal camera and I would like to replace the gimbal with DJI Zenmuse Z15 5D III HD as it is compatible with my flight controller DJI Ace Waypoint and supports the weight requirements that I have. I did ask DJI support team about few specific dimensions, but they are not willing to help me out. I’m curious if anyone here would help me out as I need help with dimensions which is referred in picture. I’m aware that the DJI warranty will be void on modification and it will throw off the gimbal balance but i plan to work on it if i know that the payload will physically fit in that space.



Where x and y is bearing to bearing distance.


Attachments

  • dim_ques.jpg
    110.7 KB · Views: 1,102
