I am in the process of construction of the pano mount which is gonna be similar to photoshipone MP 360 as it is gonna have the automatic trigerring at the predefined positions.
The plan is the following :
We are going to use micro switch for automatic triggering at pre defined positions ( 4 and 6 positions ) as we do not want to cause any magnetic interference on FC board by using magnets. We are going to try with 1:3 or 1:4 pan ratio. The mount will have L- profile for mounting the camera for panoramic shooting but the mount will be upgradable and in the future we are also planing to make the addittional gimbal which can be mounted just by removing L profile so it can be used also for taking video.
So with automatic triggering all you need to do is to press the buton and while the mount is rotating it will be taking photos at the pre defined positions ( you just need to have IR switch from gentled ).
The drawing is still not complete as we are waiting for some bearings and We are still waiting for the bearings and gears and when that arrives we can finalize the drawing. But I will show you the drawing at this moment !
We want it to be smooth and precise and we are going to use combination of flange bearings and thrust ball bearings. The movement of the camera can be practically infinite as the cables will go through hollow shaft that goes through the bearings ! This version of the mount will not have legs as with fisheye lense they would be always there. I always fly my copter by letting it off the hand and catching it in the hand when landing !

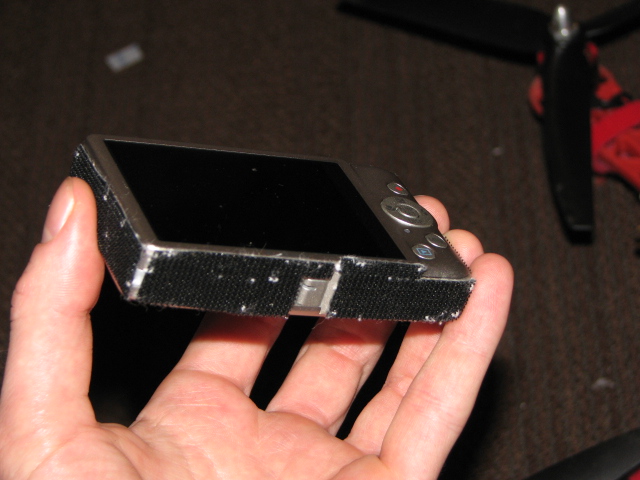

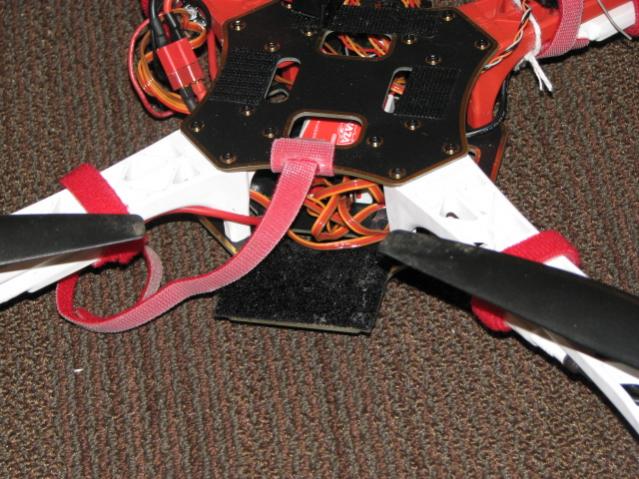

Any comments ar welcomed !View attachment 2841View attachment 2842
