MultiWii / NAZE / SP Racing F3 NEW! OZE32 Flight Control with MiniOSD built in

[Bartman]

From RCtimer, a NAZE32 based system but with MiniOSD built in to the FC board

Copied from their website;

View attachment 26660

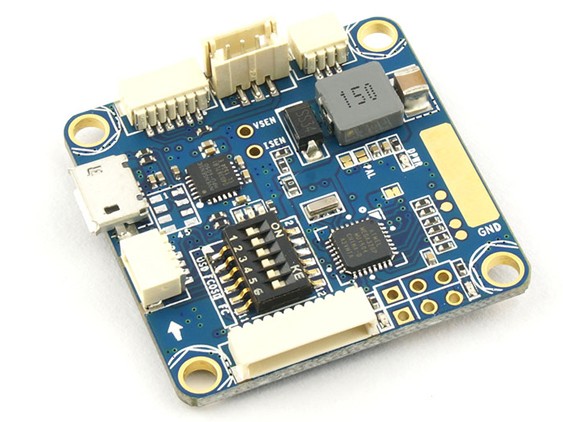

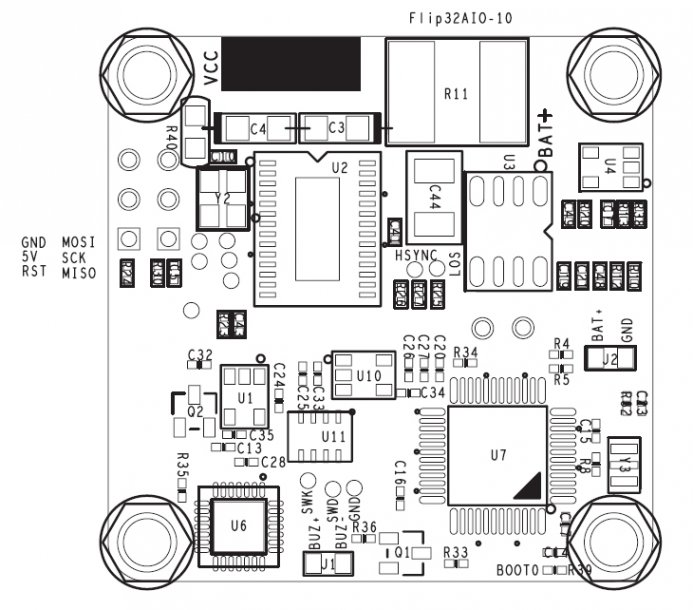

The OZE32 FC base on NAZE32, but it has integrated MiniOSD, PDB, BEC and Current and voltage sensors, solution for FPV, incl. almost everything FPV needed (excl. RF) on 35x35 mm PCB.

• STM103 MCU runs Cleanflight firmware
• Only 35x35mm, mount holes 30x30mm
• Onboard USB
• incl. 5V 3A UBEC
• incl. complete OSD hardware, Compatible with MinimOSD/MWOSD/CC3D OSD
• incl. one small PDB
• incl. Current and voltage sensors

The defualt firmware of OSD for Cleanflight
The board can support 2-6S.
The board can take 80amps current sensorFor switch the usb connection, USB to OZE32 or USB to OSD or OZE32to OSD

*ACRO version hasn't MS5611 on board

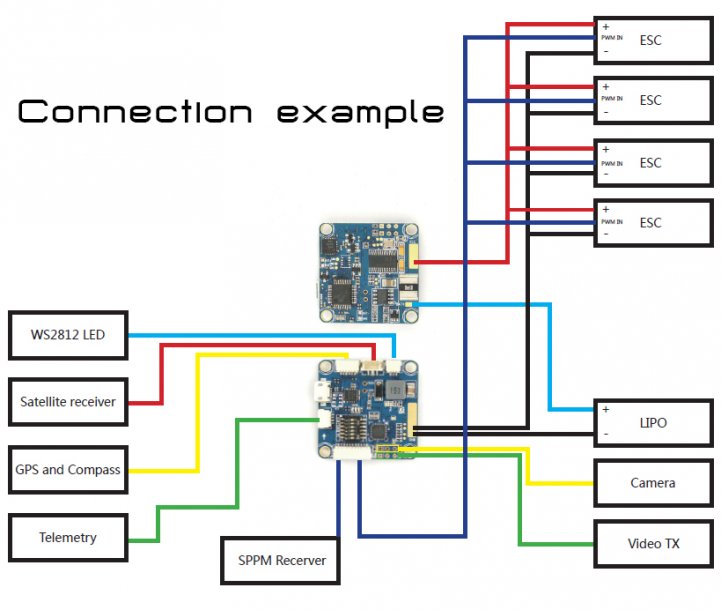

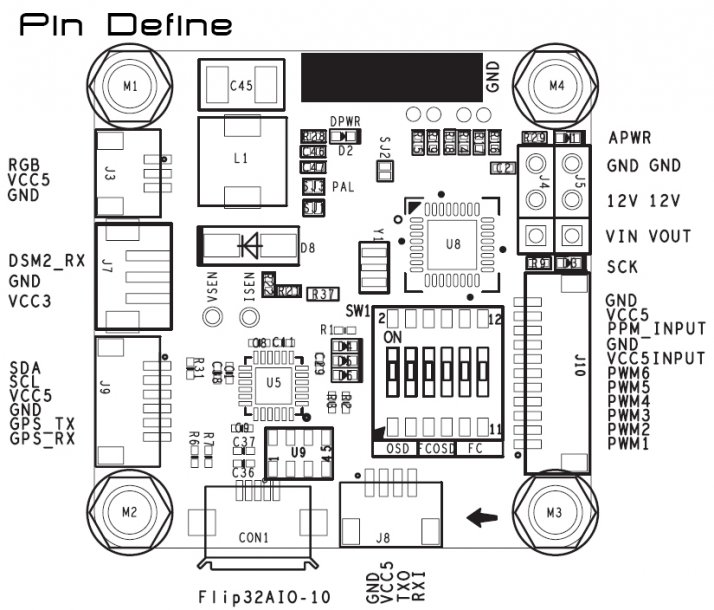

View attachment 26661 View attachment 26662 View attachment 26663



[Bartman]

fwiw, i went ahead and ordered one to try out.



[sledge57]

fwiw, i went ahead and ordered one to try out.

Been awhile, anything to report?



[Bartman]

sledge,

the wiring is a mess and the OSD doesn't seem to work. the weather here turned bad just as I was gearing up to fly it and so it's been sitting ever since. i don't think OSD and FC on the same board is the right combination, the wiring is whacked and trying to make sense of which power goes where is tricky. i'll take a picture later tonight and try to explain better but it's a mess



[ProfEngr]

I'm skeptical of the PDB rating for such a small form factor as well.
