Their seems to be an ever growing variant of MR's showing up so I thought I would create a thread that just has completed build pictures on. The pictures of the build you are flying with. Specs with them would be good but just pictures if your set up is top secret!

Ill start it off with this my first Quadcopter that the 'Great Ted' wanted to fly around in.

Spec basic Gaui FC with upgraded motors and esc's and Alware 450 frame



[Droider]

More seriously my ADX3



[Buzzed]

OK I admit it, this isn't my bird but I liked the design anyway.



[RTRyder]

My AD-6 in its most recent and current incarnation...

The infamous Hoverfly Pro masquerading as an MK quad...

My little homebrew 350mm KK quad...

My original Jakub frame KK quad, still have it sitting on the shelf...

I'll have to get some current pics of the stock Hexa, Gaui 330, and the newest memebr of the fleet, the VC 20 framed Hoverfly Sport.

Ken



[Droider]

Nice Ken.. Glad the Droidworx is at the top of the bunch.



[killy]

next week in production and for sale.

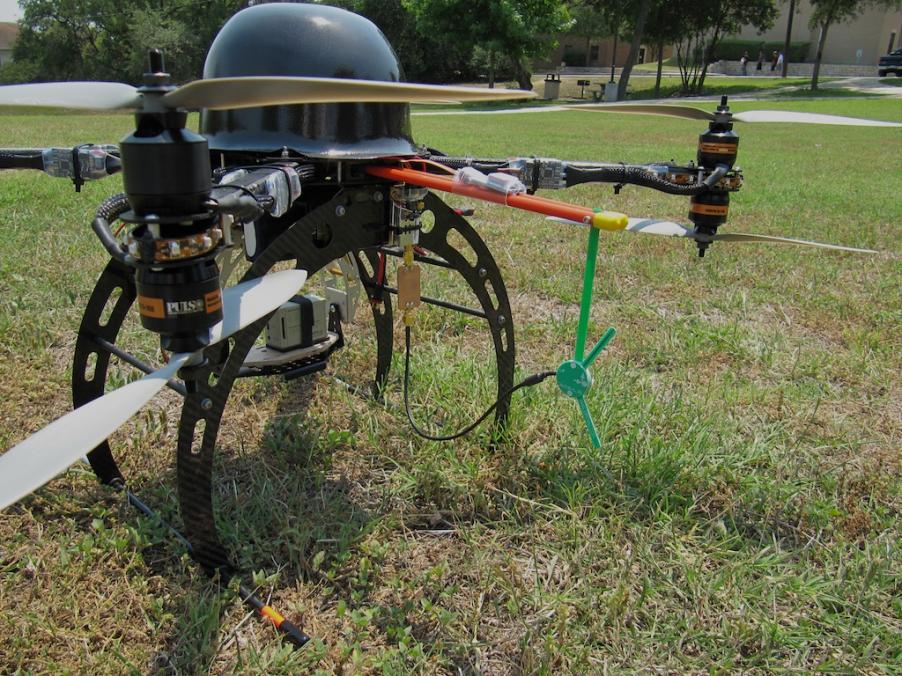

View attachment 423



[Droider]

Very nice looking quad there... any more info..

BTW welcome to MRF.. would be good if you could post some stuff about yourself in the new members thread

Dave



[killy]

hello dave and everybody else of course,
while making a frame of carbon for my own quad and hexa i realised there is not such a model of full carbon for sell (only microdrone i think). so i placed some pictures of the quad on some forums and i got that much positive response i decided to let design a much nicer and better frame , so now after 100 hours of drawing in inventor the designer and me are ready with it, next week the moulds will be cnc cut. so i will start producing them.
about the quad:
it is a 50cm quad, the frame is made of 3 parts, the cap on top can be removed, the other 2 frameparts will be connected with alluminium hexspacers. it can land on water. it can be made of carbon and/ or kevlar. there will be 3 versions of this quad: the standard, the sport and the extreme version. the difference will be visual (some anodised parts,stickers, etc...) and constructive (you have to think about reinforced arms with kevlar honeycomb, reinforced motormount, etc..).

the next 2 models will come soon, it wil be a y70 and a hexa70 (this one will be very very nice)

pics will come next week



[Bartman]

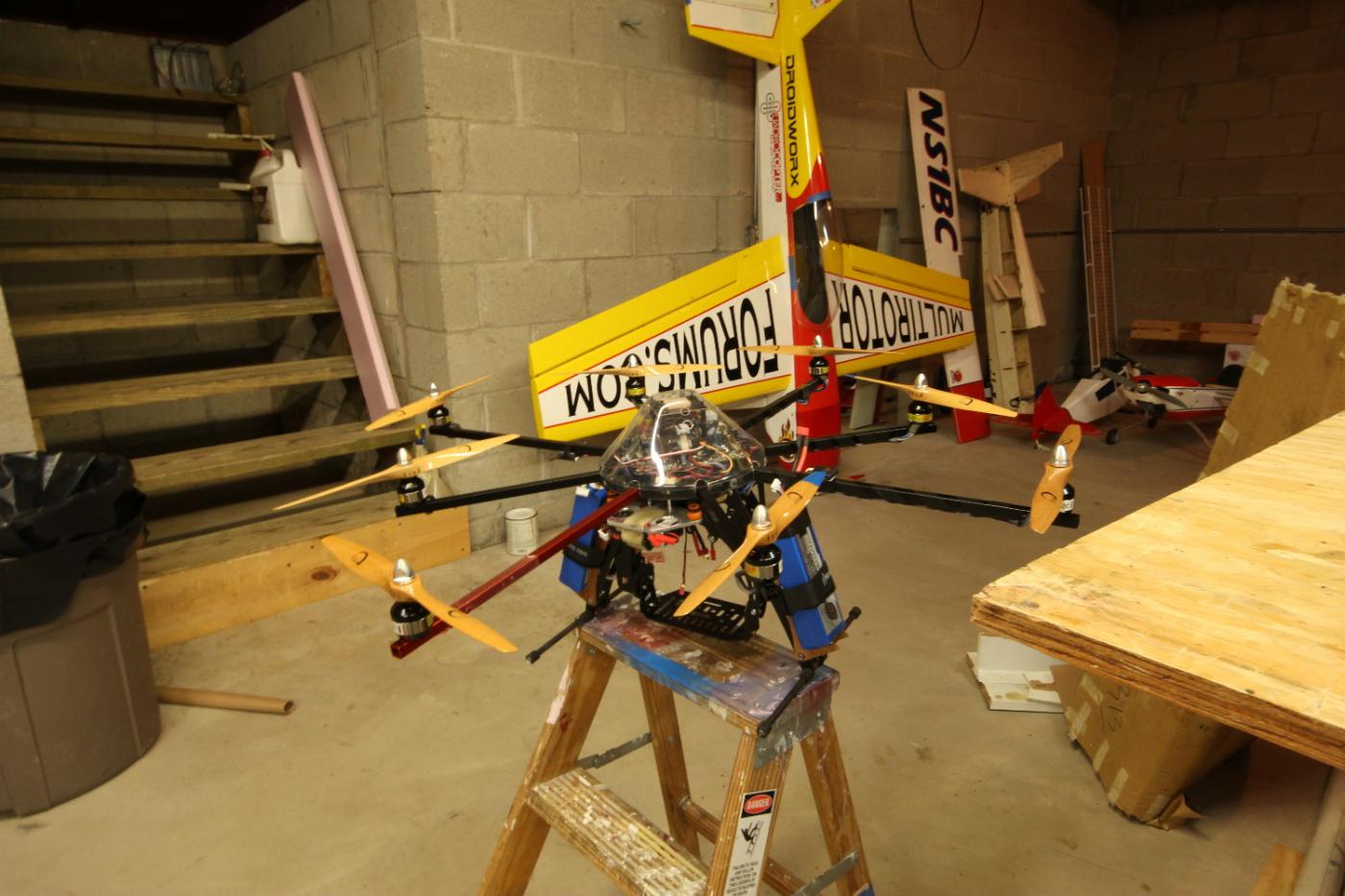

Pretty generic MK Okto II with custom battery mounts on an MKTR camera mount, stock motors, mondo stinger video Tx, Xoar props

View attachment 426



[Droider]

Thought I would revive this thread to try and get some more pics of your copters.. Lets have some more pics please

Dave



[juz]

Whats the pitch on those props?

Looks sweet to me...I would like to see that puppy in the air.

next week in production and for sale.

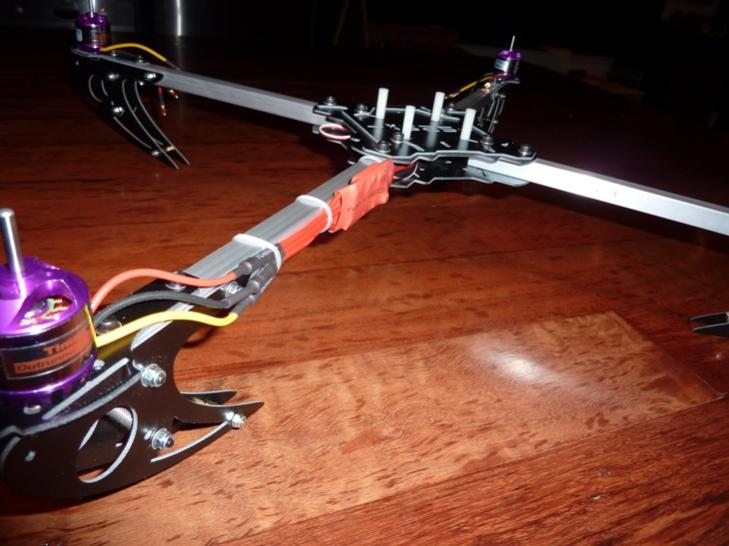

View attachment 853



[killy]

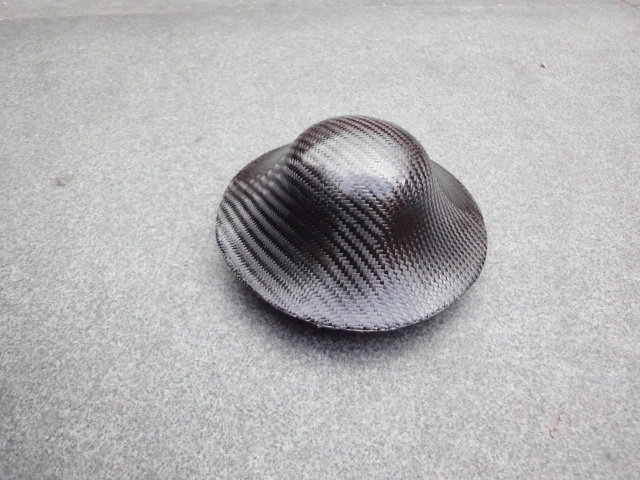

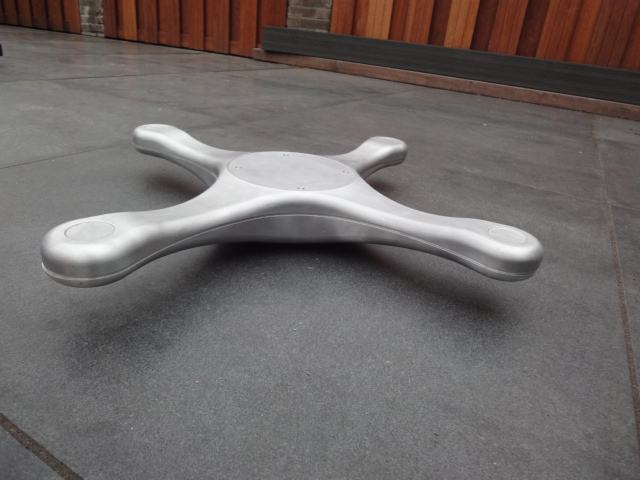

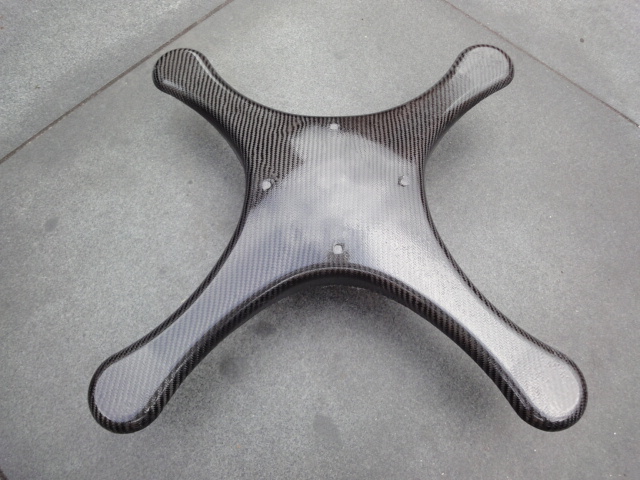

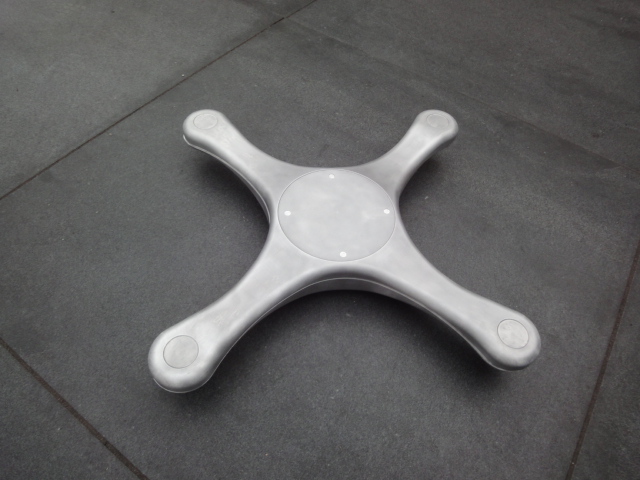

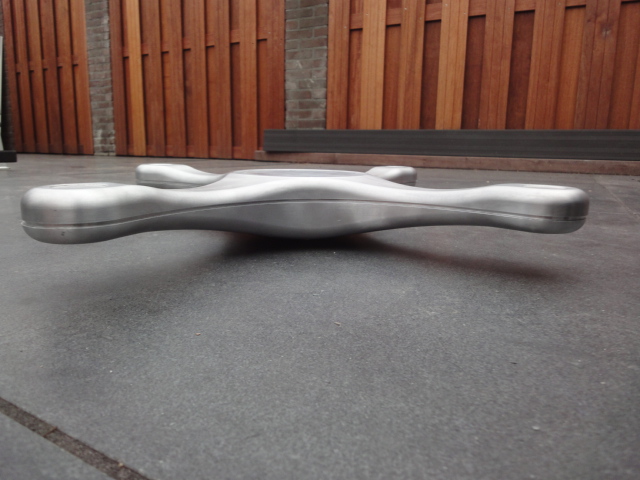

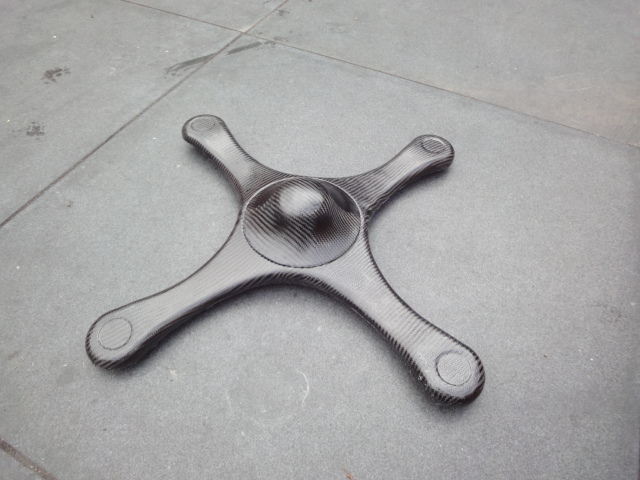

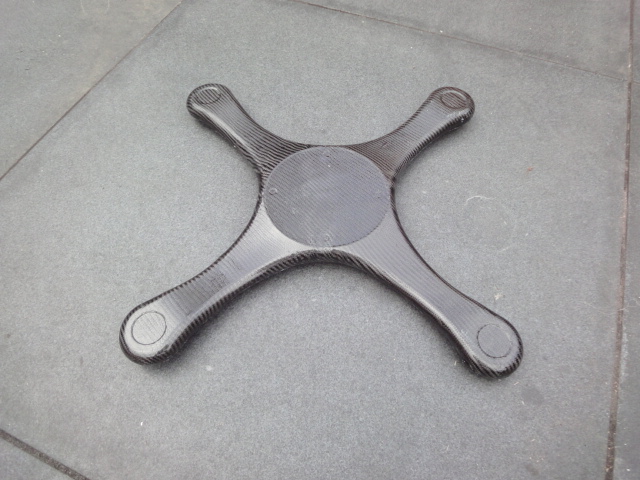

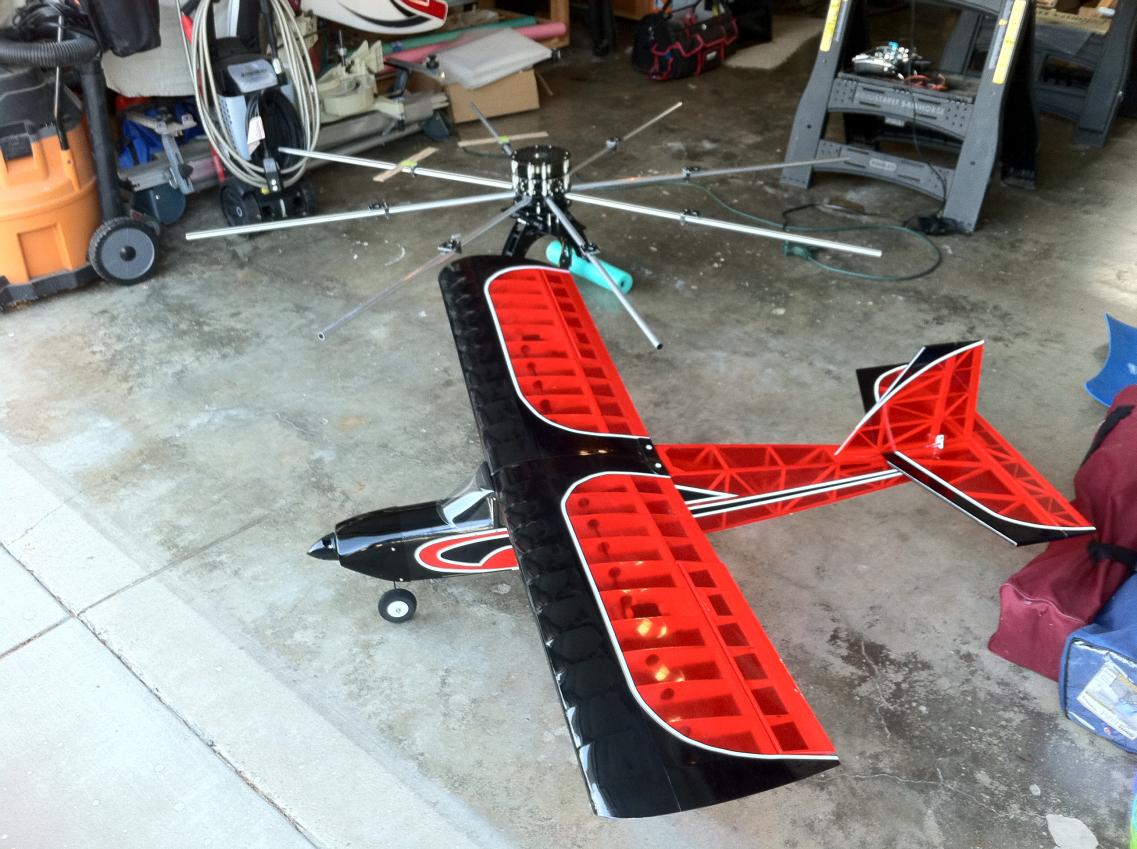

View attachment 606View attachment 605View attachment 604View attachment 603

finally got my designs and i can start producing



[Droider]

VERY nice.. You want any test pilots ;-)) keep us posted

Dave



[Kilby]

Here is my home brew tricopter. It's made from carbon fiber and light ply across the frame. OpenPilot's CopterControl keeps it in the air with the help of Flycam 925's & HK 25-30 esc's. FPV is rounded out with 5.8 ghz 600mw ImmersionRC VTX and a set of FatShark goggles with the built in receiver.



[killy]

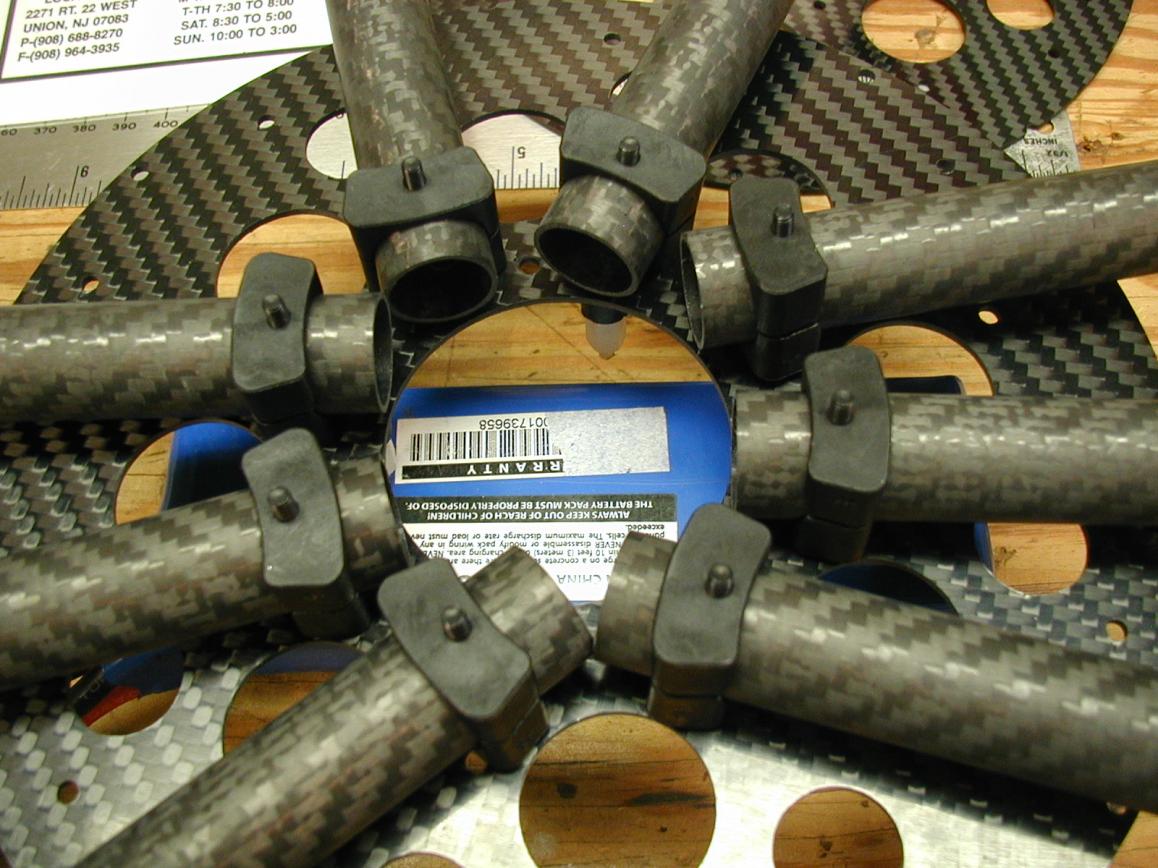

View attachment 617View attachment 616View attachment 615View attachment 614the first frame parts are madeView attachment 613



[Macsgrafs]

Pretty generic MK Okto II with custom battery mounts on an MKTR camera mount, stock motors, mondo stinger video Tx, Xoar props

View attachment 856

Bart, do I detect a 50cc extra or mx2 in the background Got any video of that one in the air?

Ross



[Macsgrafs]

Killy that's some wicked looking beast you have there. Can you work with polycarbon or lexan? Would love to see a UFO domw top cover an octo, would have to have fine mesh grills top & bottom, but wonder if it could be done...spray it silver, plenty of LED's & hit youtube

Ross



[tonkajeep34]

Thought i'd add a pic of my current favorite.

It's a xRotor sport kit from blueskyrc with
GWS Aluminum Slowstick booms
Paris V2 Board from multiwiicopter.com
Wii Motion Plus
4x 18-20amp HK SS ESCs
4x Emax 2822 1200kv motors
Turnigy 5amp BEC
Spektrum 6110e

Takes off like a rocket and I flipped it for the first time today!



[Droider]

View attachment 1154View attachment 1153View attachment 1152View attachment 1151the first frame parts are madeView attachment 1150

Looks a bute..



[Droider]

Tonkajeep.. that looks like one neat flyer.. guessing 500mm rotor centres..

There seems so many frames and combos out there its hard to keep up..

Nice

Dave
