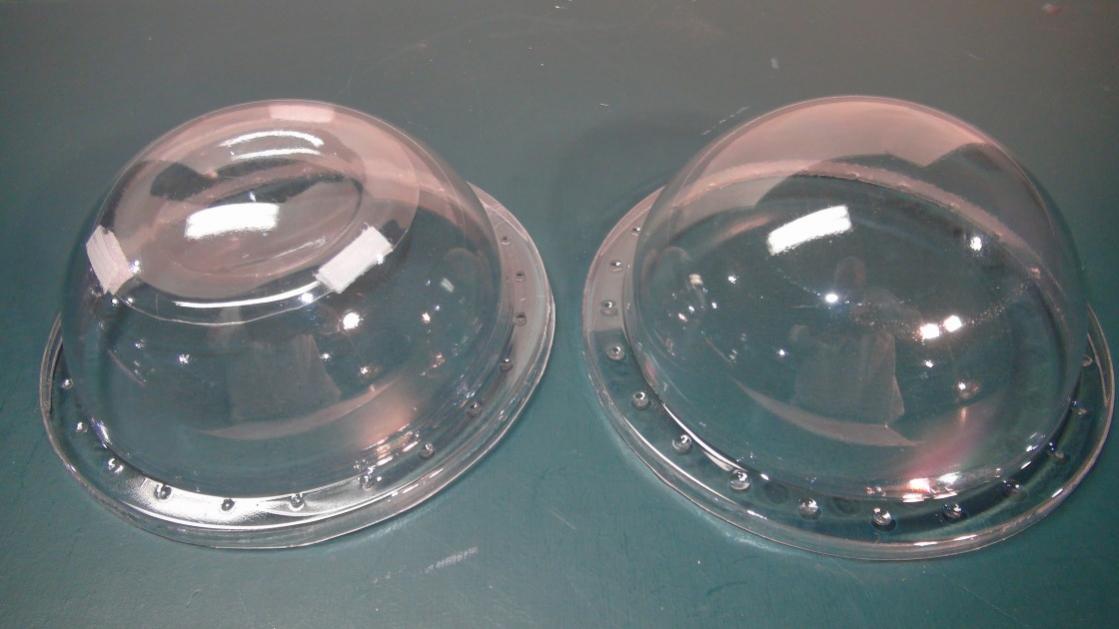

For sale are UAP1 frame hemisphere domes that fit Rusty's UAP1 frames. The cost is $25 plus shipping for a standard hemisphere dome or $29 plus shipping for a hemisphere dome with a removable GPS sensor protection/mounting pocket.
PM me if you are interested, or log on to my website to order: www.BadgerFly.com
The dimensions: 134mm inside diameter, 67mm from flat flange to inside top of dome, 161mm diameter of flat flange, 5mm vertical flange lip.
Clear Polycarbonate Material
0.080" thick (2mm) clear polycarbonate dome weighs about 73 gms and is very strong to protect those expensive electronics. Polycarbonate (Lexan, Makrolon, etc) is the strongest plastic and won't shatter like acrylic, PET-G, and other clear plastics that you can buy at a cheaper price. These are the real deal if you care about your electronics!
The flange has indentations to line up with the UAP1 frame outer plate holes. If you would want to use screws or stand-offs to mount the dome, simply use the indentations to drill appropriate size holes. The dome can also be mounted using velcro.

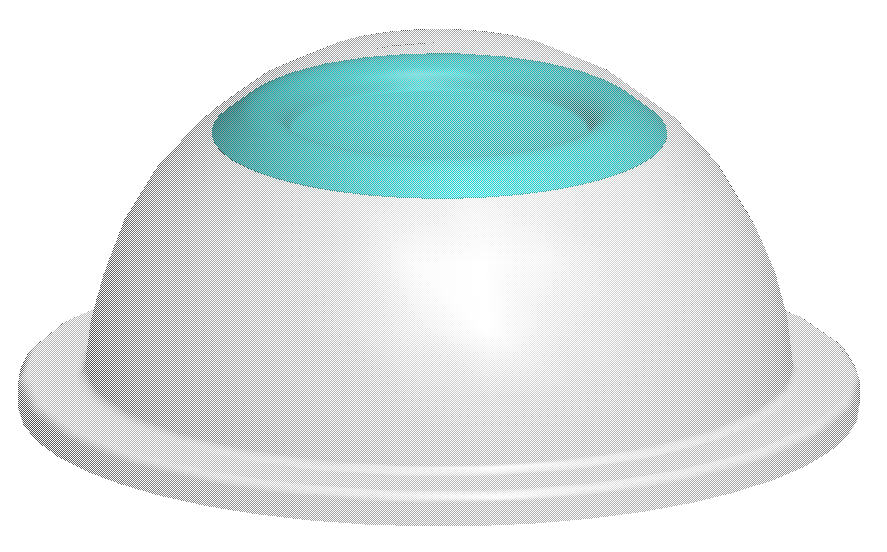

This hemispherical dome can be purchased alone or with an optional GPS sensor unit pocket. The pocket fits perfectly at the top of the underside of the dome to protect the sensitive GPS unit or other electronics that need to be mounted above the flight control board. It can be attached with velcro or with nylon or aluminum screws (steel screws will affect the GPS signal). The mounting hardware is not included. Polycarbonate plastic will not affect the GPS signal.
View attachment 9241View attachment 9242View attachment 9243View attachment 9244View attachment 9245View attachment 9246View attachment 9247View attachment 9248
