Where do I find instructions to wire the mini to my S800 with WooKong?



[jimmygixxer]

Topflight,
Try this link mate hope it helps

http://download.dji-innovations.com/downloads/nazam-v2/en/iOSD_mini_User_Manual_v1.02_en.pdf



[Topflight]

Topflight,
Try this link mate hope it helps

http://download.dji-innovations.com/downloads/nazam-v2/en/iOSD_mini_User_Manual_v1.02_en.pdf

Thanks for the response. Let me look at this.



[jimmygixxer]

No problem, Did you have any luck with it ?



[Topflight]

No problem, Did you have any luck with it ?

This is what I need to know. Starting with the Naza. Will also do my Wookong if I like the way it works.
I'm trying to wire in a DJI mini OSD to a Naza V2. Can I wire it in series as shown in View 2? Right now I go from my Sony Nex5 to a mini HDMI converter using a HDMI cable, then out of the mini HDMI converter to my downlink as shown in View 1.



[jimmygixxer]

This is what I need to know. Starting with the Naza. Will also do my Wookong if I like the way it works.
I'm trying to wire in a DJI mini OSD to a Naza V2. Can I wire it in series as shown in View 2? Right now I go from my Sony Nex5 to a mini HDMI converter using a HDMI cable, then out of the mini HDMI converter to my downlink as shown in View 1.

Nex5, HDMI Converter, IOSD Mini, Downlink Transmitter

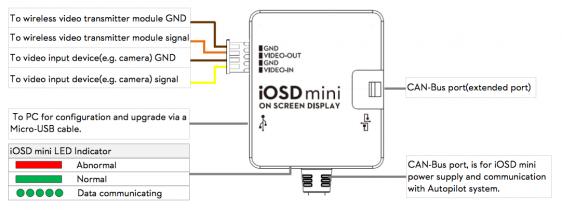

View 2 looks good to me

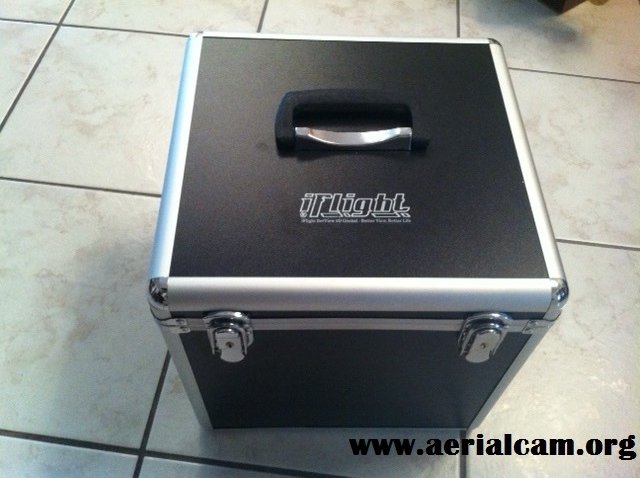

View attachment 17542
