av200 vibration

[evilution1x]

Maybe check your props for balance, vibrations seemed more consistent when you were adding throttle. Do you have any kind of vibration dampers between the av200 and your copter?
Interesting house there.

hi
thanks again for advice.
i have only the standard vibration damber that comes with the 360 av200 (4 x black rubber grommets)
is ther something else i can use??

the house seemed very interesting.... until i brought it and now its a pain in the backside.. I am bbuilding a bit on the back now though so the sqaue walls will be a blessing.... lol.

regards
david



[evilution1x]

+1 on the props. i was absolutely blown away with the difference nicely balanced props make. I chased myself in circles (getting rid of jello) before i sat down one day and double checked the props. Props were the difference.

hi hjls3
i have just balanced my props and have yet to test it...
i fould 2 x blades and 2 x hubs slightly out..... sandes down the blades and added super glue to the hubs..... fingers crossed.
regards
david



[hjls3]

hi hjls3
i have just balanced my props and have yet to test it...
i fould 2 x blades and 2 x hubs slightly out..... sandes down the blades and added super glue to the hubs..... fingers crossed.
regards
david

fingers are crossed for you. really nice looking copter, great build. hopefully, when you test it will perform nicely too.



[evilution1x]

Motor alignment is vitally important in Y6 /X8 configurations (bad experiences there!) but I'd say less so in flat configurations. If motors are not all vertical you get an unwanted yaw component but thats not the problem here.
It looks like vibration from unbalanced props that is causing the gimbal cradle to rock up and down. Perhaps the gimbal or its mountings has something not fully tightened up. I would get some gaffer tape, disconnect all the gimbal servos and tape the moving parts rigid so they cannot move. Include locking out the 360 mechanism as well. Then fly and video. If the vibrations have gone away then its something taped up, if they remain its elsewhere.
Have you tried a different camera ? Could be something vibration prone inside that.

andy

hi zaxis

i have just balance the props, so i will give it another try first......
but then, yes, i will lock out the whole lot and see what that does...
i have tried two cameras, canon 7dslr and canon g7 full auto..... same, but different effects.

regards
david



[evilution1x]

fingers are crossed for you. really nice looking copter, great build. hopefully, when you test it will perform nicely too.

cheers hjls3, i will keep you posted.......



[evilution1x]

evolution1x. Nice built!. Where did you got that orange cloth for cables?

hi

whilst i would love to take all the credit, it was built for me by Andrew of 'www.multirotorcraft.co.uk'......
you can get the cable sleeve from http://www.cablecraft.co.uk/ProductGrp/braided_sleeving

regards
david



[Multirotorcraft UK]

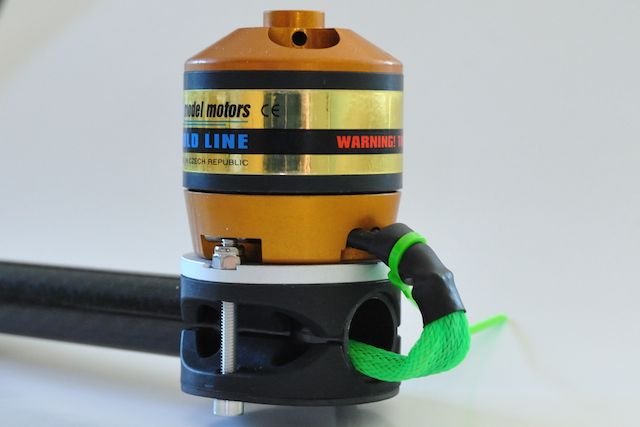

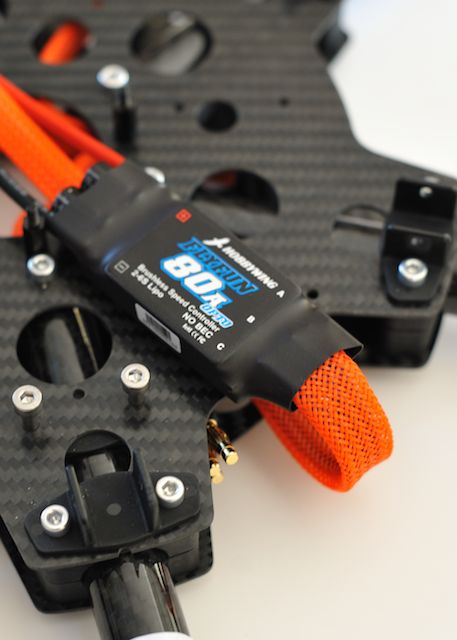

Bright colour braid

http://www.ebay.co.uk/itm/290729832...LX:IT&_trksid=p3984.m1555.l2649#ht_500wt_1156

I melt the ends of the braid so they don't fray and fish off with heat shrink. To get the cable down the braid Insert a 10mm ridged tube, insert the cables through the tube then remove the tube I use it for engine markers as well.

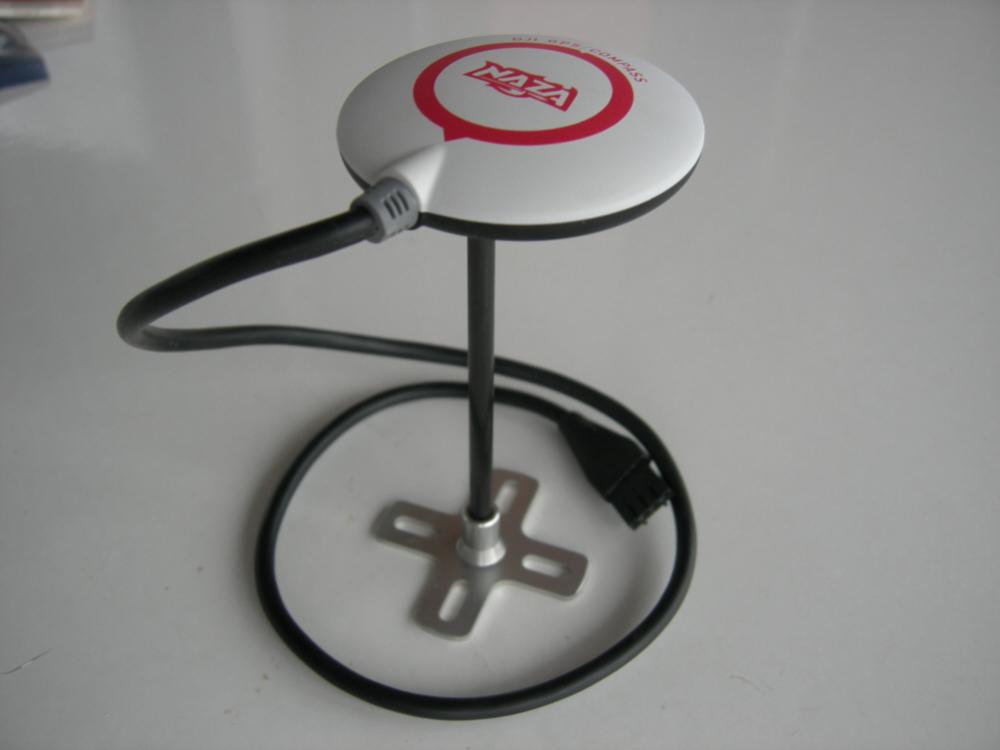

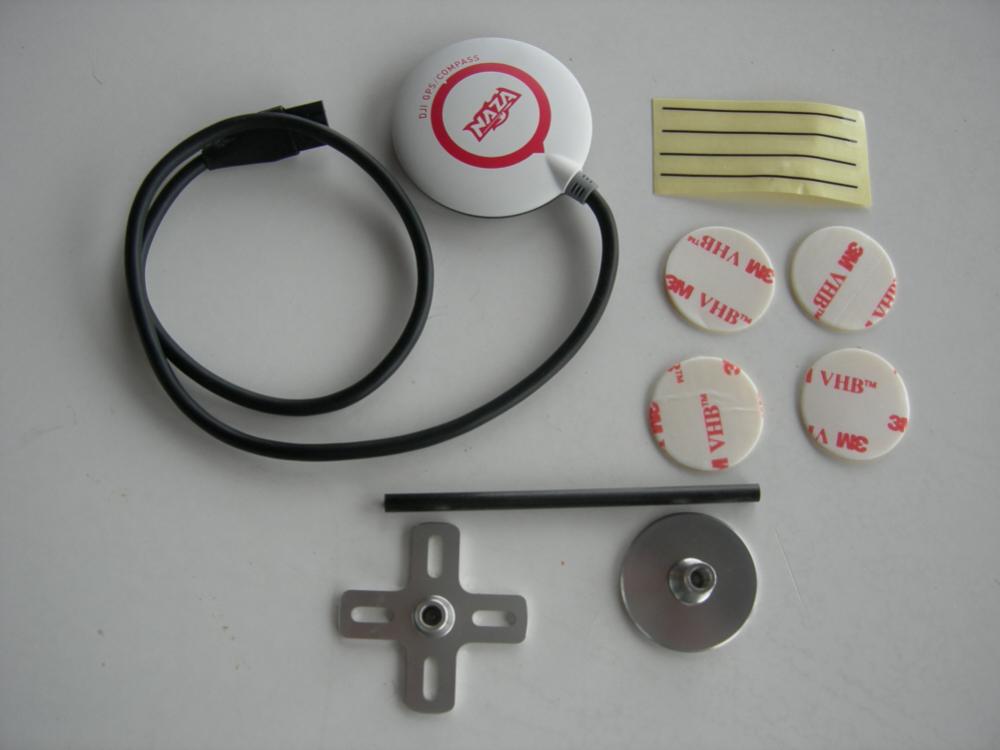

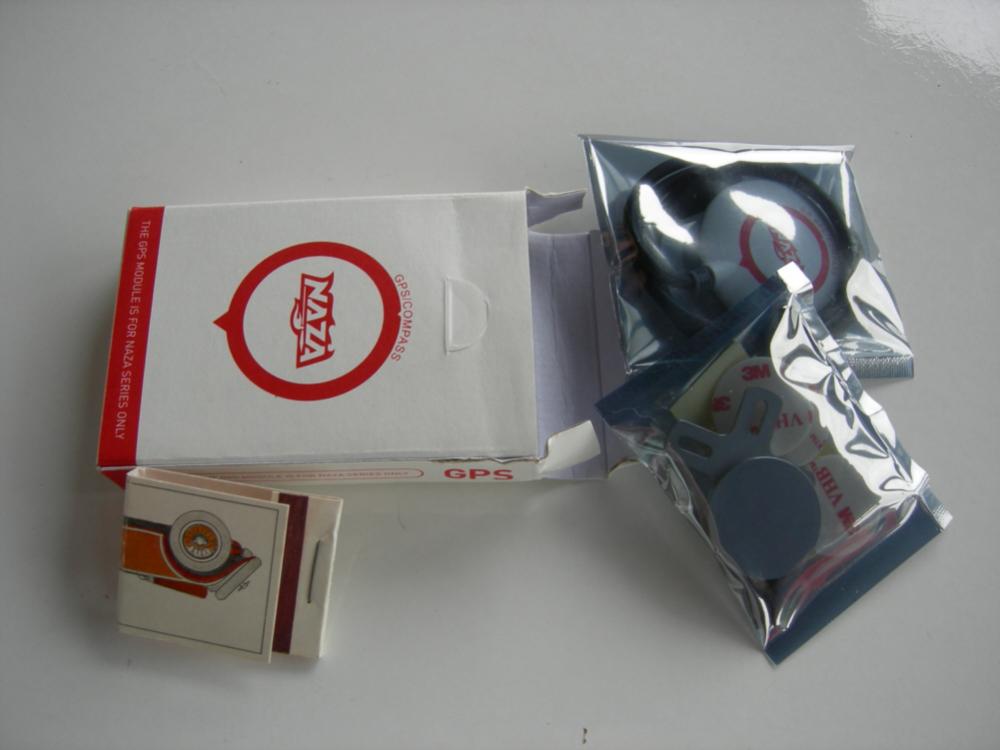

View attachment 4754View attachment 4755View attachment 4756View attachment 4757
