Aeroxcraft
Member

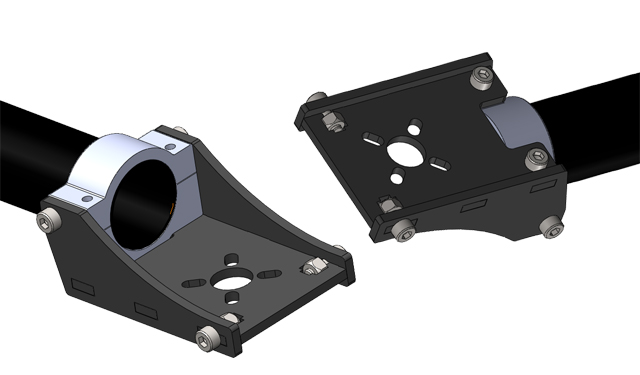

Don't have any photos handy, but here's some views off the CAD.are there pics of what the motor mounts look like w/o a motor on them?
View attachment 3493
Don't have any photos handy, but here's some views off the CAD.are there pics of what the motor mounts look like w/o a motor on them?
I think that gimbal work good especially on roll, but on the pitch i found it jerky.Rear View - Aeroxcraft Quad-670 with GoPro Camera Gimbal
In this video I mounted the gimbal facing backwards to get a shot of the underside of the Quad-670. It really shows how much work the gimbal is doing in flight.
We've tried loads of servos (a costly exercise!) with DJI WKM and Naza, the HS5065 was bad. We now only use Futaba S3156 with DJI on the gopro gimbal. Nothing wrong with the Hitec servos, they're great in other applications they just don't work well with the DJI stuff.I think that gimbal work good especially on roll, but on the pitch i found it jerky.
I have the same problem on another cheap gimbal so at this point i think that is a problem of DJI, i use NAZA with digital Hitec HS5065, but it work bad on pitch, what you think about it?
We've tried loads of servos (a costly exercise!) with DJI WKM and Naza, the HS5065 was bad. We now only use Futaba S3156 with DJI on the gopro gimbal. Nothing wrong with the Hitec servos, they're great in other applications they just don't work well with the DJI stuff.
The hole is 10mm dia.whats the center diameter? im asking because i recently got some motors that have a lower locking nut on the shaft that holds everything in place. and i had to sand out the inside of my f450 to get them to fit.
