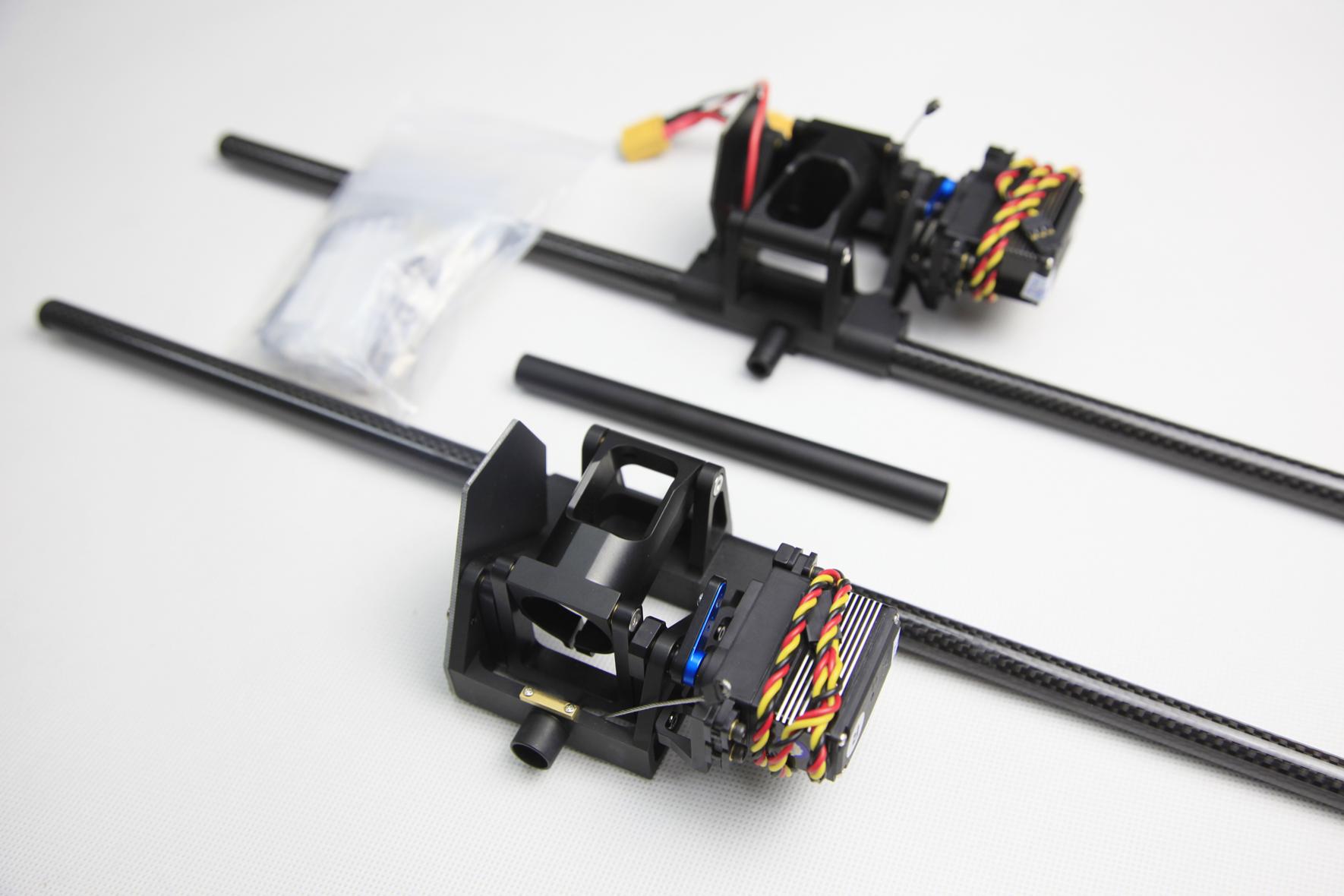

DJI officially released the retractable landing gear upgrade kit for the S800, with this upgrade kit you can upgrade the S800 landing skid to the retractable landing gear.
Working Voltage: 3S~6S (LiPo)
Working Current: Max 1A@6S
Input Signal: PWM (High-Pulse Width 800us~2200us)
Output Signal: PWM(Neutral Position is 1520us) in 90Hz
Working Temperature: -20~70oC
Output Voltage: 7.2V (For HV Servo Only)
Total Weight(after mount on S800 skid): 875g
Servo Travel: 150 degree (Minimum120 degree)
Please contact your local dealer for price and detail info.
The video instructs how to integrate the upgrade kit to the S800 skid
Working Voltage: 3S~6S (LiPo)
Working Current: Max 1A@6S
Input Signal: PWM (High-Pulse Width 800us~2200us)
Output Signal: PWM(Neutral Position is 1520us) in 90Hz
Working Temperature: -20~70oC
Output Voltage: 7.2V (For HV Servo Only)
Total Weight(after mount on S800 skid): 875g
Servo Travel: 150 degree (Minimum120 degree)
Please contact your local dealer for price and detail info.
The video instructs how to integrate the upgrade kit to the S800 skid
