Aeronavics / Droidworx New XM X4 Build

[baja-king]

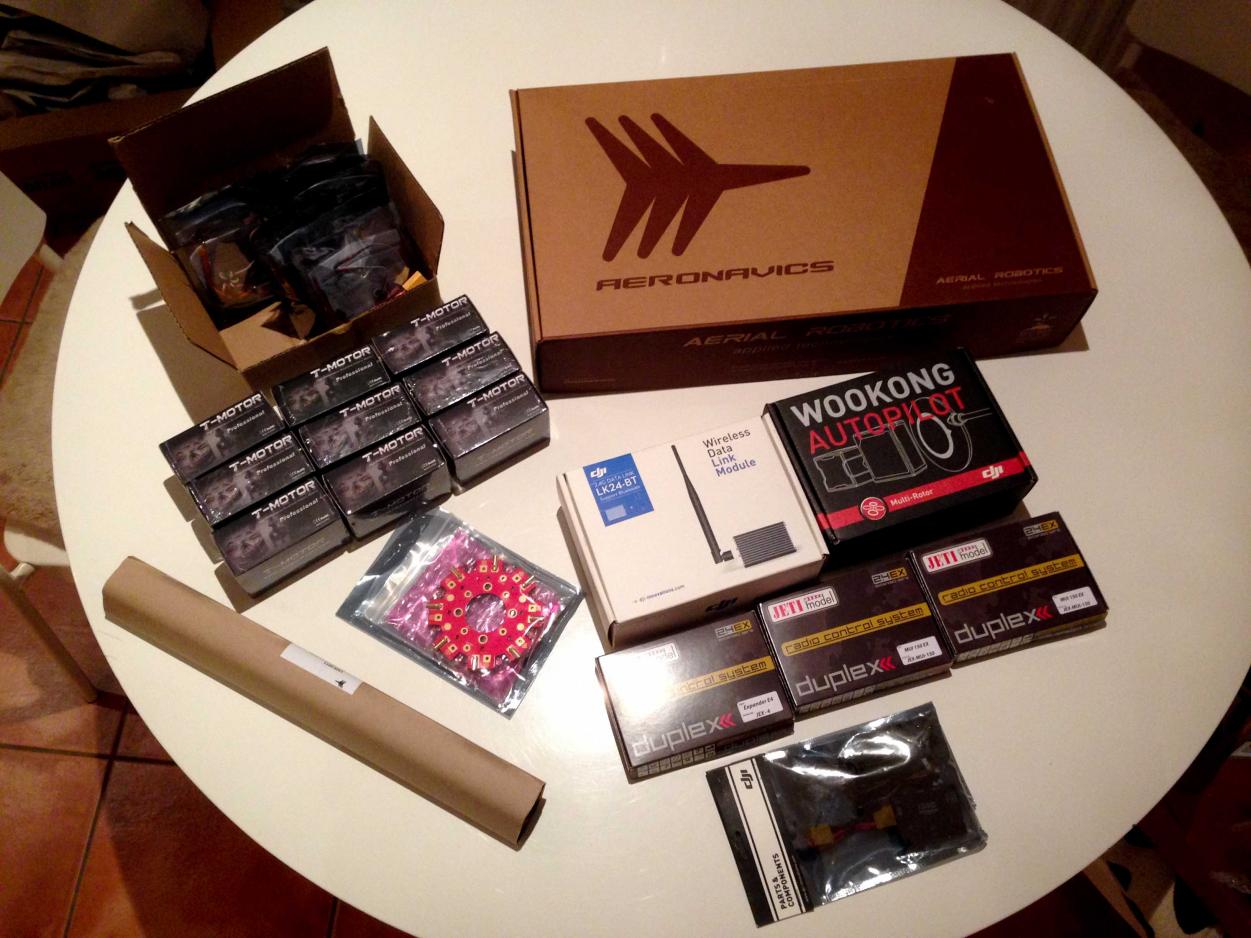

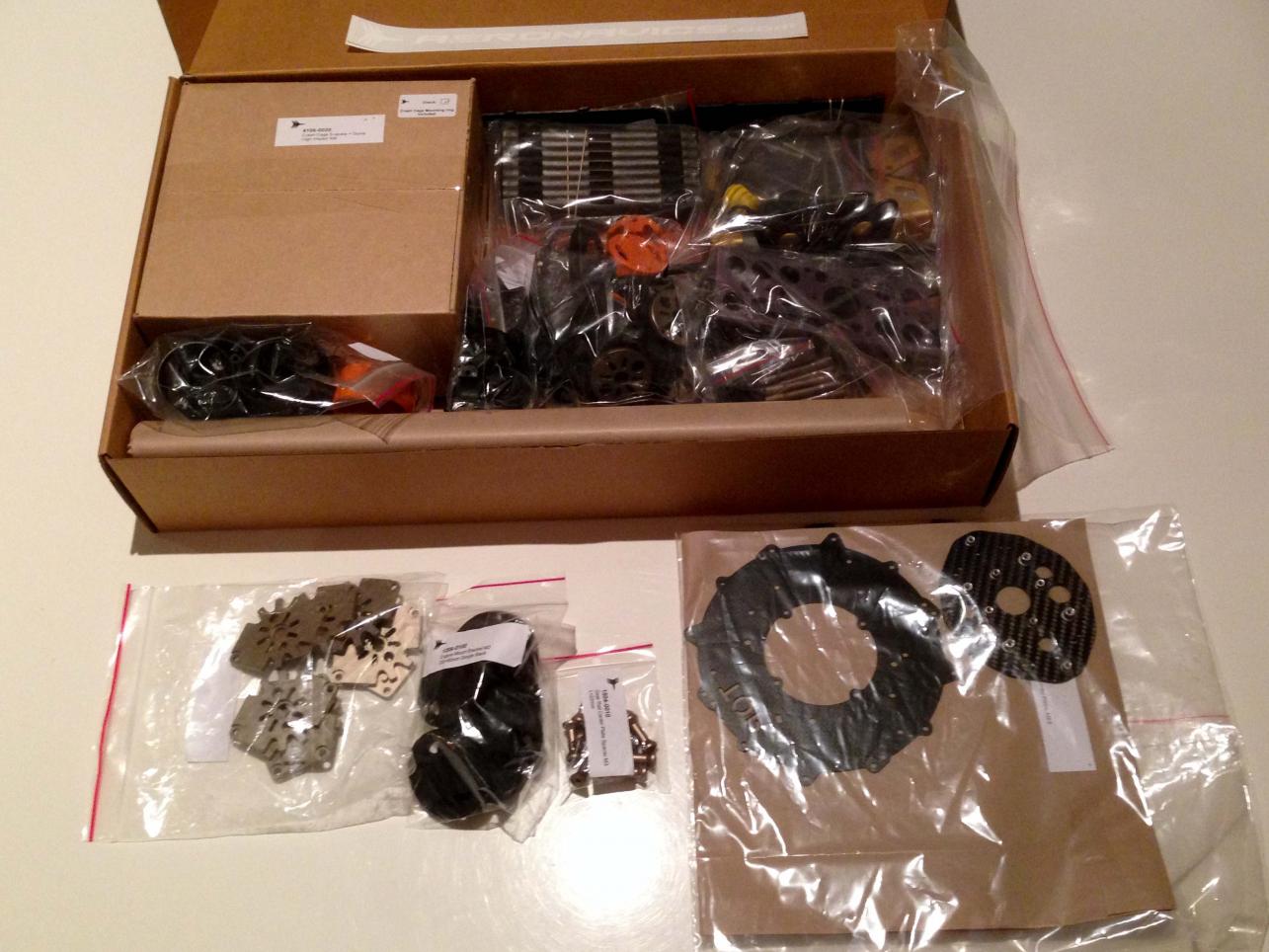

I have just ordered an XM8 in the Aeronavics festive sale...

I'm going to set up as an X4 (X8) This is going to be my test rig, not planning to put a camera on it just test FC firmware etc and have some fum without risking my SkyJib

Thinking about T-Motor MN3510-25 360KV with Xoar 14.5" Props, already have a spare WK-m

Anybody got any advice on ESC's... don't intend spending a €1200 on a Herk just for a test rig so going to go down the Hobbywing type route - something like these: http://www.electriflite.co.uk/store...rollers-and-escs/20-to-40-amp/hw-p30opto.html

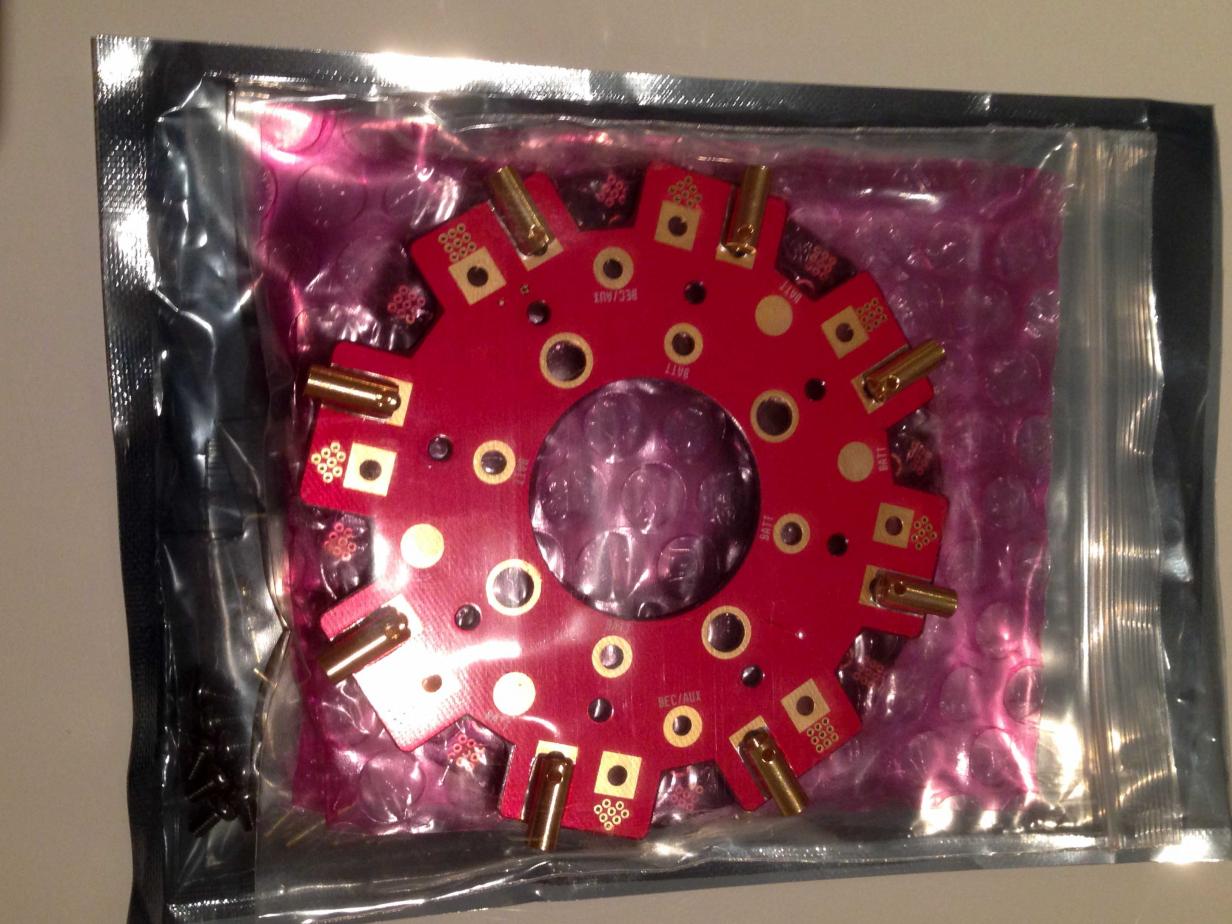

Going to use the Gryphon Octocopter Power Distribution Board GPD-1000CTP

As usual I'll be posting build pics and stuff

Thanks in advance

Steve



[maxwelltub]

Is it going to be 6s? I can say that Gryphon board is pretty awesome in my experience.



[baja-king]

Yes, 6s for sure...

Is it going to be 6s? I can say that Gryphon board is pretty awesome in my experience.



[baja-king]

So with a bit of digging around it looks like Hobbyking Turnigy Plush are a favoured choice of some...
http://www.hobbyking.com/hobbyking/...ush_40amp_Speed_Controller_UK_Warehouse_.html

Not bad @ $22 a pop

I guess I would flash them with BLHeli Firmware...



[Quinton]

So with a bit of digging around it looks like Hobbyking Turnigy Plush are a favoured choice of some...
http://www.hobbyking.com/hobbyking/...ush_40amp_Speed_Controller_UK_Warehouse_.html

Not bad @ $22 a pop

I guess I would flash them with BLHeli Firmware...

Was going to say would the 30A ones be good enough, I have the HobbyWing 40A optos on my Skyjib.

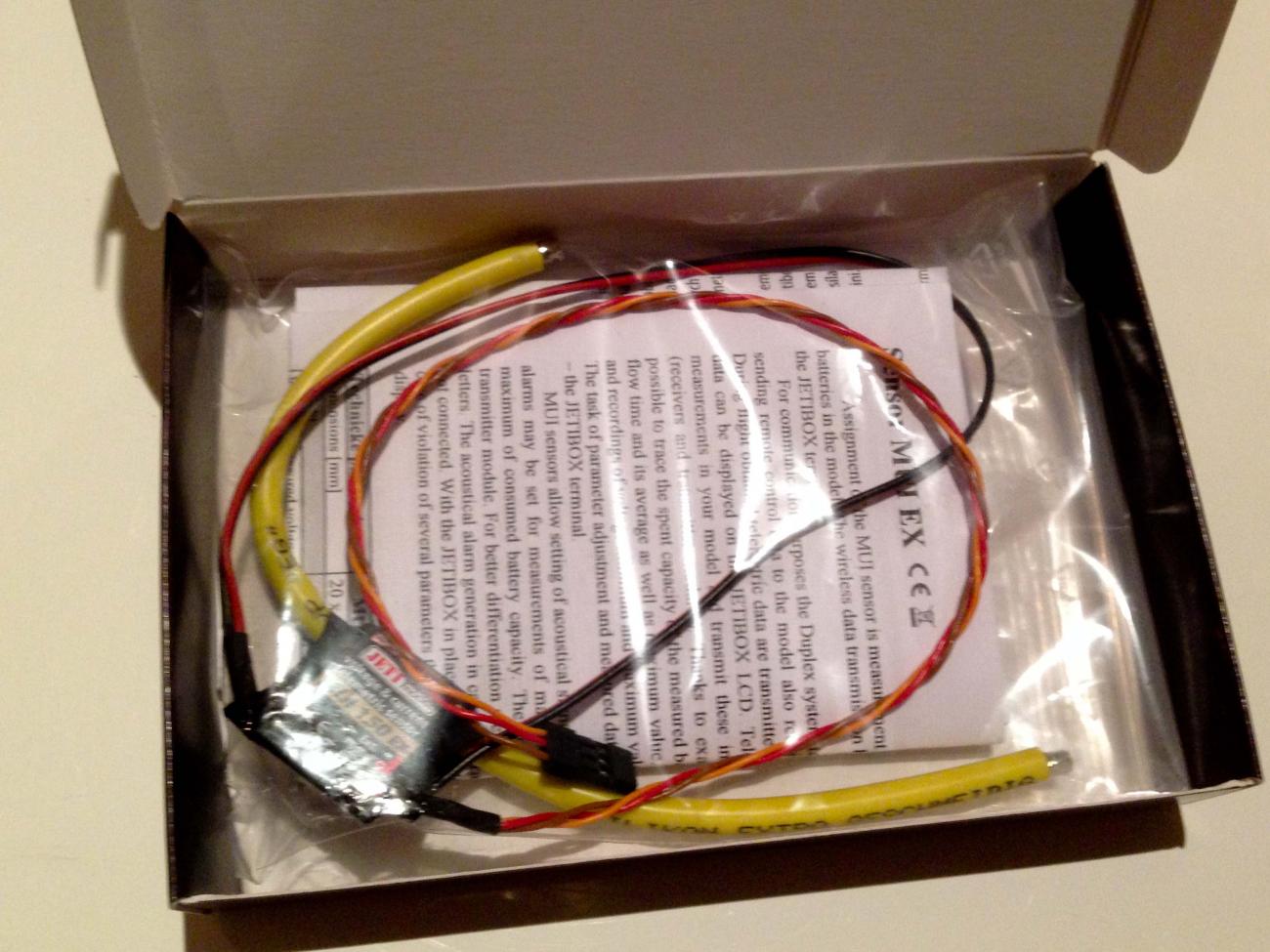

You could probably answer that question even more as you already have the Herkules Telemetry, does that tell you how many amps each motor is pulling, if so do you mind sharing?



[baja-king]

I think 30A would be fine - have ordered the Plush 40A's, wanted to have extra headroom to spare - worked out at £13 each with discount

As to the motor amps... My SkyJib's all up weight is 9.6kg and each motor pulls approx 9 amps in the hover and 21 amps at full throttle on a punch out.

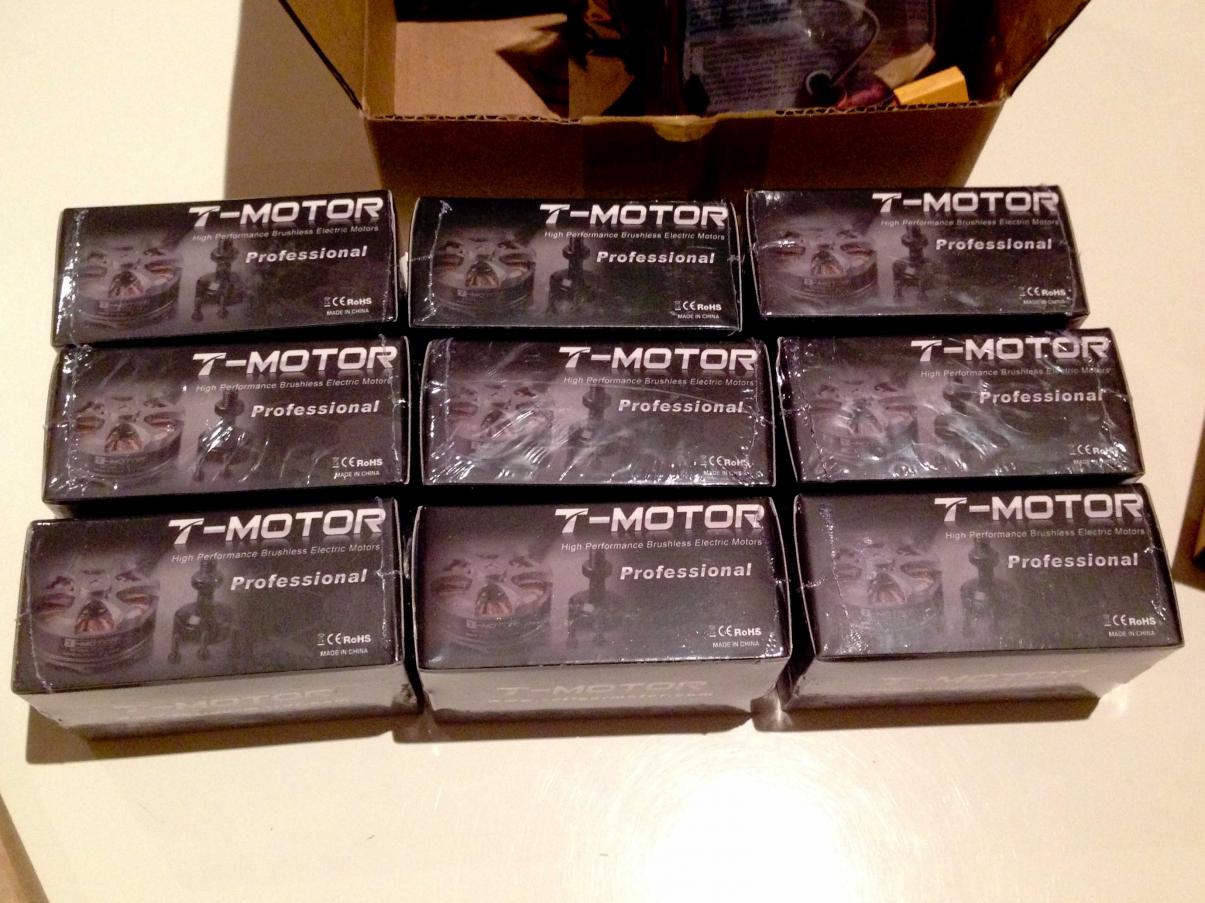

Have just ordered 9 more T-Motor 3515 KV400's (1 spare) thought about the MN3510-25 360KV because of the weight saving but the 300w is a limitation beyond 14" props

+ I can't fault the 3515's so far and it means that my test bed will have the same motor/prop size as my SkyJib

Was going to say would the 30A ones be good enough, I have the HobbyWing 40A optos on my Skyjib.
You could probably answer that question even more as you already have the Herkules Telemetry, does that tell you how many amps each motor is pulling, if so do you mind sharing?



[baja-king]

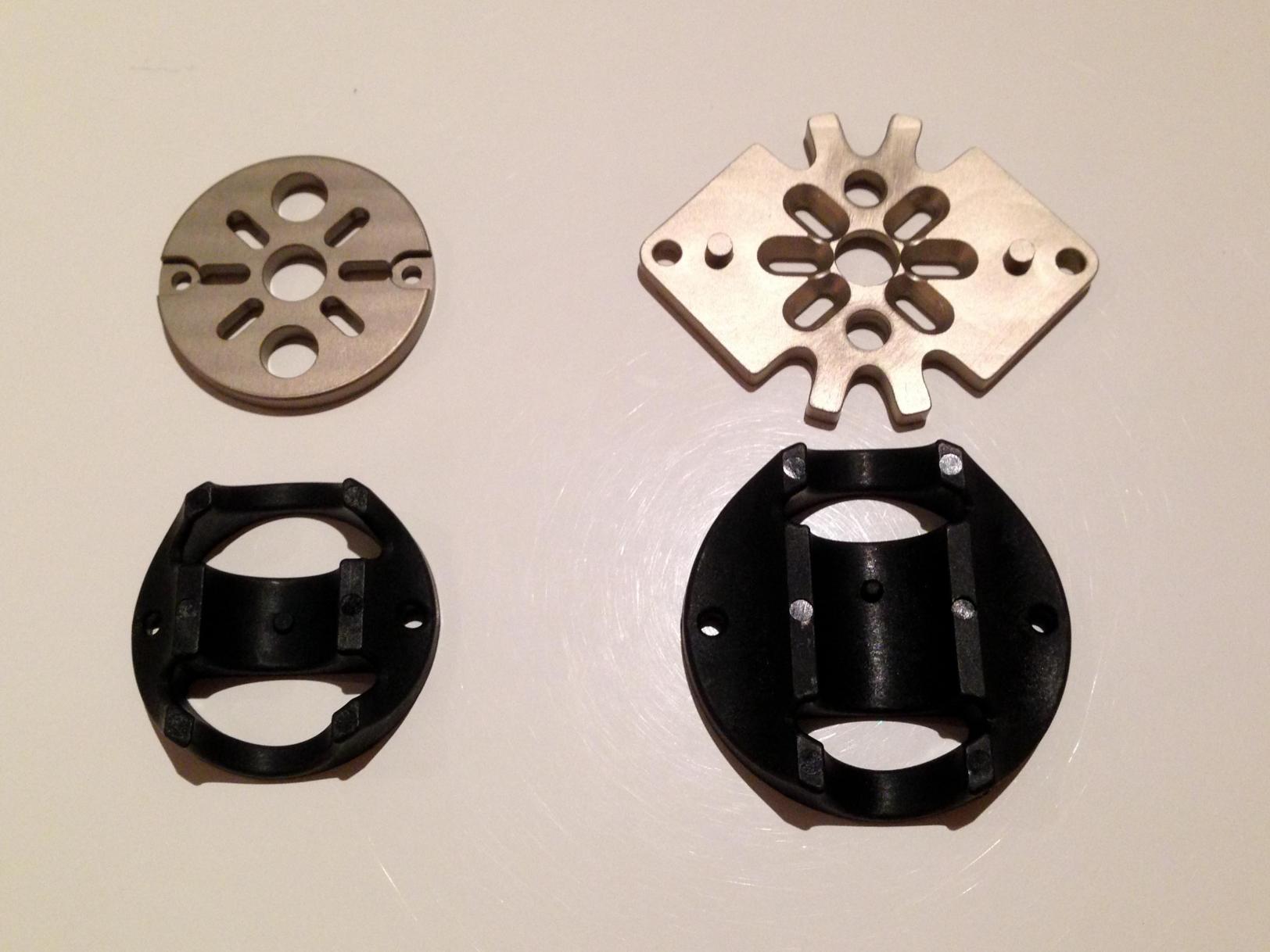

Christmas came early...

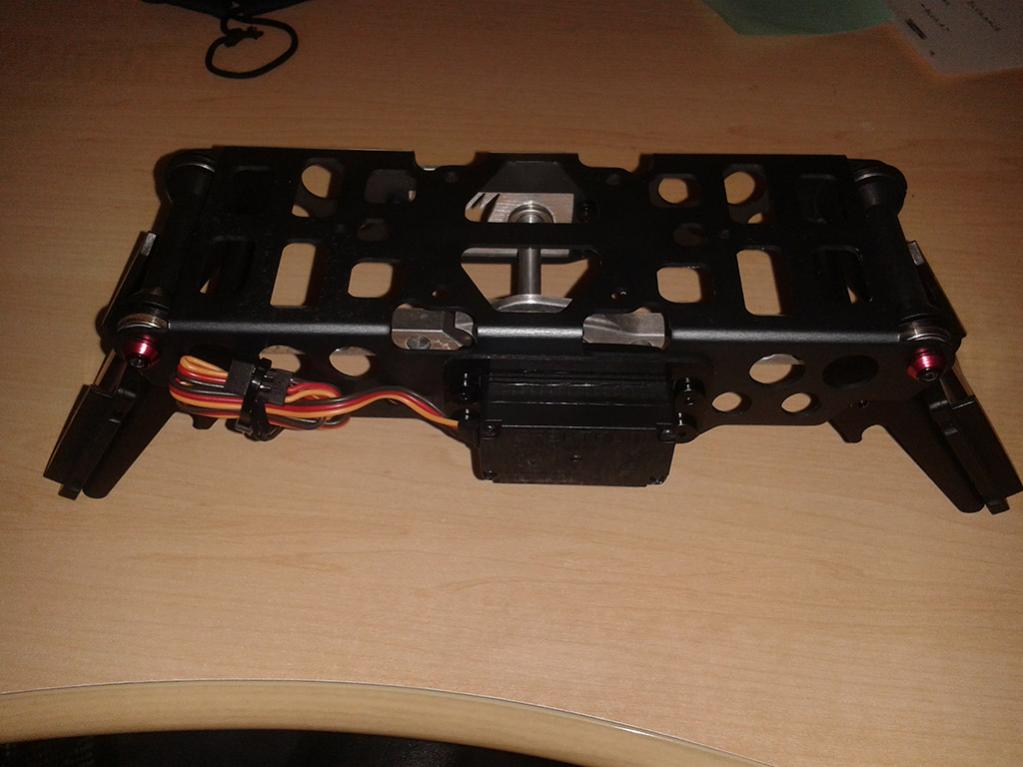

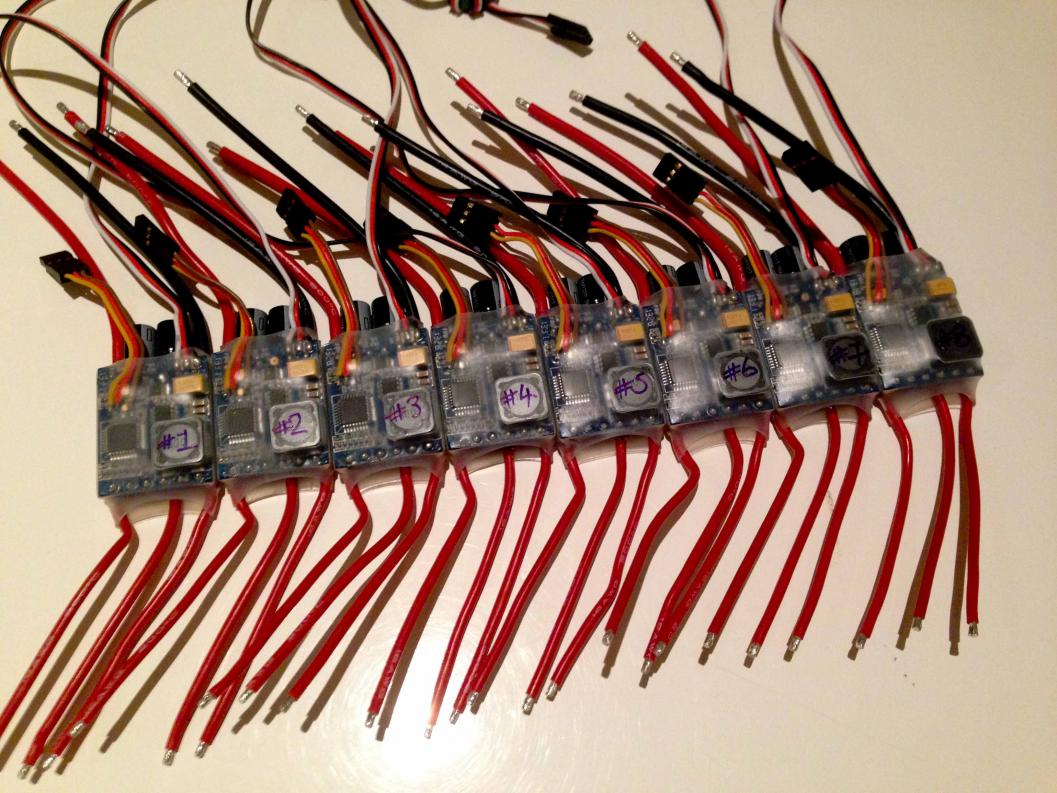

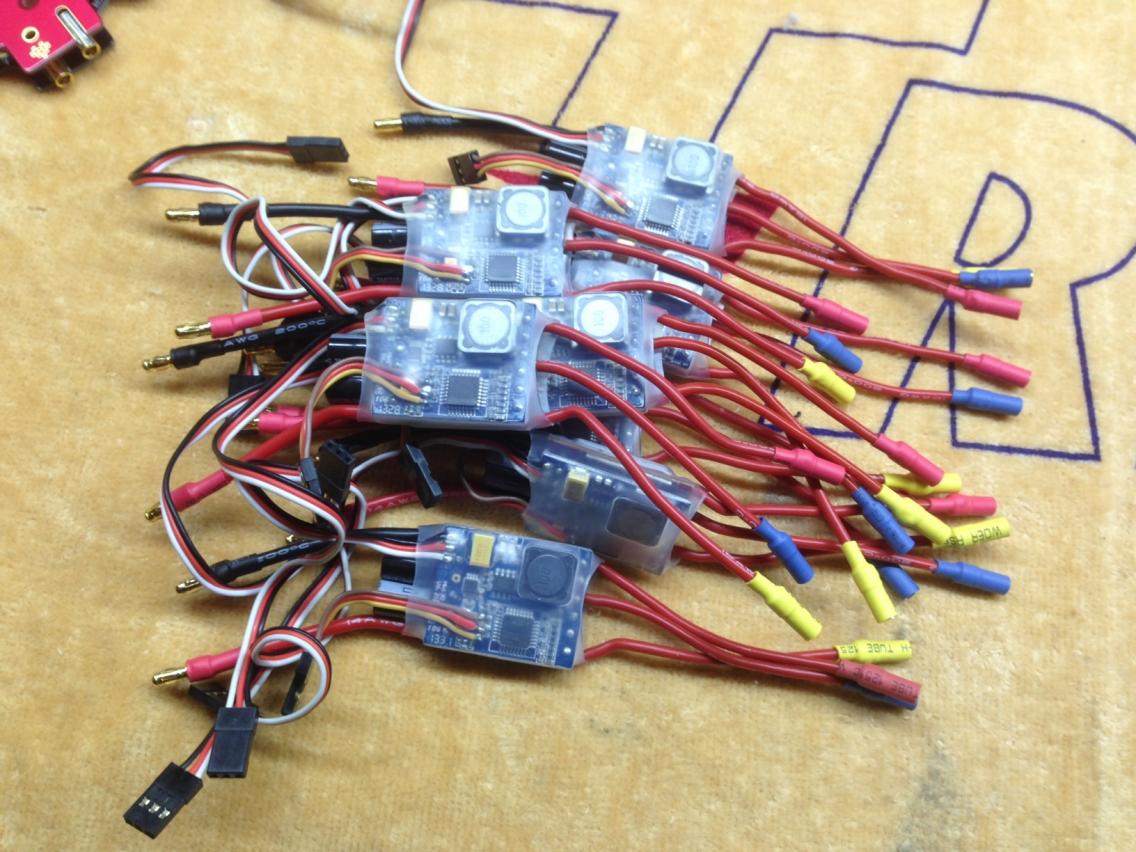

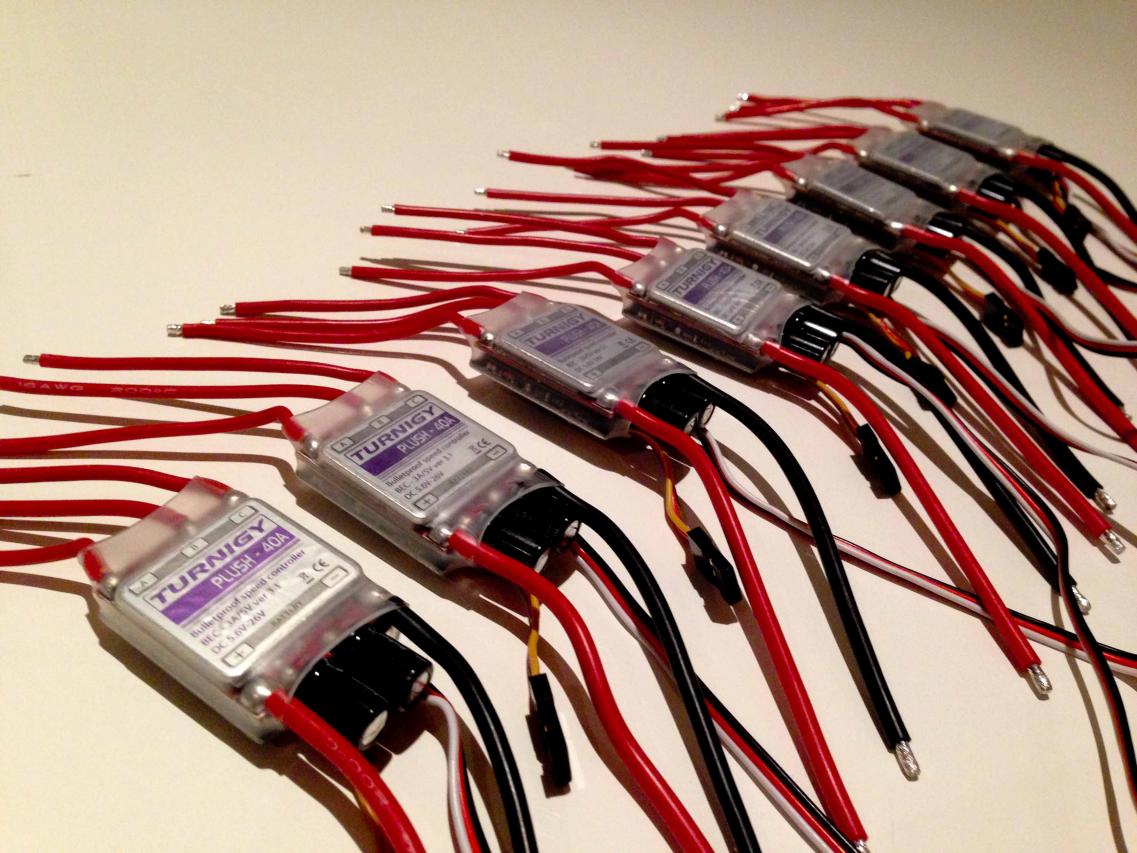

Already flashed the Plush 40A's with BLheli firmware and re-heat shrinked them... needed to tweak the startup power settings in the BLheli GUI to get a smooth start on the 3515's - now running smooth as silk

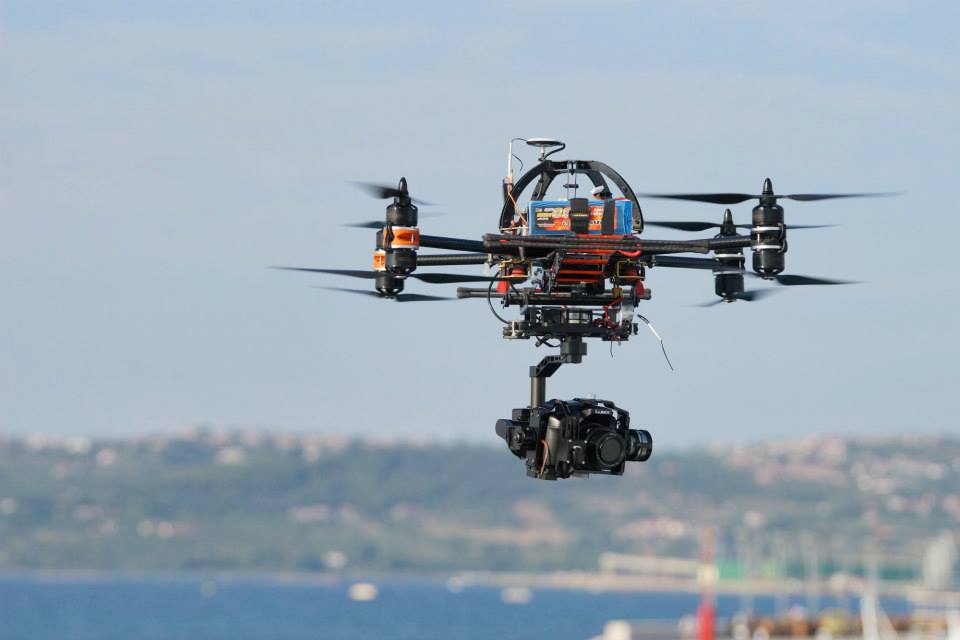

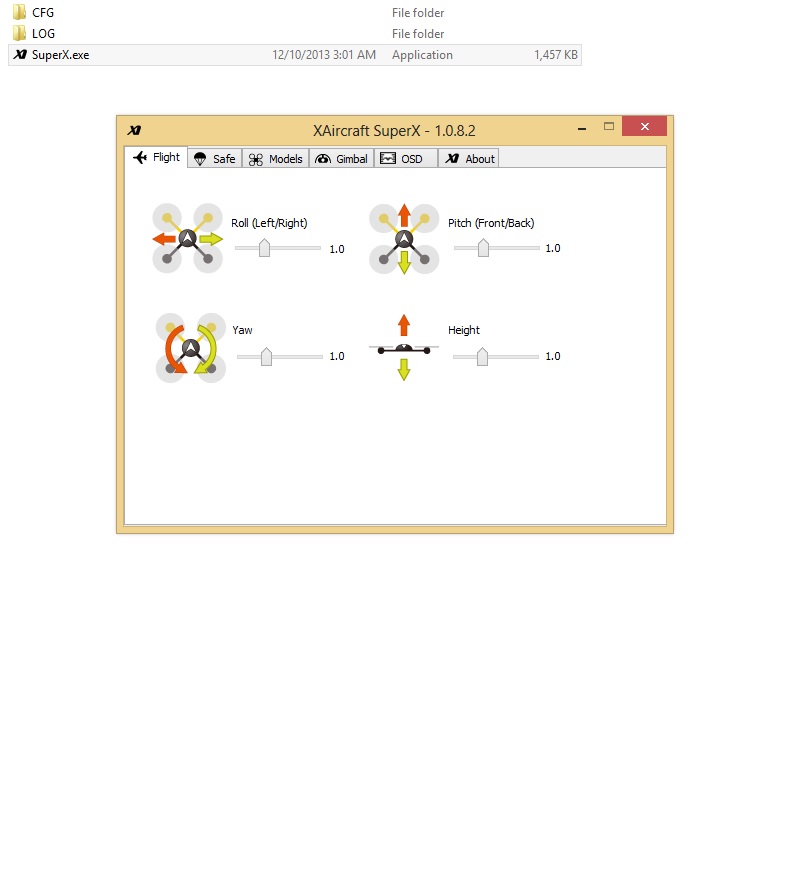

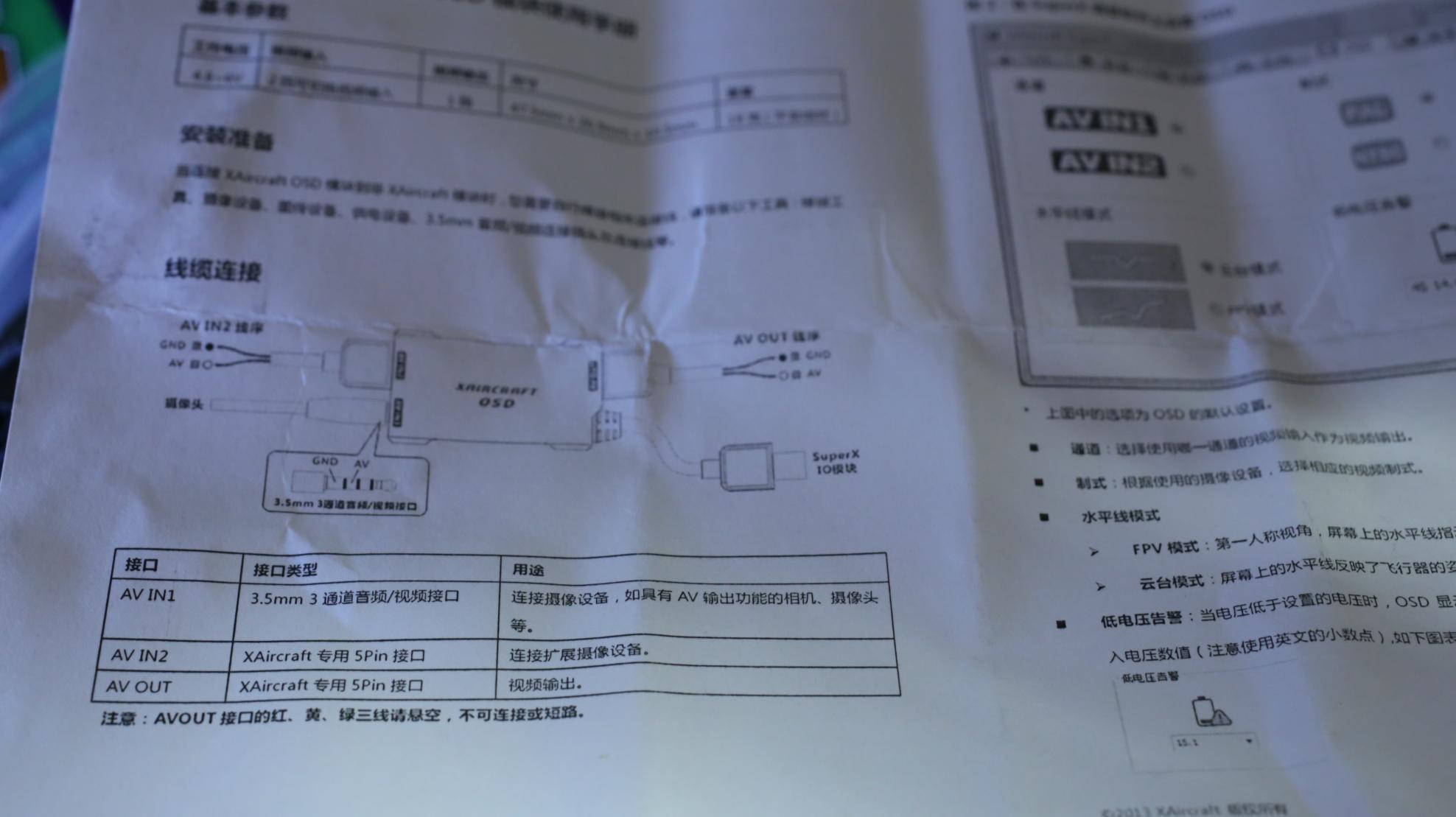

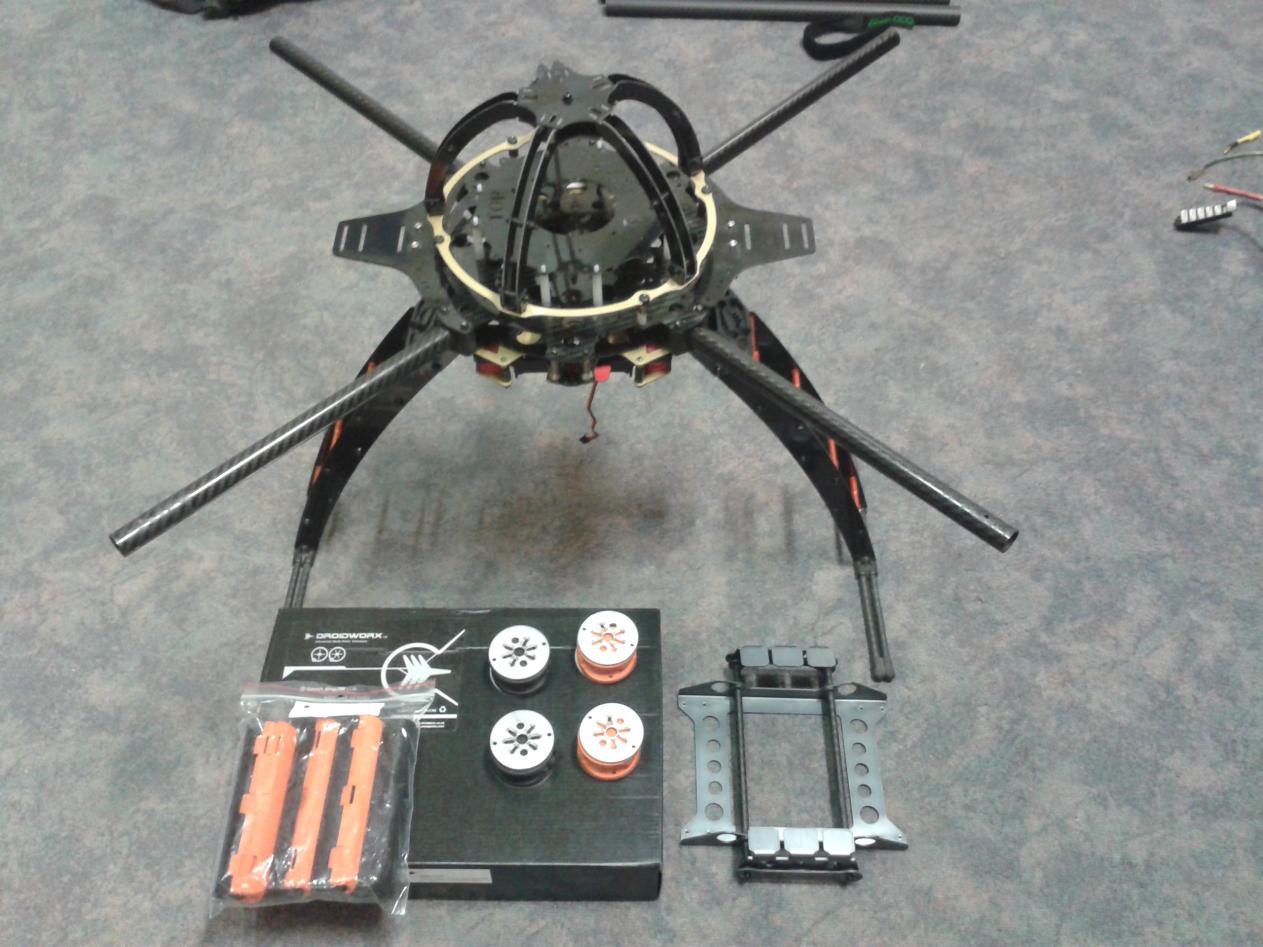

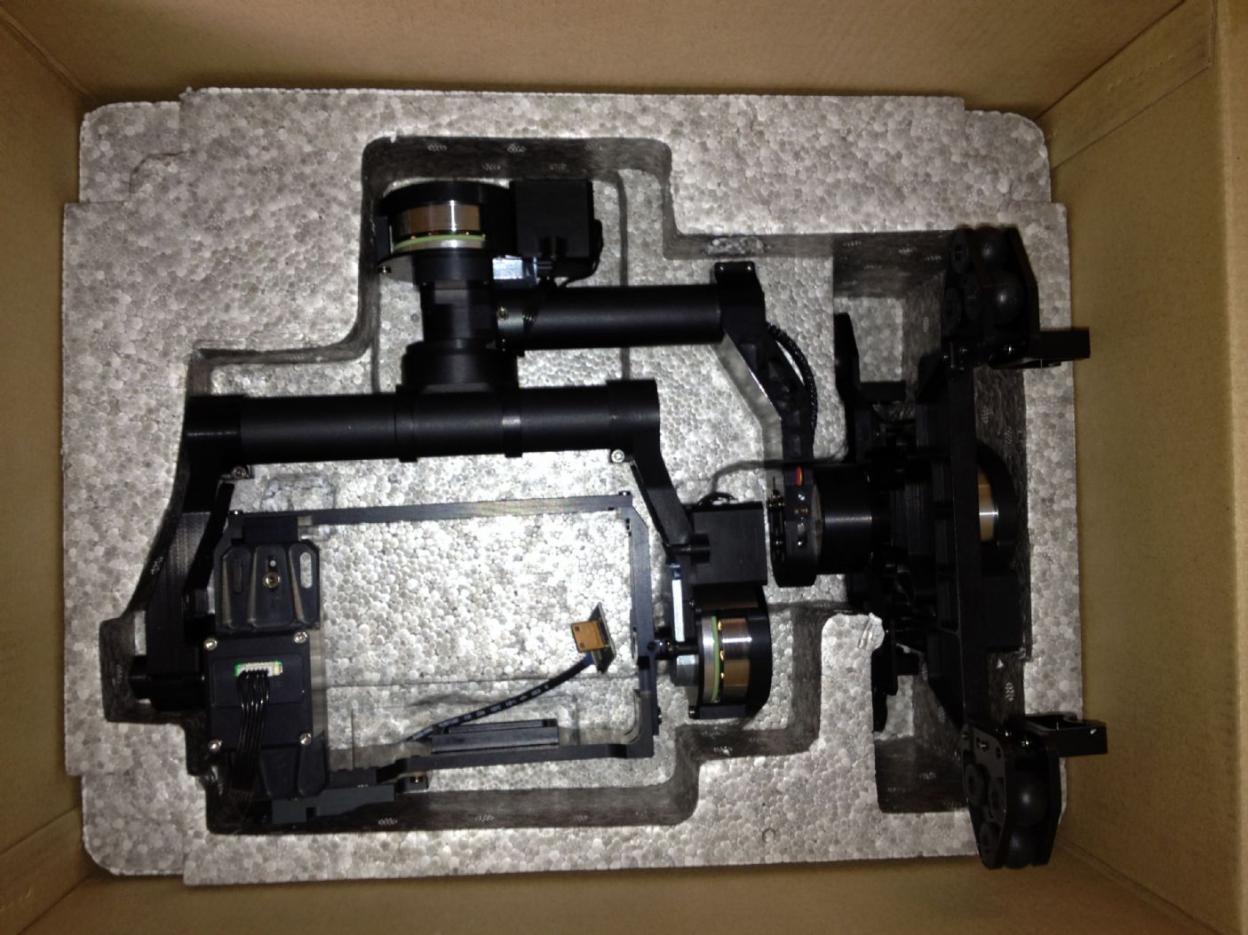

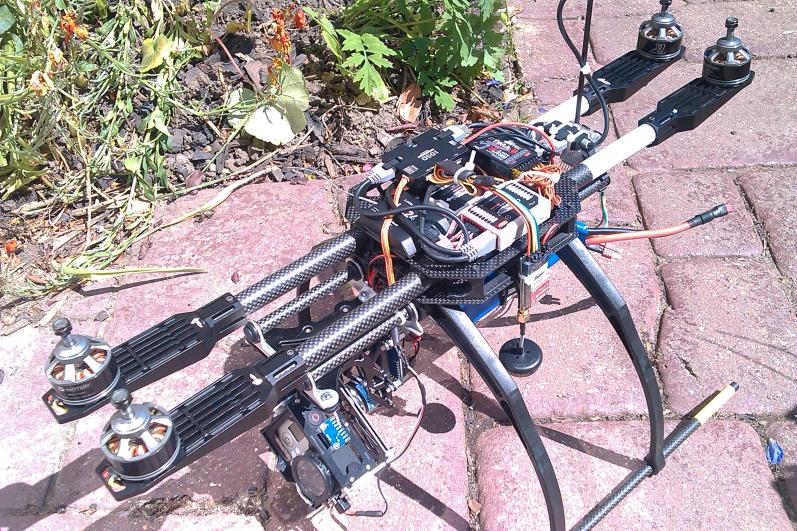

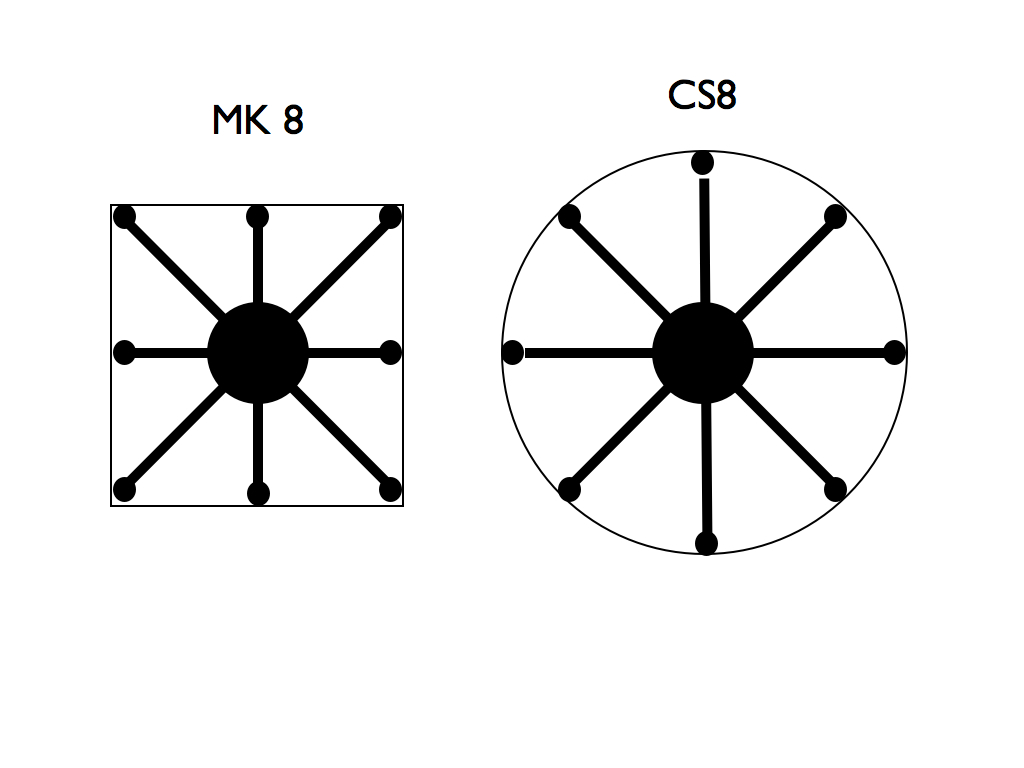

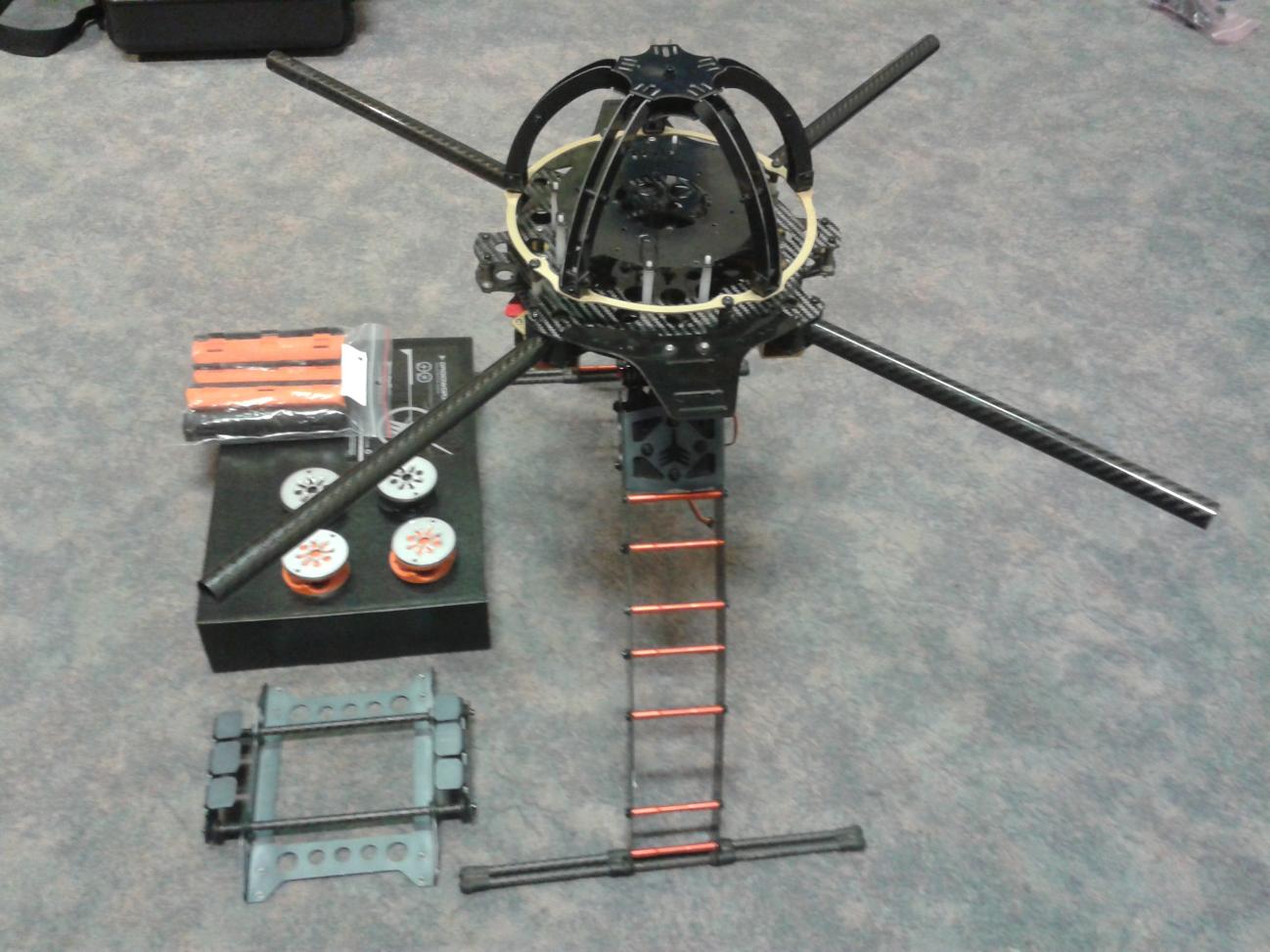

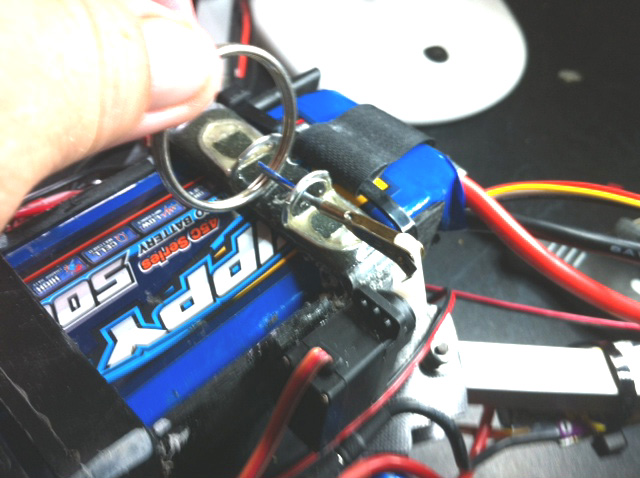

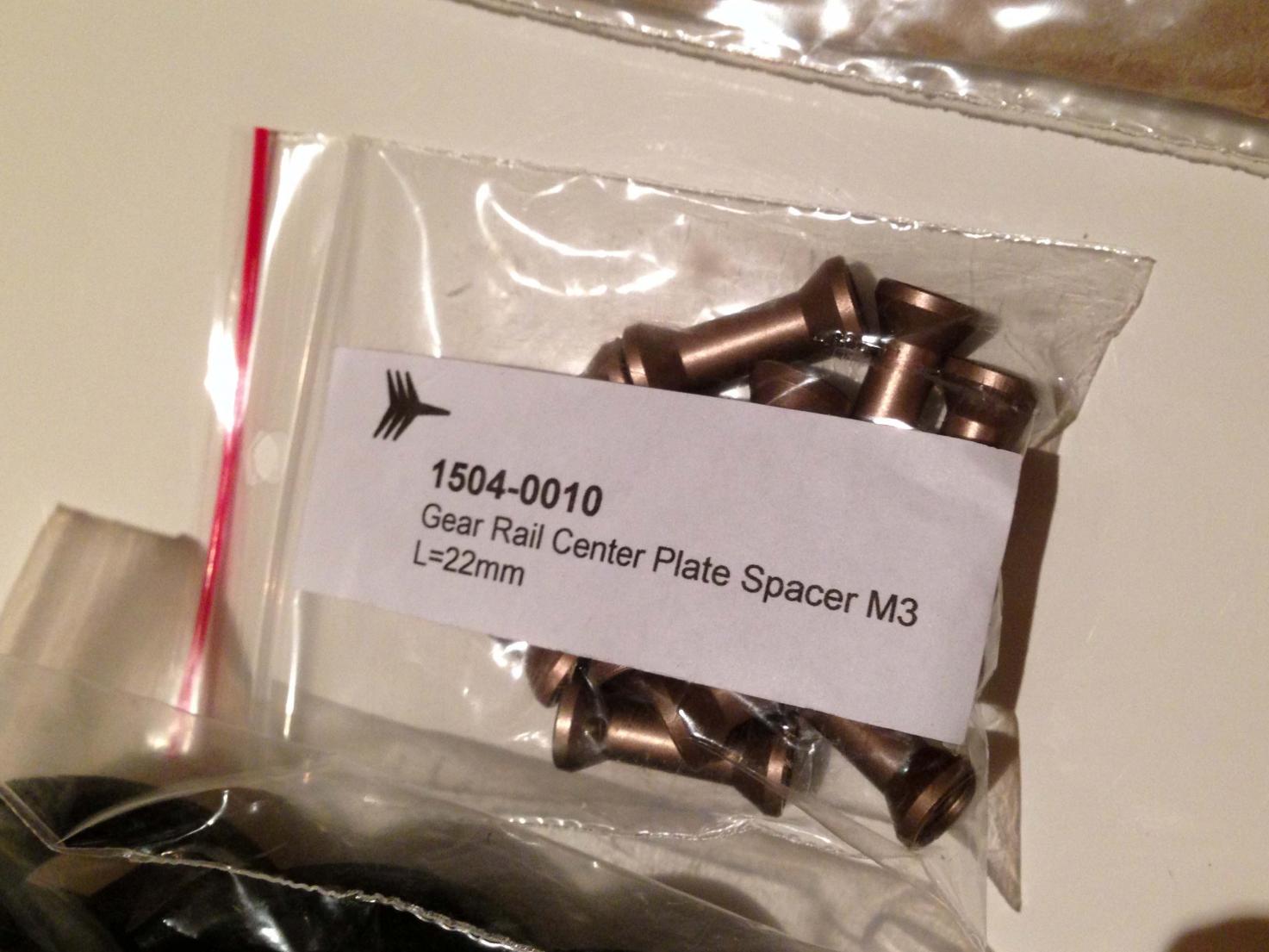

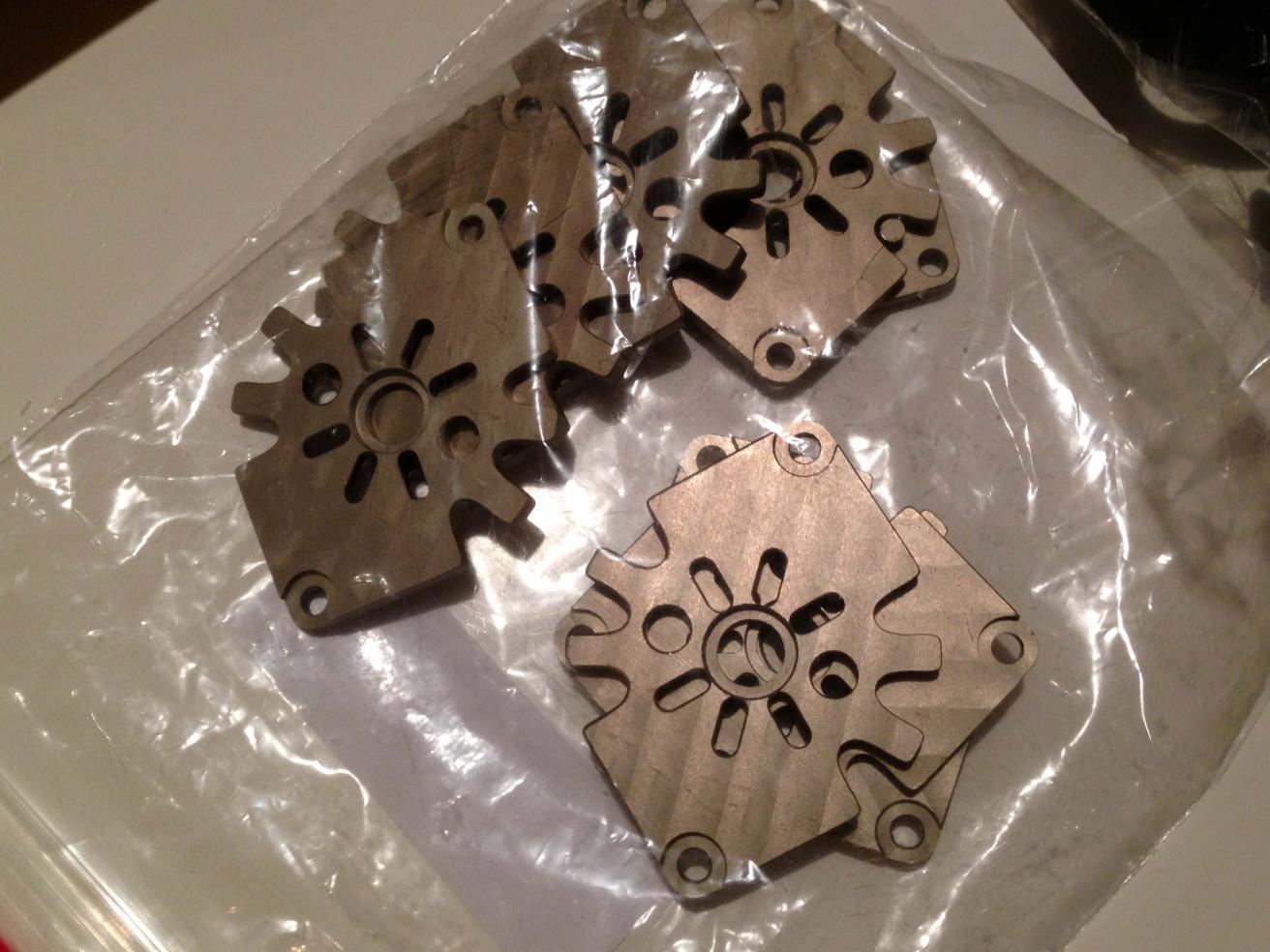

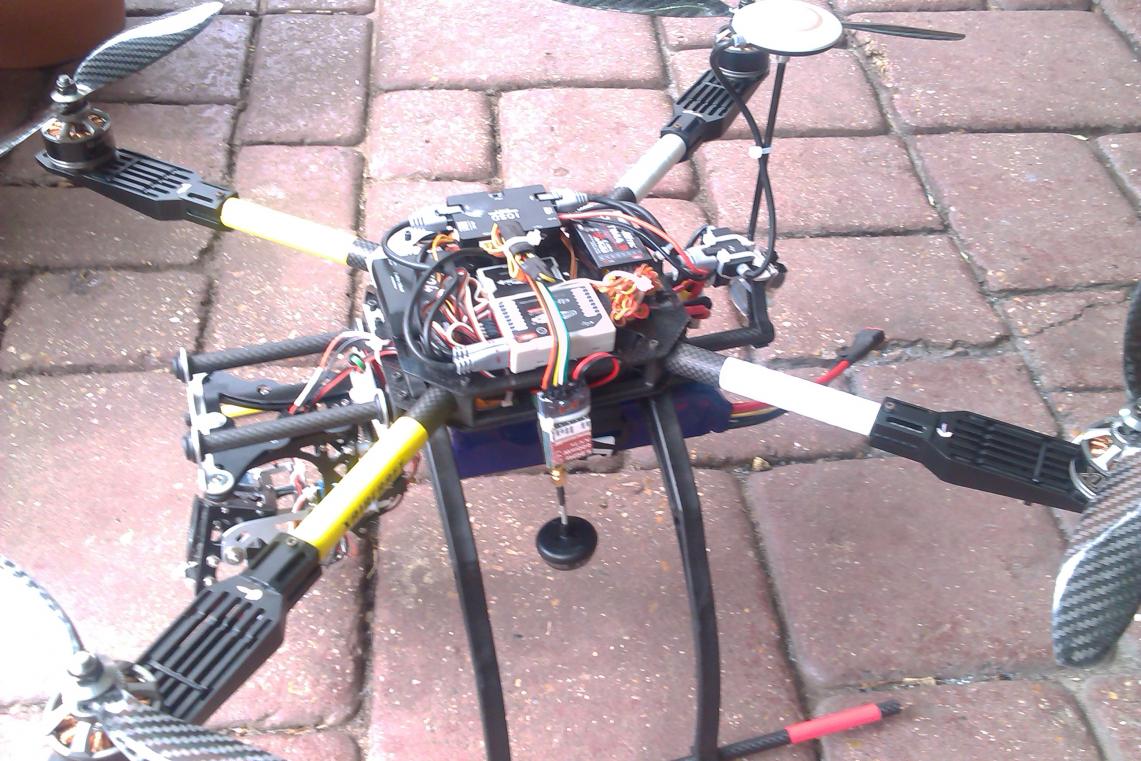

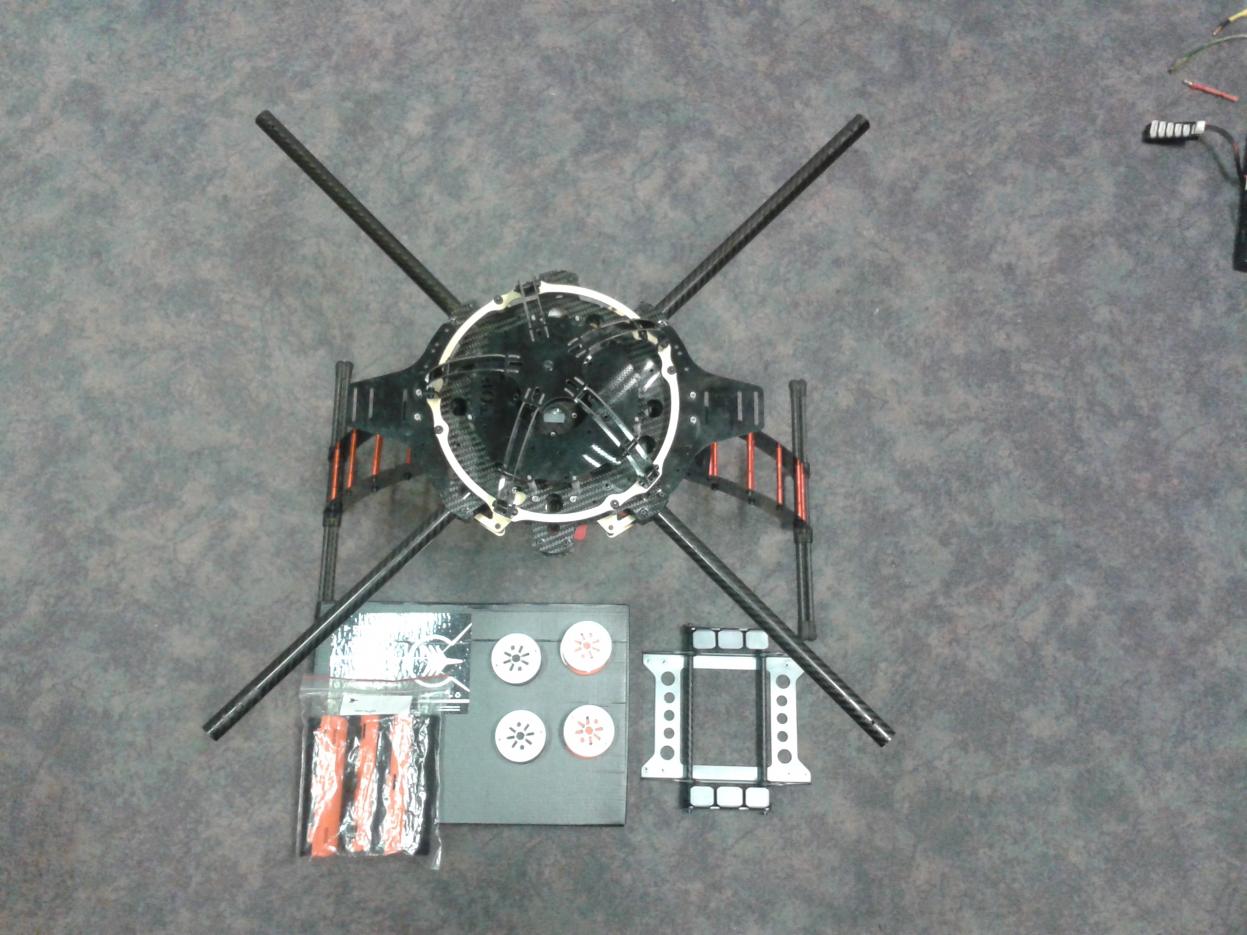

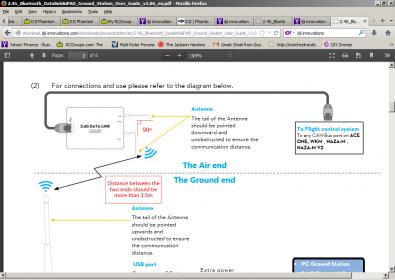

View attachment 15153View attachment 15154View attachment 15155View attachment 15156View attachment 15157View attachment 15158View attachment 15159View attachment 15160View attachment 15161View attachment 15162View attachment 15163View attachment 15164View attachment 15165



[baja-king]

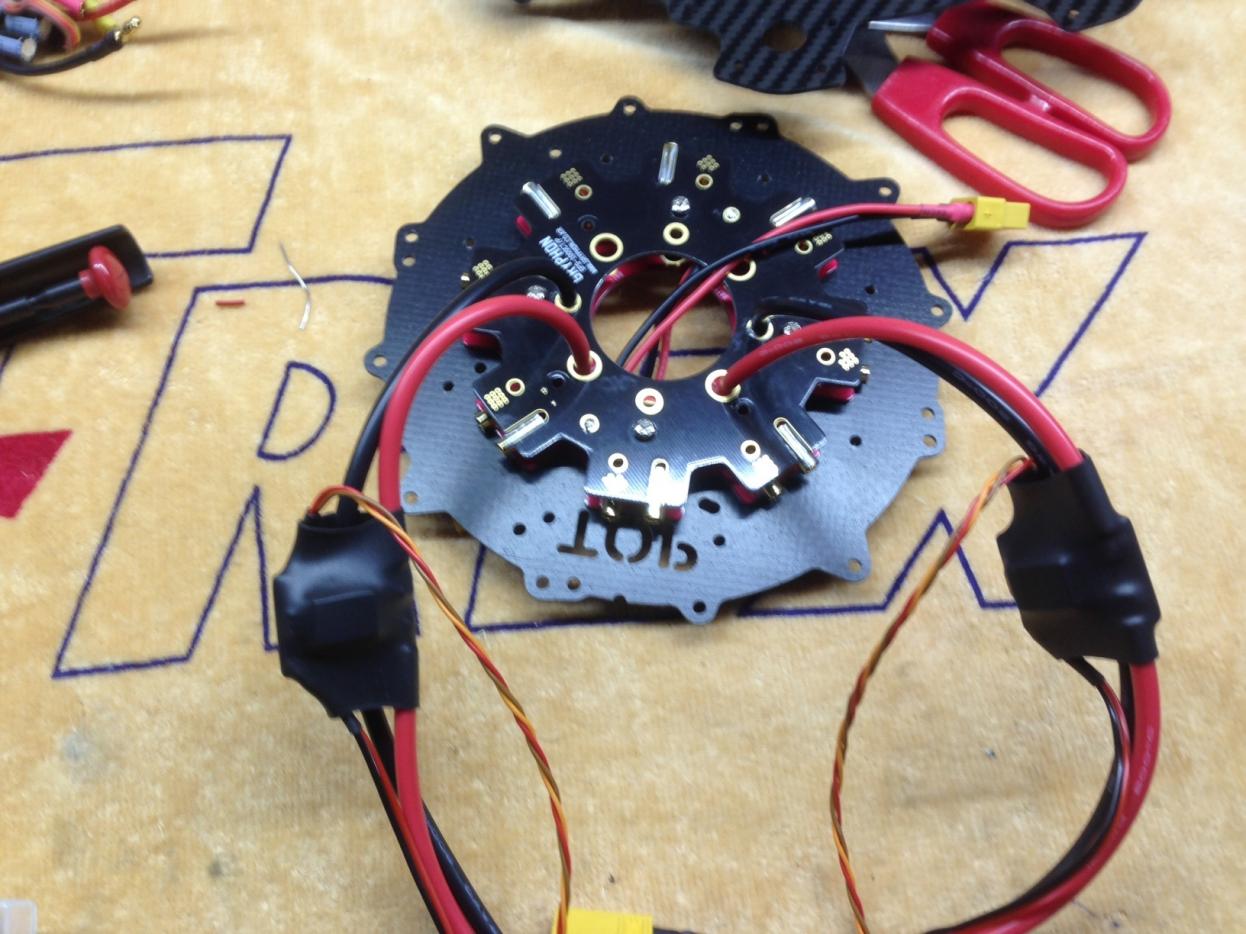

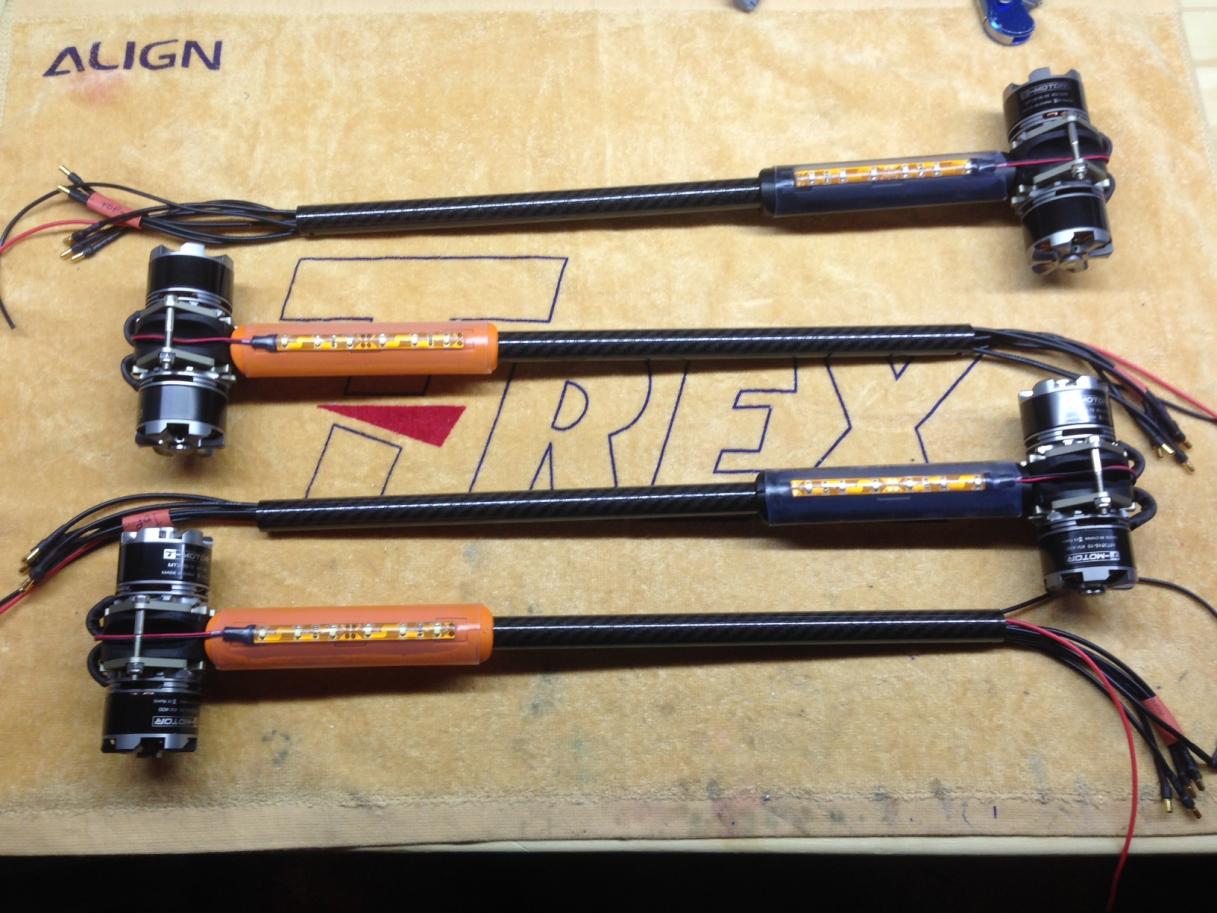

Well with all the Christmas malarkey out the way, had some time today to start the build...

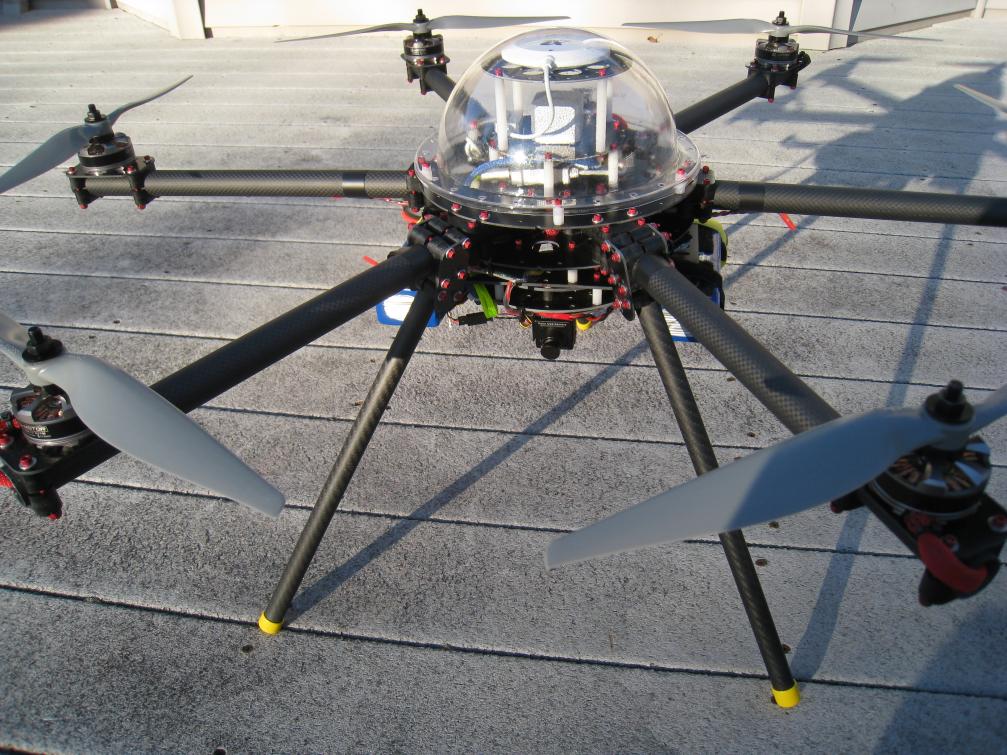

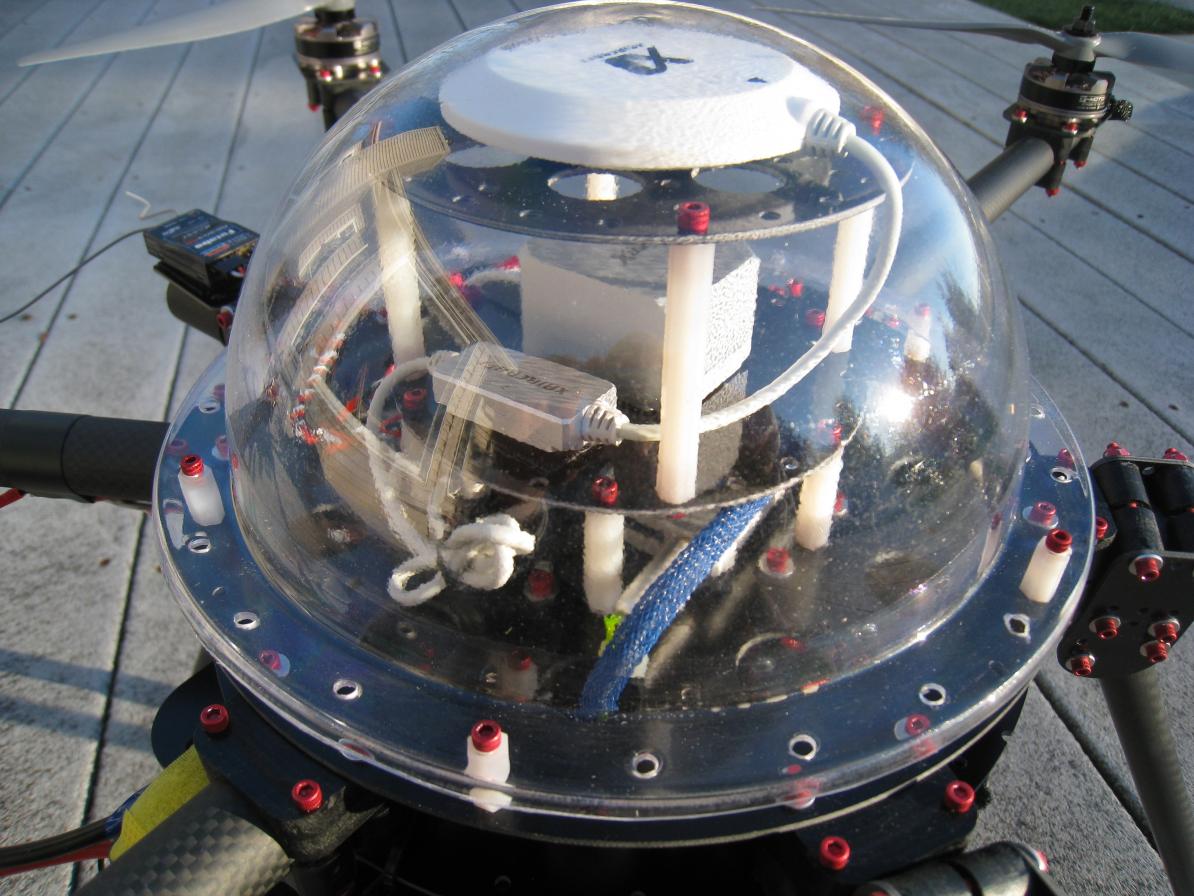

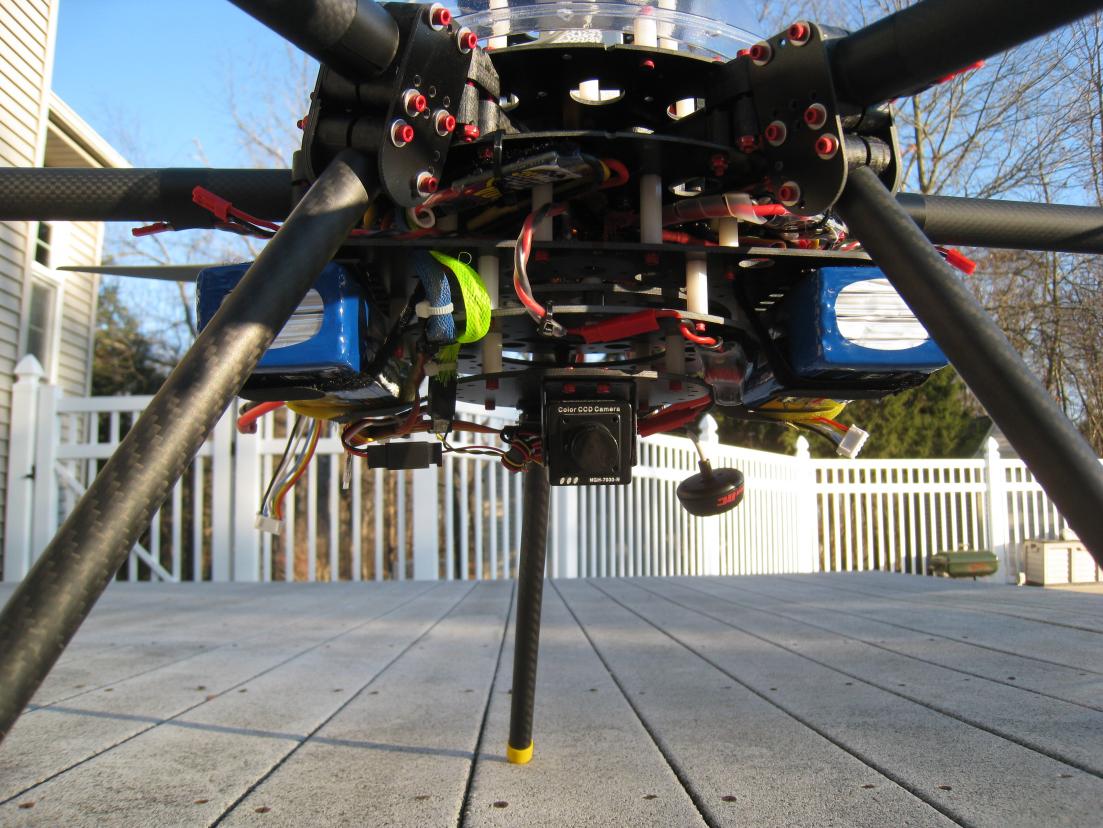

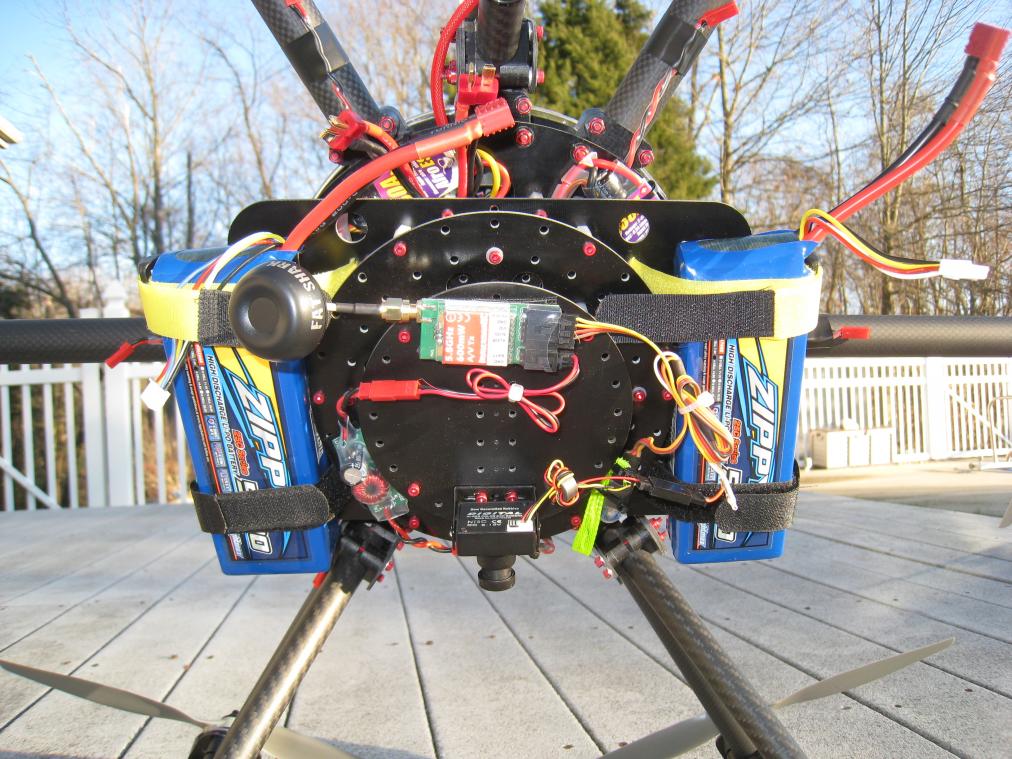

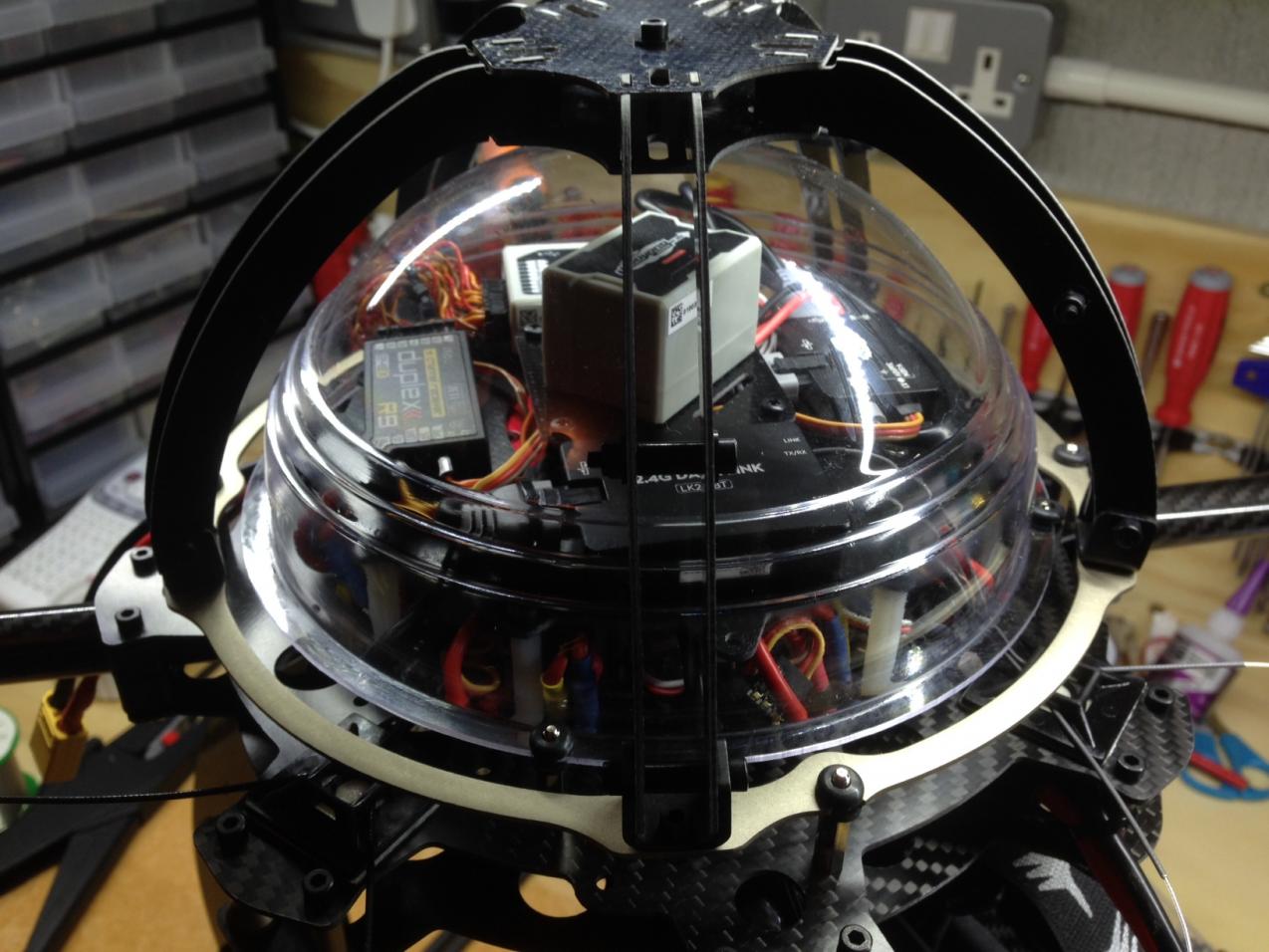

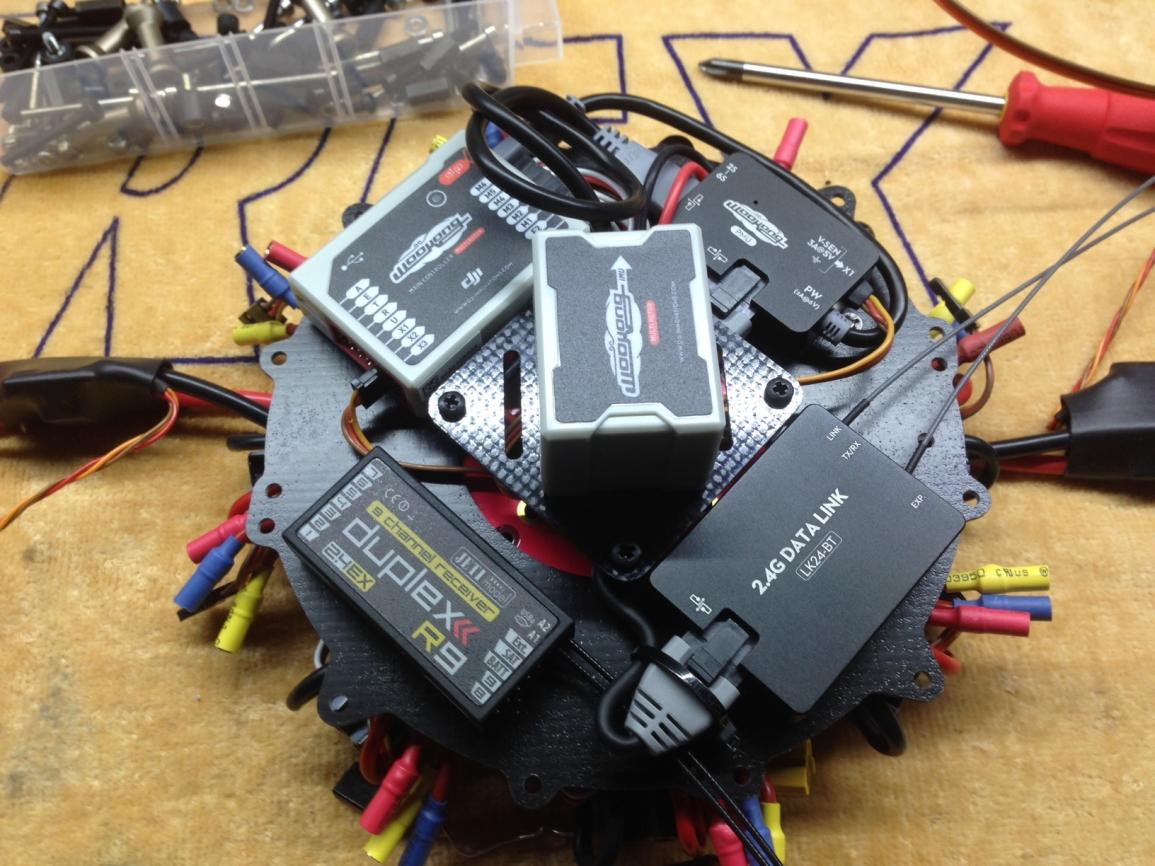

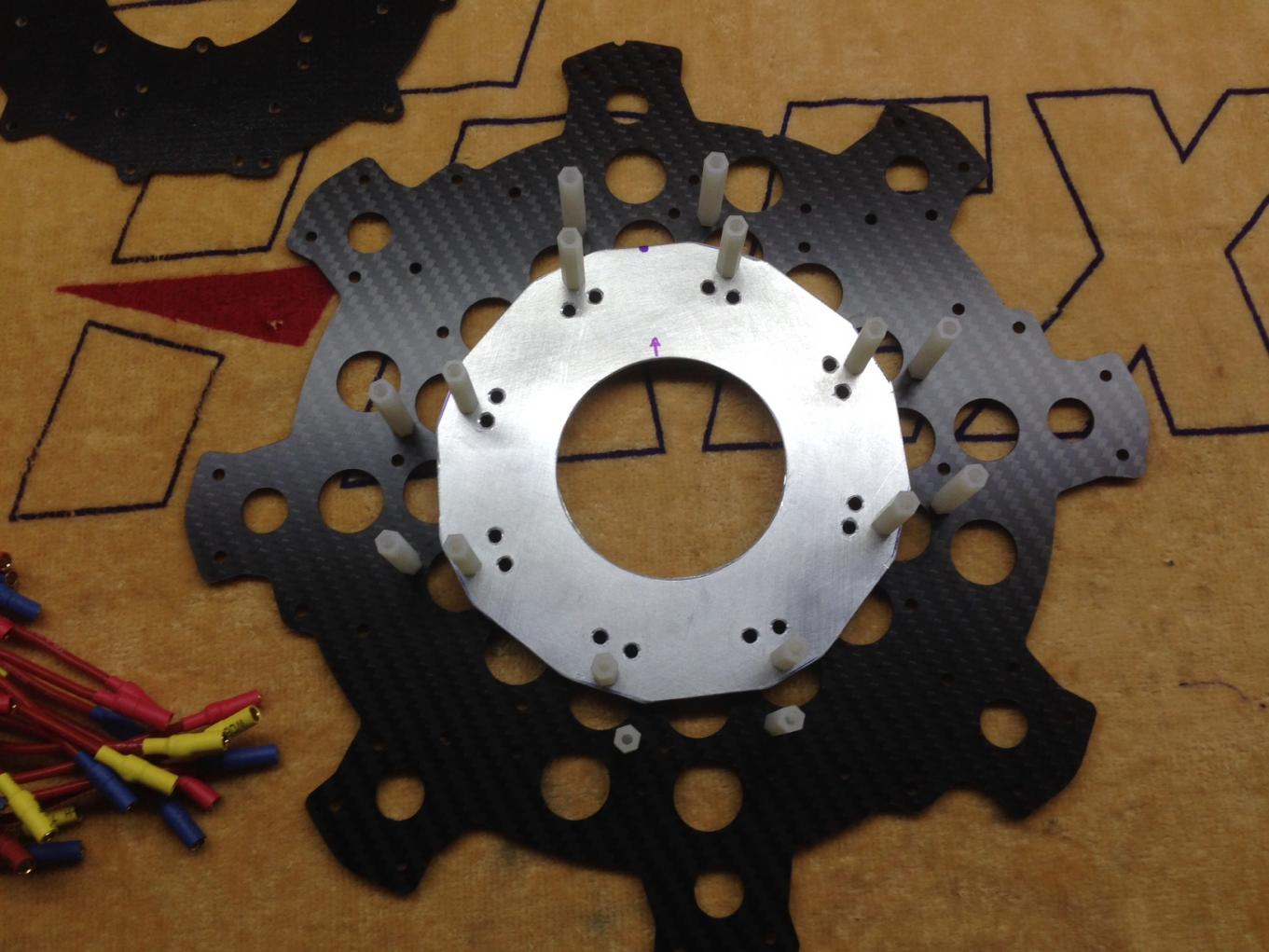

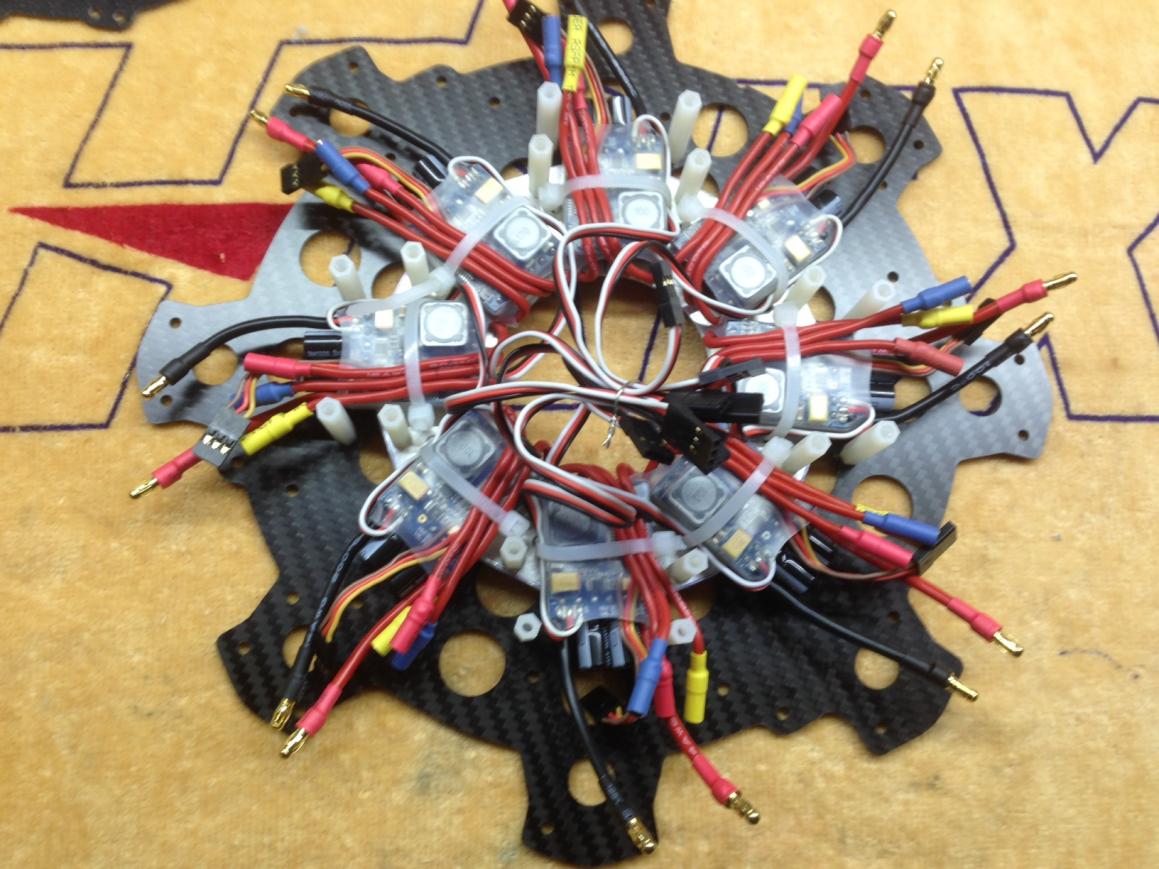

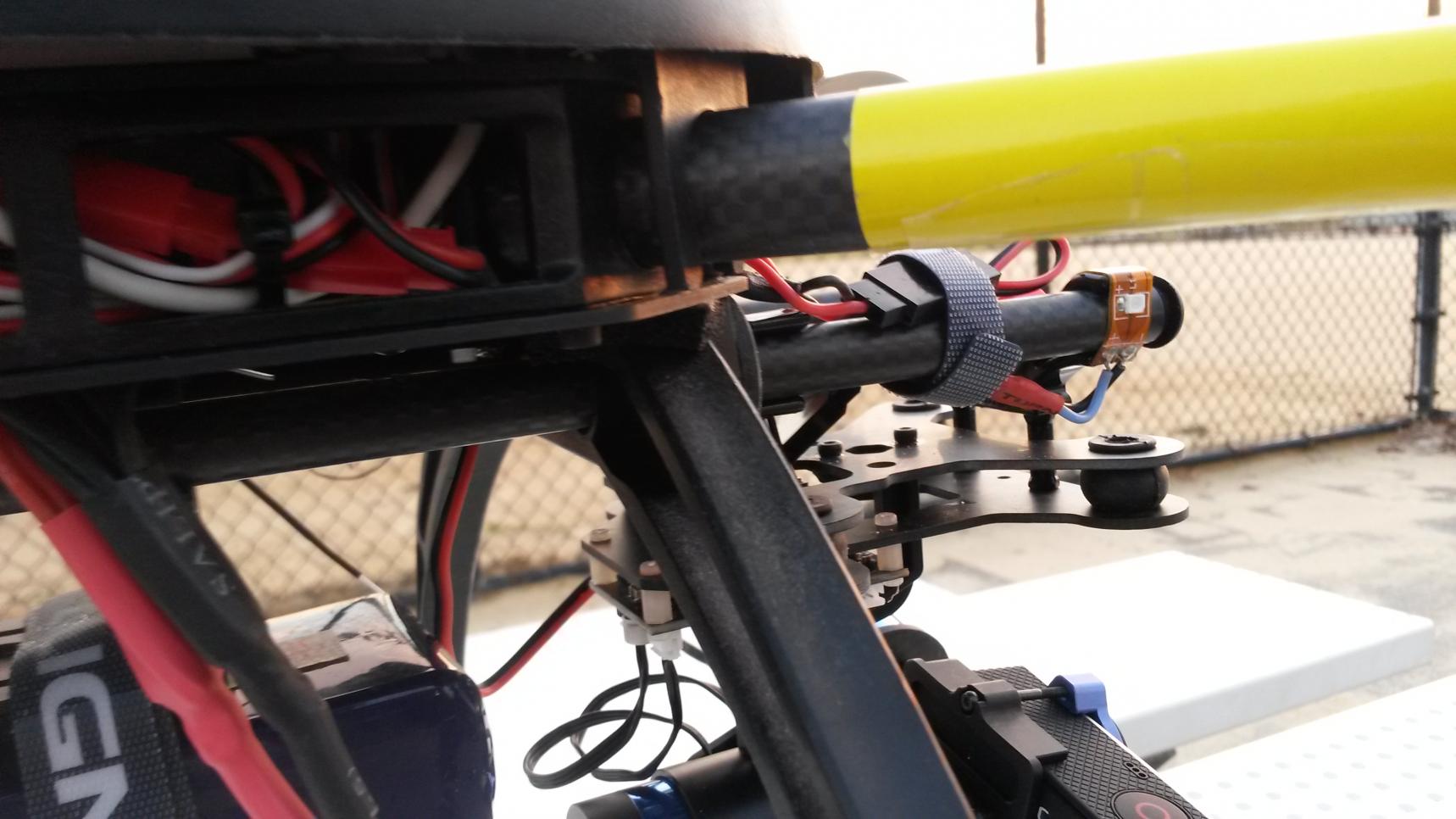

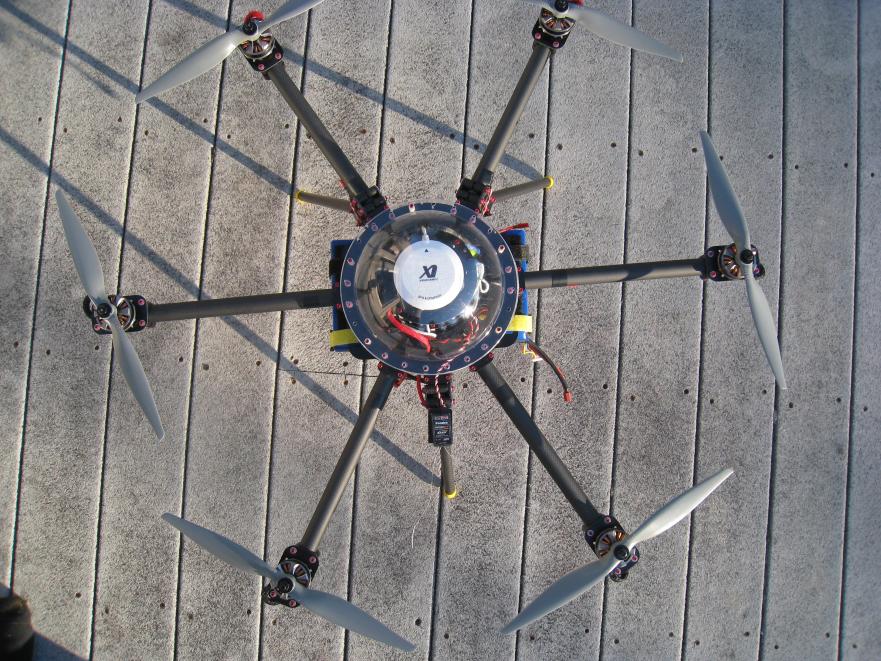

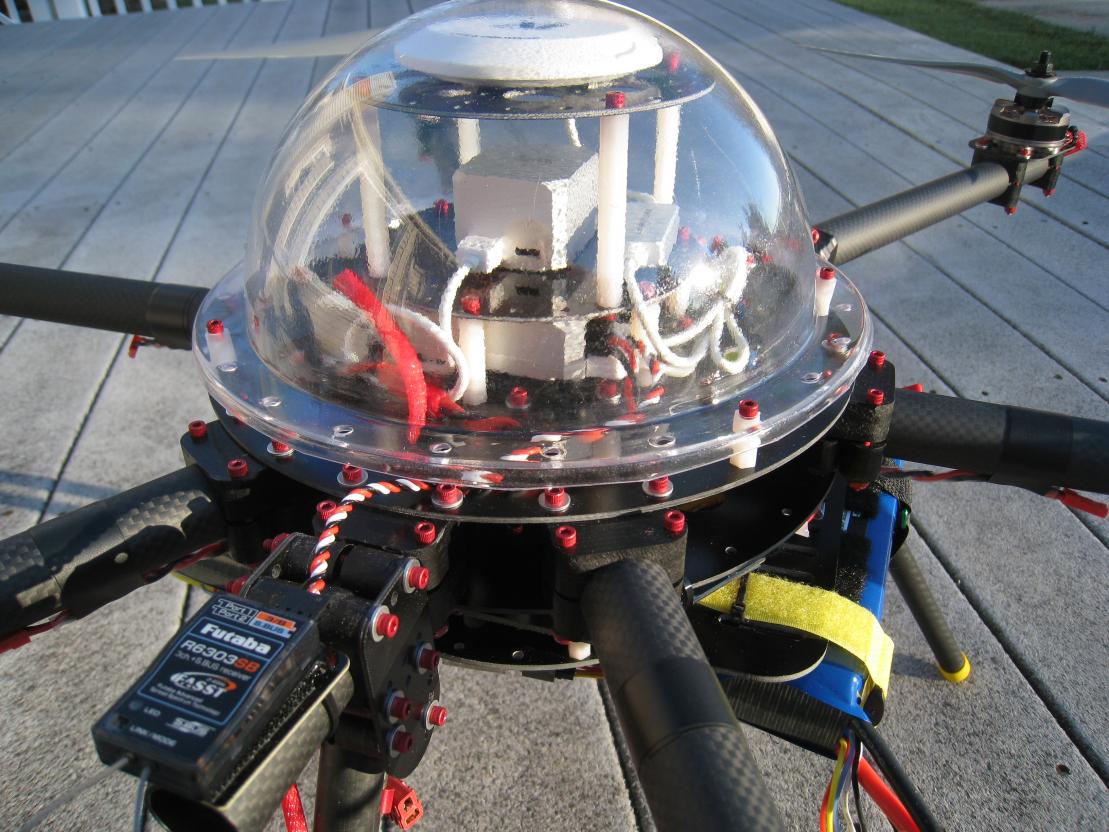

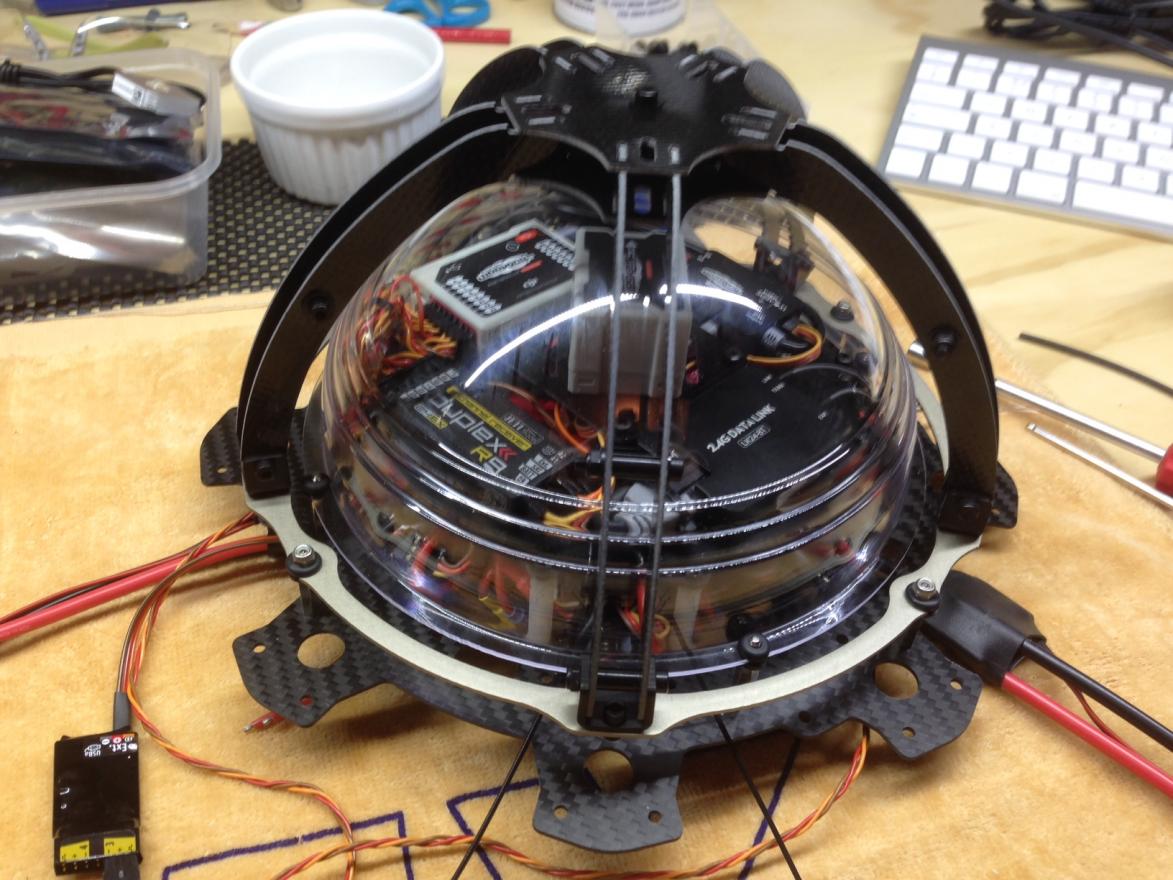

View attachment 15386View attachment 15387View attachment 15388View attachment 15389View attachment 15390View attachment 15391View attachment 15392View attachment 15393View attachment 15394View attachment 15395View attachment 15396



[djw43]

looks great!



[baja-king]

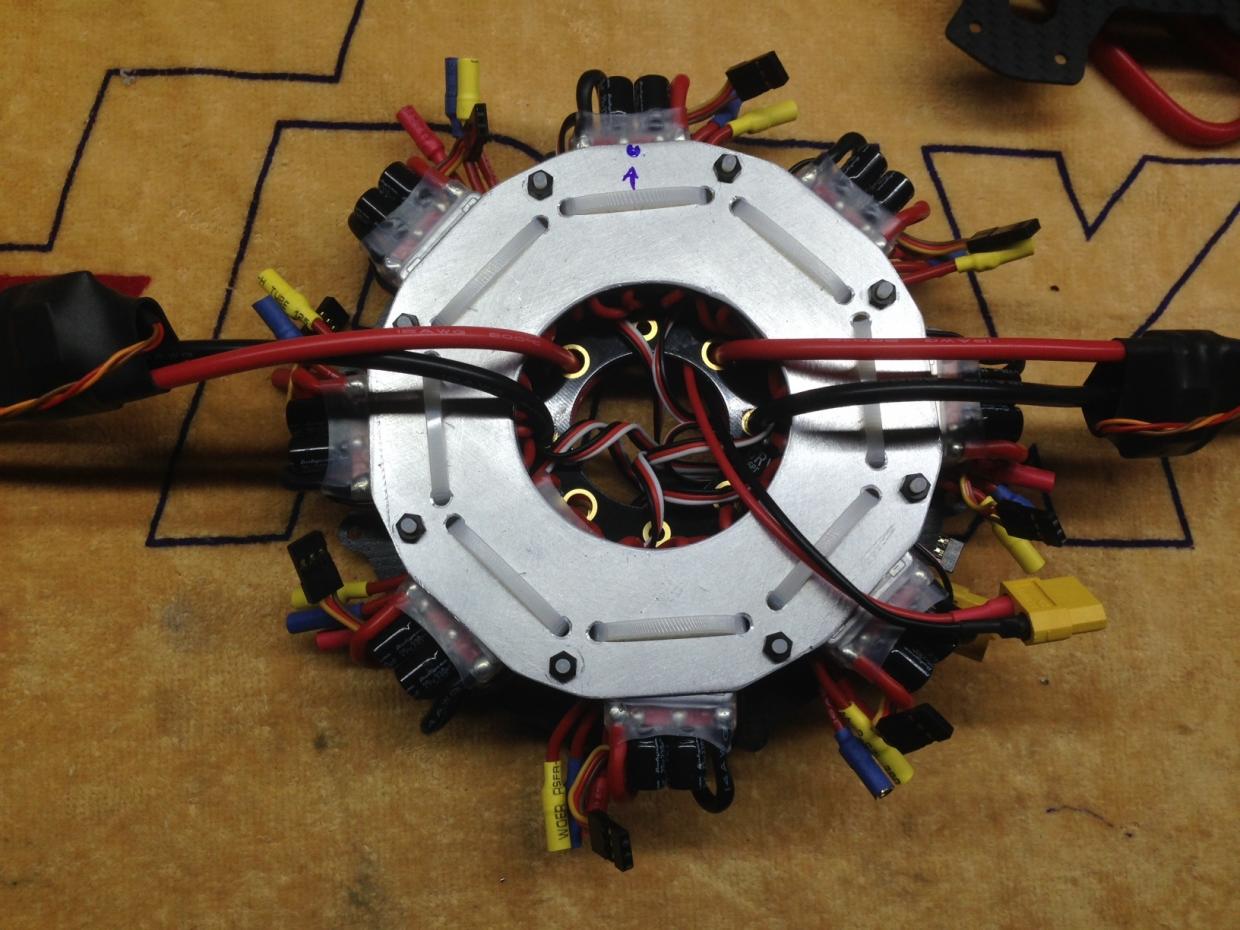

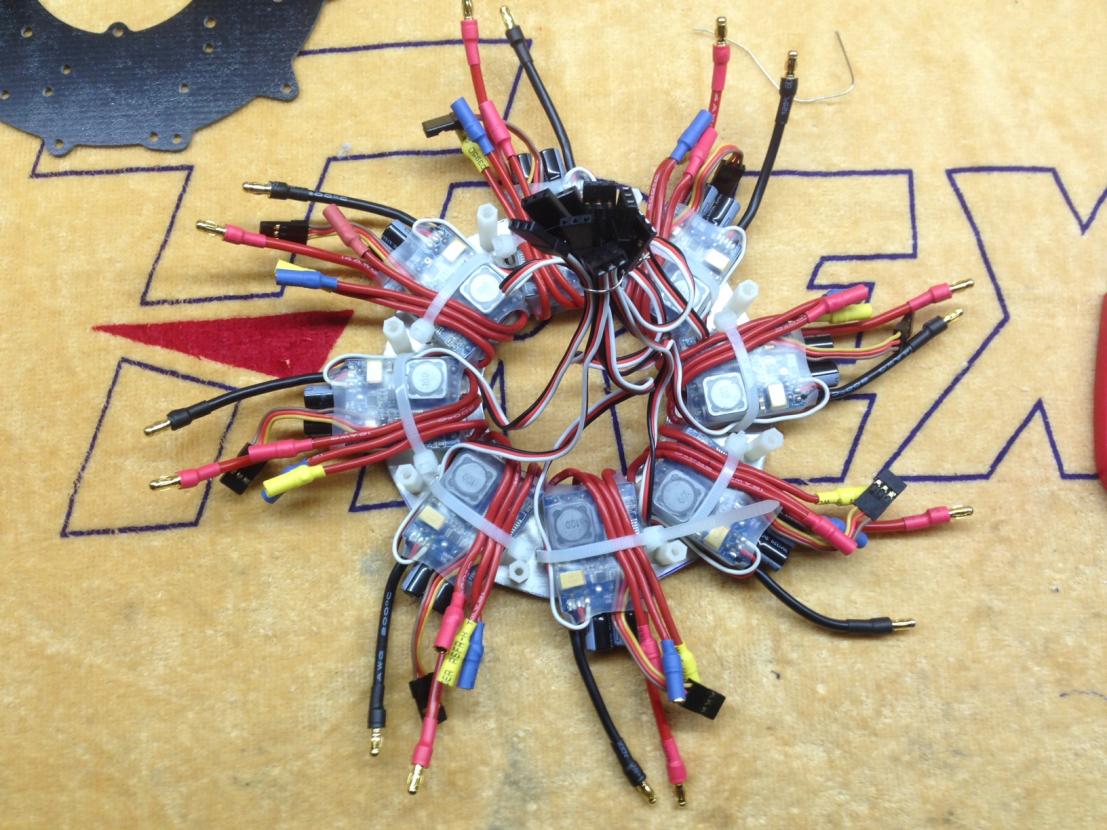

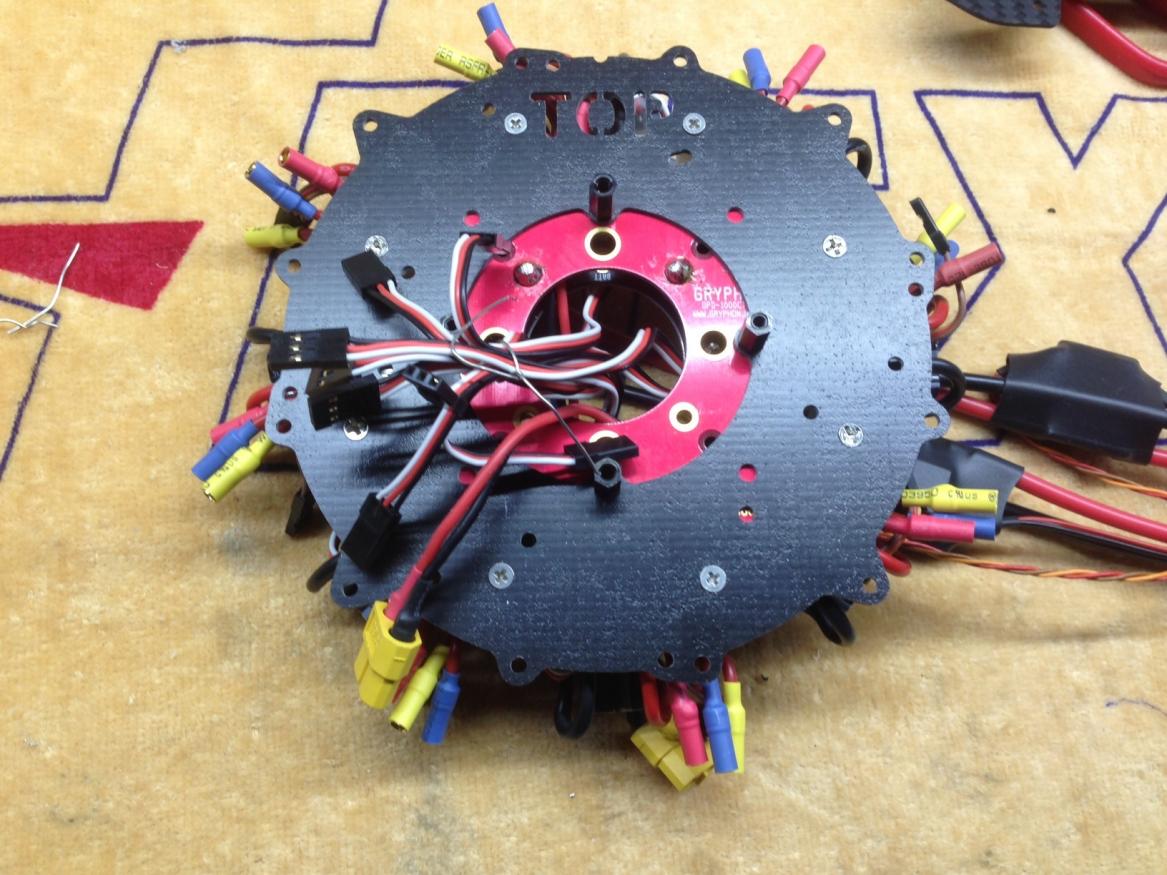

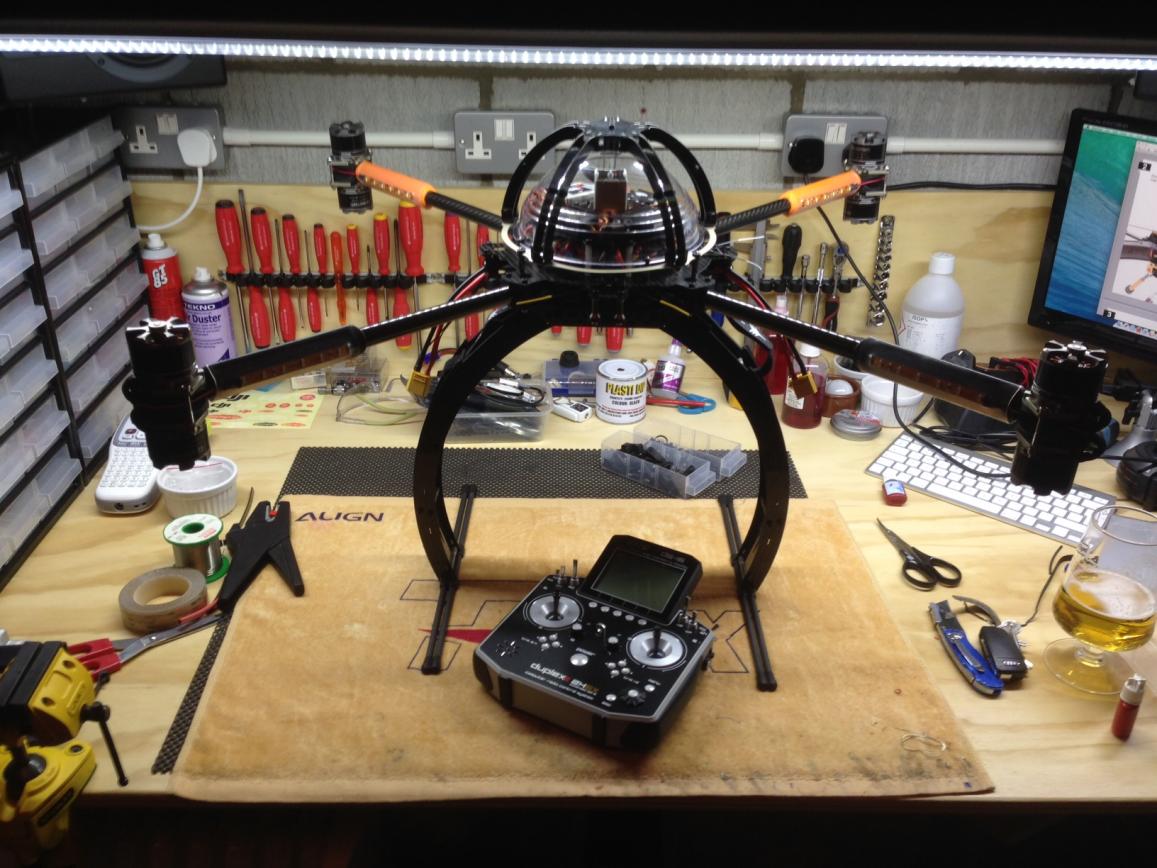

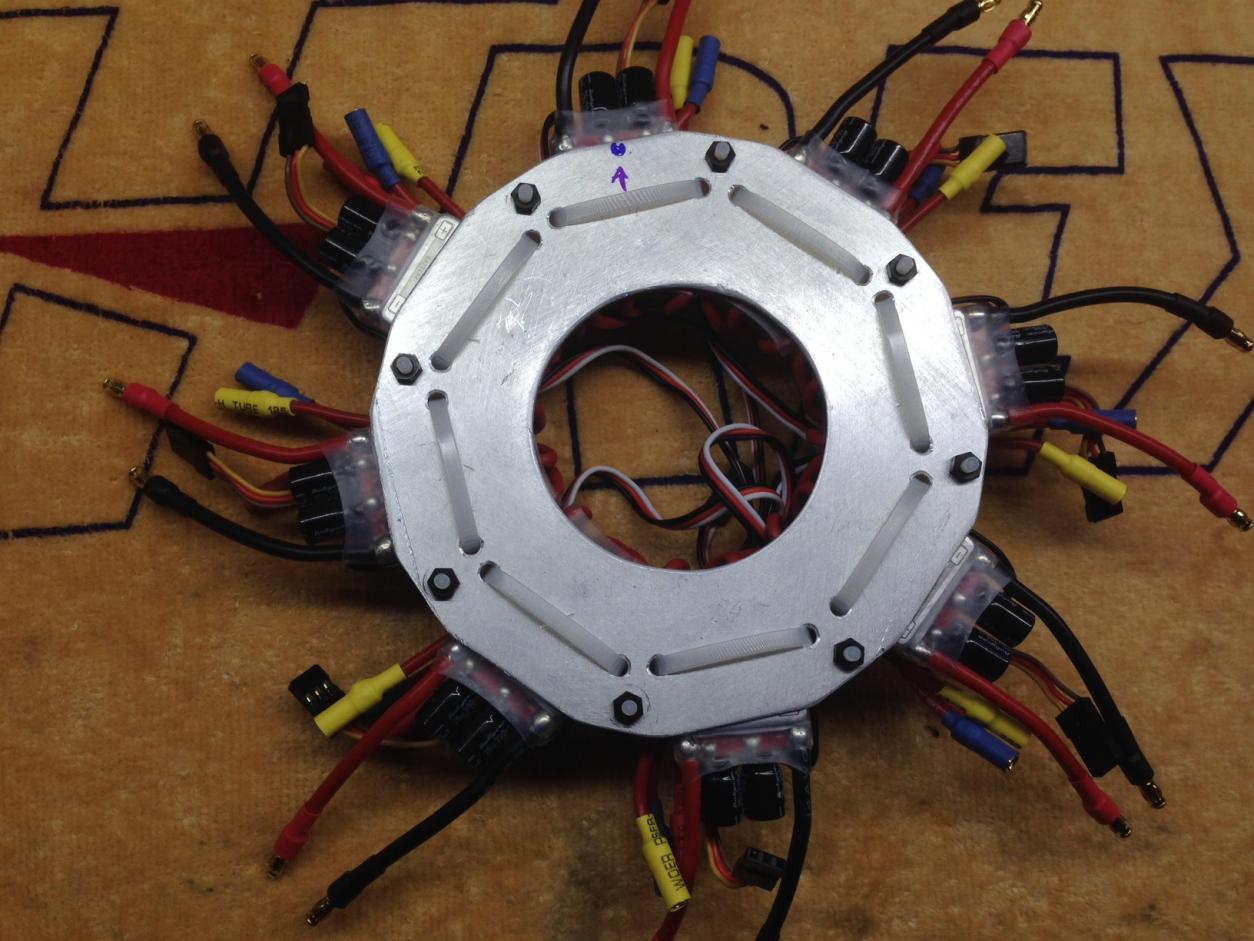

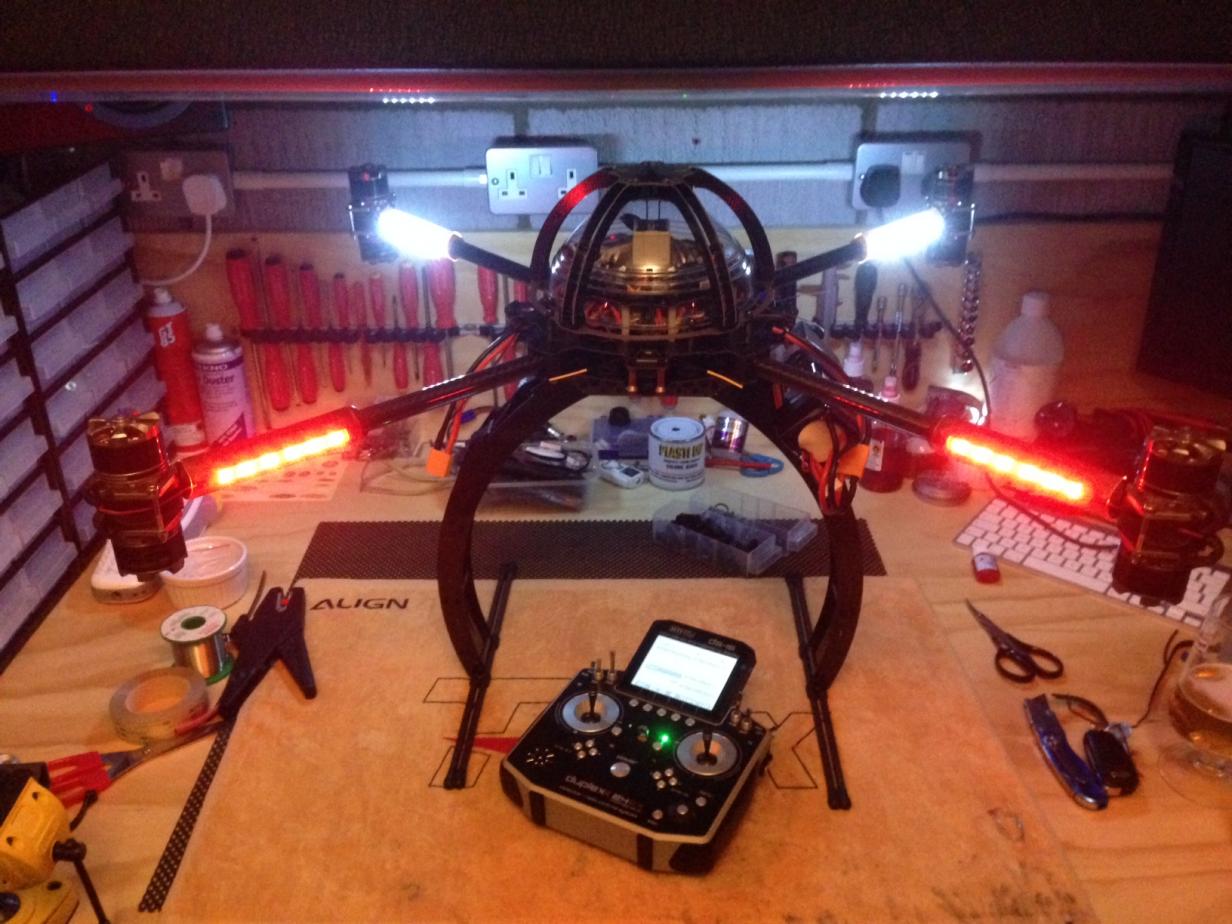

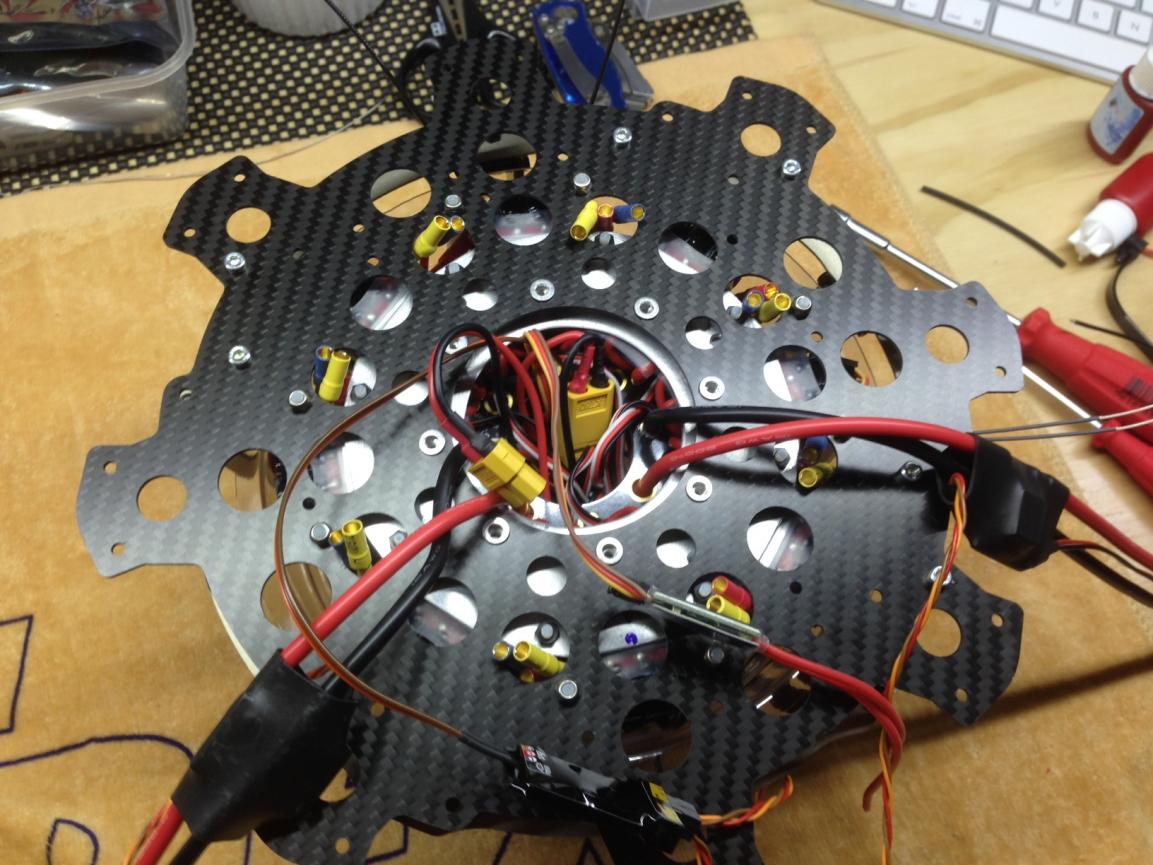

And some more progress..

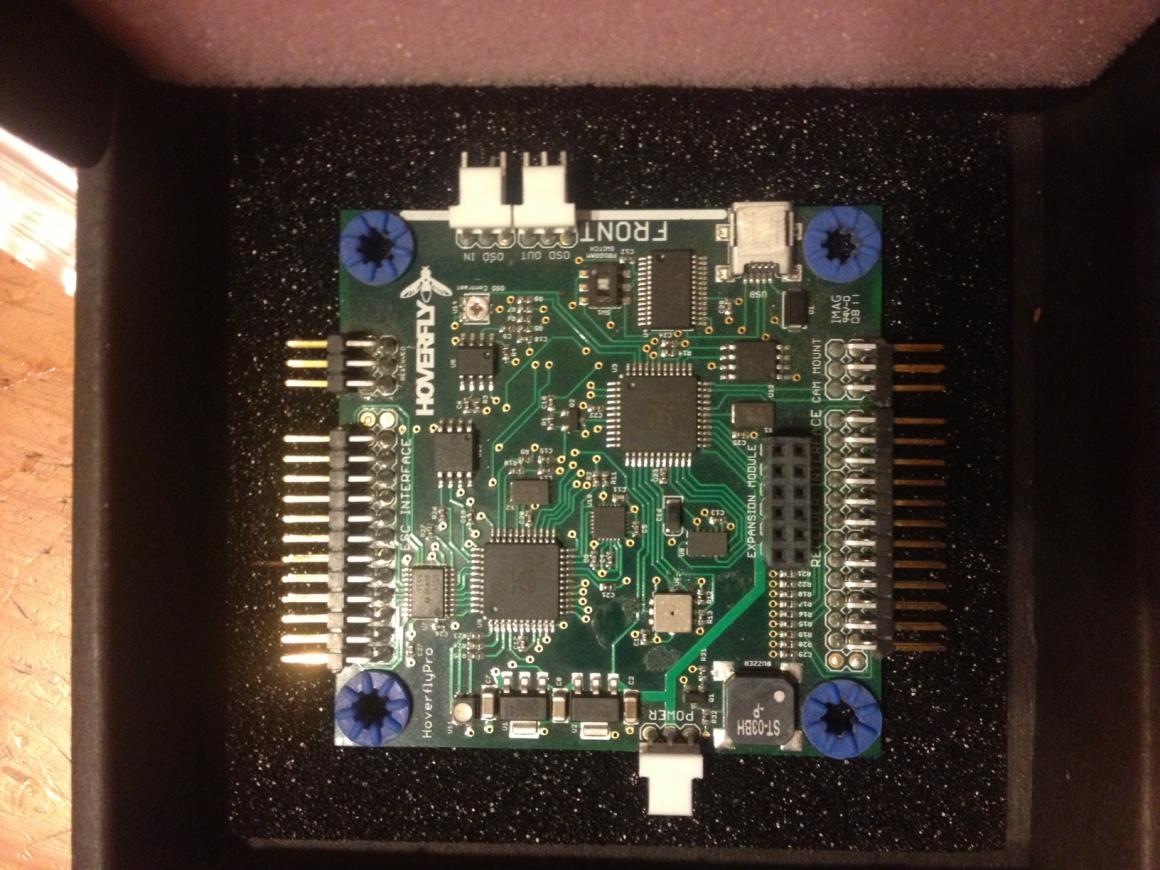

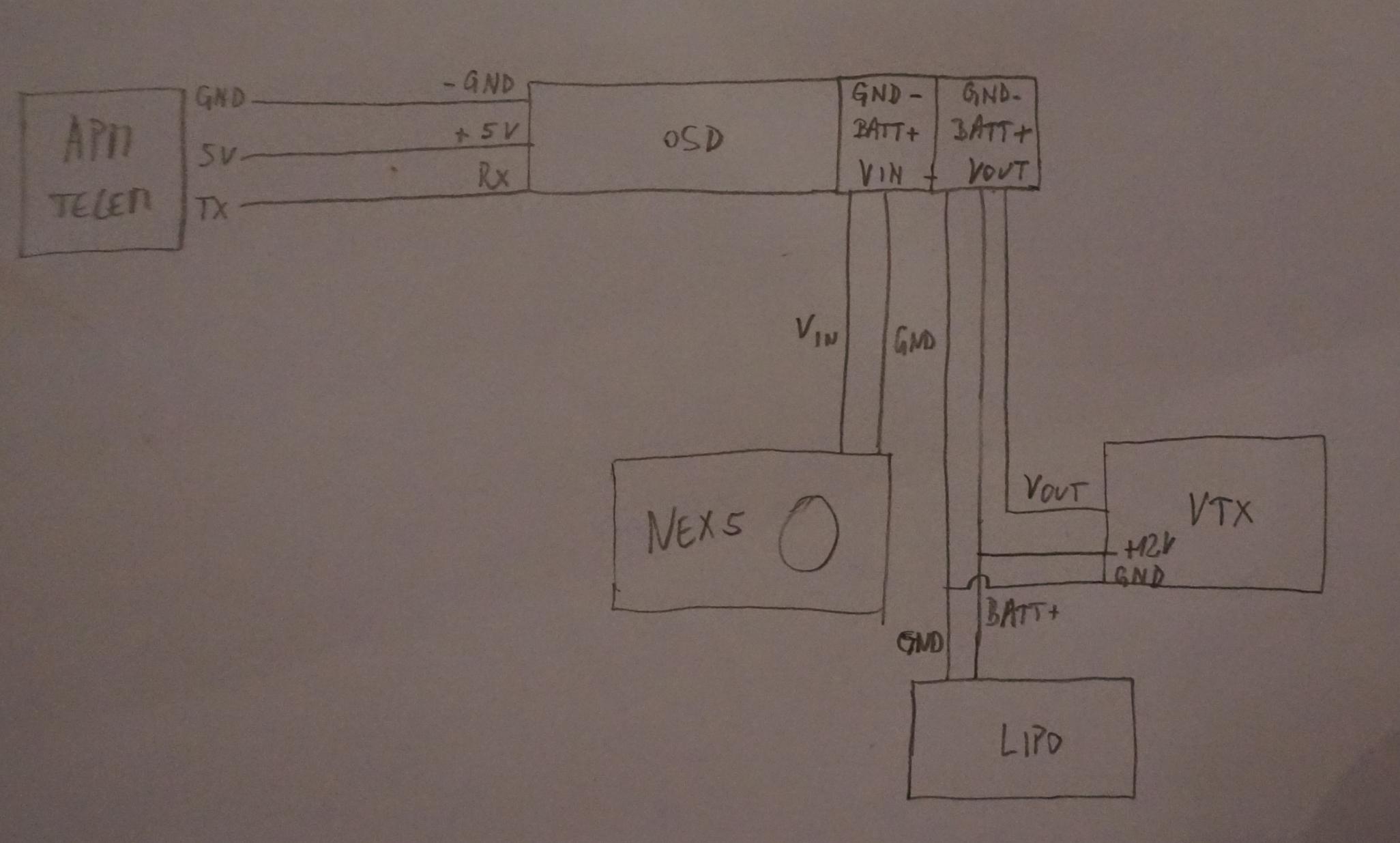

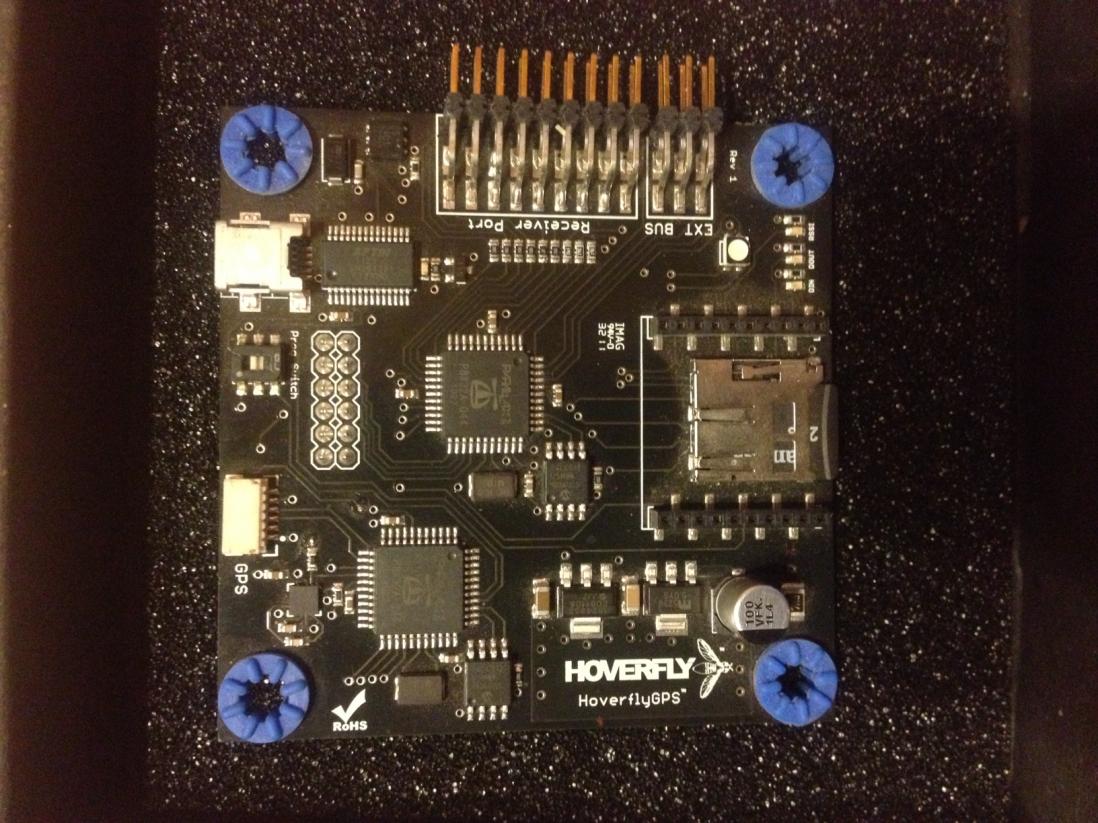

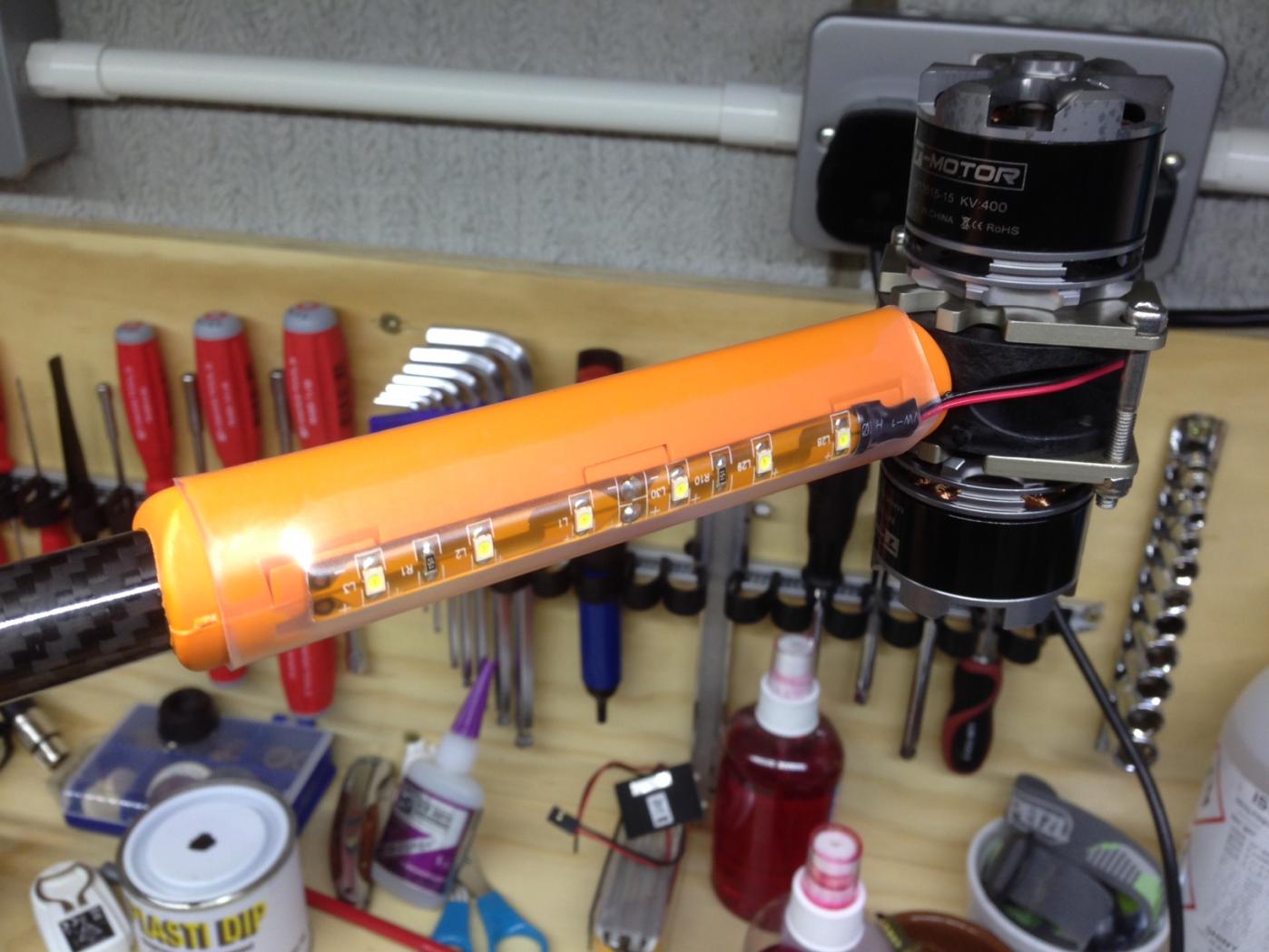

View attachment 15413View attachment 15414View attachment 15415View attachment 15416View attachment 15417



[Quinton]

Thanks for sharing, theres a lot to learn seeing these threads.
Nice little use there of the cable tie stickers, and see you like the 3515 motors.
