naza f550 and graupner mx-20

[heliuser]

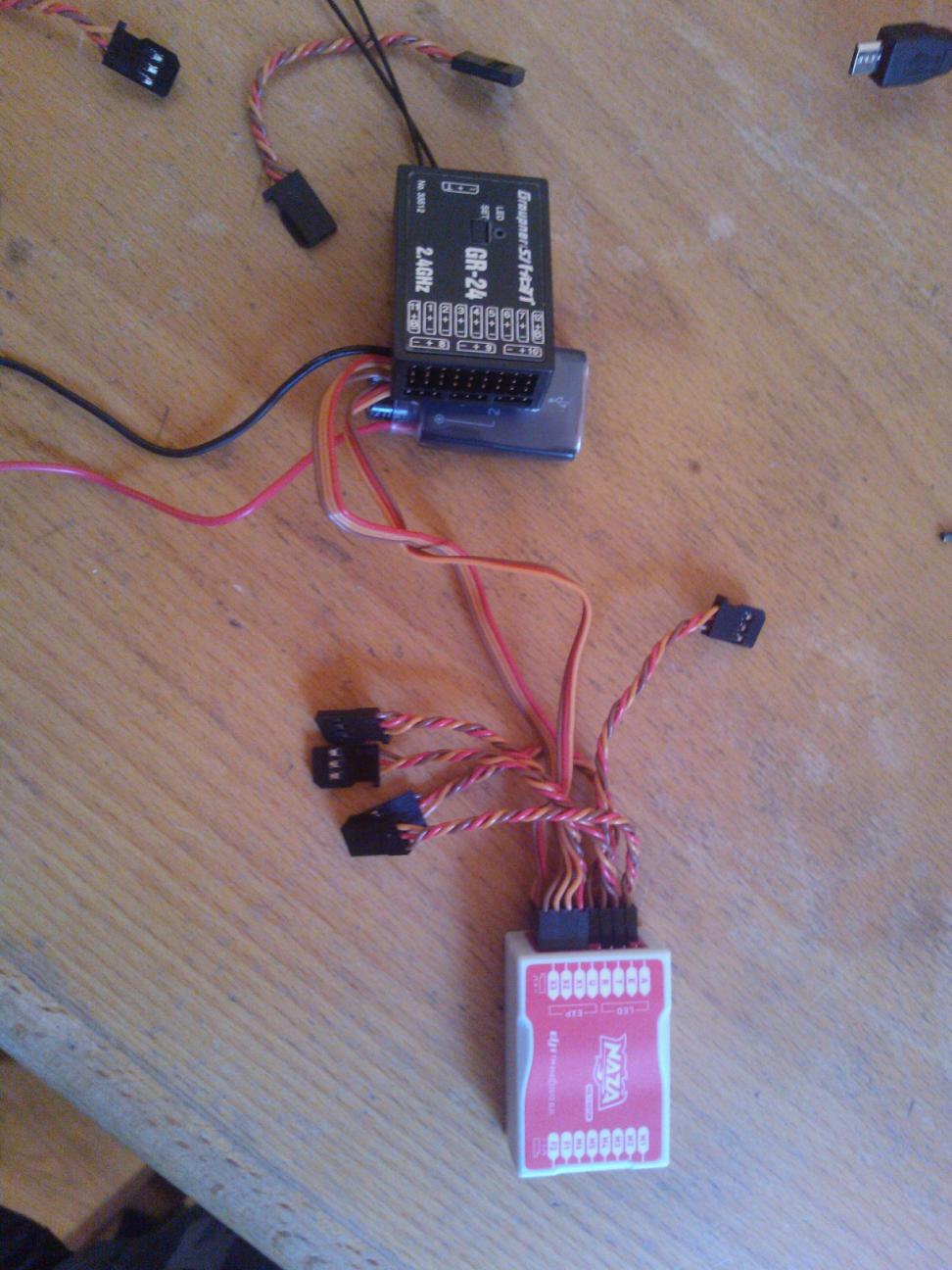

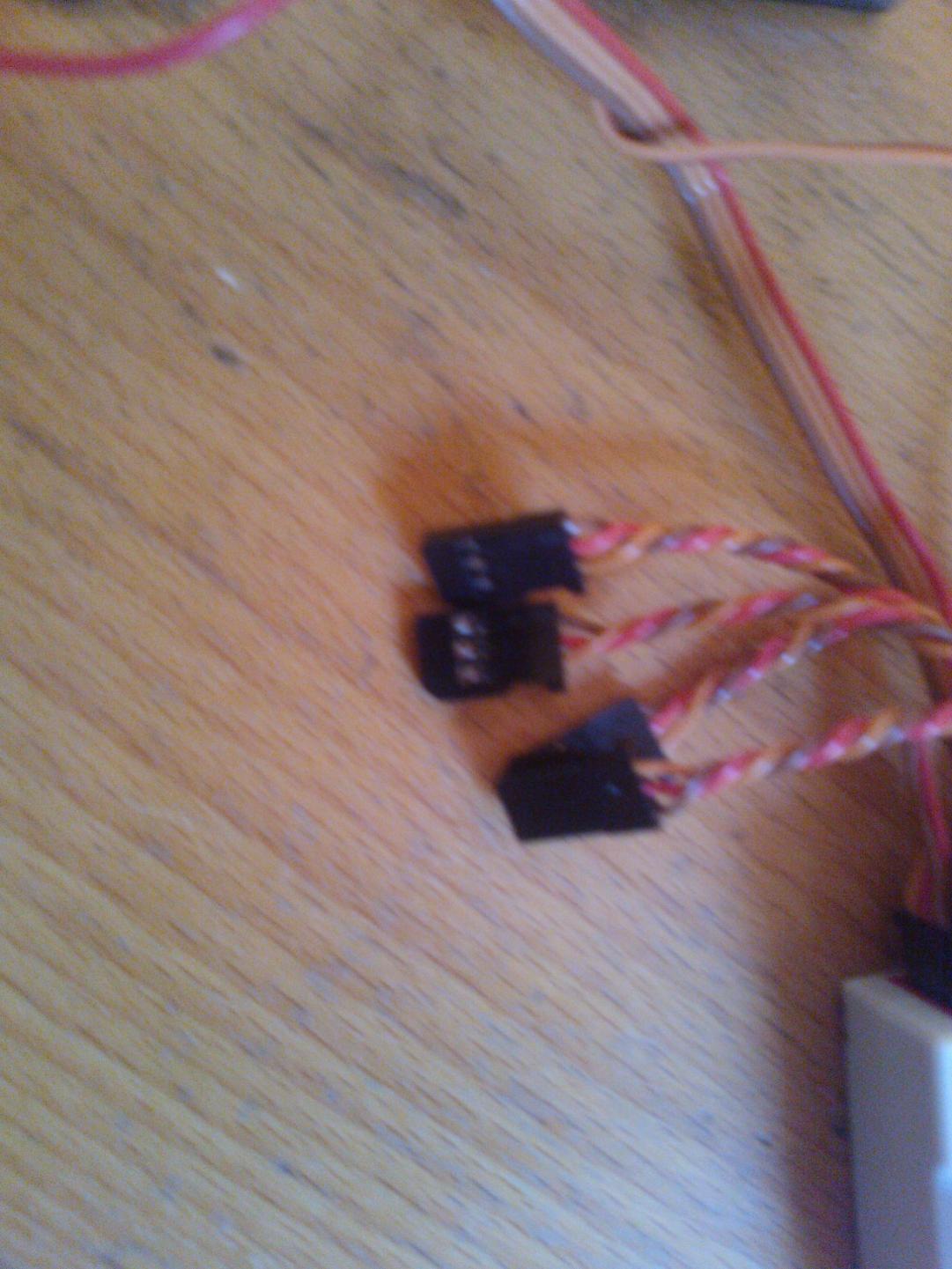

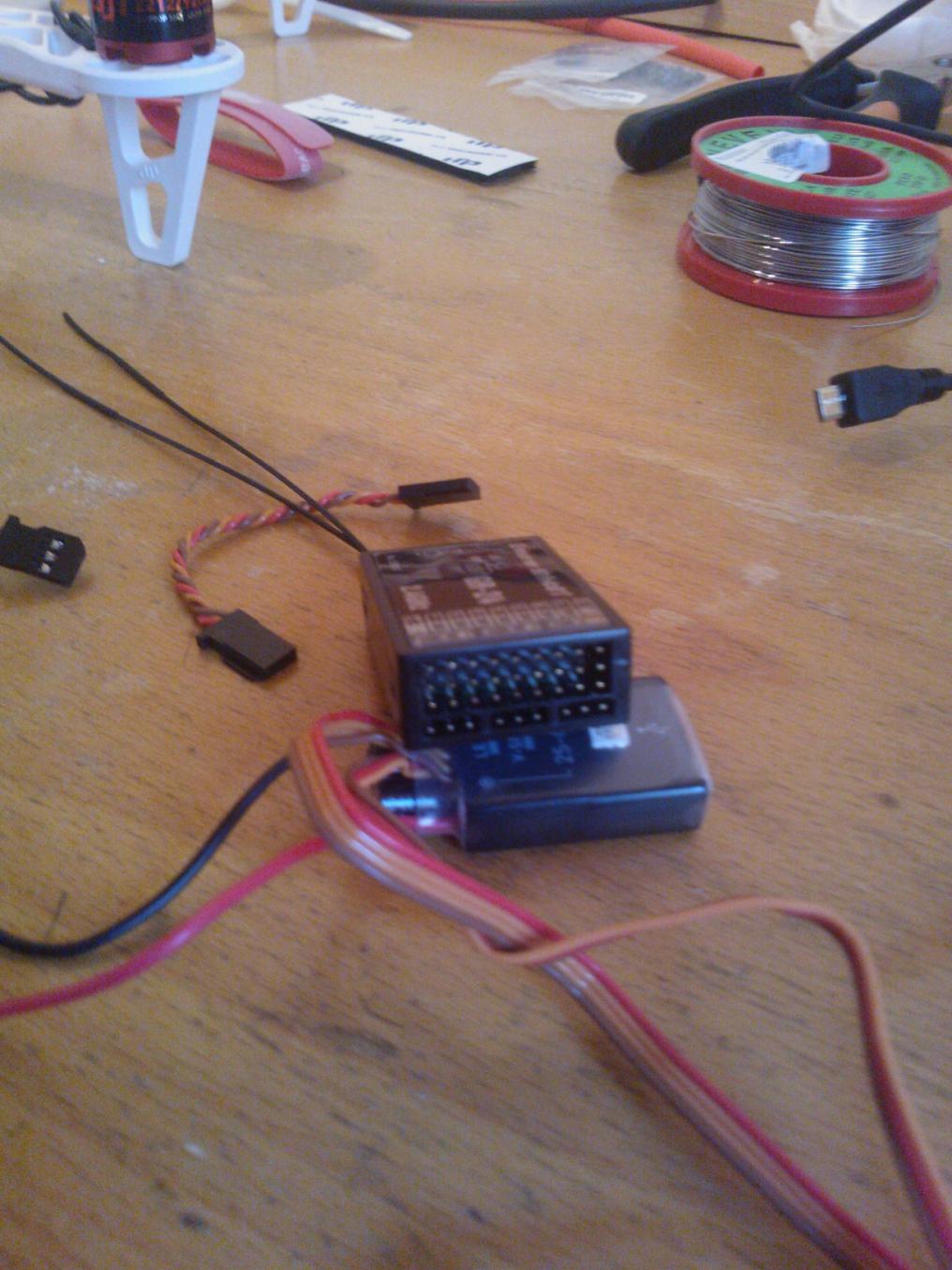

Hello, i´m trying to connect a naza f550 with the mx-20 but i´m probably missing something since the cables that connect the controller and the transmitter don´t fit the transmitter. In all vídeos i´ve seen i never seen someone having trouble with this. Pictures below. View attachment 5895View attachment 5897View attachment 5896



[Speedy67]

You have to remove the noses from the plugs on receivers side. I used a dremel for it, a cutter will work too...



[heliuser]

thanks !!!!



[heliuser]

Also one doubt, is there a schema somewhere where i can find how to connect both. I mean on naza you have A T and so one and on the receiver side i have number 1, 2 ,3 ,4 ... by default what connects where ? thanks



[Speedy67]

Have a look on page 8 of this document:

http://download.dji-innovations.com/downloads/naza/en/NM_User_Manual_en.pdf

Cheers
Speedy
