Iftrontech Mondo Stinger 5.8GHz Video Transmitter - $149

Description:
A 5.8GHZ AV video transmitter from Iftrontech. Has been used but is in very good condition with very few signs of use. Comes with connection cable. USD $149.00

Schedule of Delivery:

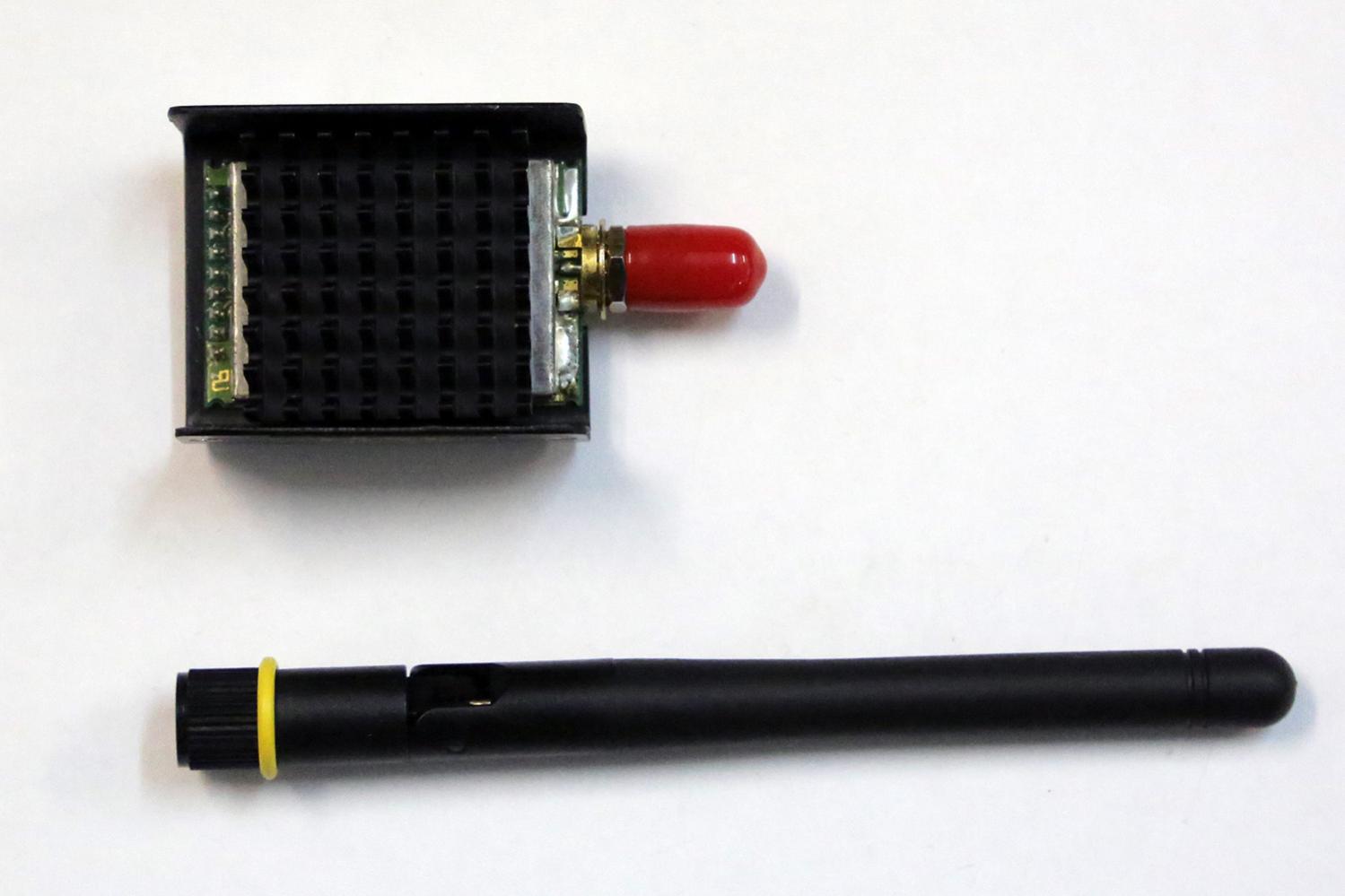

  • 1 Iftrontech Mondo Stinger transmitter
  • 1 Whip style antenna
  • 1 Connection cable, bare ends
Manufacturer's Description:
500MW of Iftron's wide band video clarity and a host of advanced features! Mondo Stinger 5.8 transmits NTSC or PAL/SECAM video, and 2 side channels at 500mw and provides outstanding range in the less polluted 5.8GHz band.

The microphone input features extreme sensitivity, yet the built-in Automatic Level Control (ALC) microphone preamp assures excellent quality sound over very large changes in input volume.

The second side channel may be used for line-level audio or medium baud rate serial data.

Exclusive built-in battery saver for 2 and 3 cell LiPo's.

Flexible input power, on-board switching power and dual side channels with preamp make Mondo Stinger 5.8 the most powerful and versatile transmitter in its class!

All Iftron Transmitters are Urethane Conformal Coated for moisture protection.

Comes with whip antenna and one of these Plug & Play Power/Video Cables (See pictue below) If you already have a camera that uses a 3 pin connector such as a KX191 or similar, please check the connector picture for wiring compatibility with your camera. If your camera is opposite of ours, please ask for a "REVERSE" or a "KX191"cable when ordering or you will have to reverse it yourself.

Specifications:
• Size: 1" x 1.5" x .675"
• Weight: 1.Oz (25g)
• Input Power: 6-17VDC, 2-4 LiPo cells (On-board Switching Regulator)
• Video Input: NTSC, PAL,SECAM 75 ohms
• Audio Mic Input: Condenser Microphone pads on baord
• Audio Line Input: 1Vpp pads on board
• Connectors: 1 x 6 pin power + camera, 1 x 3 pin 2 channel audio+gnd
• Output Power: 500mw (27dBm +/- 1dBm) typical
• Antenna: SMA Connector
• Camera Power: Input battery voltage less about 1 volt

Shipping:
Item is in Hong Kong.
Will ship internationally to anywhere it's possible to ship to.
Buyer pays shipping costs.
