XAircraft Fpv osd superx problems. Can't see camera image

[Pumpkinguy]

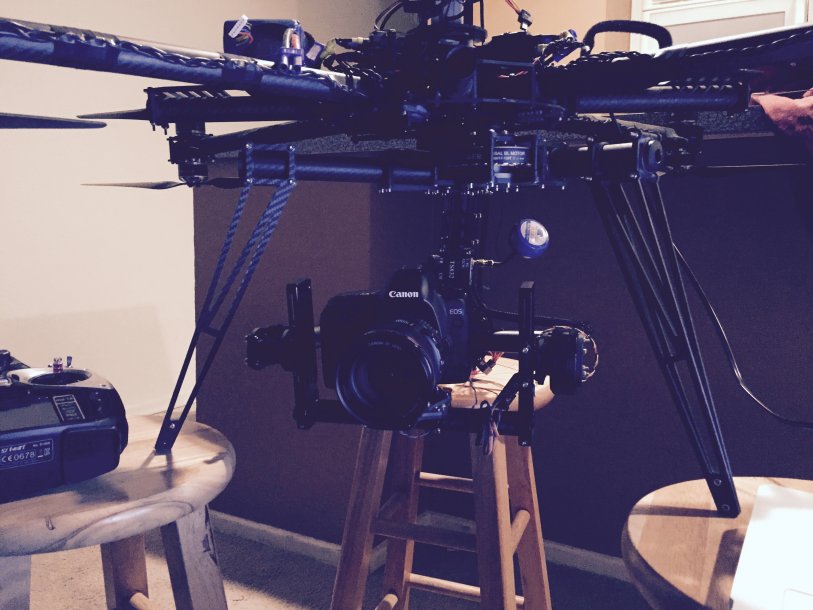

View attachment 22212 I've attached a pic of how I've wired it.
I have a fatshark 600 line fpv camera. Jumper is removed (nstc)
Immersion 600mw vtx.
I am getting osd info displayed on fpv monitor but no picture from the camera. I have verified settings in superx software. Camera 1 and nstc. To be honest I've tried every possible combination of camera 1, 2, nstc, pal.
Camera is verified working as I plugged into phantom.

Please help



[X650Mouse]

2 things! SuperX OSD uses the white wire where others use Yellow as video and ensure NTSC is set on all

X



[Pumpkinguy]

I figured it out. One pigtail was soldered to ground and camera 2 from the factory. When used as the video out I couldn't get any video to show up. When used as video in and switched the camera to video 2 in the software it works. What a cluster %#@$



[Banana Furikake]

2 things! SuperX OSD uses the white wire where others use Yellow as video and ensure NTSC is set on all

X

I figured it out. One pigtail was soldered to ground and camera 2 from the factory. When used as the video out I couldn't get any video to show up. When used as video in and switched the camera to video 2 in the software it works. What a cluster %#@$

Thanks for the info all!
