For sale are polycarbonate domes for DJI F450 frames. The cost is $25 plus shipping for a standard hemisphere dome or $29 plus shipping for a hemisphere dome with a removable GPS sensor protection/mounting pocket.
You can order online at www.BadgerFly.com

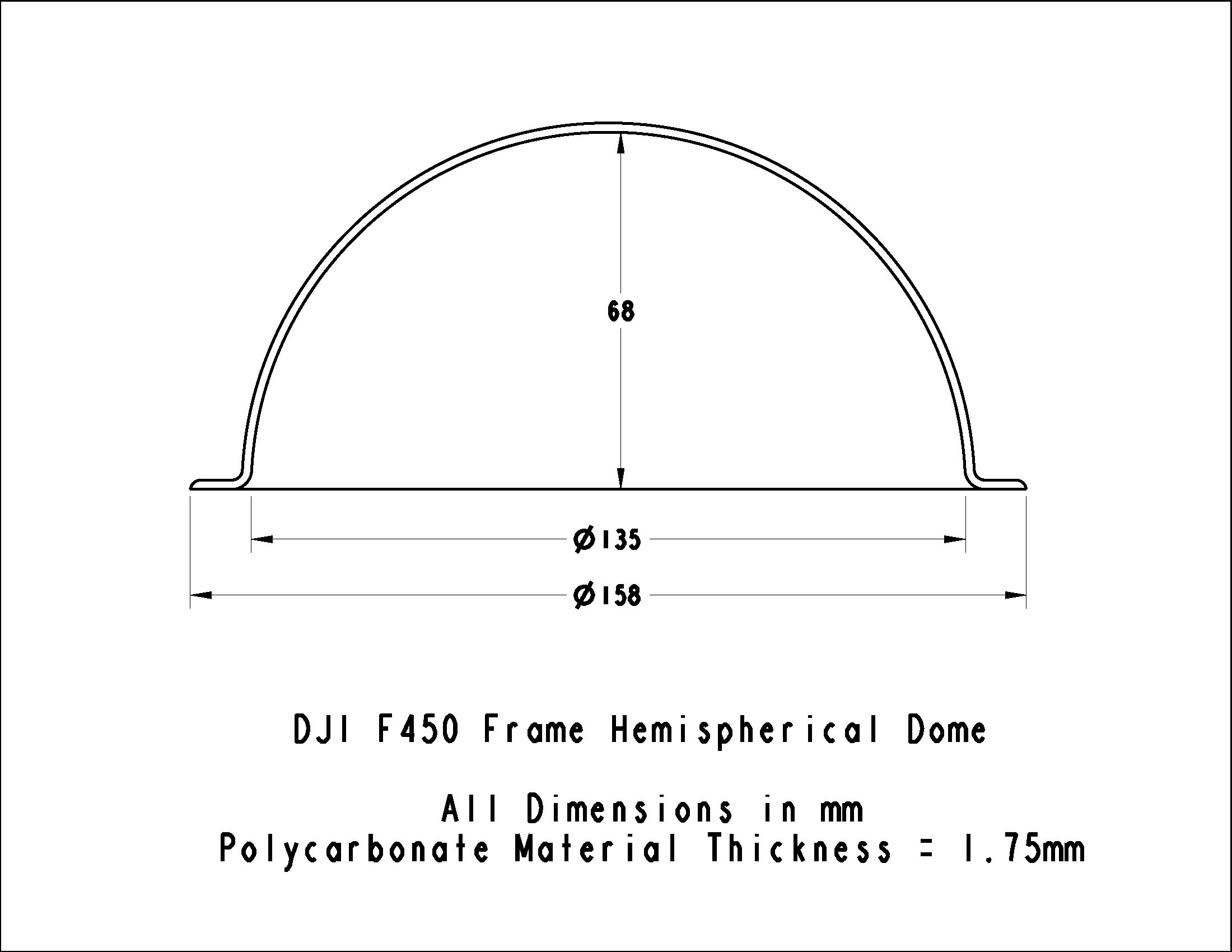

DJI F450 frame hemisphere dome dimensions: 135mm inside diameter, 68mm from flat flange to inside top of dome, 158mm diameter of flat flange.
Clear Polycarbonate Material
0.080" thick (2mm) clear polycarbonate dome weighs about 68 gms and is very strong to protect those expensive electronics. Polycarbonate (Lexan, Makrolon, etc) is the strongest plastic and won't shatter like acrylic, PET-G, and other clear plastics that you can buy at a cheaper price. These are the real deal if you care about your electronics!

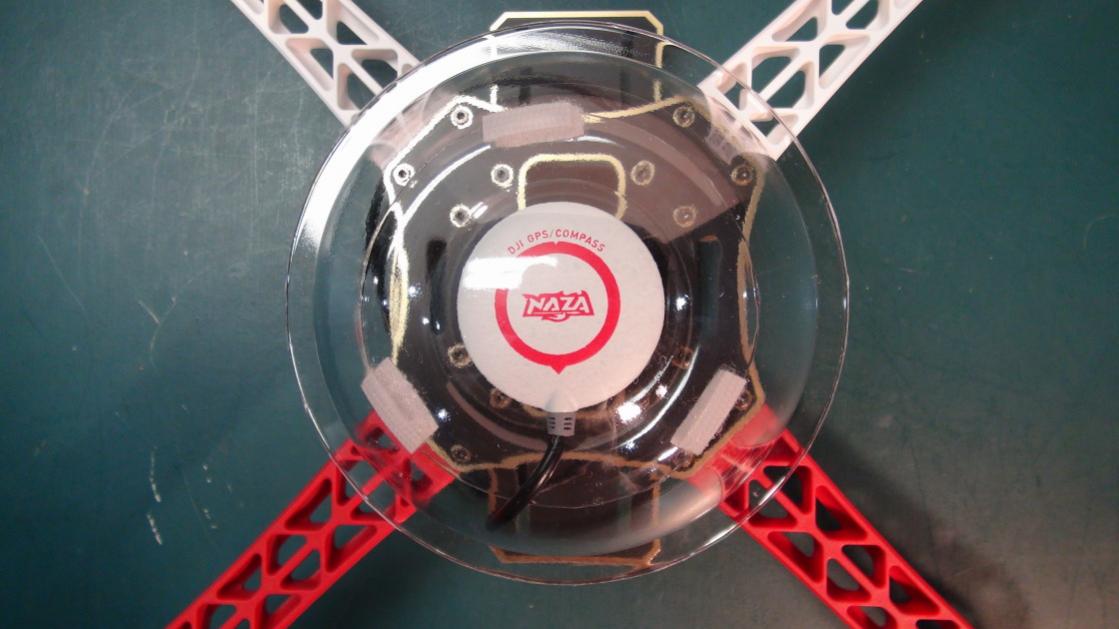

The dome can be mounted using velcro to the F450 frame or with wire ties, etc.

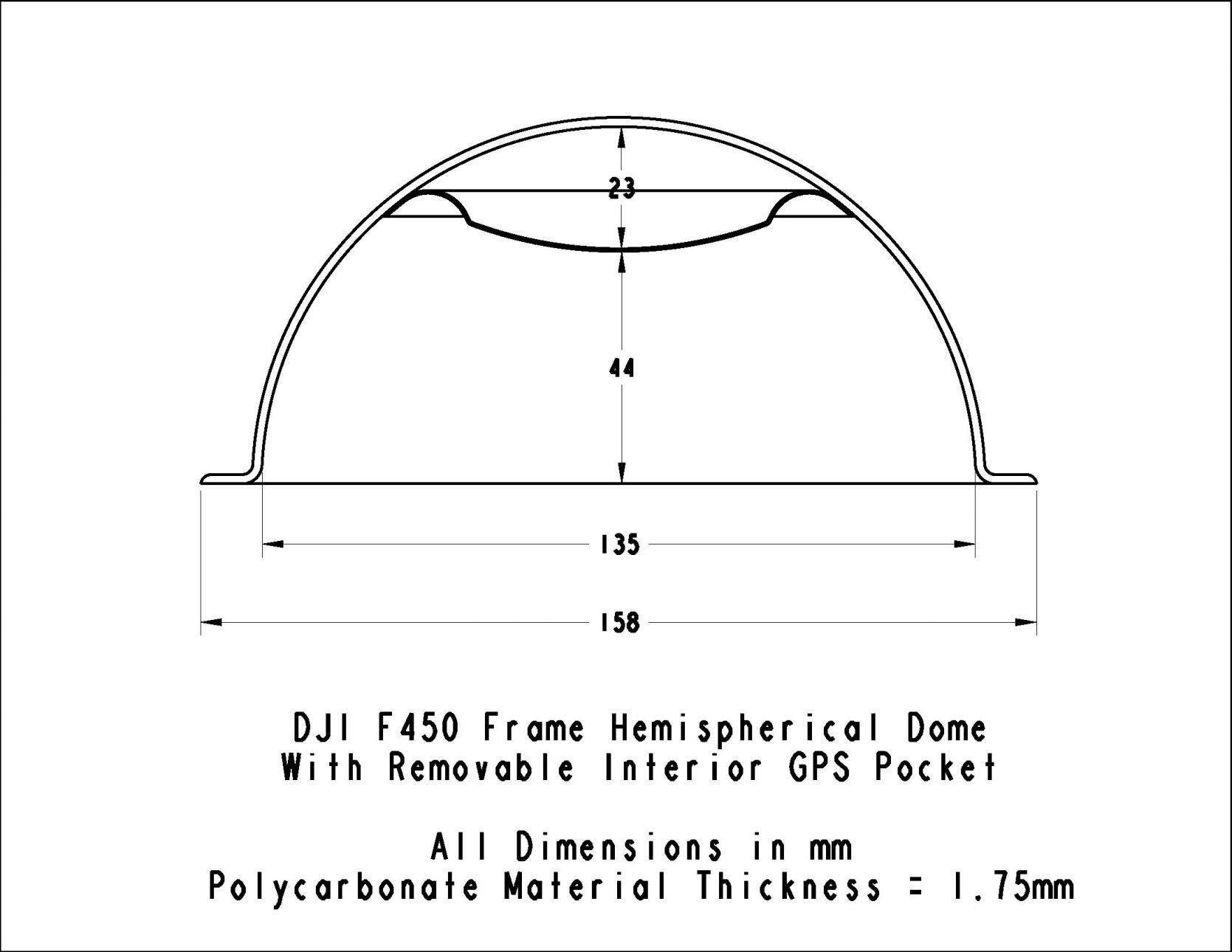

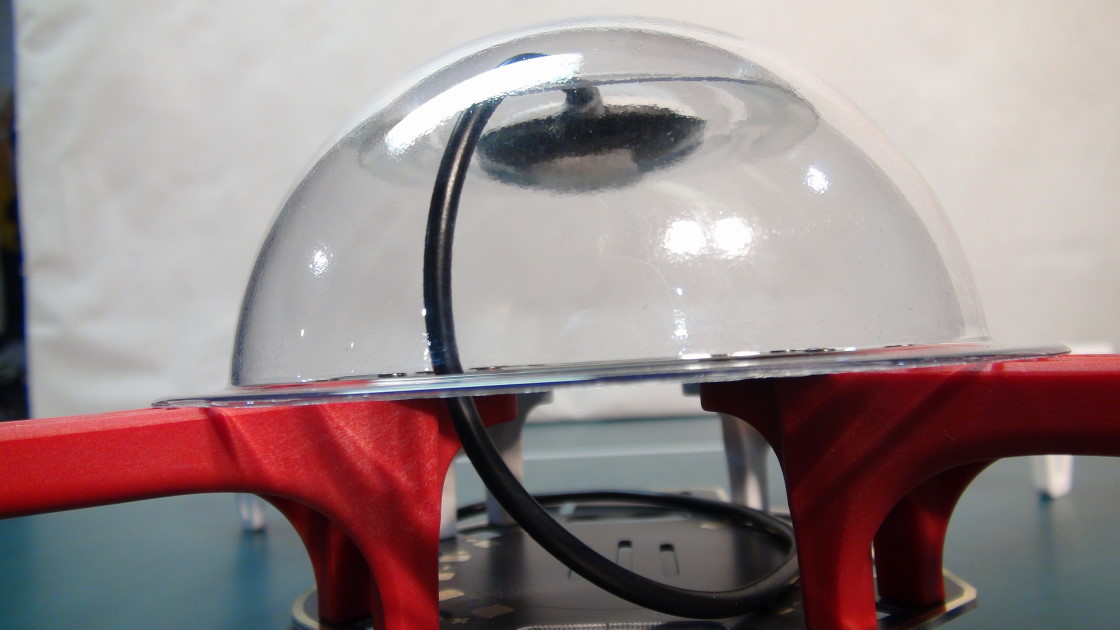

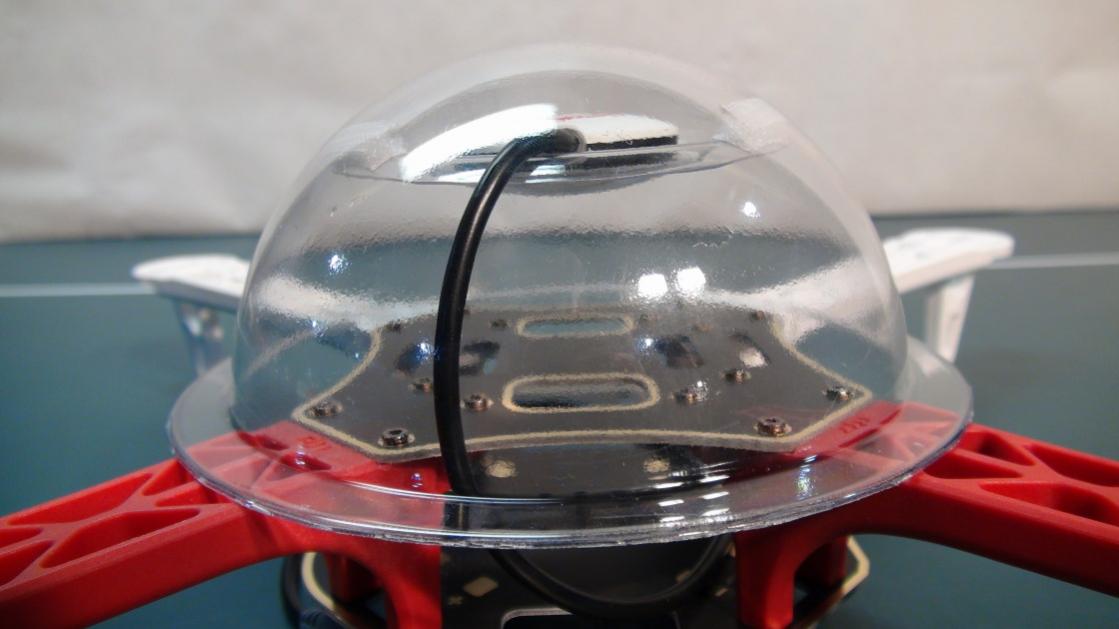

This hemispherical dome can be purchased alone or with an optional GPS sensor unit pocket. The pocket fits perfectly at the top of the underside of the dome to protect the sensitive GPS unit or other electronics that need to be mounted above the flight control board. It can be attached with velcro or with nylon or aluminum screws (steel screws will affect the GPS signal). The mounting hardware is not included. Polycarbonate plastic will not affect the GPS signal.
View attachment 9250View attachment 9249View attachment 9251View attachment 9252View attachment 9253View attachment 9254View attachment 9255View attachment 9256
