News Camflite New Ascent and Versa sUAS

Discussion in 'Commercial sUAS Remote Pilots Discussions' started by droneadmin, Oct 2, 2021.

  1. droneadmin

    droneadmin Administrator Staff Member

    124
    20
    21
    Jan 1, 2016
    Posted by droneadmin, Oct 2, 2021 #1
    X Specifications


    • Motors: 4-T-Motor U8II
    • Propeller size: 29”
    • Weight: ~14.5 lbs. / ~6.5 kg
    • Max payload: ~8.7 lbs. / ~3.9 kg1
    • MTOW: 37 lbs. / 17kg
    • Power: 16Ah to 44Ah @ 44v1
    • Flight time: ~10 – 45 minutes1
    • Control range: ~5 miles / ~8 km
    • Max speed: 65 mph / 100 km/h
    • Dust & water-resistant
    • Power plant(s) 1,000 hour TBO
    • Maximum thrust ~64 lbs. / ~29 kg



    X8 Specifications


    • Motors: 8-T-Motor U8II
    • Propeller size: 29”
    • Weight: ~19 lbs. / ~8.6 kg1
    • Max Payload: ~15 lbs. ~6.8 kg1
    • MTOW 2: 25+ lbs. / 11 kg
    • Power: 16Ah to 44Ah @ 44v1
    • Flight time: ~10 – 35 minutes1
    • Control range: ~ 5 miles / ~8 km
    • Max speed: 65 mph / 100 km/h
    • Dust & water-resistant
    • Power plant(s) 1,000 hour TBO
    • Maximum thrust ~128 lbs. / ~58 kg





    Additional Specifications
    • Diagonal Wheelbase: 1,200mm
    • Autopilot: Pixhawk 2.1 / CUBE, Orange (Made in Taiwan)
    • FPV Video: High Definition FPV Video
    • Ingress Protection: Water & Dust Protected (IP Testing In Progress)
    • Ground Station Controller: your choice of radio
    • External Power: 5v, 12v, 24v, 50v
    • External Communications: SBus / Serial
    • External Video: Supported through external HDMI Connector

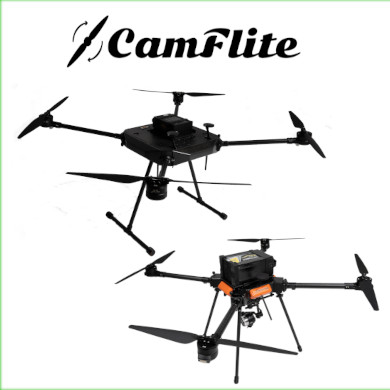

    mag ad.jpg
