Batteries and tray for the S-800

srbell

srbell

Member
Just saw that HK has some 8000mAh Turnigy nano-tech batteries in stock. What do you guys think about running 2 in parallel? Too much weight? They're 1400g each. Ultimately I want to mount a Photo Higher Hero gimbal when it's available and a Nikon D800. That in itself with lens comes in at just under 2000g. Nikon should make lighter cameras! Something else I noticed on the new DJI FAQ section of the S-800, it states a battery tray is included. All I've got are a couple of very large velcro straps. Anyone actually seen a battery tray?






srbell

srbell

Member
Still looking for battery recommendations. I've been thinking of a number of option, most are Zippy or Nanotech.

One 8AH
Two 5AH
Two 6AH
Or two 8AH Nanotech's.

I've got a bunch of 6cell 5AH packs for my TRex, but they're getting old and low on capacity. Ideas anyone?



E

Eoin

Member
Hi,
I've tried the Zippys and Nanotech amongst others. Both are good. Recently I was pointed to the Giant Power batteries by my local RC Shop guy.
I have to say they are definitely the best I have come across. I bought two 5000 MAh 35c to play with and after abusing them quite a lot they are still like new when I check them on my cellpro powerlab
On the scales they weigh within 4 grams of each other.
I buy from radiocontrolledshop.ie
I can't give a direct link at the moment as their server seems to be down but here's the same make I found after a google search,
http://www.myhotgears.com/rconline/index.php?route=product/product&manufacturer_id=23&product_id=101
I don't know anything about this vendor.
Hope this helps,
Eoin


E

Eoin

Member
I forgot to say that I have been mounting 2 of the 5000mah on my S800 with a weight slightly under 1500 grams


srbell

srbell

Member
rsun said:
Maxamps 6s 11000 mAh.
Click to expand...

Are these really 1200grams? That's pretty amazing considering the Nano's are 1400 for 8ah. $399 seems a bit steep considering I'd want 4 or 5... Can you check the weight if you have time? Thanks!


V

vislaw

Member
srbell said:
Are these really 1200grams? That's pretty amazing considering the Nano's are 1400 for 8ah. $399 seems a bit steep considering I'd want 4 or 5... Can you check the weight if you have time? Thanks!
Click to expand...

The Maxamps 1100 6S is 158mm x 59mm x 62mm and weighs a total of 1220g with connectors. They are the best power to weight ratio I have found.

[FONT=Arial, Helvetica, sans-serif]
[/FONT]




BorisS

BorisS

Drone Enthusiast
Would be a very strange one if they didn't consider that a 8000 10000 Mah 6s should fit. Remembering that they once advertised 15000 mAh for the s800

Boris


skivvie

skivvie

Member
Anyone else care to chime in on what they are running on their S800? I think it might be time to pull mine out of the case and I need some power!

What would the max weight for batteries be if the Zenmuse is 1.6KG with camera? I can't figure out the specs on the DJI site... is the Frame total weight including the Motors and ESC and Props?

[h=2]Frame[/h]
Diagonal Wheelbase800mm
Frame Arm Length350mm
Frame Arm Weight
(Including Motor, ESC, Propeller )		304g
Center Frame Diameter240mm
Center Frame Weight365g
Bi-pod Size500mm(Length)×415mm(Width)×320mm(Height)
(Top width: 145mm)
Bi-pod Weight428g
Total Weight2.6Kg
[h=2]Flight Parameters[/h]
Takeoff Weight5.0Kg ~ 7.0Kg
Load Weight0Kg ~ 2.5Kg
Power BatteryLiPo (6S、10000mAh~15000mAh、15C(Min))
Max Power Consumption2100W
Hover Power Consumption720W(@ Takeoff Weight 6Kg)
Hover TimeMax: 16 min
(@10000mAh&6KgTakeoff Weight)

[h=2]Motor[/h]
Stator Size41×14mm
KV320rpm/V
Max Power360W
Weight147g
[h=2]ESC[/h]
Current40A OPTO
Voltage6S LiPo
Signal Frequency30Hz ~ 450Hz
Drive PWM Frequency24KHz
Weight18g
[h=2]Propeller[/h]
MaterialCarbon Fiber
Size15×04in
Weight15g

Last edited by a moderator:

J

jrb

New Member

Attachments

  • 14fd3b5a069923db9e60_1.jpg
    3.1 KB · Views: 208

srbell

srbell

Member
You're gong to need two of them. At that price you'd be better with maybe a Nanotech 6s 8ah battery instead. A little less capacity, but known properties. That is unless these are the cells Maxamps is using lol!


jrb said:
Can I use this type of battery for the S800?

http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=330730975438&ssPageName=ADME:X:AAQ:US:1123
Rated capacity[FONT=&amp]：[/FONT]10000MAH
full charged voltage : 12.6V​

Rated voltage : 11.1V
​

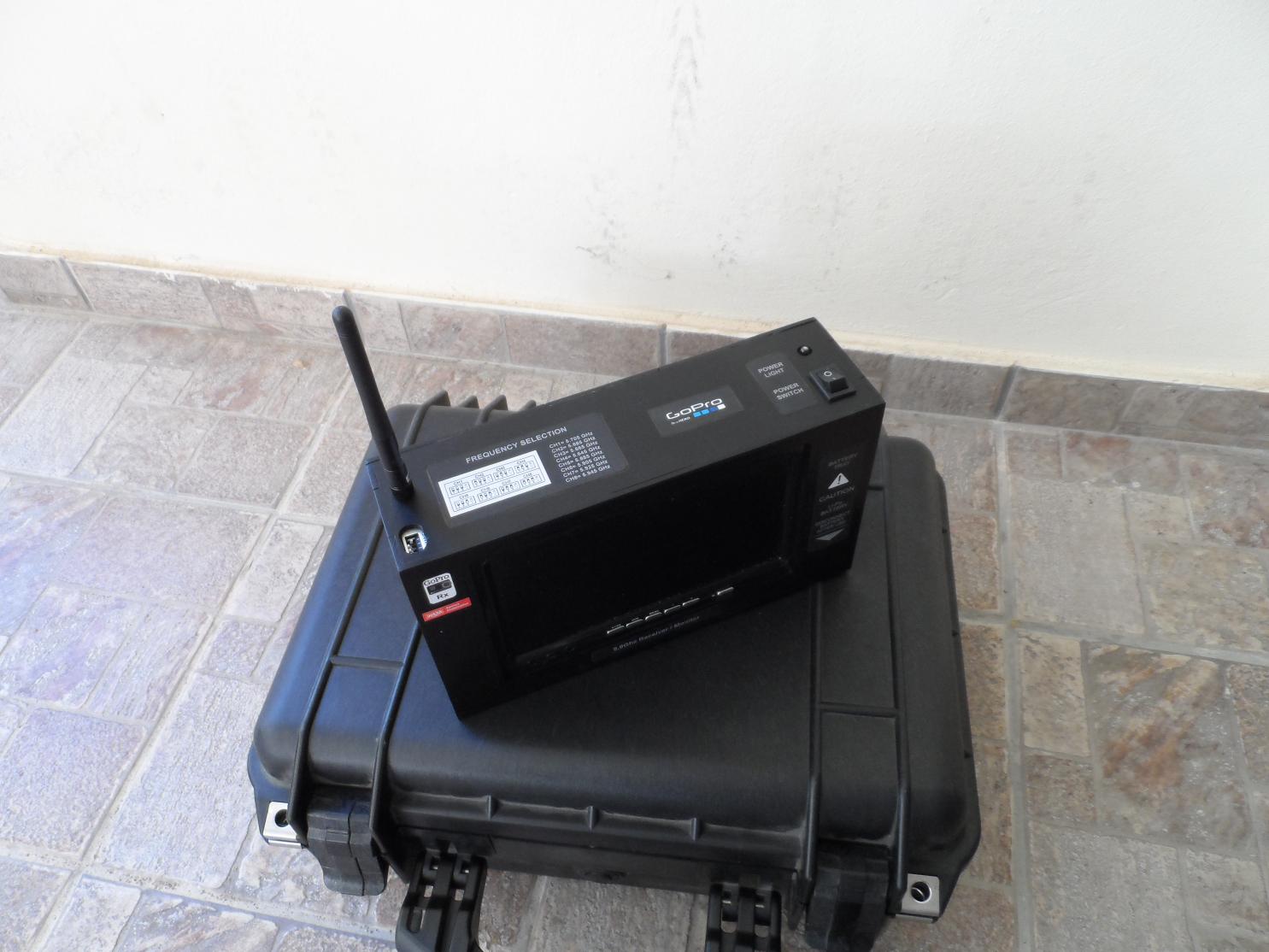

View attachment 6533

And if so, what size would fit best?
Size one :[FONT=&amp] 15CM*12CM*3CM[/FONT]

[FONT=&amp]Size two [/FONT][FONT=&amp]：[/FONT][FONT=&amp]22CM*6.7CM*3CM[/FONT]
​
Click to expand...


J

jrb

New Member
Thanks for info srbell

I have already bought one, but the seller ask me for the size. Maybe I then should just buy the two here and try them out?

But could you tell me what size you think will be the best/fit for the battery tray? (I ordered the DJI 800 custom battery panel http://www.omgfly.com/index.php?main_page=product_info&cPath=1_21&products_id=484)
But I cant see sizes/measurements and have never done this before :)

Question #2
I have also ordered the Walkera DEVO 10 Radio w/RX1002 10 Channel 2.4Ghz Transmitter
But I see the RX1002 runs on Power supply: 4.8V-6V 1300mAH (Does this need another dedicated battery or do I set up a power eliminator in before the RX1002?

I see I will be needing a lot of forum help to get this baby up and running :)

Appreciate all the help I can get ! Thanks!


srbell

srbell

Member
You should be able to use just about any size with that battery tray. Looks like more than enough options for your velcro. As for powering your RX, you'll get that from your WooKong M flight controller at the correct voltage. No worries there.

jrb said:
Thanks for info srbell

I have already bought one, but the seller ask me for the size. Maybe I then should just buy the two here and try them out?

But could you tell me what size you think will be the best/fit for the battery tray? (I ordered the DJI 800 custom battery panel http://www.omgfly.com/index.php?main_page=product_info&cPath=1_21&products_id=484)
But I cant see sizes/measurements and have never done this before :)

Question #2
I have also ordered the Walkera DEVO 10 Radio w/RX1002 10 Channel 2.4Ghz Transmitter
But I see the RX1002 runs on Power supply: 4.8V-6V 1300mAH (Does this need another dedicated battery or do I set up a power eliminator in before the RX1002?

I see I will be needing a lot of forum help to get this baby up and running :)

Appreciate all the help I can get ! Thanks!
Click to expand...
